Figure 8.18 Sample chromatogram obtained during the PACIFIC 2001 ﬁeld study. Peak labels: 1. 2,4-dnph derivatizing agent; 2. formaldehyde-DNPH; 3.

acetaldehyde-DNPH; 4. acetone-DNPH; 5. propanal-DNPH; 6. glyoxal-DNPH; 7. methylglyoxal-DNPH; 8. pinonaldehyde-DNPH; 9. nonanal-DNPH. (Reproduced

with permission from Liggio & McLaren, 2003), Taylor and Francis Ltd., http://www.tandf.co.uk/journals)

Chromatographic Methods 399

100

NL: 1.47E7

TIC

100

NL: 8.53E6

/z = 185

Pinic acid

100

NL: 4.42E6

/z = 183 + 243

Pinonic acid

100

NL: 7.90E5

/z = 169 + 229

Pinalic acid, norpinonic acid

100

NL: 4.50E5

/z = 197 + 257

Keto-pinonic acids

Retention time (min)

NL: 2.51E6

/z = 199 + 259

10 12 14 16 18

100

OH-pinonic acids

642

Relative abundance

100

NL: 6.42E6

/z = 171 + 231

172

Norpinic acid

Figure 8.19 TIC and extracted ion chromatogram of a samples from -pinene-ozonolysis analysed in

the ESI(-) mode. (Reproduced with permission from Winterhalter et al., 2003.)

400 Analytical Techniques for Atmospheric Measurement

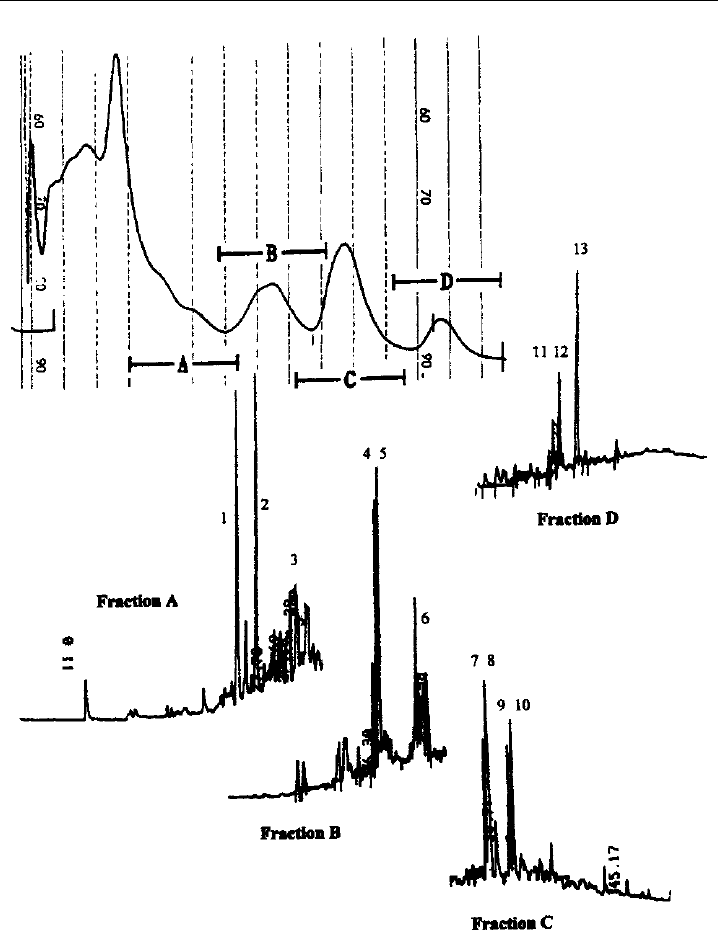

Figure 8.20 LC and GC chromatograms of extracted PAH from urban air particulates collected during

October 1994. 1. ﬂuoranthene; 2. pyrene; 3. methyl pyrenes; 4. benz[a]anthracene; 5. chrysene; 6. methyl

chrysenes; 7. benzo[b]ﬂuoranthene; 8. benzo[k]ﬂuoranthene; 9. benzo[e]pyrene; 10. benzo[a]pyrene;

11. indeno[1,2,3-cd]pyrene; 12. dibenzo[ah]anthracene; 13. benzo[ghi]perylene. (From Lewis et al.,

1995, reproduced with permission from Elsevier.)

Chromatographic Methods 401

equipment at the core of many atmospheric instruments, a spin-off from the enormous

industrial and commercial usage of chromatographic techniques.

Since chromatographic techniques are some of the most historically mature in

atmospheric chemistry, future developments are likely to be incremental rather than step-

change. The reliability and accuracy of GC methods is their key strength and this is only

likely to improve as commercially available instrumentation, and in particular GC-MS,

which forms the core of many field instruments, develops. Atmospheric measurements

may provide some very useful applications for miniaturised GC systems, an area which

is beginning to show promise in developmental laboratories. The chemical- and photo-

etching technology for production of microfabricated columns onto silica monolith

structures has been around for a number of years, but extending into real applications

has been limited by detectors. Semiconductor chip–sized thermal conductivity detectors

have been the first truly miniaturised detectors to emerge, but it seems only a matter of

time before microfabricated ionisation detectors such as PID and HID are produced with

the requisite levels of sensitivity for atmospheric applications. The enormous size and

electrical power savings that may result from miniaturisation may open up new areas of

measurements that have previously only been done using offline chemical methods.

Some of the developments in comprehensive chromatography and the ability to resolve

organic compounds in exceedingly high complexity mixtures have been an important

step forward. A valuable by-product of comprehensive methods has been the ability to

directly introduce heterogeneous samples such as aerosols to the analytical system without

sample preparation or clean-up. Saving labour time is an obvious benefit, but importantly

the reduction in amount of material required for analysis improves both measurement

resolution and detection limits. As high complexity methods reach maturity, however,

it is likely that it will be data interpretation that becomes the rate-determining step

in the analytical procedure. This may require us to consider adopting data-handling

technologies associated with image processing to find ways in which useful and timely

information can be extracted from chemical methods with such high levels of detail.

Liquid chromatography methods and LC coupled to mass spectrometry do offer real

potential for the future. State-of-the-art coupled LC-MS techniques (using TOF and

double or triple quadrupole MS) now offer similar or better detection limits to LC-

fluorescence techniques and have improved greatly in terms of reliability, sensitivity and

ease of use since the second half of 1990s. This improvement has been driven primarily

by the wide uptake of the technique by the bioscience and pharmaceutical communities.

Clearly MS as a detector has superior discrimination powers and it seems likely that it

may slowly replace non-selective detectors in a number of applications. The use of high

resolution LC for the analysis of polar and ionic compounds is perhaps underutilised

at present, and there are continuing detection and resolution problems with methods

built around industry standard, 4.6 mm i.d. columns. The use of capillary LC (cap-LC)

or microbore LC in atmospheric applications has been very limited indeed, but may

go some considerable way towards overcoming these limiting factors. The inherently

small sample capacity of cap-LC will always be a challenge and reinforces that sample

preparation cannot be underestimated in its importance. It is for sample capacity–related

reasons that there has yet to be any take-up of capillary electrochromatography (CEC) in

atmospheric applications and only very limited use of electrophoresis, but it is in using

electrically driven systems, however, that perhaps the most exciting possibilities for very

large volume sample pre-concentration may lie.

402 Analytical Techniques for Atmospheric Measurement

Further reading

Dewulf, J. & Van Langenhove, H. (2002) Analysis of volatile organic compounds using gas

chromatography, Trac-Trends in Analytical Chemistry, 21 (9–10), pp. 637–646.

Fifield, F.W. & Kealey, D. (1995) Principles and Practice of Analytical Chemistry, CRC Press.

Fowlis, I.A. (1995) Gas Chromatography, Second edition, John Wiley & Sons.

Helmig, D. (1999) Air analysis by gas chromatography, J. Chromatogr. A, 843 (1–2), pp. 129–146.

Phillips, J.B. & Beens, J. (1999) Comprehensive two-dimensional gas chromatography: A

hyphenated method with strong coupling between the two dimensions, J. Chromatogr. A, 856

(1–2), pp. 331–347.

Santos, F.J. & Galceran, M.T. (2002) The application of gas chromatography to environmental

analysis, Trac-Trends Anal. Chem., 21 (9–10), pp. 672–685.

Skoog, D.A., West, D.M. & Holler, F.J. (2003) Fundamentals of Analytical Chemistry, eighth edition,

Brooks Cole.

http://www.separationsnow.com/basehtml/SepH

References

Aschmann, S.M., Arey, J. & Atkinson, R. (2003) Kinetics and products of the gas-phase reaction of

OH radicals with 5-hydroxy-2-pentanone at 296 +/− 2K,J. Atmos. Chem., 45 (3), pp. 289–299.

Bartle, K.D. & Lewis, A.C. (1996) A simplified method for the determination of atmospheric

hydrocarbons, LC-GC International, 9 (5), pp. 297–304.

Bartle, K.D. & Myers, P. (2002) History of gas chromatography, TRAC-Trends Anal. Chem.,21

(9–10), pp. 547–557.

Berresheim, H., Huey, J.W., Thorn, R.P., Eisele, F.L., Tanner, D.J. & Jefferson, A. (1998) Measure-

ments of dimethyl sulfide, dimethyl sulfoxide, dimethyl sulfone, and aerosol ions at Palmer

Station, Antarctica, J. Geophys. Res.-Atmos., 103 (D1), pp. 1629–1637.

Blake, D.R., Chen, T.Y., Smith, T.Y., Wang, C.J.L., Wingenter, O.W., Blake, N.J., Rowland, F.S.

& Mayer, E.W. (1996) Three-dimensional distribution of nonmenthane hydrocarbons and

halocarbons over the northwestern Pacific during the 1991 Pacific Exploratory Mission (PEM-

West A), J. Geophys. Res.-Atmos., 101 (D1), pp. 1763–1778.

Cecinato, A., Di Palo, V., Mabilia, R. & Possanzini, M. (2001) Pentafluorophenylhydrazine as a

coating reagent for the HRGC-MS determination of semi volatile carbonyl compounds in air,

Chromatographia, 54 (3–4), pp. 263–269.

Christian, T.J., Kleiss, B., Yokelson, R.J., Holzinger, R., Crutzen, P.J., Hao, W.M., Shirai, T. &

Blake, D.R. (2004) Comprehensive laboratory measurements of biomass-burning emissions: 2.

First intercomparison of open-path FTIR, PTR-MS, and GC-MS/FID/ECD, J. Geophys. Res.-

Atmos., 109 (D2), p. art-D02311.

Danis, F., Harris, N.R.P., Taylor, W.H., McIntyre, J.D., Simmonds, P.G., & Pyle, J.A. (2000)

DESCARTES: A novel lightweight balloon-borne instrument for measurement of halocarbons,

Rev. Sci. Instrum., 71 (1), pp. 271–280.

Docherty, K.S. & Ziemann, P.J. (2001) On-line, inlet-based trimethylsilyl derivatization for gas

chromatography of mono- and dicarboxylic acids, J. Chromatogr. A, 921 (2), pp. 265–275.

Druzik, C.M., Grosjean, D., Vanneste, A. & Parmar, S.S. (1990) Sampling of atmospheric carbonyls

with small Dnph-coated C18 cartridges and liquid-chromatography analysis with diode-array

detection, Int. J. Environ. Anal. Chem., 38 (4), pp. 495–512.

Grosjean, E., Green, P.G. & Grosjean, D. (1999) Liquid chromatography analysis of carbonyl

(2,4-dinitrophenyl)hydrazones with detection by diode array ultraviolet spectroscopy and by

Chromatographic Methods 403

atmospheric pressure negative chemical ionization mass spectrometry, Anal. Chem., 71 (9),

pp. 1851–1861.

Hamilton, J.F. & Lewis, A.C. (2003) Monoaromatic complexity in urban air and gasoline assessed

using comprehensive GC and fast GC-TOF/MS, Atmos. Environ., 37 (5), pp. 589–602.

Hamilton, J.F., Lewis, A.C. & Bartle, K.D. (2003a) Peak amplitude and resolution in comprehensive

gas chromatography using valve modulation, J. Separation Sci., 26 (6–7), pp. 578–584.

Hamilton, J.F., Lewis, A.C., Bloss, C., Wagner, V., Henderson, A.P., Golding, B.T., Wirtz, K.,

Martin-Reviejo, M. & Pilling, M.J. (2003b) Measurements of photo-oxidation products from the

reaction of a series of alkyl-benzenes with hydroxyl radicals during EXACT using comprehensive

gas chromatography, Atmos. Chem. Phys., 3, pp. 1999–2014.

Hamilton, J.F., Webb, P.J., Lewis, A.C., Hopkins, J.R., Smith, S. & Davy, P. (2004) Partially

oxidised organic components in urban aerosol using GCXGC-TOF/MS, Atmos. Chem. Phys.,4,

pp. 1279–1290.

Helmig, D. (1999) Air analysis by gas chromatography, J. Chromatogr. A, 843 (1–2), pp. 129–146.

Ho, S.S.H. & Yu, J.Z. (2002) Feasibility of collection and analysis of airborne carbonyls by on-

sorbent derivatization and thermal desorption, Anal. Chem., 74 (6), pp. 1232–1240.

Ho, S.S.H. & Yu, J.Z. (2004) Determination of airborne carbonyls: Comparison of a thermal

desorption/GC method with the standard DNPH/HPLC method, Environ. Sci. Technol., 38 (3),

pp. 862–870.

Hopkins, J.R., Lewis, A.C. & Read, K.A. (2003) A two-column method for long-term monitoring of

non-methane hydrocarbons (NMHCs) and oxygenated volatile organic compounds (o-VOCs),

J. Environ. Monit., 5 (1), pp. 8–13.

Kok, G.L., McLaren, S.E. & Staffelbach, T.A. (1995) Hplc Determination of Atmospheric Organic

Hydroperoxides, J. Atmos. Oceanic Technol., 12 (2), pp. 282–289.

Kok, G.L., Prevot, A.S.H., Schillawski, R.D. & Johnson, J.E. (1998) Carbon monoxide measurements

from 76 degrees N to 59 degrees S and over the South Tasman Sea, J. Geophys. Res.-Atmos., 103

(D13), pp. 16 731–16 736.

Lee, A.L., Bartle, K.D. & Lewis, A.C. (2001) A model of peak amplitude enhancement in orthogonal

two-dimensional gas chromatography, Anal. Chem., 73 (6), pp. 1330–1335.

Lee, Y.N., Weber, R., Ma, Y., Orsini, D., Maxwell-Meier, K., Blake, D., Meinardi, S., Sachse, G.,

Harward, C., Chen, T.Y., Thornton, D., Tu, F.H. & Bandy, A. (2003) Airborne measurement

of inorganic ionic components of fine aerosol particles using the particle-into-liquid sampler

coupled to ion chromatography technique during ACE-Asia and TRACE-P, J. Geophys. Res.-

Atmos., 108 (D23), p. art-8646.

Lewis, A.C., Bartle, K.D., McQuaid, J.B., Pilling, M.J., Seakins, P.W. & Ridgeon, P. (1996)

Atmospheric monitoring of volatile organic compounds using programmed temperature vapor-

ization injection, Hrc-J. High Resolution Chromatogr., 19 (12), pp. 686–690.

Lewis, A.C., Carslaw, N., Marriott, P.J., Kinghorn, R.M., Morrison, P., Lee, A.L., Bartle, K.D. &

Pilling, M.J. (2000) A larger pool of ozone-forming carbon compounds in urban atmospheres,

Nature, 405 (6788), pp. 778–781.

Lewis, A.C., Kupiszewska, D., Bartle, K.D. & Pilling, M.J. (1995) City-Center concentrations of

polycyclic aromatic-hydrocarbons using supercritical-fluid extraction, Atmos. Environ., 29 (13),

pp. 1531–1542.

Liggio, J. & McLaren, R. (2003) An optimized method for the determination of volatile and semi-

volatile aldehydes and ketones in ambient particulate matter, Int. J. Environ. Anal. Chem.,83

(10), pp. 819–835.

Liu, Z.Y., Patterson, D.G. & Lee, M.L. (1995) Geometric approach to factor-analysis for the

estimation of orthogonality and practical peak-capacity in comprehensive 2-dimensional separa-

tions, Anal. Chem., 67 (21), pp. 3840–3845.

Liu, Z.Y. & Phillips, J.B. (1991) Comprehensive 2-dimensional gas-chromatography using an on-

column thermal modulator interface, J. Chromatogr. Sci., 29 (6), pp. 227–231.

404 Analytical Techniques for Atmospheric Measurement

Marsella, A.M., Purdham, J.T. & Mabury, S.A. (2000) A new method for the measurement of

airborne formaldehyde using derivatization with 3,5-bis (trifluoromethyl) phenylhydrazine and

analysis by GC-ECD and GC-MS/SIM, Int. J. Environ. Anal. Chem., 76 (3), pp. 241–256.

Moortgat, G.K., Grossmann, D., Boddenberg, A., Dallmann, G., Ligon, A.P., Turner, W.V., Gab, S.,

Slemr, F., Wieprecht, W., Acker, K., Kibler, M., Schlomski, S. & Bachmann, K. (2002) Hydrogen

peroxide, organic peroxides and higher carbonyl compounds determined during the BERLIOZ

campaign, J. Atmos. Chem., 42 (1), pp. 443–463.

Nguyen, H.T.H., Takenaka, N., Bandow, H., Maeda, Y., de Oliva, S.T., Botelho, M.M.F. & Tavares,

T.M. (2001) Atmospheric alcohols and aldehydes concentrations measured in Osaka, Japan and

in Sao Paulo, Brazil, Atmos. Environ., 35 (18), pp. 3075–3083.

Oram, D.E., Reeves, C.E., Sturges, W.T., Penkett, S.A., Fraser, P.J. & Langenfelds, R.L. (1996)

Recent tropospheric growth rate and distribution of HFC-134a (CF3CH2F), Geophys. Res. Lett.,

23 (15), pp. 1949–1952.

Phillips, J.B. & Xu, J.Z. (1995) Comprehensive multidimensional gas-chromatography, J.

Chromatogr. A, 703 (1–2), pp. 327–334.

Prinn, R.G., Weiss, R.F., Fraser, P.J., Simmonds, P.G., Cunnold, D.M., Alyea, F.N., O’Doherty, S.,

Salameh, P., Miller, B.R., Huang, J., Wang, R.H.J., Hartley, D.E., Harth, C., Steele, L.P.,

Sturrock, G., Midgley, P.M. & McCulloch, A. (2000) A history of chemically and radiatively

important gases in air deduced from ALE/GAGE/AGAGE, J. Geophys. Res.-Atmos., 105 (D14),

pp. 17 751–17 792.

Purvis, R.M., Lewis, A.C., Carney, R.A., McQuaid, J.B., Arnold, S.R., Methven, J., Barjat, H., Dewey,

K., Kent, J., Monks, P.S., Carpenter, L.J., Brough, N., Penkett, S.A. & Reeves, C.E. (2003) Rapid

uplift of nonmethane hydrocarbons in a cold front over central Europe, J. Geophys. Res.-Atmos.,

108 (D7), p. art-4224.

Rivett, A.C., Martin, D., Nickless, G., Simmonds, P.G., O’Doherty, S.J., Gray, D.J. & Shallcross, D.E.

(2003) In situ gas chromatographic measurements of halocarbons in an urban environment,

Atmos. Environ., 37 (16), pp. 2221–2235.

Sanchez, C., Carlsson, H., Colmsjo, A., Crescenzi, C. & Batlle, R. (2003) Determination of nitroaro-

matic compounds in air samples at femtogram level using C-18 membrane sampling and on-line

extraction with LC-MS, Anal. Chem., 75 (17), pp. 4639–4645.

Sin, D.W.M., Wong, Y.C., Sham, W.C. & Wang, D. (2001) Development of an analytical technique

and stability evaluation of 143 C-3-C-12 volatile organic compounds in Summa((R)) canisters

by gas chromatography-mass spectrometry, Analyst, 126 (3), pp. 310–321.

Singh, H.B., Salas, L.J., Chatfield, R.B., Czech, E., Fried, A., Walega, J., Evans, M.J., Field, B.D.,

Jacob, D.J., Blake, D., Heikes, B., Talbot, R., Sachse, G., Crawford, J.H., Avery, M.A., Sandholm,

S. & Fuelberg, H. (2004) Analysis of the atmospheric distribution, sources, and sinks of

oxygenated volatile organic chemicals based on measurements over the Pacific during TRACE-P,

J. Geophys. Res.-Atmos., 109 (D15), p. art-D15S07.

Urhahn, T. & Ballschmiter, K. (2000) Analysis of halogenated C-1/C-2-trace compounds in marine

atmosphere, Fresenius J. Anal. Chem., 366 (4), pp. 365–367.

Vairavamurthy, A., Roberts, J.M. & Newman, L. (1992) Methods for determination of low-

molecular-weight carbonyl-compounds in the atmosphere, Atmos. Environ. Part A – Gen. Top.,

26 (11), pp. 1965–1993.

Van den Bergh, V., Coeckelberghs, H., Vanhees, I., De Boer, R., Compernolle, F. & Vinckier, C.

(2002) HPLC-MS determination of the oxidation products of the reaction between alpha- and

beta-pinene and OH radicals, Anal. Bioanalytical Chem., 372 (5–6), pp. 630–638.

van Deursen, M., Beens, J., Reijenga, J., Lipman, P., Cramers, C. & Blomberg, J. (2000) Group-type

identification of oil samples using comprehensive two-dimensional gas chromatography coupled

to a time-of-flight mass spectrometer (GC × GC-TOF), HRC-J. High Resolution Chromatogr.,

23 (7–8), pp. 507–510.

Chromatographic Methods 405

Welthagen, W., Schnelle-Kreis, J. & Zimmermann, R. (2003) Search criteria and rules for compre-

hensive two-dimensional gas chromatography-time-of-flight mass spectrometry analysis of

airborne particulate matter, J. Chromatogr. A, 1019 (1–2), pp. 233–249.

Whalley, L.K., Lewis, A.C., McQuaid, J.B., Purvis, R.M., Lee, J.D., Stemmler, K., Zellweger, C. &

Ridgeon, P. (2004) Two high-speed, portable GC systems designed for the measurement of non-

methane hydrocarbons and PAN: Results from the Jungfraujoch High Altitude Observatory,

J. Environ. Monit., 6 (3), pp. 234–241.

Winterhalter, R., Van Dingenen, R., Larsen, B.R., Jensen, N.R. & Hjorth, J. (2003) LC-MS analysis

of aerosol particles from the oxidation of a-pinene by ozone and OH-radicals, Atmos. Chem.

Phys. Discuss., 3, pp. 1–39.

Xu, X., Williams, J., Plass-Dulmer, C., Berresheim, H., Salisbury, G., Lange, L. & Lelieveld, J. (2003)

GC×GC measurements of C-7-C-11 aromatic and n-alkane hydrocarbons on Crete, in air from

Eastern Europe during the MINOS campaign, Atmos. Chem. Phys., 3, pp. 1461–1475.

Zellweger, C., Ammann, M., Buchmann, B., Hofer, P., Lugauer, M., Ruttimann, R., Streit, N.,

Weingartner, E. & Baltensperger, U. (2000) Summertime NOy speciation at the Jungfraujoch,

3580 m above sea level, Switzerland, J. Geophys. Res.-Atmos., 105 (D5), pp. 6655–6667.

Chapter 9

Measurement of Photolysis Frequencies

in the Atmosphere

Andreas Hofzumahaus

9.1 Introduction

9.1.1 Photolysis reactions in atmospheric chemistry

The absorption of ultraviolet (UV) and visible solar radiation by atmospheric molecules

followed by their dissociation plays a fundamental role in atmospheric chemistry. The

photolysis of gaseous compounds contributes to their removal from the atmosphere, but

probably the most important role played by these reactions is the generation of highly

reactive atoms and radicals. Some examples of relevant reactions are given in Table 9.1,

where reactions are listed in the order of their maximum wavelength for which photolysis

occurs.

Probably the most important photolysis reactions are the ones that result in the

formation of O

and OH radicals, the major atmospheric oxidants. In the stratosphere,

formation of ozone proceeds via the photodissociation of molecular oxygen into ground-

state oxygen atoms O

P, which combine with O

in a termolecular collision process

yielding O

molecules:

+h −→ O

P +O

P (R 9.1)

O

P +O

+M −→ O

+M (R 9.2)

Reaction R 9.1 can occur only at wavelengths less than 243 nm. The threshold corresponds

to the minimum photon energy h = hc/, which is required for the dissociation of O

into O

P atoms. Here  and  denote the wavelength and frequency of the photons,

respectively, h is Planck’s constant (6626×10

−34

J·s), and c is the speed of light (29979×

m ·s

−1

in vacuum).

Reaction R 9.1 followed by R 9.2 is the main source of stratospheric ozone which

efficiently absorbs all solar radiation below 290 nm when passing into the lower

atmosphere. The removal of short-wave UV prevents that ozone formation can take place

in the troposphere via R9.1. Rather, photochemical ozone formation in the troposphere

Measurement of Photolysis Frequencies in the Atmosphere 407

Table 9.1 Examples of photolysis reactions in the atmosphere

Photolysis reaction

Wavelengths

(nm) Photolysis frequency

s

−1



0km 25km

+h −→ O

P +O

P<243 43 ×10

−26

12 ×10

−11

O +h −→ O

D +N

<250 18 ×10

−23

25 ×10

−8

CCl

F +h −→ CCl

F +Cl <250 43 ×10

−22

51 ×10

−7

+h −→ O

D +O

a



<325

51 ×10

−5

11 ×10

−4

CHO +h −→ CH

+HCO <335 64 ×10

−6

13 ×10

−5

HCHO +h −→ H +HCO <340 33 ×10

−5

62 ×10

−5

OOH +h −→ CH

O +OH <350 57×10

−6

99 ×10

−6

+h −→ OH +OH <350 77 ×10

−6

12 ×10

−5

HNO

+h −→ OH +NO

<350 82 ×10

−7

56 ×10

−6

HCHO +h −→ H

+CO <360 44 ×10

−5

76 ×10

−5

HONO +h −→ OH +NO <400 19 ×10

−3

28 ×10

−3

+h −→ O

D +O

X



−

<411

––

+h −→ NO +O

P<420 88 ×10

−3

12 ×10

−2

HOCl +h −→ OH +Cl <420 26 ×10

−4

41 ×10

−4

+h −→ Cl +Cl <490 24 ×10

−3

35 ×10

−3

+h −→ NO

+O

P<640 28 ×10

−1

30 ×10

−1

+h −→ NO +O

580–640 25 ×10

−2

27 ×10

−2

+h −→ O

P +O

X



−

<1180 42 ×10

−4

50 ×10

−4

HNO

+h −→ HO

+NO

1450

––

Spectral and photochemical data can be found in, e.g., Atkinson et al. (2004); Sander et al. (2003); Finlayson-Pitts

and Pitts, Jr. (2000); Röth et al. (1997); Okabe (1978). If not otherwise indicated, photofragments are produced in their

electronic ground states.

Wavelengths at which photolysis occurs. Note that in the troposphere, photolysis is not possible below 290 nm, as

solar radiation at shorter wavelengths is entirely absorbed in the stratosphere.

From Table B.4 in Jacobson (1999). The photolysis frequencies at 0 and 25 km were modelled for a nonpolluted

atmosphere at a solar zenith angle of 0



and a surface albedo of 0.03.

The threshold wavelength for O

in the vibrational ground-state is 310 nm. At room temperature internal vibrational

energy shifts the threshold to 325 nm (Matsumi et al., 2002).

Spin-forbidden process. The O

D quantum yield for this process is small, about 008 ±004 for wavelength up to

340 nm (Matsumi et al., 2002).

Photodissociation by excitation of vibrational overtone transitions, of which the ﬁrst overtone 2

 at 14 m dominates

(Roehl et al., 2002; Donaldson et al., 1997).

is initiated by photolysis of nitrogen dioxide, which has an energetic threshold at a longer

wavelength (<420 nm):

+h −→ NO +O

P (R 9.3)

All O

P that is produced in the troposphere is converted into O

by reaction with O

(R9.2).

Ozone itself can undergo photolysis in the UV and visible range. Most important

for the chemistry of the atmosphere is the photolysis by UV radiation, which produces

electronically excited oxygen atoms O

D:

+h −→ O

D +O

a



 (R 9.4)
