Multifunctional Characteristics of B-site Substituted BiFeO

Films

399

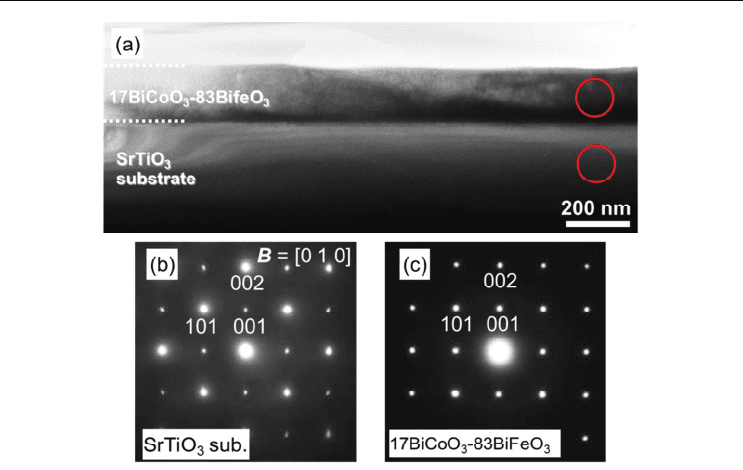

Fig. 26. Cross-sectional TEM observation for film with BiCoO

concentration of 17 at.%.

Here, we briefly discuss about possibility of the magneto-electric (ME) effect at RT in

BiCoO

–BiFeO

solid solution. As mentioned above, the magnetization of BiCoO

–BiFeO

films was enhanced with rombohedral structure at a BiCoO

concentration below 18 at.%. In

previous report, (Chu et al., 2008) for BiFeO

with rombohedral structure, a strong coupling

was reported between the ferroelectric domains of rhombohedral 71° and 109° and the

antiferromagnetic domains, and the anitiferromagnetic domains were reversed by

ferroelectric switching at RT. In accordance with this BiFeO

regime, the BiCoO

–BiFeO

films below BiCoO

concentration 18 at.% can potentially exhibit the ME effect with a

macroscopic magnetization change because the rhombohedral domains exist at BiCoO

concentration below 18 at.%. The macroscopic magnetization changes operated at RT are

useful in spintronics applications such as multi-valued memory using a spin-filter device

etc. To confirm the ME effect, we will clarify the role of the substitution of Fe atom for Co

atom and the origin of the enhanced magnetization in BiCoO

–BiFeO

films. In addition, we

expect to observe the magnetization changes driven by the electric field as well as external

pressure in the MPB (BiCoO

concentration of 20 – 25 at.%) because the MPB phase shows a

large displacement due to a large piezoelectric effect.

5. Conclusion

High quality single phase BiFeO

polycrystalline films with a space group of R3c were

fabricated on Pt/Ti/SiO

/Si (100) substrates. The leakage current density of the films at RT

was large and strongly affected the ferroelectric measurement. The ferroelectric

measurement was carried out at low temperature to reduce the leakage current, and a large

polarization of 89 μC/cm

and a coercive field of 0.31 MV/cm were observed. The magnetic

properties at RT were primarily due to antiferromagnetism. The magnetic properties at RT

Ferroelectrics – Physical Effects

400

were drastically enhanced by substitution of Fe in BiFeO

with 4 at % Co, which implies the

induction of ferro-like magnetic ordering. The large leakage current and coercive field were

simultaneously successfully reduced by substitution of Fe with 5 at.% Co. Epitaxial strain

was employed in the preparation of films with high levels of Co substitution for Fe in

BiFeO

because, under these conditions, the high-pressure phase of BiCoO

dominates

stability. (hereafter, we refer to hese highly Co-substituted. BiFeO

films as BiCoO

-BiFeO

The magnetization of the BiCoO

-BiFeO

films increased drastically with an increase in the

BiCoO

concentration, and the maximum magnetization was observed at 20-25 at.%

substitution. Above a BiCoO

concentration of 25 at.%, there is a decrease in magnetization,

which corresponds to the change from rhombohedral to tetragonal structural composition.

Interestingly, the magnetization was maximally enhanced at the MPB of the rombohedral

structure of BiFeO

and the tetragonal structure of BiCoO

. It is well known that large

piezoelectricity can be expected in the MPB; therefore, the cross-correlation between

piezoelectricity and magnetism can be expected in the MPB. Furthermore, this material

has the capacity possibility to show wide cross-correlation among magnetism,

ferroelectricity, piezoelectricity, and optical properties. Epitaxial BiCoO

-BiFeO

solid

solutions can open up an avenue for the development of new multifunctional materials,

may have potential application in devices such as multivalued memories, spin-filter

devices, V-MRAM, magnetic/electric field tunability or flexibility, and piezoelectric

materials with MPB etc.

6. Acknowledgements

The author extends appreciation for the collaborative contribution of Prof. S. Okamura,

Tokyo University of Science, to the entire study. Prof. H. Funakubo and Ph.D. student S.

Yasui, Tokyo Institute of Technology, Prof. K. Nishida, National Defense Academy of Japan,

Dr. T. Iijima, National Institute of Advanced Industrial Science and Technology collaborated

strongly in the preparation and characterizations of BiFeO

-BiCoO

epitaxial films presented

in Section 3. The TEM observations were carried out by Dr. Andras Kovacs of Oxford

University and Dr. Bae In-Tae, Binghamton University, State University of New York. The

author also expresses gratitude to Prof. Y. Ando for the opportunity to write this chapter.

This study was partly supported by the Grant-in-Aid for Young Scientist Start-up program

(Grant No. 18860070), Young Scientists B (No. 20760474), Young Scientists A (No. 22686001),

Grand-in-Aid for Scientific Research and the Elements Science and Technology Project from

the Ministry of Education, Culture, Sports, Science and Technology of Japan, by the

Sasakawa Scientific Research Grant from The Japan Society (Grant No. 19-216), by Tohoku

University Exploratory Research Program for Young Scientists (TU-ERYS), and by

TANAKA Co, Ltd research found (No. J090809317).

7. References
