were recognized as insoluble macromolecules. They exhib-

ited rubber-like elasticity, and no melt flow features, yet

they were semipermeable and susceptible to diffusion and

pronounced swelling in certain solvents.

It is now recognized that a continuum of architecture and

properties, beginning with the classical branched polymers,

resides between these two classes. Typical branched struc-

tures such as starch or high pressures polyethylene are

characterized by more than two terminal groups per mol-

ecule, possessing substantially smaller hydrodynamic vol-

umes and different intrinsic viscosities compared to linear

polymers, yet they often exhibit unexpected segmental ex-

pansion near the ‘‘theta state.’’

Completing this continuum, we may now focus on the

intermediary role that (Class IV) dendritic polymers play

both in architecture and properties as penultimate thermo-

splastic precursors to (Class II), cross-linked thermoset

systems. Within the realm of traditional architectures,

branched (Class III) and random hyperbranched structures

Class (IVa) may be viewed as penultimate statistical

precursors residing between thermoplastic structures

and thermoset architectures as illustrated in Fig. 42.19

[121,122]. The dendritic state may be visualized as advance-

ment from a lower order (i.e., Class I–III) to a somewhat

higher level of structural complexity [123]. Recent devel-

opments now demonstrate that certain dendritic subsets

are manifestations of higher level structural control. In con-

trast to random hyperbranched polymers, the dendrimer

subset, and to a lesser extent, the dendrigraft subset, repre-

sent a unique combination of high complexity with extraor-

dinary structure control. As such, covalent bridging or

crosslinking of these preformed modules would be expected

to give rise to a completely new class (V) of more ordered

complexity. Examples of this new architecture have been

synthesized and these new topologies are referred to as

‘‘megamers.’’

42.4.1 Megamers—A New Class of Regio-Specifically

Cross-linked Dendrimers

In the first full paper published on dendritic polymers

[47], dendrimers were defined as ‘‘reactive, structure-

controlled macromolecular building blocks.’’ It was pro-

posed that they could be used as repeat units for the

construction of a new class of topological macromolecules

referred to as ‘‘starburst polymers.’’ Although there is in-

tense activity in the field of dendrimer science, there are

relatively few references focused on this specific concept

[34,80,81,96]. Meanwhile, the term ‘‘starburst’’ has been

claimed as a registered trademark of the Dow Chemical

Company and recently assigned to Dendritic NanoTechnol-

ogies, Inc. In view of these events, the generic term, ‘‘mega-

mer’’ has been proposed to describe those new architectures

that are derived from the combination of two or more den-

drimer molecules (see Figs. 42.19 and 42.20) [96,124].

Examples of both statistical, as well as structure-controlled

megamer assemblies have been reported and reviewed

recently [96,124]. Covalent oligomeric assemblies of

dendrimers (i.e., dimers, trimers, etc.) are well-documented

examples of low molecular-weight megamers. Statistical

megamer assemblies have been reported as both supr-

amacromolecular [109,110] and supermacromolecular

(covalent) topologies. Many reports on the supramac-

romolecular self-assembly of these structures leading to den-

drimeric clusters and monolayers are prime examples of

Random

hyperbranched

Dendrigrafts Dendrimers

(IV) Dendritic

(III) Branched

(I) Linear

(II) Crosslinked

V. Megamers

(a) Uncontrolled

(b) Semicontrolled

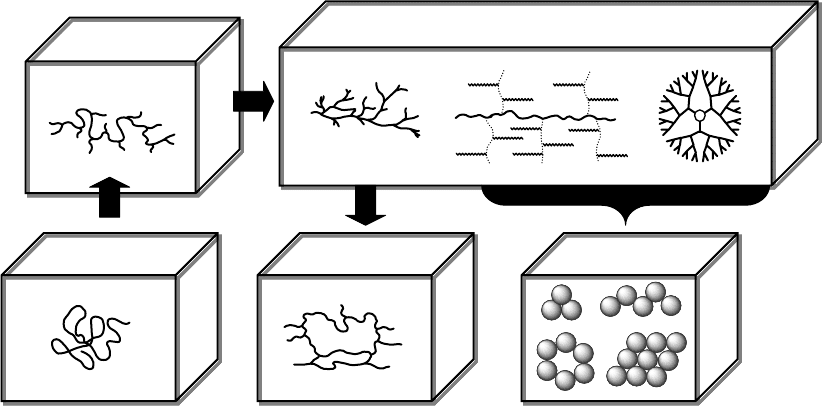

FIGURE 42.19. Examples of architectural polymer classes (I–IV) polymer type, repeat units, and covalent connectivity associated

with architectural classes.

NEW MACROMOLECULAR ARCHITECTURE / 689

supramacromolecular megamers. Simple, low DP covalent

dendrimeric oligomers such as ‘‘[dendrimer]

’’ where

n ¼ 2---10, and dendrimeric gels for which n > 10 represent

a continuum of statistical covalent megamers that are

possible.

Both randomly assembled megamers [124], as well as

structure-controlled megamers [124–126] have been dem-

onstrated. Recently, new mathematically defined megamers

(dendrimer clusters) or core–shell tecto(dendrimers) have

been reported [35,125–127]. The principles of these struc-

ture-controlled megamer syntheses mimic those used for the

core–shell construction of dendrimers. First, a megamer

core reagent (usually a spheroid) is selected. Next, a limited

amount of this reactive core reagent is combined with an

excess of a megamer shell reagent. The objective is to

completely saturate the target spheroid core surface with

covalently bonded spheroidal shell reagent. Since the diam-

eters of the megamer core and shell reagents are very well

defined, it is possible to predict mathematically the number

of megamer shell molecules required to saturate a targeted

core dendrimer [89,128,129].

It appears that structure-controlled complexity beyond

dendrimers is now possible. The demonstrated structure

control within the dendrimer modules, and now the ability

to mathematically predict and synthesize precise assemblies

of these modules, provide a broad concept for the systematic

construction of nanostructures with dimensions that could

span the entire nanoscale region (Fig. 42.20) [16,89].

42.5 CONCLUSIONS

Dendritic polymers are expected to play a key role as

enabling building blocks for nanotechnology during the

21st century, just as the first three traditional architectural

classes of synthetic polymers have so successfully fulfilled

critical material and functional needs in the plastics age

during the past half century. The controlled shape, size,

0.1

1.0

Core–shell tecto(dendrimers)

Molecular size (nm)

5.0

Partially filled shell Saturated-shell

Molecular complexity

Megamers

Dendrimers

Dendrons

Branch cells

Monomers

Atoms

3.0

0.6

100

Z Z

Gen 0 1 2 3 4

S–S

[1]:[3]

[0]

X = SH

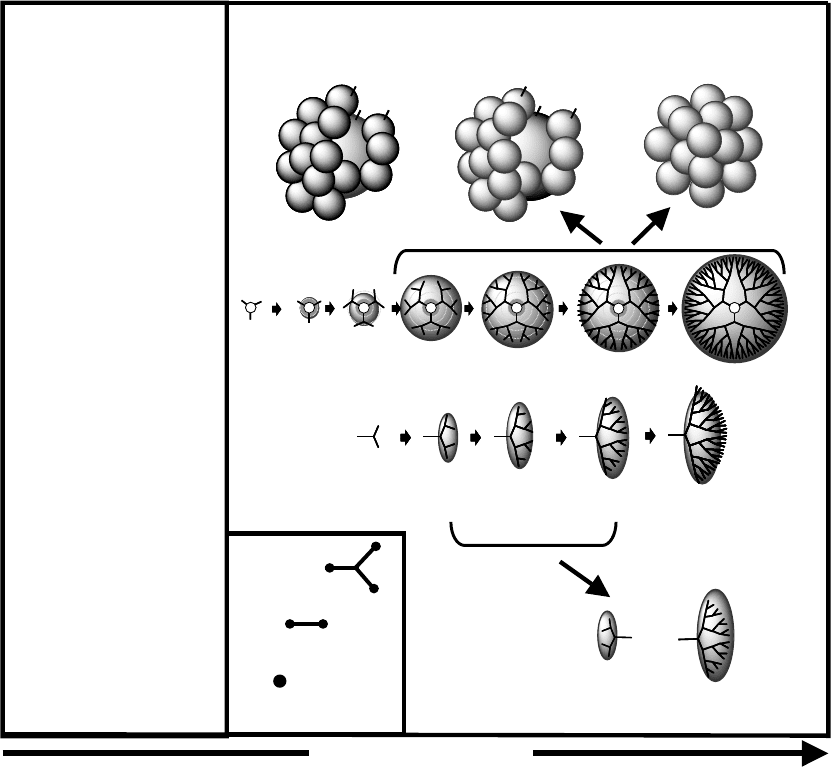

FIGURE 42.20. Approximate nanoscale dimensions as a function of atoms, monomers, branch cells, dendrimers, and

megamers. (Reproduced from [129] with permission of Aldrichimica Acta.)

690 / CHAPTER 42

and differentiated functionality of dendrimers; their ability

to provide both isotropic and anisotropic assemblies; their

compatibility with many other nanoscale building blocks

such as DNA, metal nanocrystals, and nanotubes; their

potential for ordered self-assembly; their ability to combine

both organic and inorganic components; and their propen-

sity to either encapsulate or be engineered into unimolecular

functional devices make dendrimers uniquely versatile

amongst existing nanoscale building blocks and materials.

Dendritic polymers, especially dendrons and dendrimers,

are expected to fulfill an important role as fundamental

modules for nanoscale synthesis. It is from this perspective

that it is appropriate to be optimistic about the future of this

new major polymer class, the dendritic state [16,130].

ACKNOWLEDGMENTS

This work was funded by the Army Research Laboratory

(ARL), Dendritic Polymer Center of Excellence (Contract

DAAL-01-1996-02-044). I would like to express my

sincere appreciation to Ms L. S. Nixon for preparing the

manuscript.
