Magnetic Tunnel Junctions Based on Half-Metallic Oxides 71
constant of the electron wave function in the barrier region of height V
0
.

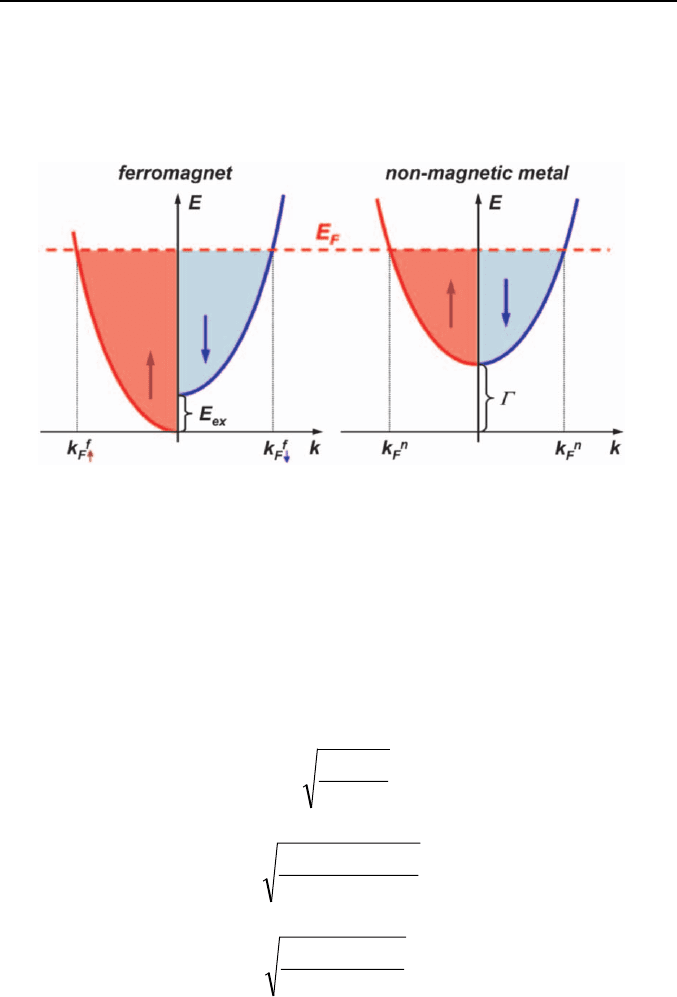

The exchange splitting of the free electron bands is included via E
ex
,σ
,
which has opposite sign for the two spin directions. Equation (43) shows
that for a thick enough barrier due to the dominating exponential factor only
those electrons contribute significantly to the tunneling conductance, which
have the smallest κ, i.e. those with k
||
≈ 0. In this limit we recover the
expression (6) for the spin polarization derived by Slonczewski. For thinner
barriers the spin polarization will depend on the barrier thickness as shown

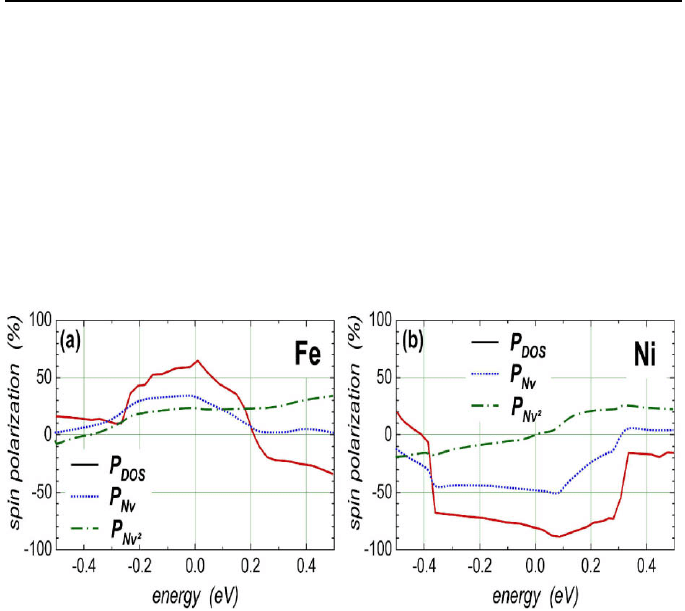

by MacLaren [145]. Although a free electron description is quite intuitive it
cannot be used for deriving quantitative results, since the calculations are
sensitive on the barrier shape and cannot take into account multi-band
effects [146]. Nevertheless we see that even in the very simple free electron
model the TMR and the derived spin polarization P
tun
are not only
determined by the properties of the ferromagnetic junction electrodes but
also by the barrier properties. Since the transmission coefficient that enters
the Landauer formula (42) is flux conserving, it incorporates a factor of v
z
,
the component of the band velocity perpendicular to the interface. This has
been emphasized already above discussing the importance of the band
velocity perpendicular to the interface when interpreting spin-dependent
transport in the ballistic and diffusive limit.
Note that expressions (23) and (42) for the extended ballistic case (strong
barrier) and the tunneling case look quite similar. However, one has to keep
in mind that in the tunneling case the transmission probability is dominated
by the exponential factor exp(-2
κ
d). This results in a selection of states
within a narrow tunneling cone, which have v
z
≈ v
F
or equivalently k
||
≈ 0.
This is important if one has to deal with single crystalline junction
electrodes, since in this case only certain crystallographic directions
contribute to the tunneling current. The derived spin polarization then does
no longer represent a Fermi average. This is different for the extended
diffusive case, where one is averaging over all v
z
. Nevertheless, in junctions
with polycrystalline electrodes the experimental results for the tunneling
case and the extended diffusive case will be quite similar, since in the
tunneling case the Fermi surface averaging is obtained by the averaging
over many grains with different crystallographic orientations.
An important aspect in spin dependent tunneling is the chemical bonding
at the ferromagnet/insulator interface. It was shown that a change of the
interfacial bonding can reduce the spin polarization and even can change its
sign [131]. The physics behind this is simple. Suppose, for example, that
for a specific interfacial bonding mainly the s states of a 3d transition metal
are coupled to those of the insulator. Then the tunneling current is mainly
