640 Charged Particle and Photon Interactions with Matter

without basic knowledge can easily employ the system. The schematic diagram of the system is

shown in Figure 23.17. It is designed so that all dose calculations are performed at the dose calcula-

tion center using a high-performance computer. First, a user sends a data set of CT images and a

treatment plan to the center through the network; then, a simplied voxel phantom of the patient

is automatically constructed in a short time; and a Monte Carlo calculation is performed utilizing

super-parallel computing; then the calculated dose distribution is sent back to the clinic and used for

therapy

planning or QA/QC.

Concerning

voxel phantoms on patients, we investigated how many tissues having different

elemental compositions are necessary to obtain sufcient dose accuracy. Consequently, it was con-

rmed that a phantom consisting of six tissues of skin, muscle, adipose, lung, cortical bone, and

bone marrow can give doses with very high accuracy. Obviously inaccurate doses are obtained

when other tissues are substituted for skeletal tissue that has a high proportion of the relatively high

atomic number element Ca. Further, it was found that substitution of adipose tissue by other tissues

could

cause signicant error in some cases.

23.5.2 doSiMetry in accidentS

Electron spin magnetic resonance (ESR) dosimetry using tooth enamel has been utilized in retro-

spective dose assessments in accidents where no other dosimetry method is available. Accumulated

dose in tooth enamel can be estimated from the ESR signals. However, the information needed

in accidents is not the enamel dose but doses for other important organs; then, conversion coef-

cients from the tooth enamel dose to organ doses must be prepared. Further, the variations of the

enamel dose due to tooth position, irradiation conditions such as photon energy and incident direc-

tion should be investigated for reliable measurements. For this purpose, a series of studies using

phantoms

have been carried out.

Takahashi

et al. (2002, 2003) investigated the characteristics of tooth doses using both a physi-

cal phantom and computational phantoms. A voxel phantom was constructed from CT images of a

realistic physical phantom having real human teeth. An example of CT images on this phantom is

IMAGINE system

Hospital

Transfer of

CT data

Dose calculation center

Monte Carlo calculation

on the ITBL computer

Consideration

of irradiation

head

Construction of

voxel phantom

Transfer of

dose distribution

Network

erapy planning

Quality assurance

Figure 23.17 Schematic diagram of the dose calculation system IMAGINE for supporting medical

facilities

through the network.

ComputationalHuman Phantoms and Their Applications toRadiation Dosimetry 641

shown in Figure 23.18. Thermoluminescence dosimeters (TLDs) were placed at the different tooth

positions in the physical phantom to evaluate enamel doses. Then irradiation experiments were car-

ried out and compared with simulation using the constructed voxel phantom. They showed good

agreement, further, various characteristics of tooth doses were claried by simulations under vari-

ous conditions. Also, conversion coefcients from the tooth enamel dose to important organ doses

have been prepared. This study was extended by Ulanovsky et al. (2005).

23.5.3 aniMal phantoMS

In recent years, animal phantoms have been developed and used for diverse purposes. A mouse

phantom was developed by Dogdas et al. (2007) at the University of South California and modied

by Kinase et al. (2008) at JAEA for dosimetry use. The phantom called Digimouse was segmented

from CT and cryosection data. The voxel size is 100 × 100 × 100μm

and the body weight is 28g.

Further, Kinase (2008) constructed a frog phantom based on segmented images from cryosection

data provided on a website of Lawrence Berkley National Laboratory (Johnson and Robertson,

2008). The frog phantom shown in Figure 23.19 has a voxel size of 250 × 250 × 250mm

, body

weight

of 35

with 15 organs and tissues.

The

mouse phantom is intended for use mainly for radiopharmaceutical development (Kinase

etal., 2009). In developing a pharmaceutical, the effect examined using animal experiments needs

to be extrapolated to humans, considering the doses delivered to the tumor and organs. Then,

accurate doses should be estimated both for the animal and humans.

The objective of the frog phantom is to provide fundamental data on environmental protection

for animals and plants, the necessity of which was clearly stated in the new ICRP Publication

(ICRP, 2007). The frog is among the reference animals and plants for the purpose of environ-

mental protection (Pentreath, 2005). Presently, dose evaluations for the reference animals and

plants are performed using extremely simplied phantoms, which, except for some exceptions,

do not have explicit organs. Thus, internal dosimetry is largely impossible with these simplied

phantoms.

Figure 23.20 compares AFs for photons and electrons among the mouse, the frog, and two human

phantoms (Kinase, 2008; Kinase et al., 2008, 2009). Here, kidneys were taken as the source and

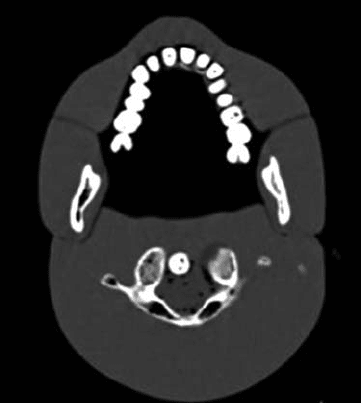

Figure 23.18 CT image of the physical phantom used for analyses of tooth enamel doses for external

photon

exposure.

642 Charged Particle and Photon Interactions with Matter

target organs. The self-AFs for photons show a large difference between the animal phantoms and

the human phantoms reecting their organ sizes. While the self-AFs for electrons are identical at

low energy below a few hundred keV because the electron penetration range is very short, they devi-

ate greatly as the electron energy increases. When comparing animal doses to human doses, these

features

must be taken into account.

23.6 summary

In radiation protection, computational phantoms have played an important role in helping to obtain

fundamental data necessary for dosimetry. The use of phantoms started with stylized phantoms

that express human bodies with mathematical equations, and developed into more realistic voxel

phantoms based on medical images. These phantoms have been employed to calculate organ doses

and effective doses with Monte Carlo simulations both in external and internal exposure. In radia-

tion protection, dose quantities have been prepared mostly for the reference Caucasian adults, while

Japanese voxel phantoms have been developed to investigate difference between the Caucasian and

the

Japanese phantoms. It has been conrmed that the dose difference due to race is not signicant

–1

–2

–3

–2

–1

(a) (b)Photon energy(MeV) Electron energy(MeV)

–2

–1

Human male

Human female

Mouse

Frog

Human male

Human female

Mouse

Frog

Figure 23.20 Comparison of self-AFs in kidneys for photons and electrons among humans, a mouse and

frog. (a) Photon and (b) electron.

Figure 23.19 Frog phantom developed by Kinase at JAEA. (From Kinase, S., J. Nucl. Sci. Technol., 45,

1049,

2008. With permission.)

ComputationalHuman Phantoms and Their Applications toRadiation Dosimetry 643

from a viewpoint of radiation protection. On the other hand, individual organ doses can vary greatly

according to conditions, and this suggests that sophisticated phantoms must be used if accurate

doses

for specic individuals are needed.

Voxel

phantom techniques have proved to be quite useful and applied to various elds. These

cover quite a wide range of elds such as medical applications both in diagnostics and therapy,

retrospective dosimetry in accidents, exposure assessment of electromagnetic elds, environmen-

tal studies, and the development of radiopharmaceuticals. Thus, many voxel phantoms have been

developed including animal phantoms. Obviously one important application is in the medical

eld. An example of the dose calculation system for x-ray therapy was shown in this chapter;

meanwhile, a therapy-planning system for boron neutron capture therapy (BNCT) has been devel-

oped at JAEA and played an important role in BNCT in Japan, though details are not described

here. Further, dose evaluation for radiation diagnoses would also be important, since advanced

diagnoses leading to relatively high doses such as CT, PET, and SPECT have begun to be used.

Furthermore, various advanced phantoms are being developed, though all of these could not

be discussed in this chapter. These include 4D phantoms that move with time, hybrid phantoms

that have merits of both stylized and voxel phantoms, multi-scale phantoms that consider ner

structures of organ and tissues, etc. Among these, the development of multi-scale phantoms that

perform microdosimetric simulation at cellular levels besides current macroscopic simulation is an

important subject to relate dosimetry more directly to radiation effects; and in this simulation the

knowledge

compiled in this book would be widely utilized.

the basis of these versatile technical improvements and expanding demands, applications of

computational

human phantoms would be expected to increase more and more in the future.

aCknowledgments

The author would like to thank Dr. K. Sato, Dr. S. Kinase, Dr. F. Takahashi, and Dr. R. Watanabe

for their kind support in preparing materials. The author is grateful to Dr. A. Endo for his valuable

advice

on this chapter.
