Bayer R.G. Mechanical Wear Fundamentals and Testing, Revised and Expanded
Подождите немного. Документ загружается.
sites (MMC). An example of such a wear map is shown in Fig. 3.89. In this type of
application, ambient temperature is also a factor and these types of curves were devel-
oped for a series of temperatures, which spanned the application range. A third form
of a wear map that is used to characterize solid particle erosion is the ternary map
shown in Fig. 3.90. This is a wear mechanism map in which four different modes of
wear are identified. The fractured dominated and plastic mechanisms are mechanisms
associated with the wear of the reinforcing particle, while the remaining two are wear
modes associated with the composite (171). This map shows the combined effect of
temperature, velocity, composition, and particle size on type of mechanism involved
(164,172).
A common example of a wear map is the PV diagrams (pressure–velocity graphs)
often used to describe the wear behavior of engineering plastics. In this case, the PV Limit
curve separates pressure and velocity combinations into two regions of wear behavior, one
that is generally considered to be acceptable for applications and the other that is not
(173).
REFERENCES
1. M Peterson. Mechanisms of wear. In: F Ling, E Klaus, R Fein, eds. Boundary Lubrication.
ASME, 1969, pp 19–38.
2. V Tipnis. Cutting tool wear. In: M Peterson, W Winer, eds. Wear Control Handbook. ASME,
1980, p 901.
3. K Budinski. Tool material. In: M Peterson, W Winer, eds. Wear Control Handbook. ASME,
1980, p 950.
4. L Kendall. Friction and wear of cutting tools and cutting tool materials. In: P Bau, ed. Fric-
tion, Lubrication, and Wear Technology, ASM Handbook. Vol. 18. Materials Park, OH:
ASM International, 1992, p 613.
5. J Vleugels, O Van Der Biest. Chemical wear mechanisms of innovative ceramic cutting tools in
the machining of steel. Wear 225–229:285–294, 1999.
6. V Venkatesh. Effect of magnetic field on diffusive wear of cutting tools. Proc Intl Conf Wear
Materials ASME 242–247, 1977.
7. E Usui, T Shirakashi. Analytical prediction of cutting tool wear. Wear 100:129–152, 1984.
8. W Schintlmeister, W Walgram, J Kanz, K Gigl. Cutting tool materials coated by chemical
vapour deposition. Wear 100:153–170, 1984.
9. O Vingsbo. Wear and wear mechanisms. Proc Intl Conf Wear Materials ASME 620–635,
1979.
10. R Bayer. Wear in electroerosion printing. Wear 92:197–212, 1983.
11. C Livermore. Technology. The Industrial Physicist, Dec 2001=Jan 2002. American Institute of
Physics, pp 20–25.
12. J Burwell, C Strang. Metallic wear. C. Proc Roy Soc A 212:470, 1953.
13. K Ludema. Selecting materials for wear resistance. Proc Intl Conf Wear Materials ASME 1–6,
1981.
14. D Tabor. Wear - A critical synoptic view. Proc. Intl. Conf. Wear Materials ASME 1–11, 1977.
15. M Peterson. Mechanisms of wear. In: F Ling, E Klaus, R Fein, eds. Boundary Lubrication.
ASME, 1969, p 19–38.
16. E Rabinowicz. Friction and Wear of Materials. New York: John Wiley and Sons, 1965.
17. D Rigney, W Glaeser, eds. Source Book on Wear Control Technology. ASME, 1978.
18. D Scott, ed. Wear. Treatise on Material Science and Technology. Vol. 13. New York:
Academic Press, 1979.
19. R Bayer. Wear Analysis for Engineers. HNB Publishing, 2002.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
20. R Bayer, R Schumacher. On the significance of surface fatigue in sliding wear. Wear 12:173–
183, 1968.
21. V Jain, S Babadur. Tribological behavior of unfilled and filled poly(amide-imide) copolymer.
Proc Intl Conf Wear Materials ASME 385–389, 1987.
22. A Hollander, J Lancaster. An application of topographical analysis to the wear of polymers.
Wear 25(2):155–170, 1973.
23. N Saka. Effect of microstructure on friction and wear of metals. In: N Suh, N Saka, eds. Fun-
damentals of Tribology. Cambridge, MA: MIT Press, 1980, pp 135–172.
24. N Suh. The delamination theory of wear. Wear 25:111–124, 1973.
25. V Jain, S Bahadur. Experimental verification of fatigue wear equation. Proc Intl Conf Wear
Materials ASME 700–705, 1981.
26. A Bower, K Johnson. The influence of strain hardening on cumulative plastic deformation in
rolling and sliding line contact. J Mech Phys Solids 37(4):471–493, 1989.
27. K Johnson. Proceedings of the 20th Leeds–Lyon Symposium on Tribology. Elsevier, 1994,
p 21.
28. R Burton, ed. Thermal Deformation in Frictionally Heated Systems. Elsevier, 1980.
29. J Burwell, C Strang. Metallic wear. Proc Roy Soc A 212:470, 1953.
30. T Kjer. A lamination were mechanism beased on plastic waves. Proc Intl Conf Wear Materials
ASME 191–198, 1987.
31. W Campbell. Boundary lubrication. In: F Ling, E Klaus, R Fein, eds. Boundary Lubrication.
ASME 87–118, 1969.
32. R Bayer. Tribological approaches for elastomer applications in computer peripherals. In:
Denton R, K Keshavan, eds. Wear and Friction of Elastomers. STP 1145, ASTM Interna-
tional, 1992, pp 114–126.
33. R Bayer. A general model for sliding wear in electrical contacts. Wear 162:913–918, 1993.
34. R Bayer. A model for wear in an abrasive environment as applied to a magnetic sensor. Wear
70:93–117, 1981.
35. B Bricoe. The wear of polymers: An essay on fundamental aspects. Proc Intl Conf Wear Mate-
rials ASME 7–16, 1981.
36. R Bayer, T Ku. Handbook of Analytical Design for Wear. New York: Plenum Press, 1964.
37. J Greenwood, J Williamson. Contact of nominally flat surfaces. Proc Roy Soc A 295:300–319,
1966.
38. J Greenwood, J Tripp. The elastic contact of rough spheres. J Appl Mech Trans ASME
March, 153–159, 1967.
39. F Bowden, D Tabor. The Friction and Lubrication of Solids. New York: Oxford U. Press,
Part I, 1964, and Part II, 1964.
40. R Holm. Electric Contact Handbook. New York: Springer, 1958.
41. W Glaeser. Lecture Notes, Wear Fundamentals Course for Engineering, International Wear
of Materials Conference, ASME, 1989.
42. E Rabinowicz. Surface interaction. Friction and Wear of Materials. New York: John Wiley
and Sons, 1965, p 50.
43. D Kuhlmann-Wilsdorf. In: D Rigney, ed. Fundamentals of Friction and Wear of Materials.
ASM, 1981.
44. B Bhushan, B Gupta. Friction, wear and lubrication. Handbook of Tribology. McGraw-Hill,
1991, p 2.4.
45. J McFarlane, D Tabor. Proc R Soc Lond A 202:244, 1950.
46. J Ferrante, J Smith, J Rice. Microscopic Aspects of Adhesion and Lubrication. Tribology
Series. New York: Eslevier Science Publishing Co., 1982, p 7.
47. J Archard. Contact and rubbing of flat surfaces. J App Phys 24:981–988, 1953.
48. E Rabinowicz. Adhesive wear. Friction and Wear of Materials. New York: John Wiley
and Sons, 1965, pp 139–140.
49. E Rabinowicz. Wear coefficients–metals. In: M Peterson, W Winer, eds. Wear Control
Handbook. ASME, 1980, pp 475–506.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
50. K Ludema. Introduction to wear. In: P Blau, ed. Friction Lubrication and Wear Technology,
ASM Handbook. Vol. 18. Materials Park. OH: ASM International, 1992, p 175.
51. E Rabinowicz. Adhesive wear. Friction and Wear of Materials. New York: John Wiley
and Sons, 1965, pp 139–164.
52. B Bhushan, B Gupta. Handbook of Tribology. Section 3.3. McGraw-Hill, 1991.
53. E Rabinowicz. Adhesive wear. Friction and Wear of Materials. New York: John Wiley
and Sons, 1965, pp 151–163.
54. E Rabinowicz. Adhesive wear. Friction and Wear of Materials. New York: John Wiley
and Sons, 1965, pp 159–162.
55. R Errichello. Friction, lubrication, and wear of gears. In: P Blau, ed. Friction, Lubrication,
and Wear Technology, ASM HandBook. Vol. 18. Materials Park, OH: ASM International,
1992, pp 535–545.
56. P Engel. Impact wear. In: P Blau, ed. Friction, Lubrication and Wear Technology, ASM
Handbook. Vol. 18. Materials Park, OH: ASM International, 1992, pp 263–270.
57. P Blau. Rolling contact wear. In: P Blau, ed. Friction, Lubrication and Wear Technology,
ASM Handbook. Vol. 18. Materials Park, OH: ASM International, 1992, pp 257–262.
58. D Evans, J Lancaster. The wear of polymers. In: D Scott, ed. Treatise of Materials Science
and Technology. Vol. 13. Academic Press, 1979, pp 86–140.
59. E Rabinowicz. Abrasive and other types of wear. Friction and Wear of Materials. New York:
John Wiley and Sons, 1965, p 169.
60. M Moore, F King. Abrasive wear of brittle solids. Proc Intl Conf Wear Materials ASME 275–
284, 1979.
61. M Moore, P Swanson. The effect of particle shape on abrasive wear. Proc Intl Conf Wear
Materials ASME 1–11, 1983.
62. H Hokkirigawa, Z Li. The effect of hardness on the transition of abrasive wear mechanism
of steel. Proc Intl Conf Wear Materials ASME 585–594, 1987.
63. N Suh, H-C Sin, N Saka. Fundamental aspects of abrasive wear. In: N Suh, N Saka, eds. Fun-
damentals of Tribology. Cambridge, MA: MIT Press, 1980, p 493–518.
64. K Zum Gahr. Formation of wear debris due to abrasion. Proc Intl Conf Wear Materials
ASME 396–405, 1981.
65. K Zum Gahr, D Mewes. Microstructural influence on abrasive wear resistance of high
strength, high toughness medium carbon steels. Proc Intl Conf Wear Materials ASME 130–
139, 1983.
66. E Rabinowicz. Abrasive and other types of wear. Friction and Wear of Materials. New York:
John Wiley and Sons, 1965, p 179.
67. R Bayer, W Clinton, C Nelson, R Schumacher. Engineering model for wear. Wear 5:378–391,
1962.
68. T Tallian. On competing failure modes in rolling contact. ASLE Trans 10(4):418–439, 1967.
69. P Engel. Impact Wear of Materials. Tribology Series. Chapter 3. New York: Elsevier Science
Publishing Co., 1978.
70. E Rabinowicz. The wear equation for erosion of metals by abrasive particles. Proceedings of
the Fifth International Conference on Erosion by Solid and Liquid Impact, 38–5, Cambridge,
UK: Cavendish Laboratory, 1979.
71. K Zum, K Gahr, H Franze. Rolling-sliding wear on precipitation hardened structures of an
austenitic steel. Proc Intl Conf Wear Materials ASME 23–32, 1987.
72. V Sastry, D Singh, A Sethuramiah. A study of wear mechanisms under partial elastohydro-
dynamic conditions. Proc Intl Conf Wear Materials ASME 245–250, 1987.
73. Roller Bearings, Part I and Part II. Lubrication (Jul–Sept and Oct–Dec), Beacon, NY:
Texaco, Inc., 1974.
74. C Lipson. Machine Design, 1=8=70. Cleveland, OH: Penton Publ. Co., pp 130–134.
75. P Engel. Impact Wear of Materials. Tribology Series. New York: Elsevier Science Publishing
Co., 1978.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
76. V Jain, S Babadur. Tribological behavior of unfilled and filled poly(amide-imide) copolymer.
Proc Intl Conf Wear Materials ASME 389–396, 1987.
77. N Saka. Effect of microstructure on friction and wear of metals. In: N Suh, N Saka, eds. Fun-
damentals of Tribology. Cambridge, MA: MIT Press, 1980, pp 135–172.
78. V Jain, S Bahadur. Experimental verification of fatigue wear equation. Proc Intl Conf Wear
Materials ASME 700–706, 1981.
79. M Shaw, F Macks. Analysis and Lubrication of Bearings. New York: McGraw-Hill, 1949.
80. R Morrison. Machine Design, 8=1=68. Cleveland, OH: Penton Publ. Co., pp 102–108.
81. E Zaretsky, ed. Life Factors for Rolling Bearings. STLE SP-34. STLE, 1999.
82. G Lundberg, A Palmgren. Dynamic capacity of roller bearings. Acta Polytechnica. Mech.
Eng. Series. 1(3), 1947.
83. S Timoshenko, J Goodier. Theory of Elasiticity. New York: McGraw-Hill, 1951.
84. P Engel, T Lyons, J Sirico. Impact wear theory for steels. Wear 23:185–201, 1973.
85. A Rosenfield. Modelling of dry sliding wear. Proc Intl Conf Wear Materials ASME 390–393,
1983.
86. A Atkins, K Omar. The load-dependence of fatigue wear in polymers. Proc Intl Conf Wear
Materials ASME 405–409, 1985.
87. W Glaeser. A case of wear particle formation through shearing-off at contact spots inter-
locked through micro-roughness in ‘‘adhesive wear’’. Proc Intl Conf Wear Materials ASME
155–162, 1987.
88. E Zaretsky, ed. Lubrication. Life Factors for Rolling Bearings. STLE SP-34. Section 5.6.2.
STLE, 1999, pp 210–214.
89. M Reznikovskii. In: D James, ed. Abrasion of Rubber. Maclaren, 1967.
90. G Hamilton, L Goodman. The stress field created by a circular sliding contact. J App Mech
33(2):371–376, 1966.
91. J Hailing. A contribution to the theory of mechanical wear. Wear 34(3):239–250, 1975.
92. V Jain, S Bahadur. Development of a wear equation for polymer-metal sliding in terms of fati-
gue and topography of sliding surface. Proc Intl Conf Wear Materials ASME 556–562, 1979.
93. R Bayer. Prediction of wear in a sliding system. Wear 11:319–332, 1968.
94. J Lancaster. Plastics and Polymers 41(156):297, 1973.
95. A Hollander, J Lancaster. An application of topographical analysis to the wear of polymers.
Wear 25(2):155–170, 1973.
96. P Clayton, K Sawley, P Bolton, G Pell. Wear behavior of bainitic steels. Proc Intl Conf Wear
Materials ASME 133–144, 1987.
97. P Hurricks. Wear 19:207, 1972.
98. T Quinn. Oxidational wear. In: P Blau, ed. Friction, Lubrication, and Wear Technology,
ASM Handbook. Vol. 18. Materials Park, OH: ASM International, 1992, pp 280–289.
99. H Uhlig. Mechanism of fretting corrosion. J App Mech 21:401, 1954.
100. G Yoshimoto, T Tsukizoe. On the mechanism of wear between metal sufaces. Wear 1:472,
1957–58.
101. T Tsukizoe. The effects of surface topography on wear. In: N Suh, N Saka, eds. Fundamentals
of Tribology. Cambridge, MA: MIT Press, 1980, pp 53–66.
102. E Rabinowicz. Friction, Friction and Wear of Materials. Section 4.12. New York: John Wiley
and Sons, 1965, pp 86–89.
103. T Quinn, J Sullivan. A review of oxidational wear. Proc Intl Conf Wear Materials ASME
110–115, 1977.
104. T Quinn, J Sullivan, D Rowson. New developments in the oxidational theory of the mild wear
of steels. Proc Intl Conf Wear Materials ASME 1–11, 1979.
105. D Caplan, M Cohen. The effect of cold work on the oxidation of iron from 100 to 650
C.
Corrosion Sci 6:321, 1966.
106. A Skopp, M Woydt, KH Habig. Tribological behavior of silicon nitride materials under unlu-
bricated sliding between 22
C and 1000
C. Wear 181–183:571–580, 1995.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
107. M Sawa, D Rigney. Sliding behavior of dual phase steels in vacuum and in air. Proc Intl Conf
Wear Materials ASME 231–244, 1987.
108. W Winer, H Chang. Film thickness, contact stress and surface temperatures. In:
M Peterson, W Winer, eds. Wear Control Handbook. ASME. 1980, pp 81–142.
109. S Lim, M Ashby. Wear-mechanism maps. Acta Metal 35(1):1–24, 1987.
110. E Rabinowicz, Surface interactions. Friction and Wear of Materials, Chapter 3. New York:
John Wiley and Sons, 1965.
111. J Greenwood. The area of contact between rough surfaces and flats. Trans ASME J Lub Tech
89:81–91, 1967.
112. I Kraghelski, N Demkin. Wear 3:170, 1960.
113. C Allen, T Quinn, J Sullivan. Trans ASME J Tribol 107:172, 1985.
114. T Quinn, W Winer. Wear 102:67, 1985.
115. J Archard. The temperatures of rubbing surfaces. Wear 2:438, 1958–1959.
116. H Metselaar, A Winnubst, D Schipper. Thermally induced wear of ceramics. Wear 225–
229:857–861, 1999.
117. R Burton. Thermal deformation in frictionally heated contact. In: R Burton, ed. Thermal
Deformation in Frictionally Heated Systems. Elsevier, 1980, pp 1–20.
118. B Banerjee. The influence of thermoelastic deformations on the operation of face seals. In:
R Burton, ed. Thermal Deformation in Frictionally Heated Systems. Elsevier, 1980, p 89–110.
119. T Dow, R Stockwell. Experimental verification of thermoelastic instabilities in sliding contact.
Trans ASME Ser F July:359–364, 1977.
120. R Burton, V Nerlikar, S Kilaparti. Thermoelastic instability in a seal-like configuration. Wear
24:169–198, 1973.
121. J Barber. The influence of thermal expansion on the friction and wear process. Wear 10:155,
1967.
122. S Heckmann, R Burton. Trans ASME Ser F 99:247, 1977.
123. R Burton. Thermal deformation in frictionally heated contact. In: R Burton, ed. Thermal
Deformation in Frictionally Heated Systems. Elsevier, 1980, p 6.
124. V Jain, S Bahadur. Material transfer in polymer-polymer sliding. Proc Intl Conf Wear Mate-
rials ASME 487–493, 1977.
125. B Mortimer, J Lancaster. Extending the life of aerospace dry-bearings by the use of hard,
smooth counterfaces. Proc Intl Conf Wear Materials ASME 175–184, 1987.
126. P Blau. Effects of sliding motion and tarnish films on the break-in behavior of three
copper alloys. Proc Intl Conf Wear Materials ASME 93–100, 1987.
127. N Eiss, M Bayraktaroglu. The effect of surface roughness on the wear of low-density
polyethylene. ASLE Trans 23(3):269–278, 1980.
128. B Briscoe. Wear of polymers: An essay on fundamental aspects. Trib Intl 14(4):231–243, 1981.
129. B Briscoe, M Steward. Paper No. C27178, Proceedings of Trib. 1978 Conference on Material
Performance and Conservation. I. Mech, Eng., 1978.
130. S Rhee, K Ludema. Mechanisms of formation of polymetric transfer films. Proc Intl Conf
Wear Materials ASME 482–487, 1977.
131. P Rohatgi, B Pai. Seizure resistance of cast aluminum alloys containing dispersed graphite
particles of different sizes. Proc Intl Conf Wear Materials ASME 127–133, 1977.
132. P Heilmann, J Don, T Sun, W Glaeser, D Rigney. Sliding wear and transfer. Proc Intl Conf
Wear Materials ASME 414–425, 1983.
133. F Talke. An autoradiographic investigation of material transfer and wear during high
speed/low load sliding. Wear 22:69–82, 1972.
134. M Godet. Third-bodies in tribology. Wear 136(1):29–46, 1990.
135. R Bayer, J Sirico. Influence of jet printing inks on wear. IBM J R D 22(1):90–93, 1978.
136. J Gomes, A Miranda, J Vieira, R Silva. Sliding speed-termperature wear transition maps for
Si
3
N
4
=iron alloy couples. Wear 250:293–298, 2001.
137. J Theberge. A guide to the design of plastic gears and bearings. Machine Design, 2=5=70.
Cleveland, OH: Penton Publ. Co., 114–120.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
138. M Wolverton, J Theberge. How plastic composites wear against metals. Machine Design,
2=6=86, 67–71, 1986.
139. LNP Design Guide for Internally Lubricated Thermoplastics, LNP Corp, 1978.
140. J Lancaster, D Play, M Godet, A Verrall, R Waghorne. Paper No. 79–Lub-7, Joint ASME-
ASLE Lubrication Conference Dayton, Oh, 10=79.
141. T Tsukizoe, N Obmae. Wear mechanism of unidirectionally oriented fiber-reinforced plastics.
Proc Intl Conf Wear Materials ASME 518–525, 1977.
142. J Tylczak. Abrasive wear. In: P Bau, ed. Friction, Lubrication and Wear Technology,
ASM Handbook. Vol. 18. Materials Park, OH: ASM International, 1992, p 184.
143. J Tylczak. Abrasive wear. In: P Bau, ed. Friction, Lubrication and Wear Technology,
ASM Handbook. Vol. 18. Materials Park, OH: ASM International, 1992, pp 184–190.
144. J Larsen-Basse, B Premaratne. Effect of relative hardness on transitions in abrasive wear
mechanisms. Proc Intl Conf Wear Materials ASME 161–166, 1983.
145. B Bhushan, B Gupta. Physics of tribological materials. Handbook of Tribology.
McGraw-Hill, 1991, p 3.18.
146. B Madsen. Corrosive wear. In: P Blau, ed. Friction, Lubrication and Wear Technology,
ASM Handbook. Vol. 18. Materials Park, OH: ASM International, 1992, pp 271–279.
147. E Rabinowicz. Abrasive and other types of wear. Friction and Wear of Materials. New
York: John Wiley and Sons, 1965, pp 168–173.
148. P Swanson, R Klann. Abrasive wear studies using the wet sand and dry sand rubber wheel
tests. Proc Intl Conf Wear Materials ASME 379–389, 1981.
149. P Anstice, B McEnaney, P Thornton. Wear of paper slitting blades: the effect of slitter
machine settings. Trib Intl 14(5):257–262, 1981.
150. P Engel, R Bayer. Abrasive impact wear of type. J Lub Tech 98:330–334, 1976.
151. R Bayer. The influence of hardness on the resistance to wear by paper. Wear 84:345–351,
1983.
152. A Misra, I Finnie. A classification of three-body abrasive wear and design of a new tester.
Proc Intl Conf Wear Materials. ASME 313–318, 1979.
153. G Nathan, W Jones. Wear 9:300, 1966.
154. E Rabinowicz. Abrasive and other types of wear. Friction and Wear of Materials. New
York: John Wiley and Sons, 1965, pp 172–173.
155. T Mulhearn, L Samuels. The abrasion of metals: A model of the process. Wear 5:478–498,
1962.
156. J Thorp. Abrasive wear of some commerical polymers. Trib Intl 15(2):59–68, 1982.
157. P Blau, ed. Friction, Lubrication, and Wear Technology, ASM Handbook. Vol. 18. Materials
Park, OH: ASM International, 1992; p 188.
158. E Rabinowicz. Abrasive and other types of wear. Friction and Wear of Materials. New
York: John Wiley and Sons, 1965, pp 177–179.
159. I Finnie. Erosion of surfaces by solid particles. Wear 3:87–103, 1960.
160. Standard Test Method For conducing Erosion Tests by Solid Particle Impingement Using
Gas Jets. ASTM G76.
161. T Kosel. Solid particle erosion. In: P Bau, ed. Friction, Lubrication, and Wear
Technology, ASM Handbook. Vol. 18. Materials Park, OH: ASM International, 1992,
pp 198–213.
162. S Lim, Y Liu, S Lee, K Seah. Mapping the wear of some cutting-tool materials. Wear 162–
164:971–974, 1993.
163. A Slifka, T Morgan, R Compos, D Chaudhuri. Wear mechanism maps of 440C martensitic
stainless steel. Wear 162–164:614–618, 1993.
164. M Stack, D Pena. Mapping erosion of Ni-Cr=WC-based composites at elevated temperatures:
Some recent advances. Wear 251:1433–1441, 2001.
165. J Gomes, A Miranda, J Vieira, R Silva. Sliding speed-temperature wear transition maps for
Si
3
N
4
=iron alloy couples. Wear 250:293–298, 2001.
166. C Lim, P Lau, S Lim. The effects of work material on tool wear. Wear 250:344–348, 2001.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
167. S Lim, C Lim, K Lee. The effects of machining conditions on the flank wear of tin-coated high
speed steel tool inserts. Wear 181–183:901–912, 1995.
168. D Yang, J Zhou, Q Xue. Wear behavior of Cr implanted pure iron under oil lubricated
conditions. Wear 203–204:692–696, 1997.
169. C Lim, S Lim, K Lee. Wear of TiC-coated carbide tools in dry turning. Wear 225–229:
354–367, 1999.
170. S Wilson, T Alpas. Thermal effects on mild wear transitions in dry sliding of an aluminum
alloy. Wear 225–229:440–449, 1999.
171. M Stack, J Chacon-Nava, M Jordan. Mater Sci Technol 12:171–177, 1996.
172. M Stack, D Pena. Solid particle erosion of Ni-Cr=WC metal matrix composites at elevated
temperatures: construction of erosion mechanism and process control maps. Wear 203–
204:489–497, 1997.
173. R Lewis. Paper No. 69AM5C-2. 24th ASLE Annual Meeting, Philadelphia, 1969.
174. A Fischet. Sliding abrasion tests. Proc Intl Conf Wear Materials. ASME 729–734, 1989.
175. L Chen, D Rigney. Transfer during unlubricated sliding wear of selected metal systems. Proc
Intl Conf Wear Materials. ASME 437–446, 1985.
176. A Sedricks, T Mulhearn. Wear 7:451, 1964.
177. F. Aleinikov. The influence of abrasive powder microhardness on the values of the coefficients
of volume removal. Soviet Phys Tech Phys 2:505–511, 1957. F Aleinikov. The effect of certain
physical and mechanical properties on the grinding of brittle materials. Soviet Phys Tech Phys
2:2529–2538, 1957.
178. R Bayer. Wear of a C ring seal. Wear 74:339–351, 1981–1982.
179. R Bayer, E Hsue, J Turner. A motion-induced sub-surface deformation wear mechanism.
Wear 154:193–204, 1992.
180. R Bayer. Impact wear of elastomers. Wear 112:105–120, 1986.
181. G Laird, W Collins, R Blickensderfer. Crack propagation and spalling of white case iron balls
subjected to repeated impacts. Proc Intl Conf Wear Materials. ASME 797–806, 1987.
182. M Hamdy, R Waterhouse. The fretting-fatigue behavior of a nickel-based alloy (inconel 718)
at elevated temperatures. Proc Intl Conf Wear Materials. ASME 351–355, 1979.
183. H Voss, K Friedrich, R Pipes. Friction and wear of PEEK–composites at elevated
temperatures. Proc Intl Conf Wear Materials. ASME 397–406, 1987.
184. M Kar, S Bahadur. Micromechanism of wear at polymer-metal sliding interface. Proc Intl
Conf Wear Materials. ASME 501–509, 1977.
185. W Jamison. Tools for rock drilling. In: M Peterson, W Winer, eds. Wear Control Handbook.
ASME, 1980, pp 859–890.
186. R Bayer, P Engel, E Sacher. Contributory phenomena to the impact wear of polymer. In:
R Deanin, A Crugnola, eds. Toughness and Brittleness of Plastics. ACS, 1976, pp 138–145.
187. R Bill, L Ludwig. Wear of seal materials used in aircraft propulsion systems. In: R Burton, ed.
Thermal Deformation in Frictionally Heated Systems. Elsevier, 1980, pp 165–189.
188. T Dow. Thermoelastic effects in brakes. In: R Burton, ed. Thermal Deformation in Friction-
ally Heated Systems. Elsevier, 1980, pp 213–222.
189. J Netzel. Observations of thermoelastic instability in mechanical face seals. In: R Burton, ed.
Thermal Deformation in Frictionally Heated Systems. Elsevier, 1980, pp 135–148.
190. T Singer, S Fayculle, P Ehni. Friction and wear behavior of tin in air: the chemistry of transfer
films and debris formation. Proc Intl Conf Wear Materials. ASME, 1991, pp 229–242.
191. Y-J Liu, N-P Chen, Z-R Zhang, C-Q Yang. Wear behavior of two parts subjected to ‘gouging’
abrasion. Proc Intl Conf Wear Materials ASME 410–415, 1985.
192. R Bayer. Mechanism of wear by ribbon and paper. IBM J R D 26, 1978, 668–674.
193. N Kruschov, M Babichev. Investigation into the Wear of Materials. Moscow: USSR Acad.
Sci., 1960.
194. L Ives, A Ruff. Election microscopy study of erosion damage in copper. In: W Adler, ed. Ero-
sion: Prevention and Useful Applications. STP 664, ASTM, 1979, pp 5–35.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
4
Wear Behavior and Phenomena
4.1. GENERAL BEHAVIOR
Some trends in wear behavior are shown in Figs. 4.1–4.7. Individually, these trends do
not necessarily represent general behavior, since they are based on published data from
specific wear tests and general ly involve a limited number of materials a nd conditions
(1–16). While limited, the data summarized in these figures illustrate the broad range of
behavior that can be encoun tered in different wear situations. Several of these figures con-
tain wear curves, that is, the graphical relationship between wear and usage (distance of
sliding, time, number of cycles, etc.). Others illustrate the depen dency of wear on various
factors, such as load, roughness, speed, hardness, etc., which are significant to the design
engineer. As can be seen by comparing the various graph s in these figures, a variety of
plotting techniques is used, including linear, log–log, and semi-log, to summarize the beha-
vior. The need to use such a variety of formats illustrates the variety of relationships and
sensitivities that are associated with wear. The general character of the curves is often
some form of nonlinear behavior. In several of these figures, a power relationship (x
n
)
between wear and the parameter is indicated; in others, transitions or max=min behavior
is seen. At the same time, linear relationships or regions of linear behavior can often be
found in these figures as well.
A frequently encountered behavior is the development of a period of stable wear
behavior after some initial wear has taken place (1,6,8–14,17–20). A period of stable wear
behavior is one in which there is a stabilization of wear mechanisms. Typically, in situa-
tions where the apparent contact area does not change with wear, this is also a period
of lower and constant wear rate, after a initial period of higher and changing wear rate.
This type of behavior is shown in Figs. 4.8 and 4.9. In such situations, the initial period
is usually referred to as break-in. Break-in behavior results from surface and near-surface
changes as a result of relative motion and wear and the emergence of different mecha-
nisms. This break-in effect is in addition to and different from the run-in e ffect associated
with conforming contacts. With nominally conforming contacts, there can be an apparent
break-in period when a linear wear measure is used, such as scar depth or width. In this
case, the depth wear rate decreases as true conformity is established by wear, even if there
is no other change occurring. However, other break-in type changes are also common with
run-in. An additional discussion of break-in behavior can be found in Sec. 4.4.
The morphology of the wear scar is generally different in the break-in and stable wear
periods. Stable wear behavior is generally characterized by stable morphology. Volume wear
rates are often constant in stable wear periods, as indicated previously. However, short-term
cyclic variations and slowly decreasing wear rates are also possible in these periods (4,21).
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.

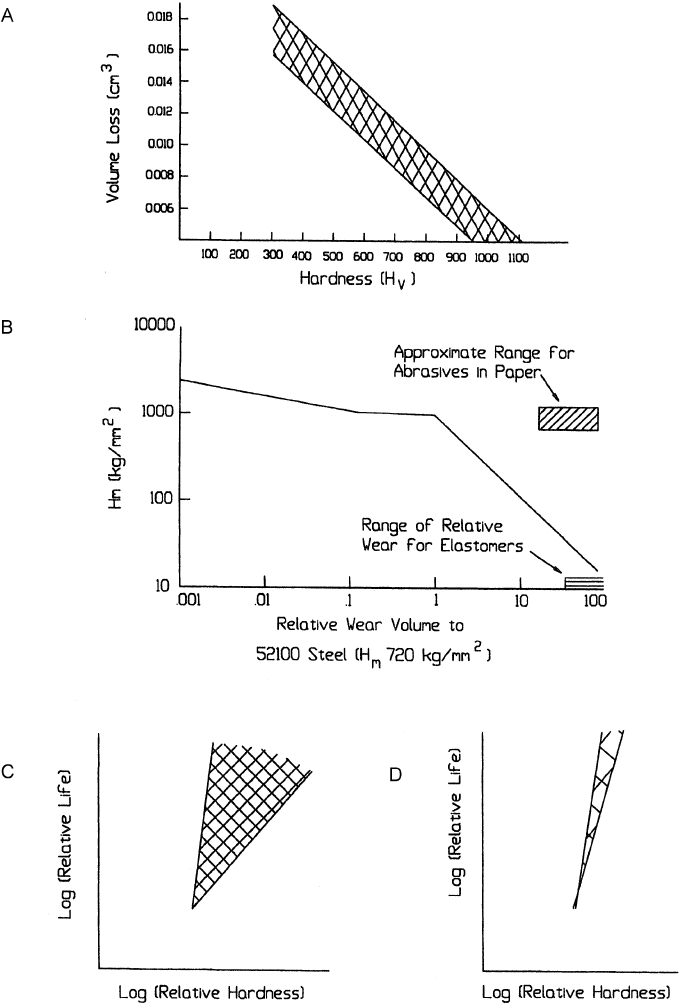

Figure 4.1 The effect of hardness on wear in several situations. ‘‘A’’, two-body abrasion of cast
irons and steels; ‘‘B’’, sliding against paper; ‘‘C’’, sliding contact; ‘‘D’’, rolling contact. (‘‘A’’ from
Ref. 9; ‘‘B’’ from Ref. 75.)
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
This distinction between initial and long-term wear behavior is significant for
several reasons. One is that run-in and break-in are precursors to stable wear beha-
vior. For the designer or engineer, this means that suitable break-in may be required
to obtain the stable period of low wear rate needed for long life. If this break-in does
not occur, higher wear rates and unstable behavior might persist, resulting in reduced
life. It is also important in engineering because it is sometimes necessary to take into
account the magnitude of the wear associated with this initial period. It is also signi-
ficant in terms of its relationship to wear studies. To the investigator, this stable
period provides a convenient region for wear study. It is typically the type of region

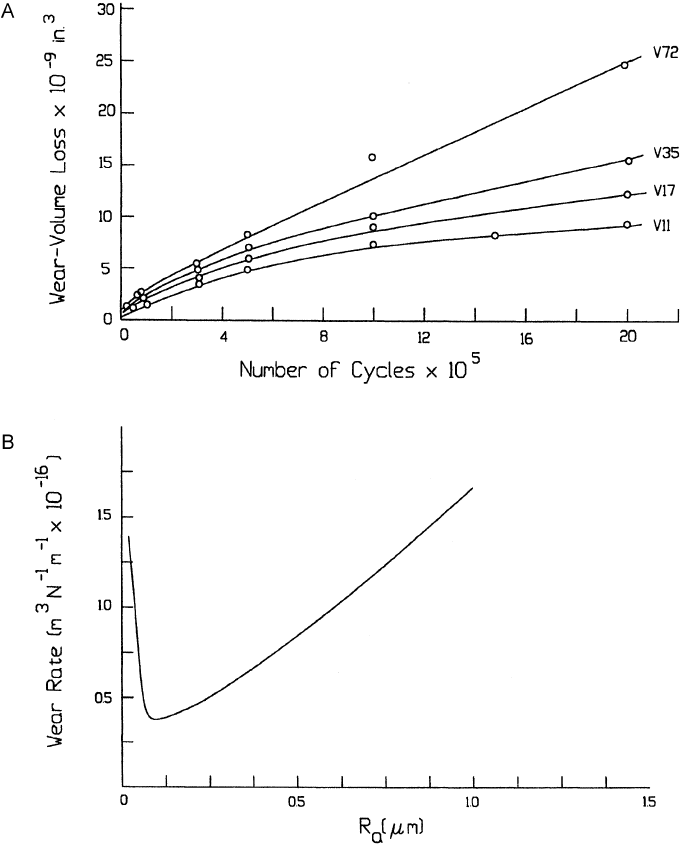

Figure 4.2 The effect of roughness in sliding. ‘‘A’’, steel against steel; ‘‘B’’, plastic against stainless
steel. (‘‘A’’ from Ref. 10; ‘‘B’’ from Ref. 16.)
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
