62 DIFFUSION PROCESSES IN ADVANCED TECHNOLOGICAL MATERIALS

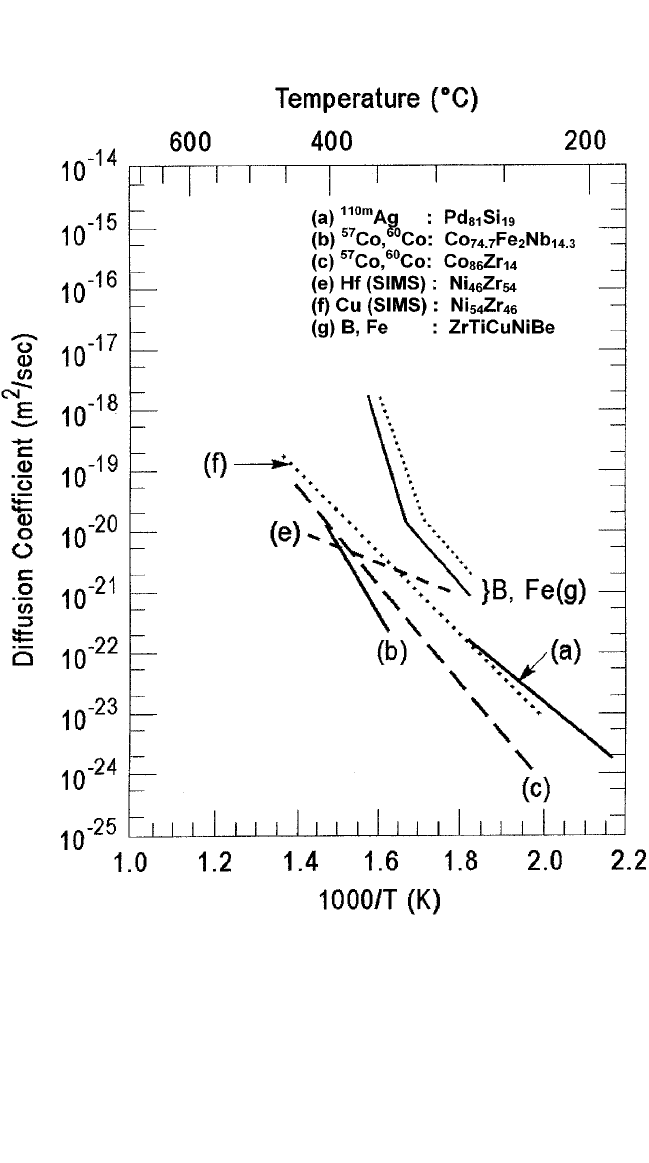

Figure 1.25 Diffusion of radioactive tracers in amorphous metallic alloys and a

bulk metallic glass. (See Table 1.6 for compositions and diffusion parameters.)

the unrelaxed state is likely to be seen in techniques such as the decay of

the satellite peaks in the compositionally modulated films and RBS,

requiring short anneals, rather than in the radioactive tracer sectioning

technique where annealing periods may extend to hundreds of hours. The

Ch_01.qxd 11/30/04 8:36 AM Page 62

DIFFUSION IN BULK SOLIDS AND THIN FILMS, GUPTA 63

activation volumes ∆VV

∼ 0.0 and ∆E ∼ 0 in the relaxed glasses, as

listed in Table 1.6.

There is, however, an ambiguity in the transition metal-metal glasses.

While diffusion of early transition metals (such as Co, Cu, and Fe) in the

metal-metal glasses is consistent with a cooperative mechanism, diffusion

changes to a vacancy mechanism for late-transition tracers (Hf and Zr), as

evidenced by sizable values of ∆E and ∆VV

(see Table 1.6). The differ-

ence is largely attributed to the larger atomic size prevalent in the late

transition metals.

Diffusion coefficients in the bulk metallic glasses are apparently non-

Arrhenius, with a knee present at about the glass transition temperature

) (see Figure 1.25). This effect has been explained by Faupel et al..

[106]

There are actually two atomic diffusion mechanisms operating in bulk

metallic glasses: Below T

, diffusion occurs by a cooperative mechanism

in the relaxed glasses or early transition metal-metal glasses that is sup-

ported by (a) isotope effect ∆E ∼ 0, (b) small lifetimes of positrons, indi-

cating little free volume, and (c) molecular dynamics simulations. Above

, the diffusion occurs by a vacancy mechanism as the frozen structure

attempts to revert to the undercooled liquid state. Each has its own

Arrhenius dependence, resulting in a curved plot.

1.7 Summary

In this chapter, we first provided important mathematical bases of diffu-

sion for a variety of experimental situations and diffusion mechanisms in

crystalline solids. The thermo-chemical effects encountered in homogeneous

and inhomogeneous alloys were then discussed within linear and nonlinear

diffusion regimes. Diffusion processes operating in common engineering

metals and alloys with extended defects such as the grain boundaries and

dislocations were discussed and illustrated by experimental results in some

model alloys. In thin films, which are of great importance to the information

technology discipline, grain boundary diffusion plays a vital role in reliabil-

ity at low temperatures. Therefore, the diffusion process in grain boundaries

was described in some detail and its interrelationship with the diffusion in

the lattice and the grain boundary energy was established. Finally, diffusion

in the recently discovered quasicrystalline and amorphous metallic alloys

was briefly discussed. Tabulated data of diffusion coefficients in a number

of materials under varying physical and chemical conditions were provided

for ready reference. This chapter was confined to diffusion in relatively

model materials. The following chapters discuss materials of technological

importance individually. It is hoped that the topics covered will be useful to

materials scientists in general without getting them deeply involved in the

mathematical and analytical complexities of the science of diffusion.

Ch_01.qxd 11/30/04 8:36 AM Page 63

Acknowledgment

The author is grateful to Dr. S. J. Rothman of Argonne National

Laboratory for critically reviewing this chapter and for many stimulating

discussions.

References

1. J. Dalton, New System. Chem. Philos., I:191 (1808)

2. T. Graham, L & E Philos. Mag. 11:175 (1833)

3. A. Fick, “Über Diffusion,” Poggerdorf’s Annalen der Physik, 94:59 (1855)

4. A. Einstein, Ann. Phys., 17(4):549 (1905)

5. W. C. Roberts-Austen, Philos. Trans. R. Soc. London, A187:404 (1896);

Proc. R. Soc. London A59:281 (1896)

6. A. S. Nowick and J. J. Burton (eds.), Diffusion in Solids: Recent Developments,

Academic Press, New York (1974)

7. G. E. Murch and Arthur S. Nowick (eds.), Diffusion in Crystalline Solids,

Academic Press (1984)

8. Diffusion, ASM, Metals Park, OH (1973)

9. M. E. Glicksman, Diffusion in Solids – Field Theory, Solid-State Principles,

and Applications, Wiley Interscience Publications (2000)

10. P. G. Shewmon, Diffusion in Solids, 2nd ed., TMS AIME, Warrendale, PA(1989)

11. D. Gupta and P. S. Ho, Diffusion Phenomena in Thin Films and

Microelectronic Materials, Noyes Pub., Park Ridge, NJ (1988)

12. H. S. Carslaw and J. C. Jaeger, Conduction of Heat in Solids, Oxford

University Press (1959)

13. J. Crank, The Mathematics of Diffusion, Oxford University Press (1956)

14. R. D. Thompson, D. Gupta, and K. N. Tu, “Low-temperature diffusion and sol-

ubility of Ni in P-doped Czochralski-grown Si,” Phys. Rev., B33:2636 (1986)

15. D. Lazarus, “Diffusion in metals,” Solid State Phys., 10:71 (1960)

16. L. Boltzmann, Ann. Physik, 53:959 (1894)

17. C. Matano, Jpn. J. Phys., 8:109 (1933)

18. A. D. Smigelskas and E. O. Kirkendall, Trans. AIME, 171:130 (1947)

19. L. S. Darken, “Diffusion, mobility and their interrelation through free energy in

binary metallic systems,” Trans. AIME,171:184 (1948); in “Atom Movements,”

Amer. Metals Soc., Cleveland, OH, 1950

20. J. R. Manning, “Theory of Diffusion,” in Diffusion, ASM, Metals Park, OH

(1973), p. 1

21. J. R. Manning, Diffusion Kinetics for Atoms in Crystals, Clarendon Press,

Oxford (1972)

22. R. W. Siegel, “ Vacancy concentration in metals,” J. Nucl. Mater., 69–70:117

(1978)

23. W. Frank, U. Gösele, H. Mehrer, and A. Seeger, “Diffusion in Silicon and

Germanium,” in Diffusion in Crystalline Solids (G. E. Murch and

A. S. Nowick, eds.), Academic Press (1984), p. 63

64 DIFFUSION PROCESSES IN ADVANCED TECHNOLOGICAL MATERIALS

Ch_01.qxd 11/30/04 8:36 AM Page 64

DIFFUSION IN BULK SOLIDS AND THIN FILMS, GUPTA 65

24. A. Seeger, “Investigation of Point Defects in Si and Ge by Non-Irradiation

Techniques,” in Radiation Effects in Semiconductors (J. W. Corbett and

G. D. Watkins, eds.), Gordon and Breach Sci. Pub. (1971), p. 29

25. A. D. LeClaire, “Solute diffusion in dilute alloys,” J. Nucl. Mater.,

69–70:70–96 (1978)

26. D. Gupta and J. Oberschmidt, “Grain Boundary Diffusion and Solute

Segregation Effects in Several Pb-In and Pb-Sn-X Concentrated Alloys,”

in Diffusion in Solids: Recent Developments (M. A. Dayananda and

G. E. Murch, eds.), TMS AIME, Warrendale, PA (1985), p. 121

27. A. W. Lawson, “Correlation of ∆S and ∆H in simple activated processes in

solids,” J. Phys. Chem. Solids, 3:250 (1957)

28. R. W. Keyes, “Continuum Models of the Effect of Pressure on Activated

Processes,” in Solids under Pressure (W. Paul and D. M. Warschauer, eds.),

McGraw Hill (1963), p. 71

29. S. A. Rice and N. H. Nachtrieb, “Dynamical theory of diffusion in crystals

II,” J. Chem. Phys. 31:139 (1959)

30. S. J. Rothman, “The Measurement of Tracer Diffusion-Coefficients in

Solids,” in Diffusion in Crystalline Solids (G. E. Murch and A. S. Nowick,

eds.), Academic Press (1984), p. 2

31. H. B. Huntington, “Electro and Thermomigration in Metals,” in Diffusion,

ASM, Metals Park, OH (1973), p. 155

32. K. N. Tu, “Interdiffusion in thin films,” Ann. Rev. Mater. Sci., 15:147 (1985)

33. L. S. Darken, “Formal Basis of Diffusion Theory,” in Atom Movements,

Amer. Soc. Metals, Cleveland, OH (1951), p. 21

34. H. E. Cook and J. E. Hilliard, “Effect of gradient energy on diffusion in

Au-Ag alloys,” J. Appl. Phys., 40:2191 (1969)

35. M. P. Rosenblum, F. Spaepen, and D. Turnbull, “Diffusion and structural

relaxation in compositionally modulated amorphous metal films,” Appl.

Phys. Lett., 37:184 (1980)

36. A. L. Greer and F. Spaepen, in Synthetic Modulated Structure Materials

(L. Chang and B. C. Giessen, eds.), Academic Press (1985), p. 419

37. J. W. Cahn and J. E. Hilliard, “Free energy of a nonuniform system, I,

Interfacial free energy,” J. Chem. Phys., 28:258 (1958)

38. R. D. Doherty, “Diffusive Phase Transformation in the Solid State,” in

Physical Metallurgy (R. W. Cahn and P. Haasen, eds.), North-Holland

Physics Pub. Co. (1983), p. 933

39. J. W. Cahn, “Spinodal decomposition,” Trans. Met. Soc. AIME, 242:166 (1968)

40. J. W. Cahn, “On Spinodal decomposition,” Acta Metall., 9:795 (1961)

41. H. E. Cook, D. de Fontaine, and J. E. Hilliard, “A model for diffusion on

cubic lattices and its application to the early stages of ordering,” Acta

Metall., 17:765 (1969)

42. J. E. Hilliard, in Phase Transformations, ASM, Metals Park, OH (1970),

p. 497

43. J. Dumond and J. P. Youtz, “An x-ray method of determining rates of diffu-

sion in the solid state,” J. Appl. Phys., 11:357–365 (1940)

44. W. A. Johnson, “Diffusion experiments on a gold-silver alloy by chemical

and radioactive tracer methods,” Trans AIME, 147:331–347 (1942)

Ch_01.qxd 11/30/04 8:36 AM Page 65

45. A. P. Sutton and R. W. Balluffi, Interfaces in Crystalline Materials,

Clarendon Press, Oxford, (1995), pp. 467–521

46. L. G. Harrison, “Influence of dislocations on diffusion kinetics in solids with

particular reference to the alkali halides,” Trans. Faraday Soc.,

57:1191 (1961)

47. E. W. Hart, “On the role of dislocations in bulk diffusion,” Acta Metall.,

5:597 (1957)

48. A. Atkinson and R. I. Taylor, “The diffusion of

Ni along grain boundaries

in nickel oxide,” Philos. Mag., A43:979 (1981)

49. J. C. M. Hwang and R. W. Balluffi, “Measurement of grain-boundary diffu-

sion at low temperatures by the surface accumulation method, I. Method and

analysis,” J. Appl. Phys., 50:1339 (1979)

50. T. Surholt, Y. M. Mishin, and C. Herzig, “ Grain-boundary diffusion and seg-

regation of gold in copper: Investigation in the type-B and type-C kinetic

regimes,” Phys. Rev., B50:3577 (1994)

51. D. Gupta, D. R. Campbell, and P. S. Ho, “Grain Boundary Diffusion,” in Thin

Films-Interdiffusion and Reactions (J. M. Poate, K. N. Tu, and J. W. Mayer,

eds.), John Wiley (1978), p. 161

52. J. C. Fisher, “Calculation of diffusion penetration curve for surface and grain

boundary diffusion,” J. Appl. Phys., 22:74 (1951)

53. R. T. P. Whipple, “Concentration contours in grain boundary diffusion,”

Philos. Mag., 45:1225 (1954)

54. T. Suzuoka, “Lattice and grain boundary diffusion in polycrystals,” Trans.

Jpn. Inst. Metall., 2:25 (1961)

55. A. D. LeClaire, “The analysis of grain boundary diffusion measurements,”

Brit. J. Appl. Phys., 14:351 (1963)

56. R. F. Cannon and J. P. Stark, “Analysis of penetration data from grain bound-

ary diffusion experiments,” J. Appl. Phys., 40:4361 (1969)

57. G. H. Gilmer and H. H. Farrell, “Grain-boundary diffusion in thin films, I.

The isolated grain boundary,” J. Appl. Phys., 47:3792 (1976)

58. G. H. Gilmer and H. H. Farrell, “Grain-boundary diffusion in thin films, II.

Multiple grain boundaries and surface diffusion,” J. Appl. Phys., 47:4373

(1976)

59. S. M. Makin, A. H. Rowe, and A. D. LeClaire, “ Self diffusion in gold,” Proc.

Phys. Soc., 70:545 (1957)

60. D. Gupta and R. T. C. Tsui, “A Universal microsectioning technique for dif-

fusion,” Appl. Phys. Lett., 17:294 (1970)

61. D. Gupta, “Grain-Boundary Self-Diffusion in Au by Ar Sputtering

Technique,” J. Appl. Phys. 44:4455 (1973)

62. D. Gupta, “Self-diffusion along dislocations in single crystal Au films,”

Phys. Rev., B7:586 (1973)

63. D. Gupta and K. W. Asai, “Grain-boundary self-diffusion in evaporated Au

films at low temperatures,” Thin Solid Films, 22:121 (1974)

64. B. Okkerse, Phys. Rev., 103:1246 (1956)

65. A. Gainotti and L. Zacchina, Nuovo Cimento, 40B:295 (1965)

66. W. Rupp, U. Ermert, and R. Sizmann, Phys. Status Solidi, 33:509 (1969)

67. A. Seeger and H. Mehrer, Phys. Status Solidi, 29:231 (1968)

66 DIFFUSION PROCESSES IN ADVANCED TECHNOLOGICAL MATERIALS

Ch_01.qxd 11/30/04 8:36 AM Page 66

DIFFUSION IN BULK SOLIDS AND THIN FILMS, GUPTA 67

68. D. Gupta and R. Rosenberg, “Effect of solute addition (Ta) on low tempera-

ture self-diffusion processes in Au,” Thin Solid Films, 25:171 (1975)

69. Special Issue: Short-Circuit Diffusion at Interfaces in Materials (Y. Mishin,

ed.), Interface Science, Kluwer Academic Pub, 11(1):1–152 (2003)

70. I. Kaur, W. Gust, and L. Kozma, Handbook of Grain and Interface Boundary

Diffusion Data, Vols. 1 and 2, Ziegler Press, Stuttgart (1989)

71. Diffusion in Solids and Alloys (H. Mehrer, ed.), Landholt-Börnstein series,

vol. 26 (1990), p. 630

72. D. Gupta and D. R. Campbell, “Grain-boundary diffusion of 119mSn in Pb

foils by the nuclear absorption technique,” Philos. Mag., A42:513–526

(1980)

73. D. Gupta and K. K. Kim, “Grain-boundary self-diffusion in Pb,” J. Appl.

Phys., 51:20566 (1980)

74. J. P. Stark and W. R. Upthegrove, “ On grain boundary self diffusion of lead,

Part I: Orientation dependence,” Trans. Amer. Soc. Metall., 59:479 (1966)

75. D. Turnbull and R. E. Hoffman, “The effect of relative crystal and boundary

orientation on grain boundary diffusion rates,” Acta Metall., 2:419 (1954)

76. R. L. Couling and R. Smoluchowski, “Anisotropy of diffusion in grain

boundaries,” J. Appl. Phys., 25:1538 (1954)

77. R. W. Balluffi, in Diffusion in Crystalline Solids (G. E. Murch and A. S.

Nowick, eds.), Academic Press (1984)

78. W. Krakow and D. A. Smith, “The observation and interpretation of a

∑  19(33



1) [110] tilt boundary in Au thin films,” Philos. Mag., A53:739

(1986)

79. T. Kwok, P. S. Ho, S. Yip, R. W. Balluffi, P. D. Bristow, and A. Brokeman,

“Evidence for vacancy mechanism in grain boundary diffusion in BCC iron:

a molecular-dynamic study,” Phys. Rev. Lett., 47:1148 (1981)

80. G. Martin, D. A. Blackburn, and Y. Adda, “Autodiffusion Au joint de grains

de bicristaux d’argen soumis á une pression hydrostatique,” Phys. Status

Solidi, 23:223 (1967)

81. J. T. Robinson and N. L. Peterson, “Correlation effects in grain boundary dif-

fusion,” Surf. Sci., 31:586 (1972)

82. A. Suzuki and Y. Mishin, “Atomistic modeling of point defects and diffusion

in copper grain boundaries,” Inter. Sci., 11:131 (2003)

83. V. T. Borisov, V. M. Golikov, and G. V. Scherbedinskiy, “Relationship

between diffusion coefficients and grain boundary energy,” Phys. Met.

Metalogr. (USSR), 17:80 (1964)

84. J. Van Liempt, Z. Phys., 96:534 (1935)

85. D. McLean, Grain Boundaries in Metals, Oxford University Press, London

(1957)

86. G. B. Gibbs, “Grain boundary impurity diffusion,” Phys. Status Solidi,

16:K27 (1966)

87. J. W. Gibbs, Collected Works, I, Yale University Press (1948), p. 219

88. D. Gupta, “Diffusion, solute segregation and interfacial; energies in some

materials,” Int. Sci., 11:131 (2003)

89. D. Gupta, “Grain-boundary energies and their interaction with Ta solute from

self-diffusion in Au and Au-1.2 % at Ta alloy,” Philos. Mag., 33:189 (1976)

Ch_01.qxd 11/30/04 8:36 AM Page 67

90. P. Wynblatt and R. C. Ku, in Proc. ASM Sci. Seminar Interfacial

Segregation (W. C. Johnson and J. M. Blakely, eds.), ASM, Metals Park,

OH (1979), p. 115

91. J. Smithells and E. A. Brandes (eds.), Metals Reference Book, vol. 15,

Butterworths, London (1976), p. 2

92. E. D. Hondros, M. P. Seah, S. Hoffman, and P. Lecek, in Physical

Metallurgy (R. W. Cahn and P. Haasan, eds.), North-Holland Physics Pub.

Co. (1996), pp. 1201–1288

93. E. D. Hondros, in Proc. Interfaces Conf., Australian Inst. of Metals,

Butterworths, London (1969), p. 77

94. D. Schechtman, I. Blech, D. Gratias, and J. W. Cahn, Phys. Rev. Lett.,

53:1951 (1984)

95. P. Duwez, R. H. Williams, and Klement, “Non-crystalline structure in solid-

ified gold-silicon alloys,” Nature (London), 187:869 (1960)

96. A. Peker and W. L. Johnson, Appl. Phys. Lett., 63:17 (1993) 2342

97. J. Philibert, Atom Movements and Mass Transport in Solids, Les Editions

de Physique (1991)

98. H. Nakajima and T. Zumkley, “Diffusion in quasicrystals,” Defect Diffusion

Forum, 194–199:789 (2001)

99. C. Khoukaz, R. Galler, M. Feuerbacher, and H. Mehrer, “Self-diffusion of

Ni and Co in decagonal Al-Ni-Co quasicrytals,” Defect Diffusion Forum,

194–199:873 (2001)

100. R. Galler, R. Sterzel, W. Assmus, and H. Mehrer, “Diffusion in icosahedral

Zn-Mg-RE and Al-Pd-Mn quasicrystals,” Defect Diffusion Forum,

194–199:867 (2001)

101. S. V. Divinski and L. N. Larikov, “Mechanisms of diffusion in quasicrys-

tals,” Defect Diffusion Forum, 143–147:861 (1997)

102. P. A. Kalugin and A. Katz, “A mechanism for self-diffusion in quasicrys-

tals,” Europhys. Lett., 21:921 (1993)

103. D. Gupta, K. N. Tu, and K. W. Asai, “Diffusion in the amorphous phase of

Pd-19 at.% Si metallic alloy,” Phys. Rev. Lett., 35:796 (1975)

104. W. Frank, “Diffusion in amorphous solids-metallic alloys and elemental

semiconductors,” Defect Diffusion Forum, 143–147:695 (1997)

105. H. Mehrer and G. Hummel, “Amorphous Metallic Alloys,” in Diffusion in

Amorphous Materials (H. Jain and D. Gupta, eds.), The Minerals, Metals

and Materials Soc. (1994), p. 163

106. F. Faupel, H. Ehmler, C. Nagel, and K. Rätzke, “Does the diffusion mech-

anism change at the caloric glass transition?,” Defect Diffusion Forum,

194–199:821 (2001)

68 DIFFUSION PROCESSES IN ADVANCED TECHNOLOGICAL MATERIALS

Ch_01.qxd 11/30/04 8:36 AM Page 68

2 Solid State Diffusion and

Bulk Properties

Gyanendra P.Tiwari and Radhey S. Mehrotra

Bhabha Atomic Research Centre, Trombay, India

Yoshiaki Iijima

Department of Materials Science, Tohoku University, Japan

2.1 Introduction

The basic equation for self-diffusion in cubic crystalline lattice via a

monovacancy mechanism

[1]

is as follows:

D  fa

u exp(∆S

R) exp(∆H

RT) (1)

where

D  diffusion coefficient

f  correlation factor

a  lattice parameter

u  jump frequency

∆S

 activation entropy

∆H

 activation enthalpy

R  universal gas constant

T  temperature, in degrees Kelvin

Furthermore, the enthalpy and free energy (∆G

)of activation for diffusion

are given by:

∆H

 ∆H

 ∆H

, (2.1)

 DH

 TDS

. (2.2)

The terms ∆H

and ∆H

are the activation energies for formation and migra-

tion of vacancies. Equation (1) was derived by Wert and Zener

[2]

on the basis

of absolute reaction rate theory. This equation is applicable for self-diffusion

in all crystalline lattices. For diffusion in complex lattices and changes in the

diffusion mode, introduction of a numerical factor is necessary. The present

Ch_02.qxd 11/30/04 8:45 AM Page 69

discussion is focused on the self-diffusion in metallic elements, where the

migration of a monovacancy is the dominant mode of diffusive motion.

Section 2.2 surveys the interrelationships between diffusion parameters

and some bulk properties of the solids. These relationships, which can be

qualified as the “enlightened empiricism,” have contributed significantly to the

growth in the field of diffusion in solids by serving as the reference point for

the rationalization of the diffusion data. The most important developments in

this area have been (a) the establishment of a firm basis for the correlation

between diffusion and melting parameters, (b) the Zener’s hypothesis

relating the activation entropy of diffusion (∆S

) with the temperature

dependence of elastic constants, and (c) a formal theory relating the vacancy

formation energy with the Debye temperature. The main feature of such rela-

tionships is a constant, which directly relates the concerned diffusion param-

eter, most often the activation energy for self-diffusion, with a bulk property.

For any particular class of solids, the magnitude of the constant depends on

the crystal structure and the mode of diffusion. Starting with Van Leimpt,

[3]

there exists a fairly long history of empirical relationships between the dif-

fusion parameters and bulk properties of the solids.

[2–13]

The formation of a

vacancy results in the breaking of bonds between the atoms in the matrix.

Similarly, the migration of an atom from its equilibrium position to the next

site causes distortions in the bonds between the diffusing atom and its near-

est neighbors. The kinetics of both of these steps in diffusion are governed

by the nature and strength of the cohesion in the matrix. Therefore, in trying

to relate the diffusion parameters with the bulk properties, we are, in fact,

seeking to correlate them, albeit indirectly, with the cohesive energy. This

explains, to some extent, why the correlations of the diffusion parameters

with melting point and elastic constants have been sought extensively in the lit-

70 DIFFUSION PROCESSES IN ADVANCED TECHNOLOGICAL MATERIALS

Figure 2.1 Plots of activation energy for self-diffusion in metals against their

cohesive energies; slopes 0.57 (FCC), 0.65 (HCP), and 0.60 (BCC).

Notes: 1. Activation energies were obtained from Smithells’Metal Reference Book, vol. VII

(E. A. Brandes and G. B. Brook, eds.), Butterworths Pub. (1992).

2. Cohesive energies were obtained from C. Kittel, Introduction to Solid State Physics, VII

ed., Wiley (1986).

Ch_02.qxd 11/30/04 8:45 AM Page 70

SOLID STATE DIFFUSION AND BULK PROPERTIES, TIWARI ET AL.71

erature. Figure 2.1 shows plots of ∆H

for metals against the cohesive energy,

E. The slopes vary only marginally between FCC, HCP, and BCC structures.

Figure 2.1 demonstrates a general rule that activation energy for self-

diffusion in any matrix depends basically on its cohesive strength.

From cohesive energy considerations, diffusion is easier in metals and

polymers because the breaking and bending of bonds in them requires

proportionately lesser energy as compared to that in ionic and covalent

solids. In other words, energy fluctuations needed for diffusion to occur

are smaller in metals and organic solids than in ionic and covalent solids.

Following this, a thermodynamic equation relating the activation vol-

ume to the activation entropy is derived in Sec. 2.3 for pressure-dependent

diffusion measurements. This equation is further used to obtain estimates

of the activation entropy of diffusion, the frequency of diffusion, and the

specific heat of the activated complex. It is shown that the equation

derived here gives reliable values of all associated parameters.

Disregarding the chronological sequence, the important relationships

between diffusion parameters and bulk properties discussed here have

helped (a) in the growth of the subject, through being a reference point for

the rationalization of diffusion data in the absence of a formal theory, and

(b) in the estimation of diffusion rates when the experimental data are lack-

ing. Indeed, when diffusion measurements are attempted in a new solid,

these empirical rules greatly help in choosing the experimental technique

and the subsequent thermal treatments.

2.2 Correlations with Bulk Properties

2.2.1 The Melting Parameters

Melting of a solid leads to the destruction of its long-range periodicity.

Therefore, melting point can be considered, on a relative scale, to be a

measure of the pair-wise binding energy of the matrix.

[14, 15]

Around a vacancy,

pair-wise bonds are broken and, at the same time, there is an increase in the

overall volume of the matrix. Hence, vacancy formation energy has been

linked intuitively to the melting point.

[16, 17]

Figure 2.2 shows plots between the

vacancy formation energy and the melting point. The data on the activation

enthalpy for the formation of monovacancies in various metals are satisfacto-

rily represented by a straight line passing from the origin and are given by:

 80.2 T

(3)

for FCC and HCP metals, and

 97 T

(4)

for BCC metals.

Ch_02.qxd 11/30/04 8:45 AM Page 71
