590 Charged Particle and Photon Interactions with Matter

21.8.2 non-Staining iMaging

Of great interest for the new generation of microbeam facilities is the use of more sophisticated

optical devices to both locate the biological targets of interest and, following the radiation exposure,

determine the damage induced at a single-cell level. Current biological targets used for the micro-

beam experiments are considerably larger than the radiation probe. For example, the cell nucleus

and cytoplasm are several microns in diameter against the submicron resolution achieved by some

facilities. In order to take full advantage of the microbeam targeting properties, it is crucial to be

able to visualize subcellular compartments other than the nucleus with high precision. For the

microbeam technique to be capable of detecting very small cellular responses, the potential con-

founding insult of external agents such as UV illumination and dye staining has to be eliminated/

minimized. A few laboratories have already started to employ non uorescent techniques (see

Section 21.5.4), and a very promising approach is represented by the use of quantitative phase

microscopy (QPM). Using QPM, high resolution images can be obtained by analyzing three images

acquired with conventional light microscopy. Commercial software that performs such analysis is

already available and only requires one in focus image and two slightly defocused (positively and

negatively) images. The considerable benet of being able to use conventional light microscopy on

line for microbeam facilities has however been judged against the resolution of the images obtained

and the processing speed.

Alongside the biological demands of performing microbeam experiments in tissues and 3D cell

systems, there is a need to equip the microbeam facilities with deep imaging techniques such as

multiphoton microscopy. Multiphoton uorescence microscopy is an imaging technique that allows

imaging of living tissue samples up to a few millimeters thick. It is based on the principle that two

long-wavelength photons (700–1000nm) simultaneously excite the same uorophore into a higher

energy state than they would individually. The uorophores then decay, emitting a uorescent sig-

nal relative to its energetic state (400–500nm). The main differences between multiphoton and

conventional uorescent microscopy are the longer excitation wavelength, which requires use of

lasers, required to produce a uorescent signal and the localized nature of the emission signal that

is only emitted from the uorophores where two exiting photons are focused. As a consequence, the

insult induced by multiphoton imaging is considerably lower, and high resolution images at depth

of several hundred microns can be obtained. Moreover, the use of tunable lasers allows multiphoton

microscopes to observe post-irradiation cellular dynamics by acquiring time-lapse images (Bigelow

etal., 2009).

21.8.3 hard x-ray opticS

As illustrated in Section 21.6.2, the nest x-ray focusing is currently achieved with diffraction ele-

ments (i.e., zone plates) that are wavelength dependent and characterized by low efciencies that

severely limit their application with conventional lab bench x-ray sources. The use of reecting

optics overcomes such problems, although available devices described earlier suffer from com-

plex alignment routines, considerable length, and limited focusing ability. However, new grazing

incident reecting optic devices for x-rays (i.e., polycapillary systems based on commercial micro-

channel plates originally designed as electron multipliers) are being designed and manufactured

offering promising alternatives for x-ray microbeams. In particular, the MOXI device (microfabri-

cated optical array for x-ray imaging) consists of two symmetrical arrays of microchannels etched

into silicon wafers and arranged in a circular pattern (see Figure 21.4). By precisely aligning the

two micro-channel arrays, a focusing action can be achieved with considerable efciency and mini-

mum aberrations when one or both arrays are appropriately bent (Prewett and Michette, 2001).

The benets offered by the MOXI devices lie in having a much larger numerical aperture com-

pared to zone plates (i.e., they can collect a larger fraction of the produced x-ray beam), a greater

focusing efciency, and the possibility to use higher energy x-rays. Moreover, the focal length of

Application of Microbeams to the Study of the Biological Effects of Low Dose Irradiation 591

such micro-optical devices can be varied providing zoom lens capability. Realization of MOXIs,

however, presents some technical challenges due to the required smoothness of the micro-channels

arrays

and the ability to control their individual bending.

21.8.4 biological advanceS

Alongside the advances in imaging mentioned earlier, a major development is the move from cell

targeting studies to tissue and ultimately in vivo approaches. A range of studies have now been

reported in 3-D model systems using microbeams. These have been relatively simple approaches

where a single region of a tissue reconstruct is irradiated and then measurements made at later times

using conventional approaches of xing these tissues, sectioning these into multiple slices, and

looking at distance dependence of various biological responses (Belyakov etal., 2005; Sedelnikova

etal., 2007). The coupling of multiphoton imaging approaches to microbeam exposure will allow

sophisticated real time imaging of responses at depth to delineate multicellular signaling pathways.

With higher energy microbeams, the opportunity to do in vivo exposures, especially in mouse mod-

els, will be possible. This is particularly timely as recent data has suggested long range bystander

responses can be observed using in vivo models, using relatively crude shielding opportunities

and there is an urgent need to test the responses using targeted microbeam approaches (Mancuso

etal.,

2008). Live cell imaging for cellular studies will also develop rapidly alongside multiple new

uorescent markers of response. A key requirement will be to utilize time-lapse approaches for fol-

lowing changes after microbeam irradiation. For high throughput, these will have to be done ofine

from the microbeam irradiation station. This requires good coordinate transfer approaches so that

irradiated

cells can be revisited and followed ofine.

21.9 summary

A range of approaches have been developed for producing microbeams for radiationbiology research.

These include the following: charged particles, x-rays, and electron microbeams. Signicant tech-

nological development in radiation delivery, beam detection, and positioning, alongside advances

in imaging has made microbeams powerful tools for assessing the effects of radiation exposure in

a range of biological models. Much of this has concentrated on the effects of low- dose exposures

of relevance to environmental and occupational exposures received by human populations. With

advances in both technology and biology, microbeam approaches will continue to make a signi-

cant

contribution to our knowledge of radiation effects in the future.

X-ray focus

MOXI device

X-ray source

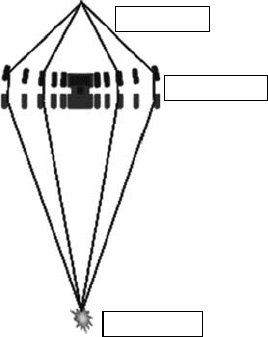

Figure 21.4 Schematic illustration of the working principle of a MOXI lens.
