299
SAE J2064 TYPE A
KEY PERFORMANCE CARACTERISTICAS ESPECIALES
Higher compact dimensions within type A hoses and outside diameter comparable with reduced
barrier hoses
Low weight
Easy installation in space constraints
High flexibility and low bend
radius
Compatible with a wide range of refrigerants and lubricants
Low refrigerants
permeability and moisture ingression
Superior dimensión compacta en la manguera tipo A y diámetro exterior comparable con las mangueras
compactas “barrier”
Fácil instalación en espacios reducidos
Alta flexibilidad y radio de curvatura
Compatible con una gama amplia de refrigerantes y lubricantes
Baja permeabilidad al refrigerante y al
incremento de humedad
Specifications: SAE J2064 Type A Class I
MAIN APPLICATIONS: A/C system for off-highway vehicles,
small/medium busses and special vehicles such as recreation
vehicles, ambulances and military vehicles.
CONSTRUCTION:
TUBE: low refrigerant fluid permeability and wide compatibility
with the most common compressor lubricant (IIR)
REINFORCEMENT: one textile braid
COVER: high temperature (max 125°C) and environmental (ozone
resistance) resistant synthetic rubber (EPDM)
REFRIGERANTS: compatibility with a wide range of refrigerants,
such as R134a, 404A, 407C
LUBRICANTS: compatibility with the most common compressor
lubricants, such as PAG, POE and mineral oils
CONTINUOUS WORKING TEMPERATURE
-40°C / +125°C • -40°F / +257°F
ESPECIFICACIONES: SAE J2064 Tipo A Clase I
APLICACIONES PRINCIPALES: vehículos en carretera, vehículos de
recreación y especiales como ambulancias, buses, vehículos del ejercito.
CONSTRUCCIÓN:
TUBO: Baja permeabilidad al refrigerente y compatible con el
lubricante más común del compresor (IIR)
REFUERZO: una trenza textil
CUBIERTA: alta temperatura (max 125ºC) y medioambiental
(resistente al ozono). Caucho sintético resistente (EPDM)
REFRIGERANTE: compatible con una gama amplia de refrigerantes,
como R134a, 404A, 407C,
LUBRICANTES: compatibilidad con el lubricante más común del
compresor, como PAG, POE y aceites minerales.
TEMPERATURA DE TRABAJO CONTINUO:
-40°C / +125°C • -40°F / +257°F
NOTE: Guaranteed performance only with our fittings.
Comportamiento garantizado solamente con nuestras conexiones.
DASH INCH
HOSE SIZE FERRULE EXTERNAL
DIAMETER
- 06
- 08
- 10
- 12
5/16”
13/32”
1/2”
5/8”
DN
8
10
12
16
mm
22,0
22,0
25,8
28,4
WARNING:
Ask MRI about other refrigerants and lubrificants
PRECAUCION:
Pregunte a MRI acerca de otros refrigerantes y lubricantes
STANDARD
PART. REF.
HOSE SIZE
WORKING
PRESSURE
O.D.I.D.
BURST
PRESSURE
WEIGHT
MIN. BEND
RADIUS
H09068008IB99 8 6 5/16" 8,2 15,5 35 >150 165 30
H09068010IB99 10 8 13/32" 10,5 18,0 35 >150 200 50
H09068012IB99 12 10 1/2" 12,7 20,0 35 >150 250 60
H09068016IB99 16 12 5/8" 16 23,5 35 >150 290 80
DN Dash inch mm mm bar bar g/m mm
Standard Packaging: carton reel
EEmmbbaallaajjee eessttáánnddaarr::
bobina de cartón
fluid GB_SPA 279_300 10_05_2007 08:29 AM Pagina 299
300
fluid GB_SPA 279_300 10_05_2007 08:29 AM Pagina 300
301

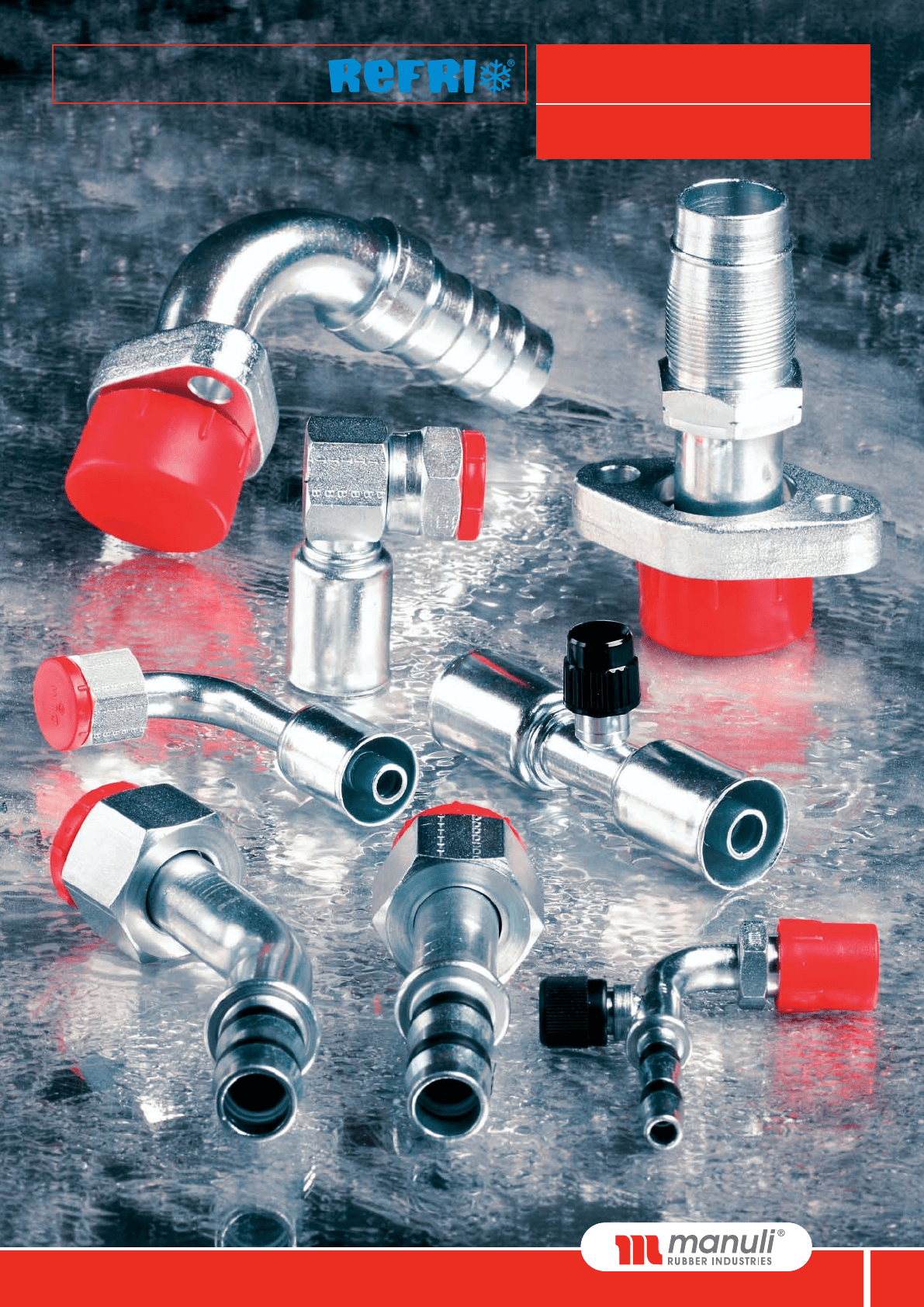

REFRIGERATION
FITTINGS
fluid GB_SPA 301_368.xls 10_05_2007 08:48 AM Pagina 301
302
REFRIGERATION FITTINGS
VISUAL INDEX
Description Reference Page
Descripción Referencia Página
Description Reference Page
Descripción Referencia Pagina
Description Reference Page
Descripción Referencia Pagina
FRIGOCLIC
®
STRAIGHT CONNECTION FITTINGS
RACORES PARA CONEXION RECTOS
C30010
326
328
327
327
328
328
328
329
327
326
STRAIGHT CONNECTION FITTING
1/4” SAE CHARGE VALVE
CONEXION RECTA CON VÁLVULA DE
CARGA 1/4” SAE
C30012
STRAIGHT CONNECTION FITTING
WITH HIGH PRESSURE VALVE
CONEXION RECTA CON VÁLVULA DE
ALTA PRESION
C30015
STRAIGHT CONNECTION FITTING
WITH LOW PRESSURE VALVE
CONEXION RECTA CON VÁLVULA DE
BAJA PRESION
C30016
CONNECTION FITTING 45° ELBOW
RACOR CODO 45°
C30040
CONNECTION FITTING 45° ELBOW
WITH HIGH PRESSURE VALVE
CONEXION CODO 45° CON
VÁLVULA DE ALTA PRESION
C30045
CONNECTION FITTING 45° ELBOW
WITH LOW PRESSURE VALVE
CONEXION CODO 45° CON
VÁLVULA DE BAJA PRESION
C30046
CONNECTION FITTING 90° ELBOW
CONEXION CODO 90°
C30090
“h” CONNECTION FITTINGS
CONEXION EN “h”
C300h0
3 WAYS CONNECTION FITTINGS
RACORES PARA CONEXION
DE 3 VIAS
C300T0
STRAIGHT MALE WITH O-RING SEAT
MACHO RECTO CON O-RING
C37910
326
330
330
324
324
324
325
329
329
330
317
“Y” CONNECTION FITTINGS
CONEXION EN “Y”
C300Y0
MALE WITH O-RING SEAT 90°
ELBOW
MACHO CON O-RING CODO 90°
C37990
STRAIGHT O-RING MALE
MACHO O-RING RECTO
C38010
O-RING MALE 45° ELBOW
MACHO O-RING CODO 45°
C38040
O-RING MALE 90° ELBOW
MACHO O-RING CODO 90°
C38090
O-RING MALE 90° ELBOW WITH
1/4” SAE CHARGE VALVE
MACHO O-RING CODO 90° CON
VÁLVULA DE CARGA 1/4” SAE
C38092
STRAIGHT ORS FLAT SEAL FEMALE
HEMBRA ORS ASIENTO PLANO
RECTO
C42410
ORS FLAT SEAL FEMALE 45°
ELBOW
HEMBRA ORS ASIENTO PLANO
CODO 45°
C42440
ORS FLAT SEAL FEMALE 90°
ELBOW
HEMBRA ORS ASIENTO PLANO
CODO 90°
C42490
45° SAE STRAIGHT FEMALE
HEMBRA 45° SAE RECTO
C42610
fluid GB_SPA 301_368.xls 10_05_2007 08:48 AM Pagina 302
303
REFRIGERATION FITTINGS
VISUAL INDEX
Description Reference Page
Descripción Referencia Página
Description Reference Page
Descripción Referencia Pagina
Description Reference Page
Descripción Referencia Pagina
SHORT VERSION 45° SAE FEMALE
90° ELBOW
HEMBRA 45° SAE TIPO CORTO
CODO 90°
C42680
318
318
318
325
325
325
319
320
319
320
320
45° SAE FEMALE 45° ELBOW
HEMBRA RECTA SAE CODO 45º
C42640
45° SAE FEMALE 90° ELBOW
HEMBRA 45° SAE CODO 90°
C42690
STRAIGHT FITTING FOR EXPANSION
VALVE
CONEXION RECTA PARA VÁLVULA DE
EXPANSIÓN
C47610
FITTING FOR EXPANSION VALVE
45° ELBOW
CONEXION PARA VÁLVULA DE
EXPANSION CODO 45°
C47640
FITTING FOR EXPANSION VALVE
90° ELBOW
CONEXION PARA VÁLVULA DE
EXPANSION CODO 90°
C47690
STRAIGHT O-RING FEMALE
HEMBRA O-RING RECTO
C47910
STRAIGHT O-RING FEMALE 1/4”
SAE CHARGE VALVE
HEMBRA O-RING RECTO CON
VÁLVULA DE CARGA 1/4” SAE
C47912
STRAIGHT O-RING FEMALE WITH
HIGH PRESSURE VALVE
HEMBRA O-RING RECTO CON
VÁLVULA DE ALTA PRESION
C47915
STRAIGHT O-RING FEMALE WITH
LOW PRESSURE VALVE
HEMBRA O-RING RECTO CON
VÁLVULA DE BAJA PRESION
C47916
O-RING FEMALE 45° ELBOW
HEMBRA O-RING CODO 45°
C47940
O-RING FEMALE 45° ELBOW WITH
LOW PRESSURE VALVE
HEMBRA O-RING CODO 45° CON
VÁLVULA DE BAJA PRESION
C47946
321
321
323
323
323
321
322
322
322
O-RING FEMALE 45° ELBOW WITH
HIGH PRESSURE VALVE
HEMBRA O-RING CODO 45° CON
VÁLVULA DE ALTA PRESION
C47945
SHORT VERSION O-RING FEMALE
90° ELBOW
HEMBRA O-RING TIPO CORTO
CODO 90°
C47980
SHORT VERSION O-RING FEMALE 90°
ELBOW WITH HIGH PRESSURE VALVE
HEMBRA O-RING TIPO CORTO CODO
90° CON VÁLVULA DE ALTA
PRESION
C47985
SHORT VERSION O-RING FEMALE 90°
ELBOW WITH LOW PRESSURE VALVE
HEMBRA O-RING TIPO CORTO CODO
90° CON VÁLVULA DE BAJA
PRESION
C47986
O-RING FEMALE 90° ELBOW
HEMBRA O-RING CODO 90°
C47990
O-RING FEMALE 90° ELBOW WITH
1/4” SAE CHARGE VALVE
HEMBRA O-RING CODO 90° CON
VÁLVULA DE CARGA 1/4” SAE
C47992
O-RING FEMALE 90° ELBOW WITH
HIGH PRESSURE VALVE
HEMBRA O-RING CODO 90° CON
VÁLVULA DE ALTA PRESION
C47995
O-RING FEMALE 90° ELBOW WITH
LOW PRESSURE VALVE
HEMBRA O-RING CODO 90° CON
VÁLVULA DE BAJA PRESION
C47996
fluid GB_SPA 301_368.xls 10_05_2007 08:48 AM Pagina 303
304
REFRIGERATION FITTINGS
VISUAL INDEX
Description Reference Page
Descripción Referencia Página
Description Reference Page
Descripción Referencia Pagina
Description Reference Page
Descripción Referencia Pagina
STAR-FIT
STRAIGHT CONNECTION FITTING
RACOR RECTO
K30010
341
341
341
343
333
336
337
337
337
342
STRAIGHT CONNECTION FITTING
WITH HIGH PRESSURE VALVE
RACOR RECTO CON VÁLVULA DE
ALTA PRESION
K30015
STRAIGHT CONNECTION FITTING
WITH LOW PRESSURE VALVE
RACOR RECTO CON VÁLVULA DE
BAJA PRESION
K30016
STRAIGHT 24° MALE DIN
MACHO 24° DIN RECTO
K31110
STRAIGHT 45° SAE FLARE MALE
MACHO CÓNICO 45° SAE RECTO
K32610
STRAIGHT O’RING MALE
MACHO O’RING RECTO
K38010
O-RING MALE 45° ELBOW
MACHO O-RING CODO 45°
K38040
O-RING MALE 90° ELBOW
MACHO O-RING CODO 90°
K38090
STRAIGHT 24° DIN FLARE O-RING
OGIVAL FEMALE
HEMBRA O-RING OGIVA 24° DIN
CÓNICO RECTO
K41510
STRAIGHT METRIC OGIVAL FEMALE
HEMBRA METRICO A OGIVA RECTO
K41510...SC
METRIC OGIVAL FEMALE
45° ELBOW
HEMBRA METRICO A OGIVA
CODO 45°
K41540...SC
338
342
338
342
339
340
340
343
343
343
331
24° DIN FLARE O-RING OGIVAL
FEMALE 45° ELBOW
HEMBRA O-RING OGIVA 24° DIN
CÓNICO CODO 45°
K41540
24° DIN FLARE O-RING OGIVAL
FEMALE 90° ELBOW
HEMBRA O-RING OGIVA 24° DIN
CÓNICO CODO 90°
K41590
METRIC OGIVAL FEMALE
90° ELBOW
HEMBRA METRICO A OGIVA
CODO 90°
K41590...SC
STRAIGHT ORS FLAT SEAL FEMALE
HEMBRA ASIENTO PLANO ORS
RECTO
K42410
ORS FLAT SEAL FEMALE
45° ELBOW
HEMBRA ASIENTO PLANO ORS
CODO 45°
K42440
ORS FLAT SEAL FEMALE
90° ELBOW
HEMBRA ASIENTO PLANO ORS
CODO 90°
K42490
JIC 37° STRAIGHT FEMALE FITTING
HEMBRA JIC 37° RECTO
K42510
JIC 37° FEMALE FITTING
45° ELBOW
HEMBRA JIC 37° CODO 45°
K42540
JIC 37° FEMALE FITTING
90° ELBOW
HEMBRA JIC 37° CODO 90°
K42590
45° SAE STRAIGHT FEMALE
HEMBRA 45° SAE RECTO
K42610
fluid GB_SPA 301_368.xls 10_05_2007 08:48 AM Pagina 304
305
REFRIGERATION FITTINGS
VISUAL INDEX
Description Reference Page
Descripción Referencia Pagina
SHORT VERSION O-RING FEMALE 90°
ELBOW WITH 1/4" SAE CHARGE VALVE
HEMBRA O-RING TIPO CORTO CODO
90° CON VÁLVULA DE CARGA 1/4" SAE
K47982
344
344
344
344
335
335
335
336
SHORT VERSION O-RING FEMALE
90° ELBOW
HEMBRA O-RING TIPO CORTO
CODO 90°
K47980
SHORT VERSION O-RING FEMALE 90°
ELBOW WITH HIGH PRESSURE VALVE
HEMBRA O-RING TIPO CORTO CODO
90° CON VÁLVULA DE ALTA PRESION
K47985
SHORT VERSION O-RING FEMALE 90°
ELBOW WITH LOW PRESSURE VALVE
HEMBRA O-RING TIPO CORTO CODO
90° CON VÁLVULA DE BAJA PRESION
K47986
O-RING FEMALE 90° ELBOW
HEMBRA O-RING CODO 90°
K47990
O-RING FEMALE 90° ELBOW WITH
1/4" SAE CHARGE VALVE
HEMBRA O-RING CODO 90° CON
VÁLVULA DE CARGA 1/4" SAE
K47992
O-RING FEMALE 90° ELBOW WITH
HIGH PRESSURE VALVE
HEMBRA O-RING CODO 90° CON
VÁLVULA DE ALTA PRESION
K47995
O'RING FEMALE 90° ELBOW WITH
LOW PRESSURE VALVE
HEMBRA O'RING CODO 90° CON
VÁLVULA DE BAJA PRESION
K47996
Description Reference Page
Descripción Referencia Pagina
45° SAE FEMALE 90° ELBOW
HEMBRA 45° SAE CODO 90°
K42690
332
332
338
339
339
333
334
334
333
334
336
45° SAE FEMALE 45° ELBOW
HEMBRA 45° SAE CODO 45°
K42640
STRAIGHT FLANGE FITTING
FLANGE RECTO
K43710
FLANGE FITTING 45° ELBOW
FLANGE CODO 45°
K43740
FLANGE FITTING 90° ELBOW
FLANGE CODO 90°
K43790
STRAIGHT O-RING FEMALE
HEMBRA O-RING RECTO
K47910
STRAIGHT O-RING FEMALE WITH
1/4" SAE CHARGE VALVE
HEMBRA O-RING RECTO CON
VÁLVULA DE CARGA 1/4" SAE
K47912
STRAIGHT O-RING FEMALE WITH
HIGH PRESSURE VALVE
HEMBRA O-RING RECTO CON
VÁLVULA DE ALTA PRESION
K47915
STRAIGHT O-RING FEMALE WITH
LOW PRESSURE VALVE
HEMBRA O-RING RECTO CON
VÁLVULA DE BAJA PRESION
K47916
O-RING FEMALE 45° ELBOW
HEMBRA O-RING CODO 45°
K47940
O'RING FEMALE 45° ELBOW WITH
HIGH PRESSURE VALVE
HEMBRA O'RING CODO 45° CON
VÁLVULA DE ALTA PRESION
K47945
fluid GB_SPA 301_368.xls 10_05_2007 08:48 AM Pagina 305
306
REFRIGERATION FITTINGS
VISUAL INDEX
Description Reference Page
Descripción Referencia Página
Description Reference Page
Descripción Referencia Pagina
Description Reference Page
Descripción Referencia Pagina
STAR-CRIMP
STRAIGHT CONNECTION FITTING
WITH HIGH PRESSURE VALVE
ACOPLE RECTO CON VÁLVULA DE
ALTA PRESION
C10015
353
353
353
349
349
349
349
350
350
350
STRAIGHT CONNECTION FITTING
WITH LOW PRESSURE VALVE
ACOPLE RECTO CON VÁLVULA DE
BAJA PRESION
C10016
CONNECTION 90° ELBOW
ACOPLE CODO 90°
C10090
STRAIGHT MALE WITH O-RING
SEAT
MACHO CON ASIENTO O-RING
RECTO
C17910
STRAIGHT O-RING MALE
MACHO O-RING RECTO
C18010
O-RING MALE 45° ELBOW
MACHO O-RING CODO 45°
C18040
O-RING MALE 90° ELBOW
MACHO O-RING CODO 90°
C18090
STRAIGHT 24° DIN FLARE O-RING
OGIVAL FEMALE
HEMBRA O-RING OGIVA 24° DIN
CÓNICO RECTO
C21510
STRAIGHT METRIC OGIVAL FEMALE
HEMBRA METRICA A OGIVA RECTO
C21510...SC
24° DIN FLARE O-RING OGIVAL
FEMALE 45° ELBOW
HEMBRA O-RING OGIVA 24° DIN
CÓNICO CODO 45°
C21540
24° DIN FLARE O-RING OGIVAL
FEMALE 90° ELBOW
HEMBRA O-RING OGIVA 24° DIN
CÓNICO CODO 90°
C21590
351
350
351
352
352
353
345
345
346
351
352
METRIC OGIVAL FEMALE
45° ELBOW
HEMBRA METRICA A OGIVA
CODO 45°
C21540...SC
METRIC OGIVAL FEMALE
90° ELBOW
HEMBRA METRICA A OGIVA
CODO 90°
C21590...SC
STRAIGHT ORS FLAT SEAL FEMALE
HEMBRA ASIENTO PLANO ORS
RECTO
C22410
ORS FLAT SEAL FEMALE
45° ELBOW
HEMBRA ASIENTO PLANO ORS
CODO 45°
C22440
ORS FLAT SEAL FEMALE
90° ELBOW
HEMBRA ASIENTO PLANO ORS
CODO 90°
C22490
45° SAE STRAIGHT FEMALE
HEMBRA 45° SAE RECTO
C22610
45° SAE FEMALE 45° ELBOW
HEMBRA 45° SAE CODO 45°
C22640
45° SAE FEMALE 90° ELBOW
HEMBRA 45° SAE CODO 90°
C22690
STRAIGHT FLANGE FITTING
FLANGE RECTO
C23710
FLANGE FITTING 45° ELBOW
FLANGE CODO 45°
C23740
fluid GB_SPA 301_368.xls 10_05_2007 08:48 AM Pagina 306
307
REFRIGERATION FITTINGS
VISUAL INDEX
FAST-CRIMP
Description Reference Page
Descripción Referencia Página
Description Reference Page
Descripción Referencia Pagina
Description Reference Page
Descripción Referencia Pagina
STRAIGHT O-RING FEMALE
HEMBRA O-RING RECTO
C27910
351
346
346
347
347
347
348
348
348
FLANGE FITTING 90° ELBOW
FLANGE CODO 90°
C23790
STRAIGHT O-RING FEMALE WITH
HIGH PRESSURE VALVE
HEMBRA O-RING RECTA CON
VÁLVULA DE ALTA PRESION
C27915
STRAIGHT O-RING FEMALE WITH
LOW PRESSURE VALVE
HEMBRA O-RING RECTO CON
VÁLVULA DE BAJA PRESION
C27916
O-RING FEMALE 45° ELBOW
HEMBRA O-RING CODO 45°
C27940
O-RING FEMALE 45° ELBOW WITH
LOW PRESSURE VALVE
HEMBRA O-RING CODO 45° CON
VÁLVULA DE BAJA PRESION
C27946
O-RING FEMALE 90° ELBOW
HEMBRA O-RING CODO 90°
C27990
O-RING FEMALE 90° ELBOW WITH
HIGH PRESSURE VALVE
HEMBRA O-RING CODO 90° CON
VÁLVULA DE ALTA PRESION
C27995
O-RING FEMALE 90° ELBOW WITH
LOW PRESSURE VALVE
HEMBRA O-RING CODO 90° CON
VÁLVULA DE BAJA PRESION
C27996
CONNECTION FITTING
CONEXION
OPC10010
362
363
363
362
364
364
363
364
360
360
CONNECTION FITTING WITH HIGH
PRESSURE VALVE
CONEXION CON VÁLVULA DE ALTA
PRESION
OPC10015
CONNECTION FITTING WITH LOW
PRESSURE VALVE
CONEXION CON VÁLVULA DE BAJA
PRESION
OPC10016
CONNECTION FITTING 90° ELBOW
CONEXION CODO 90°
OPC10090
STRAIGHT MALE WITH O-RING SEAT
WITH COUNTER NUT AND Q-RING
MACHO RECTO PASATABIQUE CON
O-RING Y Q-RING
OPC17910...H...Q
STRAIGHT MALE WITH O-RING
SEAT WITH COUNTER NUT
MACHO RECTO PASATABIQUE CON
O-RING
OPC17910...H
STRAIGHT MALE WITH O-RING
SEAT
MACHO RECTO CON O-RING
OPC17910
STRAIGHT MALE WITH O-RING SEAT
WITH COUNTER NUT AND Q-RING
90° ELBOW
CODO MACHO 90° PASATABIQUE
CON O-RING Y Q-RING
OPC17990...H...Q
STRAIGHT O-RING MALE
MACHO O-RING RECTO
OPC18010
O-RING MALE 45° ELBOW
MACHO O-RING CODO 45°
OPC18040
fluid GB_SPA 301_368.xls 10_05_2007 08:48 AM Pagina 307
308
REFRIGERATION FITTINGS
VISUAL INDEX
Description Reference Page
Descripción Referencia Pagina
O-RING FEMALE WITH HIGH PRES-
SURE VALVE 45° ELBOW
HEMBRA O-RING CON VÁLVULA DE
ALTA PRESION CODO 45°
OPC27945
357
357
357
359
359
359
358
358
358
O-RING FEMALE 45° ELBOW
HEMBRA O-RING CODO 45°
OPC27940
O-RING FEMALE WITH LOW
PRESSURE VALVE 45° ELBOW
HEMBRA O-RING CON VÁLVULA DE
BAJA PRESION CODO 45°
OPC27946
SHORT VERSION O-RING FEMALE
HEMBRA O-RING TIPO CORTO
OPC27980
SHORT VERSION O-RING FEMALE
WITH HIGH PRESSURE VALVE
HEMBRA O-RING TIPO CORTO CON
VÁLVULA DE ALTA PRESION
OPC27985
SHORT VERSION O-RING FEMALE
WITH LOW PRESSURE VALVE
HEMBRA O-RING TIPO CORTO CON
VÁLVULA DE BAJA PRESION
OPC27986
O-RING FEMALE 90° ELBOW
HEMBRA O-RING CODO 90°
OPC27990
O-RING FEMALE WITH HIGH
PRESSURE VALVE 90° ELBOW
HEMBRA O-RING CON VÁLVULA DE
ALTA PRESION CODO 90°
OPC27995
O-RING FEMALE WITH LOW
PRESSURE VALVE 90° ELBOW
HEMBRA O-RING CON VÁLVULA DE
BAJA PRESION CODO 90°
OPC27996
Description Reference Page
Descripción Referencia Pagina
45° SAE STRAIGHT FEMALE
HEMBRA 45° SAE RECTO
OPC22610
360
354
355
355
361
361
361
362
356
356
356
O-RING MALE 90° ELBOW
MACHO O-RING CODO 90°
OPC18090
45° SAE FEMALE 45° ELBOW
HEMBRA SAE 45º CODO 45°
OPC22640
45° SAE FEMALE 90° ELBOW
HEMBRA 45° SAE CODO 90°
OPC22690
STRAIGHT FITTING FOR EXPANSION
VALVE
CONEXION RECTA PARA VÁLVULA DE
EXPANSIÓN
OPC27610
FITTING FOR EXPANSION VALVE
45° ELBOW
CONEXION PARA VÁLVULA DE
EXPANSION CODO 45°
OPC27640
FITTING FOR EXPANSION VALVE
90° ELBOW
CONEXION PARA VÁLVULA DE
EXPANSION CODO 90°
OPC27690
FITTING FOR EXPANSION VALVE WITH
LOW PRESSURE VALVE 90° ELBOW
CONEXION PARA VÁLVULA DE
EXPANSION CON VÁLVULA DE BAJA
PRESION CODO 90°
OPC27695
STRAIGHT O-RING FEMALE
HEMBRA O-RING RECTO
OPC27910
STRAIGHT O-RING FEMALE WITH
HIGH PRESSURE VALVE
HEMBRA O-RING RECTO CON
VÁLVULA DE ALTA PRESION
OPC27915
STRAIGHT O-RING FEMALE WITH
LOW PRESSURE VALVE
HEMBRA O-RING RECTO CON
VÁLVULA DE BAJA PRESION
OPC27916
fluid GB_SPA 301_368.xls 10_05_2007 08:48 AM Pagina 308
