Zuo-Guang. Ye Advanced Dielectric Piezoelectric and Ferroelectric Materials: Synthesis, Characterisation and Applications

Подождите немного. Документ загружается.

Handbook of dielectric, piezoelectric and ferroelectric materials440

The final conclusion of this overview is that the notion of MPB in the

sense of a confined concentration region where the polarisation rotates from

the rhombohedral [111] direction to the tetragonal [001] direction in a definite

region of the phase diagram should probably be replaced by the notion of

morphotropic phase region (MPR).

14.7 Acknowledgements

Our group has worked on the understanding of the relaxor and related material

for almost 20 years and many researchers and students have contributed to

these studies, as can be seen from the references. We would like also to thank

Serguey Vakhrushev from Ioffe Institute for many illuminating discussions.

Many figures in this chapter are from or adapted from Raphael Haumont’s

thesis.

14.8 References

Ahart M., Cohen, R. E., Struzhkin V., Gregoryanz E., Rytz D., Prosandeev S. A., Mao H.-

K. and Hemley R. J. (2005) High-pressure Raman scattering and X-ray diffraction of

the relaxor ferroelectric 0.96Pb(Zn

1/3

2/3

–0.04PbTiO

). Phys. Rev. B, 71, 144102.

Akhilesh Kumar S. and Dhananjai P. (2003) Evidence for M

and M

phases in the

morphotropic phase boundary region of (1 – x)[PbMg

1/3

2/3

]–xPbTiO

: A Rietveld

study. Phys. Rev. B 67, 064102.

Akhilesh Kumar S., Dhananjai P. and Oksana Z. (2006) Evolution of short-range to long-

range monoclinic order of MB type with decreasing temperature in 0.75[PbMg

1/3

2/3

]–0.25PbTiO

. J. Appl. Phys., 99, 076105.

14.31

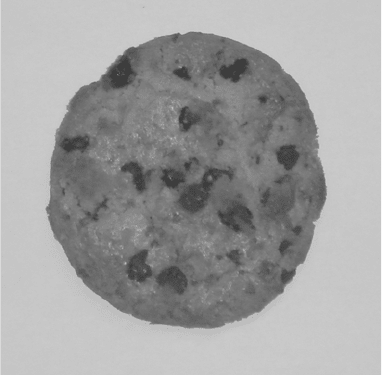

Relaxor/MPB compound as a typical composite material

(dedicated to the reader).

WPNL2204

From the structure of relaxors to the structure of MPB 441

Bellaiche L., Garcia A. and Vanderbilt D. (2000) Finite-temperature properties of pb(Zr

1–x

alloys from first principles. Phys. Rev. Lett., 84, 5427.

Bertram R., Reck G. and Uecker R. (2003) Growth and correlation between composition

and structure of (1 – x)Pb(Zn

1/3

2/3

–xPbTiO

crystals near the morphotropic

phase boundary. J. Crystal Growth, 253, 212.

Bing Y.-H., Bokov A. A., Ye Z.-G., Noheda B. and Shirane G. (2005) Structural phase

transition and dielectric relaxation in Pb(Zn

1/3

2/3

single crystals. J. Phys.: Condens.

Matter, 17, 2493.

Blinc R., Laguta V. and Zalar B. T. (2003) Field cooled and zero field cooled {207}Pb

NMR and the local structure of relaxor PbMg

1/3

2/3

. Phys. Rev. Lett., 91, 247601.

Bokov A. A. and Ye Z. G. (2006) Recent progress in relaxor ferroelectrics with perovskite

structure. J. Matter Sci., 41, 31.

Bonneau P., Garnier P., Husson E. and Morell, A. (1989) Structural study of PMN ceramics

by X-ray diffraction between 297 and 1023 K. Mater. Res. Bull., 24, 201.

Bonneau P., Garnier P., Calvarin G., Husson E., Gavarri J. R., Hewat A. W. and Morell

A. (1991) X-ray and neutron diffraction studies of the diffuse phase transition in

PbMg

1/3

2/3

ceramics. J. Solid State Chem., 91, 350.

Burton B. P., Cockayne E., Tinte S. and Waghmare U. V. (2006) First-principles-based

simulations of relaxor ferroelectrics. Phase Transitions, 79, 91.

Calvarin G., Husson E. and Ye Z. G. (1995) X-ray study of the electric field-induced

phase transition in single crystal Pb(Mg

1/3

2/3

. Ferroelectrics, 165, 349.

Cao H., Li J., Viehland D., Xu G. and Shirane G. (2006) Monoclinic M

vs orthorhombic

in [001] and [110] electric-field-cooled Pb(Mg

1/3

2/3

)–35%PbTiO

crystals. Appl.

Phys. Lett., 88, 72915.

Caranoni C., Lampini P. and Siny I. et al., (1992) Comparative Study of the ordering of

B-site cations in PST and PSN perovskites, Physica Status Solid A-Applied Research,

130(1): 25–37.

Carreaud J., Gemeiner P., Kiat J. M., Dkhil B., Bogicevic C., Rojac T. and Malic B.

(2005) Size-driven relaxation and polar states in PbMg

1/3

2/3

-based system. Phys.

Rev. B, 72, 174115.

Carreaud J., Kiat J. M., Dkhil B., Algueró M., Jiménez R., Jiménez B., Holc J. and Kosec

M. (2006) Monoclinic morphotropic phase and rotation of polarisation induced by

reduction of grain size in PMN–PT. Appl. Phys Lett., 89, 252906.

Chaabane B., Kreisel J., Dkhil B., Bouvier P. and Mezouar M. (2003a) Pressure-Induced

Suppression of the Diffuse Scattering in the Model Relaxor Ferroelectric

PbMg

1/3

2/3

, Phys. Rev Lett, 90, 257601.

Chaabane B., Kreisel J., Dkhil B., Bouvier P. and Mezouar M. (2003b) Pressure-induced

suppression of the diffuse scattering in the model relaxor ferroelectric PMN. Phys.

Rev. Lett., 90, 257601.

Chaabane B., Kreisel J., Bouvier P., Lucazeau G. and Dkhil B. (2004) Effect of high

pressure on the PMN–PT solid solution: a Raman scattering investigation. Phys. Rev.

B, 70, 134114.

Chaigneau J., Kiat J. M. and Malibert C. (2007) Chemical and polar order and morphotropic

phase boundaries in BiScO

–PbTiO

system., Phys. Rev. B accepted.

Chen I.W., Li P. and Wang Y. (1995) Structural origin of relaxor perovskites. J. Phys.

Chem. Solids, 57, 1525.

Chen J., Chan H. M. and Harmeer M. H. (1989) Ordering structure and dielectric properties

of undoped and La/Na-doped Pb(Mg

1/3

2/3

. J. Am. Ceram. Soc., 72, 593.

WPNL2204

Handbook of dielectric, piezoelectric and ferroelectric materials442

Chu F., Reaney I. M. and Setter N. (1995a) Spontaneous (zero-field) relaxor-to-ferroelectric-

phase transition in disordered Pb(Sc

1/2

. J. Appl. Phys., 77, 1671.

Chu F., Reaney I. M. and Setter N. (1995b) Role of defects in the ferroelectric relaxor

lead scandium tantalate. J. Am. Ceram. Soc., 78, 1947.

Cohen R. E. (1992) Origin of ferroelectricity in perovskite oxides. Nature, 358, 136.

Colla E. V., Vakhrushev S. B., Koroleva E. Y. and Okuneva N. M. (1996) Properties of

field induced ferroelectric phase transition in single-crystal lead magnoniobate. Phys.

Solid State, 38, 1202.

Cox D. E., Noheda B. and Shirane G. (2005) Low-temperature phases in PbZr

0.52

0.48

a neutron powder diffraction study. Phys. Rev. B, 71, 134110.

Cross L. E. (1987) Relaxor ferroelectrics. Ferroelectrics, 76, 241.

Davies P. K. and Akbas M. A. (2000) Chemical order in PMN-related relaxors: structure,

stability, modification, and impact on properties. J. Phys.Chem. Solids, 61, 159.

Depero L. E. and Sangaletti L. (1997) Structural models for lead magnesium niobate.

Solid State Comm., 102, 615.

Dkhil B. (1999) Rôle des nanostructures chimique et polaire sur la transition de phase

relaxeur-ferroélectrique dans les composés PbMg

1/3

2/3

et PbMg

0.3

0.6

0.1

Universite Paris XI Orsay.

Dkhil B., Kiat J. M., Calvarin G., Baldinozzi G., Vakhrushev S. B. and Suard E. (2002)

Local and long range polar order in the relaxor-ferroelectric compounds PMN–PT.

Phys. Rev. B, 65, 0241041.

Dul’kin E., Roth M., Janolin P. E. and Dkhil B. (2006) Acoustic emission study of phase

transitions and polar nanoregions in relaxor-based systems: application to the

PbZn

1/3

2/3

family of single crystals. Phys. Rev. B, 73, 012102.

Egami T. & Billinge S. J. L. (2003) Underneath the Bragg Peaks: Structural Analysis of

Complex Materials. Pergamon Press, Oxford, UK.

Eitel R. E., Zhang S. J., Shrout T. R., Randall C. A. and Levin I. (2004) Phase diagram

of the perovskite system (1 – x)BiScO

–xPbTiO

. J. Appl. Phys., 96, 2828.

Emelyanov S. M., Savenko F. I., Trusov Y. A., Torgashev V. I. and Timonin P. N. (1993)

Dilute ferroelectric in random electric field: phase transitions in Pb(Mg

1/3

2/3

)

1–x

crystals. Phase Transitions, 45, 251.

Frenkel A. I., Pease D. M., Giniewicz J., Stern E. A., Brewe D. L., Daniel M. and Budnick

J. (2004) Concentration-dependent short-range order in the relaxor ferroelectric

(1 – x)Pb(Sc,Ta)O

–xPbTiO

. Physical Rev. B, 70, 014106.

Fu H. and Cohen R. E. (2000) Polarization rotation mechanism for ultrahigh

electromechanical response in single-crystal piezoelectrics. Nature, 403, 281.

Fujishiro K., Vlokh R., Uesu Y., Yamada Y., Kiat J.-M., Dkhil B. and Yamashita Y. (1998)

Optical observation of heterophase and domain structures in relaxor ferroelectrics

PZN/PT. Jpn. J. Appl. Phys., 37, 5246.

Gehring P. M., Park S. E. and Shirane G. (2000) Soft phonon anomalies in the relaxor

ferroelectric Pb(Zn

1/3

2/3

)

0.92

0.08

. Phys. Rev. Lett., 84, 5216.

George A. M., Iniguez J. and Bellaiche L. (2003) Effects of atomic short-range order on

the properties of perovskite alloys in their morphotropic phase boundary. Phys. Rev.

Lett., 91, 045504.

Glazer A. M., Thomas P. A., Baba-Kishi K. Z., Pang G. K. H. and Tai C. W. (2004)

Influence of short-range and long-range order on the evolution of the morphotropic

phase boundary in PZT. Phys. Rev. B, 70, 184123.

Grinberg I., Cooper V. R. and Rappe A. M. (2002) Relationship between local structure

and phase transitions of a disordered solid solution. Nature, 419, 909.

WPNL2204

From the structure of relaxors to the structure of MPB 443

Hatch D. M., Stokes H. T., Ranjan R., Ragini S. K., Mishra, S. K., Pandey, D. and

Kennedy, B. J. (2002) Antiferrodistortive phase transition in Pb(Ti

0.48

0.52

: Space

group of the lowest temperature monoclinic phase. Phys. Rev. B, 65, 212101.

Haumont R. (2004) Rotation de la Polarisation Dans Les System Morphotropiques: Cas

De Pb(Sc

1/2

–PbTiO

, École Centrale des Arts et Manufactures.

Haumont R., Dkhil B., Kiat J. M., Al-Barakaty A., Dammak H. & Bellaiche L. (2003)

Cationic-competition-induced monoclinic phase in high piezoelectric PSN–PT

compounds. Phys. Rev. B, 68, 014114.

Haumont R., Al-Barakaty A., Dkhil B., Kiat J. M. and Bellaiche L. (2005) Morphotropic

phase boundary of heterovalent perovskite solid solutions: experimental and theoretical

investigation of PSN–PT. Phys. Rev. B, 71, 104106.

Haumont R., Gemeiner P., Dkhil B., Kiat J. M. and Bulou A. (2006a) Polar and chemical

states at a nanometer scale in a PSN–PT system investigated by Raman spectroscopy.

Phys. Rev. B, 73, 104106.

Haumont R., Malibert C., Dkhil B., Kiat J. M., Lemarrec F., Asanuma S. and Uesu Y.

(2006b) Observation of rotation of polarization in thin films of PSN–PT via a monoclinic

phase. Jpn. J. Appl. Phys., 45, L42.

Hirota K., Ye Z. G., Wakimoto S., Gehring P. M. and Shirane G. (2002) Neutron diffuse

scattering from polar nanoregions in the relaxor PbMg

1/3

2/3

. Phys. Rev. B, 65,

104105.

Hlinka J., Kamba S., Petzelt J., Kulda J., Randall C. A. and Zhang S. J. (2003) Origin of

the ‘waterfall’ effect in phonon dispersion of relaxor perovskites. Phys. Rev. Lett., 91,

107602.

Janolin P. E., Dkhil B., Bouvier P., Kreisel J. and Thomas P. A. (2006) Pressure instabilities

up to 46 GPa in the relaxor ferroelectric PbZn

1/3

2/3

. Phys. Rev. B, 73, 094128.

Janolin P. E., Kiat J. M., Malibert C., Asanuma S. and Uesu Y. (2007) Origin of temperature

evolutions of lattice strains in relaxor PbSc

1/3

1/2

thin films Appl. Phys. Lett.

(in press).

Jeong I.-K. & Lee J. K. (2006) Local structure and medium-range ordering in relaxor

ferroelectric Pb(Zn

1/3

2/3

studied using neutron pair distribution function analysis.

Appl. Phys. Lett., 88, 262905.

Jin Y. M., Wang Y. U., Khachaturyan A. G., Li J. F. and Viehland D. (2003) Conformal

miniaturization of domains with low domain-wall energy: monoclinic ferroelectric

states near the morphotropic phase boundaries. Phys. Rev. Lett., 91, 197601.

Khachaturyan A. G., Shapiro S. M. and Semenovskaya S. (1991) Adaptive phase formation

in martensitic transformation. Phys. Rev. B, 43, 10832.

Kiat J.-M., Baldinozzi G., Dunlop M., Malibert C., Dkhil B., Menoret C., Masson O. and

Fernandez-Diaz M.-T. (2000) Anharmonicity and disorder in simple and complex

provskites: a high energy synchrotron and hot neutron diffraction study. J. Phys.:

Condens. Matter., 12, 8411.

Kiat J.-M., Uesu Y., Dkhil B., Matsuda M., Malibert C. and Calvarin G. (2002) Monoclinic

structure of unpoled morphotropic high piezoelectric PMN–PT and PZN–PT compounds.

Phys. Rev. B, 65, 064106.

Kleemann W. (1993) Random-field induced antiferromagnetic, ferroelectric and structural

domain states. Int. J. Modern Phys., 7, 2469.

Kornev I. A., Bellaiche L., Bouvier P., Janolin P. E., Dkhil B. and Kreisel J. (2005)

Ferroelectricity of perovskites under pressure. Phys. Rev. Lett., 95, 196804.

Kornev I. A., Bellaiche L., Janolin P. E., Dkhil B. and Suard E. (2006) Phase diagram of

Pb(Zr, Ti)O

solid solutions from first principles. Phys. Rev. Lett., 97, 157601.

WPNL2204

Handbook of dielectric, piezoelectric and ferroelectric materials444

Krause H. B., Cowley J. M. and Wheatley J. (1979) Short-range ordering in PbMg

1/3

2/3

. Acta Cryst. A, 35, 1015.

Kreisel J., Dkhil B., Bouvier P. and Kiat J. M. (2002) Effect of high pressure on relaxor

ferroelectrics. Phys. Rev. B, 65, 172101.

Kutnjak Z., Petzelt J. and Blinc R. (2006) The giant electromechanical response in

ferroelectric relaxors as a critical phenomenon. Nature, 441, 956.

La-Orauttapong D., Toulouse J., Robertson J. L. and Ye Z.-G. (2001) Diffuse neutron

scattering study of a disordered complex perovskite Pb(Zn

1/3

2/3

crystal. Phys.

Rev. B, 64, 212101.

Laguta V. V., Glinchuk M. D., Nokhrin S. N., Bykov I. P., Blinc R., Gregoroviä A. and

Zalar B. (2003) NMR study of local structure and chemical ordering in PMN and

PbSN relaxor ferroelectrics. Phys. Rev. B, 67, 104106.

Laguta V. V., Glinchuk M. D., Bykov I. P., Blinc R. and Zalar B. (2004) NMR study of

ionic shifts and polar ordering in the relaxor ferroelectric PSN. Phys. Rev. B, 69, 054103.

Le Bellac D., Kiat J. M., Garnier P., Moudden H., Sciau P., Buffat P. A. and André G.

(1995) Mechanism of the incommensurate phase in lead oxide alpha-PbO. Phys. Rev.

B, 52, 13184.

Lebellac D., Kiat J. M. and Garnier P. (1995b) Electronic lone pair localization and

electrostatic energy calculation: application to PbOa, SnO, Pb

1–x

(TiO)

O, Pb

(V,P)

and a BiSrCaCuo-type superconductor. J. Solid State Chem., 114, 459.

Lebon A., Dammak H., Calvarin G. and Ahmedou I. O. (2002) The cubic-to-rhombohedral

phase transition of Pb(Zn

1/3

2/3

: a high-resolution X-ray diffraction study on

single crystals. J. Phys.: Condens. Matter, 14, 7035.

Lebon A., Dammak H. and Calvarin G. (2005) Easy induction of a ferroelectric

fourfold monoclinic domain state from a tetragonal ferroelectric monodomain state in

PbZn

1/3

2/3

. J. Phys.: Condens. Matter., 17, 6385.

Lucuta P. G. (1989) Ferroelectric-domain structure in piezoelectric ceramics. J. Am.

Ceram. Soc., 72, 933.

Malibert C. (1998) Ordre et désordre dans la pérovskite ferroélectrique relaxeur PbSc

1/2

Comparaison avec quelques pérovskites simples et complexes, université

Paris 6.

Malibert C., Dkhil B., Kiat J. M., Durand D., Berar J. F. and Spasojevic A. (1997) Order

and disorder in the relaxor ferroelectric perovskites PSN, comparison with BaTiO

and PbTiO

. J. Phys.: Condens. Matter, 9, 7485.

Mathan N. D., Husson E., Gaucher P. and Morell A. (1990) Modification of the B-site

order of PbMg

1/3

2/3

ceramics by thermal annealing or by La-doping. Mater. Res.

Bull., 25, 427.

Mathan N. D., Husson E., Calvarin G. and Morell A. (1991) Structural study of a poled

PbMg

1/3

2/3

ceramic at low temperature. Mater. Res. Bull., 26, 1167.

Miao S., Zhu J., Zhang X. and Cheng Z. Y. (2001) Electron diffraction and HREM study

of a short-range ordered structure in the relaxor ferroelectric PbMg

1/3

2/3

. Phys.

Rev. B, 65, 052101.

Naberezhnov A., Vakhrushev S., Dorner B., Strauch D. and Moudden H. (1999) Inelastic

neutron scattering study of the relaxor ferroelectric PbMg

1/3

2/3

at high temperatures.

Eur. Phys. J. B, 11, 13.

Noheda B. (2002) Structure and high-piezoelectricity in lead oxide solid solutions. Curr.

Opini. Solid State Mater. Sci., 6, 27.

Noheda B. and Cox, D. E. (2006) Bridging phases at the morphotropic boundaries of lead

oxide solid solutions. Phase Transitions, 79, 5.

WPNL2204

From the structure of relaxors to the structure of MPB 445

Noheda B., Cox D. E., Shirane G., Gonzalo J. A., Cross L. E. and Park S.-E. (1999) A

monoclinic ferroelectric phase in the Pb(Zr

1–x

solid solution. Appl. Phys. Lett.,

74, 2059.

Noheda B., Cox D. E., Shirane G., Gao J., and Ye Z.-G. Ye (2002) Phase diagram of the

ferroelectric relaxor (1–x)PbMg

1/3

2/3

–xPbTiO

. Phys. Rev. B, 66, 54104.

Ohwa H., Iwata M., Orihara H., Yasuda N. and Ishibashi Y. (2001) Raman Scattering in

(1–x)Pb(Mg

1/3

2/3

–xPbTiO

. J. Phys. Soc. Jpn., 70, 3149.

Pirc R. and Blinc R. (1999) Spherical random-bond–random-field model of relaxor

ferroelectrics. Phys. Rev. B, 60, 13470.

Prouzet E., Husson E., Mathan N. D. and Morell A. (1993) A low-temperature extended

X-ray absorption study of the local order in simple and complex perovskites: II. PMN

(PbMg1/3Nb2/303). J. Phys.: Condens. Matter, 5, 4889.

Raevski I. P., Prosandeev S. A., Emelyanov A. S., Raevskaya S. I., Colla E. V., Viehland

D., Kleemann W., Vakhrushev S. B., Dellis J. L., El Marssi M. and Jastrabik L. (2005)

Bias-field effect on the temperature anomalies of dielectric permittivity in PMN–PT

single crystals. Phys. Rev. B, 72, 184104.

Randall C. A., Barber D. J., Whatmore R. W. and Groves P. (1986) A TEM study of

ordering in the perovskite, Pb(Sc

1/2

. J. Mater Sci., 21, 4456.

Ranjan R., Ragini, Mishra S. K., Pandey D. and Kennedy B. J. (2002) Antiferrodistortive

phase transition in Pb(Ti

0.48

0.52

: A powder neutron diffraction study. Phys. Rev. B,

65, 060102.

Ranjan R., Singh A. K., Ragini and Pandey D. (2005) Comparison of the Cc and R3c

space groups for the superlattice phase of PbZr

0.52

0.48

. Phys. Rev. B, 71, 092101.

Rossetti G. A., J., Zhang W. and Khachaturyan A. G. (2006) Phase coexistence near the

morphotropic phase boundary in lead zirconate titanate (PbZrO

–PbTiO

) solid solutions.

Appl. Phys. Lett., 88, 72912.

Rouquette J., Haines J., Bornand V., Pintard M., Papet P., Marshall W. G. and Hull S.

(2005) Pressure-induced rotation of spontaneous polarization in monoclinic and triclinic

PbZr

0.52

0.48

. Phys. Rev. B, 71, 024112.

Samara G. A. and Venturini E. L. (2006) Ferroelectric/relaxor crossover in compositionally

disordered perovskites. Phase Transitions, 79, 21.

Scott J. F. (2006) Nanoferroelectrics: statics and dynamics. J. Phys.: Condens. Matter,

18, R361.

Shirane G., Axe J. D., Harada J. and Linz A. (1970) Inelastic neutron scattering from

single-domain BaTiO

. Phys. Rev. B, 2, 3651.

Singh A. K. and Pandey D. (2003) Evidence for M

and M

phases in the morphotropic

phase boundary region of (1–x)[Pb(Mg

1/3

2/3

]–xPbTiO

. A Rietveld study, Phys.

Rev. B 67, 64102.

Singh A. K., Pandey D. and Zaharko O. (2006) Powder neutron diffraction study of phase

transitions in and a phase diagram of PMN–PT. Phys. Rev. B, 74, 024101.

Smolenskii G. A., Bokor V.A., Isupov N. N., Krainik V.A., Pasynkov R. E. and Sokolov

A. I. (1984) In: Ferroelectrics and Related Phenomena. G.A. Smolenski (ed.), Gordan

and Breach Science, Amsterdam.

Sommer R., Yushin N. K. and Van Der Klink J. J. (1993) Polar metastability and an

electric-field-induced phase transition in the disordered perovskite Pb(Mg

1/3

2/3

Phys. Rev. B, 48, 13230.

Stock C., Birgeneau R. J., Wakimoto S., Gardner J. S., Chen W., Ye Z. G. and Shirane G.

(2004) Universal static and dynamic properties of the structural transition in PbZn

1/3

2/3

. Phys. Rev. B, 69, 094104.

WPNL2204

Handbook of dielectric, piezoelectric and ferroelectric materials446

Suchomel M. R. and Davies P. K. (2004) Predicting the position of the morphotropic

phase boundary in high temperature PbTiO

–Bi(BB)O

based dielectric ceramics. J.

Appl. Phys., 96, 4405.

Svitelskiy O., La-Orauttapong D., Toulouse J., Chen W. and Ye Z. G. (2005) PbTiO

addition and internal dynamics in PbZn

1/3

2/3

crystal studied by Raman spectroscopy.

Phys. Rev. B, 72, 172106.

Svitelskiy O., Toulouse J., Yong G. and Ye Z. G. (2003) Polarized Raman study of the

phonon dynamics in PbMg

1/3

2/3

crystal. Phys. Rev. B, 68, 104107.

Takesue N., Fujii Y., Ichihara M. and Chen H. (1999) Self-accommodation of ionic size-

effect atomic displacements in antiferroelectric order in relaxor lead scandium niobate.

Phys. Rev. Lett., 82, 3709.

Vakhrushev S., Zhukov S., Fetisov G. and Chernyshov V. (1994) The high-temperature

structure of lead magnoniobate. J. Phys.: Condens. Matter., 6, 4021.

Vakhrushev S. B., Kiat J. M. and Dkhil B. (1997) X-ray study of the kinetics of field

induced transition from the glass-like to the ferroelectric phase in lead magnoniobate.

Solid State Comm., 103, 477.

Vakhrushev S., Dkhil B. and Kiat J.M. (2007) unpublished work.

Vanderbilt D. and Cohen M. H. (2001) Monoclinic and triclinic phases in higher-order

Devonshire theory. Phys. Rev. B, 63, 094108.

Venturini E. L., Grubbs R. K., Samara G. A., Bing Y. and Ye Z. G. (2006) Ferroelectric

and relaxor properties of PSN: Influence of pressure and biasing electric field. Phys.

Rev. B, 74, 064108.

Viehland D. and Li J. F. (1993) Compositional instability and the resultant charge variations

in mixed B-site cation relaxer ferroelectrics. J. Appl. Phys., 74, 4121.

Wakimoto S., Stock C., Ye Z. G., Chen W., Gehring P. M. and Shirane G. (2002) Mode

coupling and polar nanoregions in the relaxor ferroelectric PbMg

1/3

2/3

. Phys.

Rev. B, 66, 224102.

Wang H., Zhu J., Lu N., Bokov A. A., Ye Z.-G. and Zhang X. W. (2006) Hierarchical

micro-/nanoscale domain structure in M

phase of (1 – x)Pb(Mg

1/3

2/3

–xPbTiO

single crystal. Appl. Phys. Lett., 89, 42908.

Welberry T. R., Gutmann M. J., Woo H., Goossens D. J., Xu G., Stock C., Chen W. and

Ye, Z.-G. (2005) Single-crystal neutron diffuse scattering and Monte Carlo study of

the relaxor ferroelectric PbZn

1/3

2/3

(PZN). J. Appl. Cryst., 38, 639.

Westphal V., Kleemann W. and Glinchuk M. D. (1992) Diffuse phase transitions and

random-field-induced domain states of the ‘relaxor’ ferroelectric PbMg

1/3

2/3

Phys. Rev. Lett., 68, 847.

Woodward D. I., Knudsen J. and Reaney I. M. (2005) Review of crystal and domain

structures in the PZT solid solution. Phys. Rev. B, 72, 104110.

Xu G., Shirane G., Copley J. R. D. and Gehring P. M. (2004) Neutron elastic diffuse

scattering study of PbMg

1/3

2/3

. Phys. Rev. B, 69, 064112.

Xu G., X., Gehring P. M. and Shirane G. (2005) Persistence and memory of polar nanoregions

in a ferroelectric relaxor under an electric field. Phys. Rev. B, 72, 214106.

Xu G., Zhong Z., Bing Y., Ye Z.-G. and Shirane G. (2006) Electric-field-induced

redistribution of polar nano-regions in a relaxor ferroelectric. Nature Mater., 5, 134.

YE Z.-G. (1998) Relaxor ferroelectric complex perovskites: structures, crystals, properties

and phase transaction Key Eng. Mater., 155–156, 81.

Ye Z. G., Noheda B., Dong M., Cox D. and Shirane G. (2001) Monoclinic phase in the

relaxor-based piezoelectric/ferroelectric PMN–PT system. Phys. Rev. B, 64, 184114.

Ye Z. G., Bing Y., Gao J., Bokov A. A., Stephens, P., Noheda, B. and Shirane, G. (2003)

Development of ferroelectric order in relaxor (1 – x)PbMg

1/3

2/3

xPbTiO

(x). Phys.

Rev. B, 67, 104104.

WPNL2204

447

15.1 Introduction

Ferroelectric perovskite, morphotropic phase boundary (MPB) Pb(Zr,Ti)O

(PZT)-based ceramics are the basis of a wide range of piezoelectric

technologies, such as sensors, actuators, smart systems, ultrasound generation

and sensing and underwater acoustics (Setter, 2002). Their high

electromechanical activity is associated with the presence of a monoclinic

phase in the MPB region, between the rhombohedral and tetragonal phases

(Noheda, et al. 2000), and the mechanism of polarisation rotation among the

phases (Guo et al., 2000). This is the same mechanism responsible for the

ultra-high piezoelectricity, d

coefficient > 1500 pC/N, of the rhombohedral

Pb(Zn

1/3

2/3

–PbTiO

(PZN–PT) and Pb(Mg

1/3

2/3

–PbTiO

(PMN–

PT) single crystals (Park and Shrout, 1997) and textured ceramics (Kwon et

al., 2005) near or in their respective MPBs (Noheda et al., 2001). The

commercial PZT based ceramics with the highest sensitivity are the so-

called soft PZT, for which the d

piezoelectric coefficient is raised from

∼200 pC/N up to ∼600 pC/N by composition engineering of the Curie

temperature and domain wall mobility (Takahashi, 1982). Piezoelectric devices

are not oblivious to the current miniaturisation trends in ceramic technology

for microelectronics. Multilayer ceramic capacitors (MLCC) are being down-

scaled (Pithan et al., 2005), and an analogous trend can be anticipated for

multilayer ceramic actuators (MLCA) and for other piezoelectric device

configurations (Uchino, 1998). This technological trend benefits from the

scaling behaviour of piezoelectricity: longitudinal deformation under a given

voltage does not depend on size and thus, the down-scaling of a MLCA does

not affect the piezoelectric response. Also, the total displacement is proportional

to the number of layers and so, there is a general driving force to reduce the

thickness. With the ceramic layers in MLCC approaching the thickness of 1

µm, reliability requires five to ten grains per layer and thus, submicrometre

grain sizes close to the 100 nm limit are necessary. Similar and even lower

sizes are involved in Si integrated thick (Gentil et al., 2004) and thin (Trolier-

Size effects on the macroscopic properties

of the relaxor ferroelectric

Pb(Mg

1/3

2/3

–PbTiO

solid solution

M ALGUERÓ, J RICOTE, P RAMOS and

R JIMÉNEZ, Instituto de Ciencia de Materiales de Madrid,

CSIC, Spain, J CARREAUD, J-M KIAT and

B DKHIL, Ecole Centrale Paris, France and J HOLC and

M KOSEC, Institute Jozef Stefan, Slovenia

WPNL2204

Handbook of dielectric, piezoelectric and ferroelectric materials448

McKinstry and Muralt, 2004) film piezoelectric technologies. This raises the

issue of how properties are affected by the size reduction. In this chapter, we

review our work on the size effects in the PMN–PT solid solution. This MPB

system shows distinctive features that point to a better down-scaling behaviour

than PZT in terms of the electromechanical properties.

Firstly, current knowledge of size effects in ferroelectrics is briefly reviewed.

Emphasis is put on polycrystals and on the macroscopic properties, not only

because they are the basis for the functionality of the materials, but also as

a means of addressing some fundamental issues, e.g. the size effect on the

ferroelectric phase transition. Secondly, background on the PMN–PT relaxor–

ferroelectric solid solution is also reviewed. The relevance of this system for

its fundamental and applied interests is emphasised. Next, procedures used

for the processing of PMN–PT submicro- and nanostructured ceramics are

described, and the ceramic materials studied, their density and grain size are

introduced. Then, size effects on the macroscopic properties, the electric,

mechanical and electromechanical properties of 0.8PMN–0.2PT and 0.65PMN–

0.35PT ceramics are successively presented. Based on these results, the size

effects on the transition between the relaxor and ferroelectric states, the

room temperature phases, the polar domain structure, and the functionality

of the materials will be discussed. The chapter ends with a section devoted

to final remarks and future trends.

15.2 Size effects in ferroelectrics

Most of the studies on size effects in polycrystals have focused on tetragonal

BaTiO

as the basis of MLCC. The room temperature dielectric permittivity

of BaTiO

ceramics presents a distinctive variation with grain size that is

associated with the evolution of the ferroelectric domain configuration (Arlt

and Sasko, 1980; Arlt et al. 1985; Arlt 1990a). Above 10µm, a three-

dimensional ferroelectric/ferroelastic 90° domain configuration is formed

that fully relaxes stresses caused by ceramic clamping. Between ∼0.3 and

10 µm, a banded configuration is formed that is capable of relaxing the stress

only in two dimensions. Below 0.3 µm, the decrease in elastic energy by

twinning does not compensate the surface energy of the wall, and 90° domains

are not formed. The dielectric permittivity, like the piezoelectric and elastic

coefficients, comprises a contribution from domain wall mobility, and so it

is dependent on the density of walls. This density does not change above

10 µm, and the permittivity does not depend on size in this size range. Below

10 µm, domain size varies with the square root of the grain size, which

causes wall density, and thereby the permittivity to increase when the size

decreases. However, permittivity does not continuously increase until 0.3 µm,

but presents a maximum at 0.8–1 µm. This is the size at which the structural

distortion of the perovskite starts decreasing, most probably as a consequence

WPNL2204

Size effects on the macroscopic properties 449

of the increasing stresses caused by the clamping. These stresses reduce the

domain wall mobility (Demartin and Damjanovic, 1996). Therefore, the

decrease of permittivity below 0.8–1 µm results from the decrease in wall

mobility. The stresses reach their highest levels with the disappearance of

the 90° domain walls at ∼0.3 µm.

Non-linear thermodynamic theory shows that the clamping modifies the

room temperature phase of the single domain crystals, so as to have a

coexistence of rhombohedral and orthorhombic phases, instead of the tetragonal

phase, at room temperature (Zembilgotov et al., 2005). Polarisation switching

is also affected by the changes in the domain configuration with size reduction,

and the remnant polarisation of the hysteresis loops decreases when the

banded structure is formed (Arlt, 1990b), and is further reduced when the

90° domains disappear, and only 180° switching is possible (Hungría et al.,

2005). It is expected that there is a size limit below which ferroelectricity is

lost (Li et al., 1997). This would set a lower limit for the down-scaling of

piezoelectric ceramic technologies.

Dense BaTiO

ceramics with a grain size of 20 nm still present the anomaly

associated with the transition between the ferroelectric and paraelectric states

in the temperature dependence of the dielectric permittivity (Deng et al.,

2006). This anomaly shows significant broadening and flattening for

nanostructured materials as compared with coarse-grained ceramics, which

has been shown to be a boundary effect (Bratkovsky and Levanyuk, 2005).

The actual values of permittivity are very sensitive to the nature of the grain

boundary, which acts as a low dielectric permittivity coating that decreases

the permittivity (Zhao et al., 2004). Figures as high as 1600 have been

reported for ceramics with a size of 30 nm and tailored boundaries (Buscaglia

et al., 2006). Ferroelectric switching was not observed for the previous

ceramics, which was proposed to be caused by the pinning of transgranular

180° domain walls at the grain boundaries, yet local switching was demonstrated

by piezoresponse force microsocopy.

Less attention has been paid to MPB materials and their electromechanical

properties. The d

piezoelectric coefficient of soft PZT ceramics

continuously decreases with grain size from 550 pC/N for 4 µm, down to

350 pC/N for 0.17 µm, which was associated with the decrease of the

ferroelectric/ferroelastic domain wall mobility because of the clamping (Randall

et al., 1998). The non-linear thermodynamic theory predicts a wide region of

coexistence of rhombohedral and tetragonal phases with the disappearance

of the domains (Zembilgotov et al., 2005). In relation to the size limit of

ferroelectricity, ferroelectric switching has been observed in thin film compacts

of 9 nm size PZT particles (Seol and Takeuchi, 2004). Recently, the size

effects were studied in the MPB PMN–PT (Carreaud et al., 2005). Structural

characterisation and dielectric properties of bulk compacts indicate that a

room temperature relaxor state is present for sizes below 0.2 µm, instead of

WPNL2204
