With the head replaced by a spherical-ended wear specimen, material studies were
performed. In this type of test, the volume of wear after a fixed amount of sliding was
determined in the same manner as in the test for ribbon abrasivity (Sec. 9.2.12) (112). A
wear coefficient was developed from these data by dividing the volume by the load and
distance of sliding. This was used to compare and rank materials.
In addition to the development of rankings and the identification of dependencies,
this test was also used to determine coefficients of a wear model that was developed to
describe wear by contaminated tape (42) The basic equation of this model is
V ¼½ð1 aÞK
0
þ aK
00
PS ¼ KPS ð9:25Þ
where V is the volume of wear; P, the load, S, the distance of sliding; K
0
, the wear coeffi-
cient for a clean tape surface; K
00
, the wear coefficient of a tape surface saturated by abra-
sives; a is the fraction of the tape surface covered by the abrasive. K is the effective wear
coefficient for that condition of contamination. K
0
is the wear coefficient determined with
a drum test on clean, uncoated tape. K
00
is related to the wear coefficient determined by
tests on the tape coated with the gelatin mixture, which was found to be equivalent to a
saturatedamountofabrasives.(Thedetailsofthemodelarepresentedin
a case study
in Sec. 5.12 EDW2E.) Some values of K
0
and K
00
for different conditions are shown in
Table9.9.
Based on the studies that were done to investigate correlation with field performance,
it was concluded that the test method provided good simulation of the field and could be
used to predict field performance when used in conjunction with the model, that is,
Eq. 9.25. Scatter in the test data was typically in the range of 10%.
Table 9.9 Abrasive Wear Coefficients for 52100 Steel Specimens for Various Abrasive Conditions
Abrasive condition Abrasive coefficient
Type
Average
size (mm)
Coverage
amount
(mg=cm
2
)
Saturation
coverage
(mg=cm
2
) K (mm
3
=g-m) K
00
(mm
3
=g-m)
Clean tape 0 0 – 58 –
SiO
2
4 4 67 118 1661
6 69 100 1796 2584
6 255 100 2707 2707
8 33 100 664 1969
8 11 100 317 2584
8 8 100 121 1969
8 36 100 926 2461
8 120 100 3076 3076
15 170 100 7874 7874
40 170 100 10,458 10,458
Al
2
O
3
50 170 100 24,483 24,483
Saturated coverage is the surface coverage above which there is no change in the abrasive coefficient K
00
is the
maximum abrasive coefficient or saturation abrasive coefficient for particles of a given composition and size.
Source: Ref. 135.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
REFERENCES
1. H Avery. Classification and precision of abrasion tests. In: D Rigney, W Glaeser, eds. Source
Book on Wear Control Technology. Metals Park, OH: ASM, 1978, pp 57–66.
2. P Swanson. Comparison of laboratory and field abrasion tests. Proc Intl Conf Wear
Materials. ASME 519–525, 1985.
3. C Saltzman. Wet-sand rubber-wheel abrasion test for thin coatings. In: R Bayer, ed.
Selection and Use of Wear Tests for Coatings. STP 769, West Conshohocken, PA: ASTM,
1982, p 71.
4. J Miller. The miller number-a New Slurry Rating Index. American Institute of Mining,
Metallurgical, and Petroleum Engineers (AIME) Paper 73-B-300. Society for Mining,
Metallurgy, and Exploration (SME) Meeting, Pittsburgh, 1973.
5. J Miller, JD Miller. The miller number - a review. In: A Ruff, R Bayer, eds. Tribology: Wear
Test Selection for Design and Application, STP 1199. West Conshohocken, PA: ASTM, 1993,
pp 100–112.
6. Standard Test Method for Determination of Slurry Abrasivity (Miller Number) and Slurry
Abrasion Response of Materials (SAR Number). West Conshohocken, PA: ASTM, G75.
7. J Young, A Ruff. Particle erosion measurements on metals. J Eng Materials Tech Trans
ASME 99(2):121–125, 1977.
8. J Hansen. Relative erosion resistance of several materials. In: W Alder, ed. Erosion:
Prevention and Useful Applications, STP 664. West Conshohocken, PA: ASTM, 1979,
pp 148–162.
9. F Wood. Erosion by solid-particle impacts: A testing update. J Testing Eval 14:23–27,
1986.
10. I Finnie, J Wolak, Y Kabil. Erosion of metals by solid particles. J Materials 2:682–700, 1967.
11. A Ninham, I. Hutchings. A computer model for particle velocity calculation in erosion
testing. Proceedings of the 6th International Conference on Erosion by Liquid and Solid
Impact. New York: Cambridge University Press, 1983, pp 50.1–50.7.
12. R Barkalow, J Goebel, F Pettit. Erosion-corrosion of coatings and superalloys in high-
velocity hot gases. In: W Adler, ed. Erosion: Prevention and Useful Applications, STP 664.
West Conshohocken, PA: ASTM, 1979, pp 163–192.
13. J Hobbs. Experience with a 20-kc cavitation erosion test. In: Erosion by Cavitation or
Impingement, STP 408. West Conshohocken, PA: ASTM, 1967, pp 159–185.
14. Proceedings of the ASME Symposium on Cavitation Research Facilities and Techniques.
New York, NY: ASME, 1964.
15. R Knapp, J Daily, F Hammitt. Cavitation. New York: McGraw-Hill, 1970.
16. Cavitation. In: Treatise on Material Science and Technology, Vol. 16 Erosion. C Preece, Ed.
New York: Academic Press, 1979, pp 249–308.
17. C Preece, I Hansson. A Metallurgical Approach to Cavitation Erosion. Advances in the
Mechanics and Physics of Surfaces I. Harwood, London: Academic Pub, 1981, pp 199–254.
18. A Karimi, J Martin. Cavitation erosion of materials. Intl Metals Rev 31(1):1–26, 1986.
19. H Wiegand, R Schulmeister. Investigations with vibratory apparatus on the effect of
frequency, amplitude, pressure and temperature on cavitation erosion (in German). MTZ
Motorechnische Zeitschrift 29(2):41–50, 1968.
20. M Matsumura. Influence of test parameters in vibratory cavitation erosion tests. In: W. Adler,
ed. Erosion: Prevention and Useful Applications, STP 664. New York, NY: ASTM, 1979,
pp 434–460.
21. I Hannson, K Morch. Guide vanes in the vibratory cavitation system to improve cavitation
erosion testing. Proceedings of the 6th International Conference on Erosion by Liquid and
Solid Impact. New York: Cambridge University Press, 1983, pp 9.1–9.9.
22. Standard Test Method for Calibration and Operation of the Falex Block-on-Ring Friction
and Wear Testing Machine. West Conshohocken, PA: ASTM, D2714.
23. K Budinski. Wear of tool steels. Proc Intl Conf Wear Materials. ASME 100–109, 1977.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
24. R Bayer. Predicting wear in a sliding system. Wear 11:319–332, 1968.
25. K Budinski. Incipient galling of metals. Proc Intl Conf Wear Materials. ASME 171–178, 1981.
26. W Schumacher. The galling resistance of silver, tin and chrome plated stainless steels. Proc
Intl Conf Wear Materials. ASME 186–196, 1981.
27. R Morrison. Test date let you develop your own load=life curves for gear and cam materials.
Machine Design. 8=68. Cleveland, OH: Penton Publishing Co., 1968, pp 102–108.
28. E Buckingham, G Talbourdet. Roll Tests on Endurance Limits of Materials. Metals Park,
OH: ASME, 1950.
29. R Benzing, I Goldblatt, V Hopkins, W Jamison, L Mecklenburg, M Peterson. Friction and
Wear Devices. Park Ridge, IL: ASLE, 1976.
30. A Wayson. A study of fretting of steel. Wear 7:435–450, 1964.
31. R Bayer, J Sirico. Wear of Electrical Contacts due to Small-amplitude Motion. IBM J R&D
15(2):103–107, 1971.
32. R Bayer. Wear of a C Ring seal. Wear 74:339–351, 1981–1982.
33. N Payne, R Bayer. Friction and wear tests for elastomers. Wear 130:67–77, 1991.
34. R Bayer, N Payne. Wear evaluation of molded plastics. Lub Eng May:290–293, 1985.
35. R Bayer, A Trived. Molybdenum disulfide conversion coating. Metal Finishing Nov: 47–50,
1977.
36. Standard Test Method for Wear Testing with a Pin-on-Disk Apparatus. West Conshohocken,
PA: ASTM. G99.
37. R Bayer, T Ku. Handbook of Analytical Design for Wear. New York: Plenum Press, 1964.
38. D Roshon. Testing machine for evaluating wear by paper. Wear 30:93–103, 1974.
39. R Bayer. Wear by ribbon and paper. Wear 49:147–168, 1978.
40. D Roshon. Mechanism of wear by ribbon and paper. IBM J R&D 22(6):668–674,
1978.
41. R Bayer. Electroplated diamond-composite coating for abrasive wear resistance. In: R
Denton, K Keshavan, eds. Wear and Friction of Elastomers, STP 1145. West Conshohocken,
PA: ASTM, 1992, pp 681–686.
42. R Bayer. Tribological approaches for elastomer applications in computer peripherals. Wear
70:114–126, 1981.
43. R Bayer. A model for wear in an abrasive environment as applied to a magnetic sensor. Wear
92:93–117, 1983.
44. R Bayer. Aspects of paper abrasivity. Wear 100:517–532, 1984.
45. R Bayer, D Baker, T Ku. Abrasive wear by paper. Wear 12:277–288, 1968.
46. P Engel, R Bayer. Abrasive impact wear of type. J Lub Tech 98:330–334, 1976.
47. R Lewis. Paper No. 69AM 5C-2. Proceedings of 24th ASLE Annual Meeting, Philadelphia,
1969.
48. J Theberge. A Guide to the Design of Plastic Gears and Bearings. Machine Design. 215=70.
Cleveland, OH: Phenton Publishing Co., 1970, pp 114–120.
49. R Gates, J Yellets, D Deckman, S Hsu. The development of a wear test methodology. In:
C Yust, R Bayer, eds. Selection and Use of Wear Tests for Ceramics, STP 1010. West
Conshohocken, PA: ASTM, 1988, pp 1–23.
50. W Wei, K Beaty, S Vinyard, J Lankford. Friction and wear testing of ion beam modified
ceramics for high temperature low heat rejection diesel engines. In: C Yust, R Bayer, eds.
Selection and Use of Wear Tests for Ceramics, STP 1010. West Conshohocken, PA: ASTM,
1988, pp 74–87.
51. L Fiderer. Unique friction and wear tester for fundamental tribology research. In: C Yust,
R Bayer, eds. Selection and Use of Wear Tests for Ceramics, STP 1010. West Conshohocken,
PA: ASTM, 1988, pp 24–42.
52. C Yust, R Bayer, eds. Selection and Use of Wear Tests for Ceramics, STP 1010. West
Conshohocken, PA: ASTM, 1988.
53. C Yust, J Leitnaker, C DeVore. Wear of alumina-silicon carbide whisker composite. Proc Intl
Conf Wear Materials. ASME 277–284, 1987.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
54. M Gee. Meeting on standardization of wear test methods for ceramics, cermets, and coatings.
In: C Yust, R Bayer, eds. Selection and Use of Wear Tests for Ceramics, STP 1010. West
Conshohocken, PA: ASTM, 1988, pp 88–92.
55. G Tennenhouse, F. Runkle. Pin-on-disk wear tests for evaluating ceramic cutting tool
materials. In: C Yust, R Bayer, eds. Selection and Use of Wear Tests for Ceramics, STP
1010. West Conshohocken, PA: ASTM, 1988, pp 43–57.
56. L Wedeven, R Pallini, C Hingle. Systematic testing of ceramic rolling bearing elements. In:
C Yust, R Bayer, eds. Selection and Use of Wear Tests for Ceramics, STP 1010. West
Conshohocken, PA: ASTM, 1988, pp 58–73.
57. K Dufrane, W Glaeser. Wear of ceramics in advanced heat engine applications. Proc Intl Conf
Wear Materials. ASME 285–292, 1987.
58. P Engel. Impact Wear of Materials. Tribology Series. New York: Elsevier Science Publishing
Co., 1978.
59. W Glaeser. Failure mechanisms of reed valves in refrigeration compressors. Wear
225–229:918–924, 1999.
60. P Engel, Q Yang. Impact wear of multiplated electrical contact. Wear 181–183:730–742, 1995.
61. R Anderson, T Adler, J Hawk. Scale of microstructure effects on the impact resistance of
Al
2
O
3
. Wear 162–164:1073–1080, 1993.
62. P Engel. Impact wear. In: P Blau, ed. Lubrication, and Wear Technology. 18. Materials Park,
OH: ASM Handbook, 1992, pp 263–270.
63. E Iturbi, I Greenfield, T Chou. Surface layer hardening of polycrystalline copper by multiple
impact. J Materials Sci 15:2331–2334, 1980.
64. P Engel. Impact Wear of Materials. Tribology Series. New York: Elsevier Science Publishing
Co., 1978, pp 180–243, 264–290.
65. R Bayer, ed. Effects of Mechanical Stiffness and Vibration on Wear, STP 1247. West
Conshohocken, PA: ASTM, 1995.
66. P Engel. Impact Wear of Materials. Tribology Series. New York: Elsevier Science Publishing
Co., 1978, pp 228–235.
67. R Bayer, P Engel, E Sacher. Impact wear phenomena in thin polymer films. Wear 32:
181–194, 1975.
68. A Ramamurthy, G Buresh, M Nagy, M Howell. Novel instrumentation for evaluating stone
impact wear of automotive paint systems. Wear 225–229:936–948, 1999.
69. K Rutherford, R Tresona, A Ramamurthy, I Hutchings. The abrasive and erosive wear of
polymeric paint films. Wear 203–204:325–334, 1997.
70. A Ramamurthy, J Charest, M Lilly, D Mihora, J Freese. Friction induced paint damage - A
novel method for objective assessment of painted engineering plastics. Wear 203–204:
350–361, 1997.
71. S Jacobsson. Scratch testing. In: P Blau, ed. Lubrication, and Wear Technology. 18. Materials
Park, OH: ASM Handbook, 1992, pp 430–437.
72. In: P Blau, ed. Lubrication, and Wear Technology. 18. Materials Park, OH: ASM Handbook,
1992, pp 433–436.
73. R Bayer, ed. Selection and Use of Wear Tests for Coatings, STP 769. West Conshohocken,
PA: ASTM, 1982.
74. B Kushner, E Novinski. Thermal spray coatings. In: P Blau, ed. Lubrication, and Wear
Technology. 18. Materials Park, OH: ASM Handbook, 1992, pp 829–833.
75. F Borik, D Sponseller. Gouging Abrasion Test for Materials used in Ore and Rock
Crushing: Part I-Description of the Test; Part II-Effect of Metallurgical Variables on
Gouging Wear. J Materials 6(3):576–589 and 590–605, 1971.
76. S Calabrese, S Murray. Methods of evaluating materials for Icebreaker hull coatings. In:
R Bayer, ed. Selection and Use of Wear Tests for Coatings, STP 769. West Conshohocken,
PA: ASTM, 1982, pp 157–173.
77. Test developed by SpinPhysics Div. Eastman Kodak Co., 3099 Science Park Road, San
Diego, CA, 92121.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
78. J Carroll, R Gotham. The measurement of abrasiveness of magnetic tape. IEEE Trans
Magnetics MAG-2(1):6–13, 1966.
79. A van Groenou. The sphere-on-tape: A quick test on wear of materials used in magnetic
recording. Proc Intl Conf Wear Materials. ASME 212–217, 1983.
80. M Ruscoe. A predictive test for coin wear in circulation. Proc Intl Conf Wear Materials.
ASME 1–12, 1987.
81. P Hammer. Schmierungstechnik 4(6):165, 1973.
82. P Engel, C Adams. Rolling wear study of misaligned cylindrical contacts. Proc Intl Conf Wear
Materials. ASME 181–191, 1987.
83. S Carver. Rolling Bearings-I. Lubrication 60(Jul–Sept). Beacon, NY: Texaco, Inc., 1974.
84. S Carver. Rolling Bearings-II. Lubrication 60(Oct–Dec). Beacon, NY: Texaco, Inc., 1974.
85. E Bamberger, T Harris, W Kacmarsky, C Moyer, R Parker, J Sherlock, E Zaetsky. Life
Adjustment Factors for Ball and Roller Bearings. Engineering Design Guide. New York,
NY: ASME, 1971.
86. E Zaretsky, ed. Life Factors for Rolling Bearings, SP-34. Park Ridge, IL: STLE, 1999.
87. McGrew. The design and wear of sliding bearings. Stand News 2(9):22–28, 56, 1974.
88. Bearings. In: M Neale, ed. Tribology Handbook. New York: John Wiley and Sons, 1973.
89. F Barwell, ed. Bearing systems. New York: Oxford University Press, 1979.
90. E Bamberger, T Harris, W Kacmarsky, C Moyer, R Parker, J Sherlock, E Zaetsky. Life
Adjustment Factors for Ball and Roller Bearings. Engineering Design Guide. New York,
NY: ASME, 1971, pp 2–24.
91. S Carver. Rolling Bearings-I. Lubrication 60(Jul–Sept). Beacon, NY: Texaco, Inc., 1974,
pp 54–60.
92. S Carver. Rolling Bearings-I. Lubrication 60(Oct–Dec). Beacon, NY: Texaco, Inc., 1974,
pp 67–70.
93. S Carver. Rolling Bearings-III. Lubrication 61(Jan–Mar). Beacon, NY: Texaco, Inc., 1975.
94. J Lancaster, ed. Special Issue on Dry Bearings. Tribology 6(6), 1973.
95. A Begelinger, A de Gee. Wear in lubricated journal bearings. Proc Intl Conf Wear Materials.
ASME 298–305, 1977.
96. H Chang. Correlation of wear with oxidation of carbon-carbon composites. Proc Intl Conf
Wear Materials. ASME 544–547, 1981.
97. H Hawthorne. Wear debris induced friction anomalics of organic brake materials in vacuo.
Proc Intl Conf Wear Materials. ASME 381–388, 1987.
98. M Jacko, P Tsang, S Rhee. Automotive friction materials evolution during the past decade.
Wear 100:503–515, 1984.
99. P Tsang, M Jacko, S Rhee. Comparsion of chase and inertial brake dynamometer testing of
automotive friction materials. Proc Intl Conf Wear Materials 129–137, 1985.
100. H Hawthome. Wear debris induced friction anomalies of organic brake materials in Vacuo.
Proc Intl Conf Wear Materials. ASME 381–388, 1987.
101. S Rhee. Wear 18:471, 1971.
102. S Hogmark, J Alander. Wear of cylinder liners and piston rings. Proc Intl Conf Wear
Materials. ASME 38–44, 1983.
103. W Pike, R Pywell, S Rudston. Wear Phenomenon of Chromium Plated Rings as Revealed by
Radioactive Traces. SAE paper No. 699773, 2504–2512, 1969.
104. L Haluska. Wear Testing of abrasion-resistant coated plastics. In: R Bayer, ed. Selection and
Use of Wear Tests for Coatings, STP 769. West Conshohocken, PA: ASTM, 1982,
pp 16–27.
105. R Bayer, ed. Selection and Use of Wear Tests for Coatings, STP 769. ASTM, 1982, p 26.
106. C Young, S Rhee. Wear Process of TiN coated drills. Proc Intl Conf Wear Materials. ASME
543–550, 1987.
107. S Soderber. Performance and Failure of High Speed Steel Drills Related to Wear. In:
O Vingsbo, M Nissle, eds. Proc Intl Conf Wear Materials. ASME, 1981, pp 456–467.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
108. J Dray. Friction and Wear of Seals. In: P Blau, ed. Lubrication, and Wear Technology. 18.
Materials Park, OH: ASM Handbook, 1992, pp 546–552.
109. G Lundholm. Comparison of seal materials for use in stirling engines. Proc Intl Conf Wear
Materials. ASME, 1983, pp 250–255.
110. B Bhushan, D Wilcock. MTI Report No. 80ASE 141ER9. Latham, NY: Mechanical
Technology, Inc, Aug 1980.
111. R Bayer, R Ginsburg, R Lasky. Settable and airborne particles in industrial environments.
Proceedings of the 35th Meeting of the IEEE Holm Conference on Electrical Contacts. IEEE,
1989, pp 155–166.
112. Standard Test Method for Abrasiveness of Ink-Impregnated Fabric Printer Ribbons. West
Conshohocken, PA: ASTM, G56.
113. P Swanson, R Klann. Abrasive wear studies using the wet sand and dry sand rubber wheel
tests. Proc Intl Conf Wear Materials. ASME 379–389, 1981.
114. Standard Test Method for Measuring Abrasion Using the Dry Sand=Rubber Wheel
Apparatus. West Conshohocken, PA: ASTM, G65.
115. L Ives, A Ruff. Electron microscopy study of erosion damage in copper. In: W Adler, ed.
Erosion: Prevention and Useful Applications, STP 664. ASTM, 1979, pp 5–35.
116. Standard Test Method for Conducting Erosion Tests by Solid Particle Impingement
Using Gas Jet. West Conshohocken, PA: ASTM, G76.
117. Standard Test Method for Cavitation Erosion Using Vibratory Apparatus. West
Conshohocken, PA: ASTM, G32.
118. Standard Test Method for Ranking Resistance of Materials to Sliding Wear Using
Block-on-Ring Wear Test. West Conshohocken, PA: ASTM, G77.
119. R Tucker, A Miller. Low stress abrasive and adhesive wear testing. In: R Bayer, ed. Selection
and Use of Wear Tests for Metals. West Conshohocken, PA: ASTM, 1977, pp 68–90.
120. R Bayer. Mechanism of Wear by Ribbon and Paper. IBM J R&D 26:668–674, 1978.
121. A Ajayi, K Ludema. Surface damage of structural ceramics: Implications for wear modeling.
Proc Intl Conf Wear Materials. ASME 349–360, 1987.
122. T Fischer, M Anderson, S Jahanmir, R Salher. Friction and wear of tough and brittle zirconia
in nitrogen, air, water, hexadecane and hexadecane containing stearic acid. Proc Intl Conf
Wear Materials. ASME 257–266, 1987.
123. Standard Practice for Liquid Impingement Erosion Testing. West Conshohocken, PA:
ASTM, G73.
124. Y-J Liu, N-P Chen, Z-R Zhang, C-Q Yang. Wear behavior of two parts subjected to
‘Gouging’ abrasion. Proc Intl Conf Wear Materials. ASME 410–415, 1985.
125. Standard Test Method for Jaw Crusher Gouging Abrasion Test. West Conshohocken, PA:
ASTM, G81.
126. M Ruscoe. A Predictive Test for Coin Wear in circulation. Proc Intl Conf Wear Materials.
ASME 1–12, 1987.
127. P Engel, C Adams. Rolling wear study of misaligned cylindrical contacts. Proc Intl Conf Wear
Materials. ASME 181–191, 1979.
128. J Lancaster. Dry Bearings: A survey of materials and factors affecting their performance. Trib
Intl 6:219–252, 1973.
129. A Kearse, J Rudman. Radial elastomeric bearings: testing and indications of failure. Trib Intl
15(5):249–254, 1982.
130. B Ginty. Bearing materials for small electric motors. Trib Intl 15(2):85–88, 1982.
131. E Kleinicin. The testing of rolling bearing lubricants. Ball Roller Bearing Eng 13:29–33, 1974.
132. K Stevens, M Todd. Parametric study of solid-lubricant composites as ball-bearing cages.
Trib Intl 15(5):293–302, 1982.
133. H Hawthorne. Wear debris induced friction anomalies of organic brake materials in vacuo.
Proc Intl Conf Wear Materials. ASME 381–388, 1987.
134. G Lundholm. Comparison of seal materials for use in stirling engines. Proc Intl Conf Wear
Materials. ASME 250–255, 1983.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
135. R Bayer. A model for wear in an abrasive environment as applied to a magnetic sensor. Wear
70:93–117, 1981.
136. R Bayer, J Sirico. Some observations concerning the friction and wear characteristics of
sliding systems involving cast ceramic. Wear 16:421–430, 1970.
137. R Bayer. Abrasiveness of Electroerosion Papers. 1984 International Printing and Graphic
Arts=Testing Conference, 56–60.
138. G Massouros. Model of wear in a plain bearing under boundary lubrication. Trib Intl
15(4):193–198, 1982.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
10
Friction Tests
Friction tests are tests to determine the coefficient of friction of material pairs or rank
material pairs in terms of their friction. The amount of motion in these tests is limit ed
and generally small, being just sufficient to allow the measurement to be made. The meth-
odology elements are the same with friction tests as they are with wear tests with the
exception of acceleration (1,2). There is no need to consider this aspect with friction tests
since these tests are typical short enough so that there is no practical need for acceleration.
As with wear tests simulation is the key element in friction tests. The same parameters
need to be considered for simulation and control, though their significance in a friction
test can be different than in a wear test. One trend is that initial surface films tend to
be more significant in friction tests than in many wear tests. This is particularly true
for unlubricated conditions and material pairs that have high coefficients of friction. This
is because such films can provide significant lubrication but are usually quickly worn
away, so that their effect on long-term wear is often negligible. However, friction tests
are generally limited to initial and not long-term conditions. For example, residual oil
films on metal surfaces can reduce the coefficient of friction from near 1 to near 0.3.
As sliding progresses, a gradual increase in friction from this low value to the higher value
will occur, as a result of removal of this film from the contact area. This behavior is illu-
strated in Fig. 10.1. When determining the coefficient of friction for a particular applica-
tion, the general nature of the contact geometry in the application should be replicated in
the test. For example, a flat-on-flat test configuration should be used for an application
where the contact is a flat on a flat. Similarly, if the application involves a web material
wrapped around a cylinder or similar curved surface, the test configuratio n should also
have the web material wrapped over a cylinder as illustrated in Fig. 10.2 (3). For nominal
values of the coefficient, this degree of simulation is generally not necessary.
There are a large number of configurations and test methods used for measuring and
characterizing friction. Many of these test methods evolved from the nature of different
applications where friction is important. There are a large number of friction tests for
which standard test methods have been developed. This is illustrated in Table 10.1, where
sketches of the configuration and methods of measurement s used in these different tests
are shown. In addition, there is an ASTM standard, G115, which provides guidelines
for measuring and reporting the coefficient of friction. Most methods result in a value
for the coefficient of friction. With some only the static coefficient of friction, m
s
, is mea-
sured. In others, the kinetic coefficient of friction, m
k
, is determined and with some both
the static and kinetic coefficient can be measured. However, not all friction tests result
in a coefficient of friction. With some of these standard methods, differences in friction
are used to characterize friction behavior of materials. Still others use the ene rgy dissipated
to characterize friction. Tests using pendulums are of this type. In these, the height that the
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
pendulum reaches after contact is used as a measure. Generally, friction tests that provide
values for the coefficient of friction are more relevant to wear behavior than those that
do not.
There are three general relationships that are used in tests for determining the coeffi-
cient of friction. For tests in which one body slides across another, the coefficient of
friction is given by
m ¼
F
N
ð10:1Þ
F is the friction force and N is the normal force. For friction tests using an inclined plane
the following is generally used:
m ¼ tan f ð10:2Þ
Figure 10.2 Example of a friction test (ASTM G143) used to simulate tape or other web material
sliding over a guide.

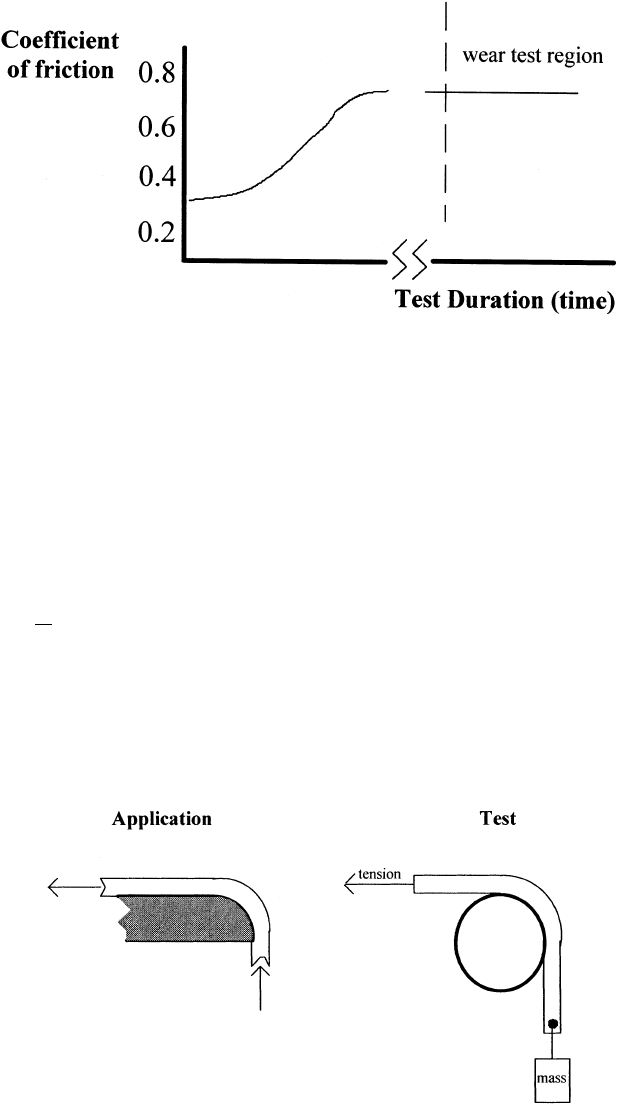

Figure 10.1 Nominal behavior of the coefficient of friction between unlubricated steel specimens
when organic films contaminate the surfaces. The effect on long-term wear behavior is generally
negligible.
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.

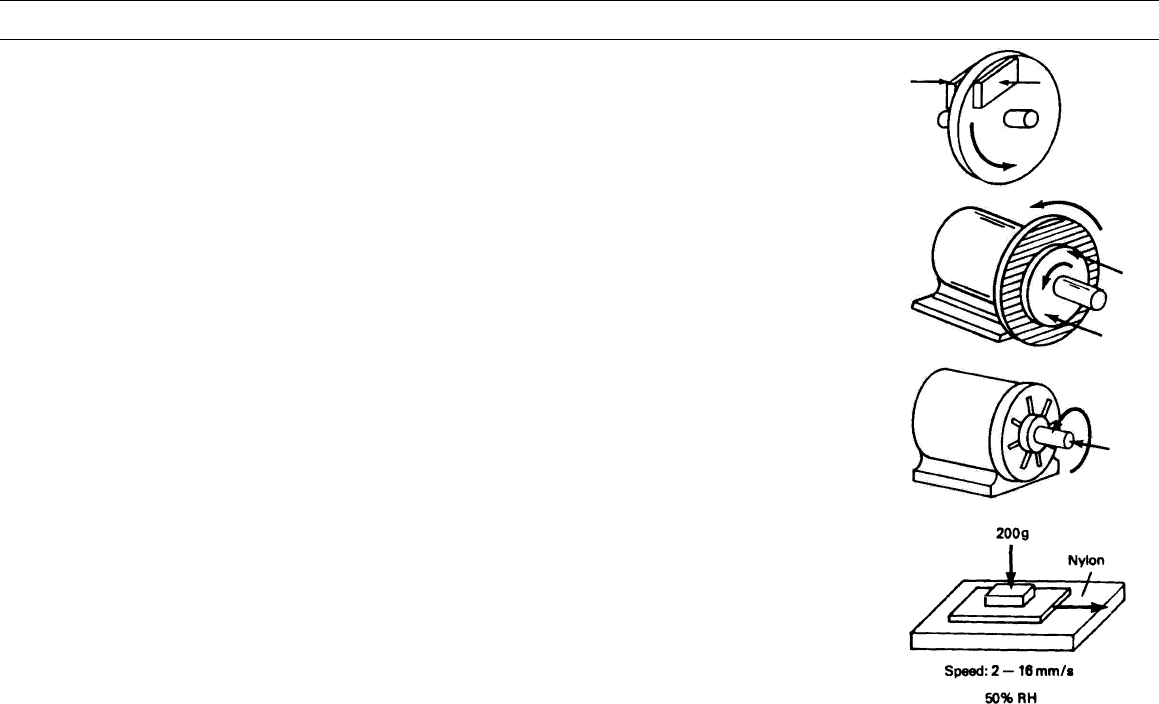

Table 10.1 Standard ASTM Test Methods for Friction
Standard (committee) Title Materials (parameters measured) Test configuration
B460 (B-9 on metals) Dynamic Coefficient of Friction and
Wear of Sintered Metal Friction
Materials Under Dry Conditions
Friction materials vs. metals
(m
k
vs. temperature)
B461 (B-9 on metals) Frictional Characteristics of Sintered
Metal Friction Materials Run
in Lubrication
Friction materials vs. metals
(m
k
vs. number of engagements)
(m
k
vs. velocity)
B526 (B-9 on metal
powders)
Coefficient of Friction and Wear
of Sintered Metal
Friction materials vs. gray cast iron
(m
s
and m
k
)
D1894 (D-20 on plastics) Static and Kinetic Coefficients
of Friction of Plastic Films
and Sheeting
Plastic film vs. stiff or other
solids (m
s
and m
k
)
Copyright 2004 by Marcel Dekker, Inc. All Rights Reserved.
