surface (Figure 4.87). When the dye absorbs a photon, the resultant excitation injects

electrons into the titanium, which transports them to the negative electrode, with the

positive electrode attached to the electrolyte (e.g., aqueous iodide or sodium sulﬁd e

solutions

[103]

) acting as the hole-scavenging medium.

[104]

To date, the maximum

efﬁciency of DSCs is only ca. 11%; however, it is likely that this value will

signiﬁcantly improve as alternate nanomaterials are utilized (e.g., TiO

-multiwalled

carbon nanotube nanocomposites,

[105]

quantum dot sensitized solar cells, QDSSCs,

discussed in Chapter 6). Even with a relative low overall efﬁciently, there are

already commercial products that contain DSC technology.

[106]

The TiO

used in DSCs is not present as a smooth ﬁlm, but as a porous

nanostructural sponge, with a very high surface area. This improv es the number of

active sites that may absorb light, analogous to the stacked structure of leaves that

convert light to energy using the light-harvesting molecule chlorophyll. The oxide

nanoparticles are carefully prepared to preferentially expose the (101) face of

anatase, which is the lowest energy surface – providing the lowest LUMO level to

accept electron density from the sensitizer. It should be noted that other wide

bandgap semiconductor oxides such as SnO

and ZnO have also been employed

within DSCs.

Figure 4.87. Schematic of a dye-sensitized photovoltaic cell. The TiO

-bound dye molecules act as the

light harvester. Electrons are injected into TiO

, ﬂow to the collector electrode and through the circuit to

the counter electrode. The dye is regenerated by electron donation from the I



/3I



couple (0.536 V).

Society.

338 4 Semiconductors

Not unlike their inorganic semiconductor counterparts, the light-harvesting mol-

ecule is perhaps the most important component of a DSC. The dyes employed for

this application are ruthenium complexes that feature highly conjugated ligands

similar to those employed for OLED applications. The absorption of UV–Visible

radiation causes p ! p

and metal-to-ligand charge transfer (MLCT) electronic

transitions. The latter transition is quite pronounced for ruthenium, since its v alence

d-electrons are heavily shielded from the nuclear charge and are more easily

promoted to ligand unoccupied orbitals. The donation of electron density from the

bound sensitizer is due to MLCT which results in the oxidation of the Ru(II) metal

center. (Figure 4.88a). The design of sensitizer ligands is not trivial; the p

LUMO of

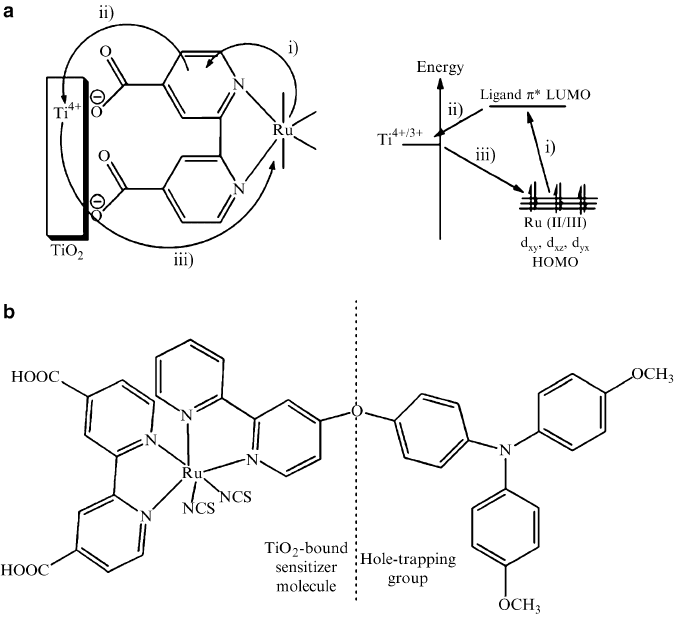

Figure 4.88. (a) Detailed schematic of the forward/backward electron donation between the sensitizer

and TiO

surface. A carboxylate group is shown on the sensitizer ligand – important for Lewis acid/base

binding to the oxide surface. Shown in (b) is an example of a hole-trapping group that prevents back-

donation from the TiO

surface to the sensitizer (improving the photocurrent generated by the DSC).

4.4. Thermoelectric (TE) Materials 339

the ligand must be of appropriate energy to allow electron transport to ﬂow to the

TiO

surface from the metal ion. However, it is also possible for an electron to be

injected back to the sensitizer from the conduction band of the TiO

(Figure 4.88a).

By designing the sensitizer appropriately, the rate of electron ﬂow from the dye to

TiO

will be much faster than the reverse reaction. An intriguing way to accomplis h

this is thr ough the incorporation of a hole-trapping group attached to the ligands

(Figure 4.88b). After MLCT takes place and the electron is injected into the TiO

layer, the positive charge is transferred to the hole-trapping moiety. This increases

the distance of the hole from the surface, which slows the rate of TiO

-sensitizer

back-donation considerably.
