Hatano Y., Katsumura Y., Mozumder A. (Eds.) Charged Particle and Photon Interactions with Matter - Recent Advances, Applications, and Interfaces

Подождите немного. Документ загружается.

700 Charged Particle and Photon Interactions with Matter

PH1-3 thin lms with varying number of incident particles. These images clearly reveal 1D rod-like

structures (nanowires) on the substrate, which is ascribed to the cylindrical formation of nanogel

along ion trajectories. It should be noted that the density of the nanowires on the substrate increased

clearly with an increase in the number of the incident particles, and the observed number density of

the nanowires coincided with the number density of the incident particle. This is also suggestive that

“one nanowire” is produced corresponding to one incident particle along its trajectory, which is a

clear evidence of the model described above. As shown in Figure 25.19, the length of the nanowires

is uniform in each image, and is consistent precisely with the initial thickness of the lm. This is due

to the geometrical limitation of the distribution of the cross-liking reaction: the gelation occurs from

the top surface to the bottom of the polymer lm. Thus, the length of the nanowires can be perfectly

controlled by the present technique. Based on the measurement of the cross-sectional trace of the

nanowires by AFM, the radial distribution of cross-links in the nanowires is discussed in terms of

dened as the radius of the cross section. It is clear that the value of r

depends on the molecular

weight of the target polymer, as shown in Figure 25.20, and that r

also changes with the LET of the

incident

particle, as summarized in Table 25.5.

The

authors previously reported that cross-linking reactions are mainly promoted by side-chain-

dissociated silyl radicals, and that the predominant reaction is determined by the radical concen-

tration in the ion tracks (Cotts et al., 1991; Seki et al., 1996a,b, 1999b). Thus, the distribution of

cross-links in an ion track is expected to reect the radial dose (deposited energy density) distri-

bution, where ρ

is the critical energy density for the predominance of cross-linking in PH1. The

radial dose distribution in an ion track is thus given by Chatterjee and Magee (1980) and Magee and

Chatterjee

(1980)

ρ π π

c c

LET LET

































≤

−

2 2

1 2

r r

e r

r rln

(25.25)

ρ π

c p

LET

( ) ln

r r

e r

r r r=

























< ≤

−

1 2

(25.26)

where

is the deposited energy density in the core area

and r

are the radii of the core and penumbra area

(a) (b)

200 nm 200 nm 200 nm

(c)

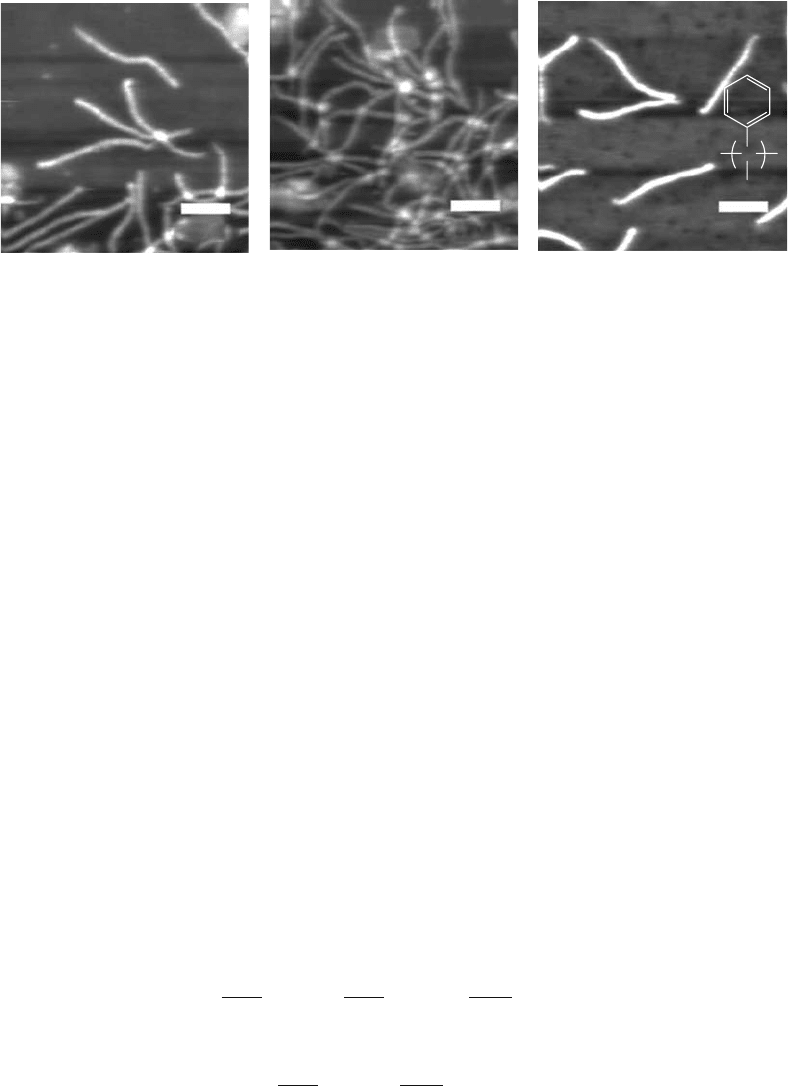

Figure 25.19 AFM micrographs of nanowires based on PH1s showing the variation in size with molecular

weight and number density on the substrate. The nanowires were formed by a 500 MeV

192

Au-beam irradiation

to (a,b) PH1-3 and (c) PH1-1 thin lms at (a) 3.0 × 10

, (b) 5.0 × 10

, and (c) 1.0 × 10

ions cm

−2

, respectively.

The

thicknesses of the target lms were (a,b) 350

and (c) 250

nm.

Nanoscale Charge Dynamics and Nanostructure Formation in Polymers 701

For gel formation in a polymer system, it is necessary to introduce one cross-link per polymer

molecule. Assuming a sole contribution from the cross-linking reactions in the chemical core, ρ

given by

100 A

G x mN( )

(25.27)

where

is Avogadro’s number

is the degree of polymerization

The value of mN/ρA reects the volume of a polymer molecule. Substituting ρ

(r) in Equation 25.26

with

gives the following requirement for r

(Seki et al., 2004b; Tsukuda et al., 2005a):

′

⋅

























−

G x mN

e r

1 2

400

LET ( )

πρ

(25.28)

Using the reported value of G(x) = 0.12, derived from radiation-induced changes in the molecular

weight (Seki et al., 1996a), the values of r

calculated by the nonempirical formulation of Equation

25.28 are compared with the experimental values showing a good consistency with the experimental

values for polymers with sufcient chain lengths (PH1-1 and PH1-2). However, a considerable dis-

crepancy occurs between the calculated and experimental results for polymers with shorter chains.

The global conguration of the polymer molecules depends greatly on the length of the polymer

chains, leading to a transformation from random coil (long-chain) to rod-like (short-chain) conforma-

tions. The gyration radius of a polymer molecule, which determines the size of a molecule spreading

in the media, is correlated with this transformation. The correlation between R

and N is discussed

previously in this chapter, giving Equation 25.2. Based on the persistence length of PH1 (1.1nm, see

Section 25.4), the scaling law for a helical worm-like chain model (Yamakawaetal.,1994) results

in an index, α, of 0.410, 0.419, 0.451, 0.485, and 0.492 for PH1-1–5, respectively. Thus, the effective

0 5

PH1-1

PH1-2

PH1-3

PH1-4

PH1-5

(observed) (nm)

(calculated) (nm)

10 15

Figure 25.20 Correlation between r′ values estimated experimentally and those calculated using Equation

25.29. (Reprinted from Seki, S. et al., Chem. Lett., 34, 1690, 2005a; Seki, S. et al., Macromolecules, 38, 10164,

2005b.

With permission.)

702 Charged Particle and Photon Interactions with Matter

volume of a polymer chain can be simply calculated as

4 3

/ πR

, and the substitution of mN/ρA in

Equation

25.28 with the effective volume leads to the expression (Seki et al., 2005b, 2006)

′

⋅

























−

G x N

e r

1 2

400

LET

( )

πβ

(25.29)

where β is the effective density parameter of the monomer unit (kg m

−3

). Based on Equation 25.29,

the calculated value of r′ is plotted against the experimental values in Figure 25.20. All polymers,

with a variety of molecular weights, follow a single trend, and the calculated values display good

correspondence when r′ > 7nm. The underestimate of r′ by Equation 25.29 for r′ < 7nm suggests

that the initial deposition of energy and the radial dose distribution estimated by Equations 25.25

and 25.26 do not account for the radial distribution of chemical intermediates, and thus, cannot

model the concentration of cross-linking in the core of the ion track. The value of G(x) increases

dramatically with an increase in the density of reactive intermediates. Based on the assumption that

G(x) is a function of the density of deposited energy, the present results indicate that the yield of the

chemical reaction is dependent on the energy density. Cross-linking reactions in ion tracks therefore

have the potential for not only single-particle fabrication with sub-nanometer-scale spatial resolu-

tion for any kind of cross-linking polymer, but also the study of nanoscale distributions of radial

dose

and chemical yield in an ion track.

reFerenCes

Abkowitz, M. A., Knier, F. E., Yuh, H. J., Weagley, R. J., and Stolka, M. 1987. Electronic transport in amor-

phous

silicon backbone polymers. Sol. Stat. Commun. 62: 547–550.

Abkowitz,

M. A., Rice, M. J., and Stolka, M. 1990. Electronic transport in silicon backbone polymers. Philos.

Mag. B

61: 25–64.

Acharya,

A., Seki, S., Saeki, A., Koizumi, Y., and Tagawa, S. 2005a. Study of transport properties in fullerene-

doped polysilane lms using ash photolysis time-resolved microwave technique. Chem. Phys. Lett. 404:

356–360.

Acharya, A., Seki, S., Koizumi, Y., Saeki, A., and Tagawa, S. 2005b. Photogeneration of charge carriers and

their

transport properties in poly[bis(p-n-butylphenyl)silane]. J. Phys. Chem. B 109: 20174–20179.

Adhikary,

A., Khanduri, D., and Sevilla, M. D. 2009. Direct observation of the hole protonation state and hole

localization

site in DNA-oligomers. J. Am. Chem. Soc. 131: 8614–8619.

Alig,

R. C., Bloom, S., and Struck, C. W. 1980. Scattering by ionization and phonon emission in semiconduc-

tors.

Phys. Rev. B 22: 5565–5582.

Amaya,

T., Seki, S., Moriuchi, T., Nakamoto, K., Nakata, T., Sakane, H., Saeki, A., Tagawa, S., and Hirao, T.

2009. Anisotropic

electron transport properties in sumanene crystal. J. Am. Chem. Soc. 131: 408–409.

Ban,

H., Sukegawa, K., and Tagawa, S. 1987. Pulse radiolysis study on organopolysilane radical anions.

Macromolecules

20: 1775–1778.

Barnes,

J., Bernhard, W. A., and Mercer, K. R. 1991. Distribution of electron trapping in DNA-protonation of

one-electron

reduced cytosine. Radiat Res 126: 104–107.

Baude,

P. F., Ender, D. A., Haase, M. A., Kelley, T. W., Muyres, D. V., and Theiss, S. D. 2003. Pentacene-based

radio-frequency

identication circuitry. Appl. Phys. Lett. 82: 3964–3966.

Becker,

D., Adhikary, A., and Sevilla, M. D. 2007. The role of charge and spin migration in DNA radiation

damage. In Charge Migration in DNA: Physics, Chemistry and Biology Perspectives, T. Chakraborty

(ed.),

pp. 139–175. Berlin/Heidelberg/New

York:

Springer-Verlag.

Bernhard,

W.A. and Close, D. M. 2004. Charged Particle Interactions with Matter: Chemical, Physicochemical,

and Biological Consequences with Applications, A. Mozunder and Y. Hatano (eds.), pp. 431–470.

NewYork/Basel:

Marcel Dekker, Inc.

Biondi,

M. A. 1951. Measurement of the electron density in ionized gases by microwave techniques. Rev. Sci.

Instrum.

22: 500–502.

Biondi,

M. A. and Brown, S. C. 1949. Measurements of ambipolar diffusion in helium. Phys. Rev. 75:

1700–1705.

Nanoscale Charge Dynamics and Nanostructure Formation in Polymers 703

Candeias, L. P. and Steenken, S. 1993. Electron-transfer in di(deoxy)nucleoside phosphates in aqueous

solution-rapid migration of oxidative damage (via adenine) to guanine. J. Am. Chem. Soc. 115: 2437–2440.

Candeias, L. P., Wildeman, J., Hadziioannou, G., and Warman, J. M. 2000. Pulse radiolysis–optical absorp-

tion studies on the triplet states of p-phenylenevinylene oligomers in solution. J. Phys. Chem. B 104:

8366–8371.

Charlesby, A.

1952. Cross-linking of polyethylene by pile radiation. Proc. R. Soc. (Lond.)

A215:

187–214.

Charlesby,

A. 1954. The cross-linking and degradation of parafn chains by high-energy radiation. Proc. R.

Soc. Lond. Ser. A

222: 60–74.

Charlesby,

A. and Pinner, S. H. 1959. Analysis of the solubility behaviour of irradiated polyethylene and other

polymers.

Proc. R. Soc. Lond. Ser. A 249: 367–386.

Chatterjee,

A. and Magee, J. L. 1980. Radiation chemistry of heavy-particle tracks. 2. Fricke dosimeter system.

J. Phys. Chem.

84: 3537–3543.

Cotts,

P. M., Miller, R. D., and Sooriyakumaran, R. 1990. Congurational properties of a polysilane. In Silicon

Based Polymer Science,

p. 397.

Washington,

DC:

American

Chemical Society.

Cotts,

P. M., Ferline, S., Dagli, G., and Pearson, D. S. 1991. Solution properties of poly(di-n-hexylsilane): An

estimate

of its unperturbed dimensions. Macromolecules 24: 6730–6735.

Haas, M. P., Warman, J. M., Infelta, P. P., and Hummel, A. 1975. The direct observation of a highly mobile

positive

ion in nanosecond pulse irradiated liquid cyclohexane. Chem. Phys. Lett. 31: 382–386.

Dole,

M., Keeling, C. D., and Rose, D. G. 1954. The pile irradiation of polyethylene. J. Am. Chem. Soc. 76:

4304–4311.

Douhal, A., Kim, S. K., and Zewail, A. H. 1995. Femtosecond molecular dynamics of tautomerization in model

base

pairs. Nature 378: 260–263.

Feng,

X., Marcon, V., Pisula, W., Hansen, M. R., Kirkpatrick, J., Grozema, F., Andrienko, D., Kremer, K., and

Müllen, K. 2009. Towards high charge-carrier mobilities by rational design of the shape and periphery of

discotics.

Nat. Mater. 8: 421–426.

Fessenden,

R. W. and Hitachi, A. 1987. A study of the dielectric relaxation behavior of photoinduced transient

species.

J. Phys. Chem. 91: 3456–3462.

Fessenden,

R. W., Carton, P. M., Paul, H., and Shimamori, H. 1979. Detection of transient species by measure-

ment

of dielectric loss. J. Phys. Chem. 83: 1676–677.

Fessenden,

R. W., Carton, P. M., Shimamori, H., and Scaiano, J. C. 1982. Measurement of the dipole moments

of excited states and photochemical transients by microwave dielectric absorption. J. Phys. Chem. 86:

3803–3811.

Fujiki, M. 1994. Ideal exciton spectra in single- and double-screw-sense helical phlysilanes. J. Am. Chem. Soc.

116:

6017.

Fujiki,

M. 1996. A correlation between global conformation of polysilane and UV absorption characteristics.

J. Am. Chem. Soc.

118: 7424.

Fujino,

M. 1987. Photoconductivity in organopolysilanes. Chem. Phys. Lett. 136: 451–453.

Gill,

D., Jagur-Grodzinsky, J., and Swarc, M. 1964. Chemistry of radical-ions. Electron-transfer reactions:

–DD–+dimethyl

anthracene and –DD–+pyrene. Trans. Faraday Soc. 60: 1424–1431.

Goldmann,

C., Krellner, C., Pernstich, K. P., Haas, S., Gundlach, D. J., and Batlogg, B. 2006. Determination of

the interface trap density of rubrene single-crystal eld-effect transistors and comparison to the bulk trap

density.

J. Appl. Phys. 99: 034507-1–034507-8.

Grozema,

F. C., Savenije, T. J., Vermeulen, J. W., Siebbeles, L. D. A., Warman, J. M., Meisel, A., Neher, D.,

Nothofer, H. G., and Scherf, U. 2001. Electrodeless measurement of the in-plane anisotropy in the pho-

toconductivity

of an aligned polyuorene lm. Adv. Mater. 13: 1627–1630.

Gu,

J. D., Xie, Y. M., and Schaefer, H. F. 2005. Structural and energetic characterization of a DNA nucleo

side pair and its anion: Deoxyriboadenosine (da)–deoxyribothymidine (dt). J. Phys. Chem. B 109:

13067–13075.

Hisaki, I., Sakamoto, Y., Shigemitsu, H., Tohnai, N., Miyata, M., Seki, S., Saeki, A., and Tagawa, S. 2008.

Superstructure-dependent optical and electrical properties of an unusual face-to-face, π-stacked, one-

dimensional assembly of dehydrobenzo[12]annulene in the crystalline state. Chem. Eur. J. 14: 4178–4187.

Hissung, A. and von Sonntag, C. 1979. The reaction of solvated electrons with cytosine, 5-methyl cytosine

and 2’-deoxycytidine in aqueous solution the reaction of the electron adduct intermediates with water,

p-nitroacetophenone and oxygen a pulse spectroscopic and pulse conductometric study. Int. J. Radiat.

Biol.

35: 449–458.

Hoofman,

R. J. O. M., de Hass, M. P., Siebbeles, L. D. A., and Warman, J. M. 1998a. Highly mobile electrons

and holes on isolated chains of the semiconducting polymer poly(phenylene vinylene). Nature 392:

54–56.

704 Charged Particle and Photon Interactions with Matter

Hoofman, R. J. O. M., Siebbeles, L. D. A., de Haas, M. P., and Hummel, A. 1998b. Anisotropy of the charge-

carrier

mobility in polydiacetylene crystals. J. Chem. Phys. 109: 1885.

Ichikawa,

T., Yamada, Y., Kumagai, J., and Fujiki, M. 1999a. Suppression of the Anderson localization of

charge

carriers on polysilane quantum wire. Chem. Phys. Lett. 306: 275–279.

Ichikawa,

T., Sumita, M., and Kumagai, J. 1999b. Relation between the helicity and the ESR g-anisotropy of

σ-conjugated

quantum wires. Chem. Phys. Lett. 307: 81.

Imahori,

H., Ueda, M., Kang, S., Hayashi, H., Hayashi, S., Kaji, H., Seki, S., Saeki,A., Tagawa, S., Umeyama,T.,

Matano, Y., Yoshida, K., Isoda, S., Shiro, M., Tkachenko, N. V., and Lemmetyinen, H. 2007. Effects

of porphyrin substituents on lm structure and photoelectrochemical properties of porphyrin/fullerene

composite clusters electrophoretically deposited on nanostructured SnO

electrodes. Chem. Eur. J. 13:

10182–10193.

Imamura, S. 1979. Chloromethylated polystyrene as a dry etching-resistant negative resist for sub-micron tech-

nology.

J. Electrochem. Soc. 126: 1628–1630.

Imamura,

S., Tamamura, T., Harada, K., and Sugawara, S. 1982. High-performance electron negative resist,

chlorinated

polystyrene –

study on molecular-parameters. J. Appl. Polym. Sci. 27: 937–949.

Inokuti,

M. 1960. Molecular size distribution and gelation of irradiated copolymers. J. Chem. Phys. 33:

1607–1615.

Ishii, H.,Yuyama, A., Norioka, S., Seki, K., Hasegawa, S., Fujino, M., Isaka, H., Fujiki, M., and Matsumoto,N.

1995. Photoelectron spectroscopy of polysilanes, polygermanes and related compounds. Synth. Met. 69:

595–596.

Itagaki, H., Horie, K., Mita, I., Washio, M., Tagawa, S., and Tabata,Y. 1983. Intramolecular excimer formation

of oligostyrenes from dimer to tridecamer—The measurements of rate constants for excimer formation,

singlet

energy migration and relaxation of internal-rotation. J. Chem. Phys. 79: 3996–4005.

Itagaki,

H., Horie, K., Mita, I., Washio, M., Tagawa, S., Tabata, Y., Sato, H., and Tanaka, Y. 1987. Local

molecular-motion of polystyrene model compounds measured by using picosecond pulse-radiolysis

1. Diastereoisomeric styrene dimmers—Multicomponent uorescence decay curves, concentration-

dependence,

and alkyl end-group effect on excimer formation. Macromolecules 20: 2774–2782.

Itagaki,

H., Washio, M., Washio, M., and Tagawa, S. 1992. Rates for intramolecular excimer formation of

poly(alpha-methylstyrene)

measured by using picosecond pulse-radiolysis. Polym. Bull. 28: 197–202.

Kajzar,

F., Messier, J., and Rosilio, C. 1986. Nonlinear optical properties of thin lms of polysilane. J. Appl.

Phys.

60: 3040.

Kamoshida,

Y., Koshida, M., Yoshimoto, H., Harita, K., and Harada, K. 1983. Application of chlorinated poly-

methylstyrene,

CPMS, to electron-beam lithography. J. Vac. Sci. Technol. B1: 1156–1159

Kawaguchi,

T., Seki, S., Okamoto, K., Saeki, A., Yoshida, Y., and Tagawa, S. 2003. Pulse radiolysis study of

radical

cations of polysilanes. Chem. Phys. Lett. 374: 353–357.

Kepler,

R. G., Zeigler, J. M., Harrah, L. A., and Kurtz, S. R. 1987. Photocarrier generation and transport in

σ-bonded

polysilanes. Phys. Rev. B 35: 2818.

Kido,

J., Kimura, M., and Nagai, K. 1995. Multilayer white light-emitting organic electroluminescent device.

Science

267: 1332–1334.

Kobayashi,

K. and Tagawa, S. 2003. Direct observation of guanine radical cation deprotonation in duplex DNA

using

pulse radiolysis. J. Am. Chem. Soc. 125: 10213–10218.

Kobayashi,

K., Yamagami, R., and Tagawa, S. 2008. Effect of base sequence and deprotonation of guanine

cation

radical in DNA. J. Phys. Chem. B 112: 10752–10757.

Kocherzhenko,

A. A., Patwardhan, S., Grozema, F. C., Anderson, H. L., and Siebbeles, L. D. A. 2009.

Mechanism of charge transport along zinc porphyrin-based molecular wires. J. Am. Chem. Soc. 131:

5522–5529.

Koe, J. R., Powell, D. R., Buffy, J. J., Hayase, S., and West R., 1998. Perchloropolysilane: X-ray structure,

solid-state

Si NMR spectroscopy, and reactions of [SiCl

]

. Angew. Chem. Int. Ed. 37: 1441.

Koe, J. R., Fujiki, M., Nakashima, H., and Motonaga, M. 2000. Temperature-dependent helix–helix transition

an optically active poly(diarylsilylene). Chem. Commun. 389–390.

Koe,

J. R., Fujiki, M., Motonaga, M., and Nakashima, H. 2001. Cooperative helical order in optically active

poly(diarylsilylenes).

Macromolecules 34: 1082–1089.

Kumada,

M. and

Tamao,

K. 1968.

Aliphatic

organopolysilanes. Adv. Organomet. Chem. 6: 80.

Kumagai,

J., Yoshida, H., and Ichikawa, T. 1995. Electronic structure of oliosilane and polysilane radical

cations as studied by electron spin resonance and electronic absorption spectroscopy. J. Phys. Chem.

99: 7965.

Le Motais, B. C. and Jonah, C. D. 1989. Picosecond pulse-radiolysis studies of the primary processes in hydro-

carbon

radiation-chemistry. Radiat. Phys. Chem. 33: 505–517.

Nanoscale Charge Dynamics and Nanostructure Formation in Polymers 705

Lee, Y. A., Durandin, A., Dedon, P. C., Geacintov, N. E., and Sharovich, V. 2008. Oxidation of guanine

in G, GG, and GGG sequence contexts by aromatic pyrenyl radical cations and carbonate radical

anions: Relationship between kinetics and distribution of alkali-labile lesions. J. Phys. Chem. B 112:

1834–1844.

Li, W. S., Yamamoto, Y., Fukushima, T., Saeki, A., Seki, S., Tagawa, S., Masunaga, H., Sasaki, S., Takata, M.,

and Aida, T. 2008.Amphiphilic molecular design as a rational strategy for tailoring bicontinuous electron

donor and acceptor arrays: Photoconductive liquid crystalline oligothiophene-C

dyads. J. Am. Chem.

Soc.

130: 8886–8887.

Maeda,

K., Seki, S., Tagawa, S., and Shibata, H. 2001. Radiation effects on branching polysilanes. Radiat.

Phys. Chem.

60: 461–466.

Magee,

J. L. and Chatterjee, A. 1980. Radiation chemistry of heavy-particle tracks. 1. General considerations.

J. Phys. Chem.

84: 3529–3536.

Matsui,

Y., Nishida, K., Seki, S.,Yoshida, Y., Tagawa, S.,Yamada, K., Imahori, H., and Sakata, A. 2002a. Direct

observation of intra-molecular electron transfer from excess electrons in σ-conjugated main chain to

porphyrin side chain in polysilanes having tetraphenylporphyrin side chain by pulse radiolysis technique.

Organometallics

21: 5144.

Matsui,

Y., Seki, S., and Tagawa, S. 2002b. Direct observation of intra-molecular energy migration in

σ-conjugated

polymer by femto-second laser ash photolysis. Chem. Phys. Lett. 357: 346–350.

Morita,

M., Tanaka, A., Imamura, S., Tamamura, T., and Kogure, O. 1983. High-resolution double-layer resist

system

using new silicone based negative resist (SNR). Jpn. J. Appl. Phys. Part 2(22): L659–L660.

Morita,

M., Imamura, S., Tanaka, A., and Tamamura, T. 1984. A new silicone-based negative resist (SNR) for

2-layer

resist system. J. Electrochem. Soc. 131: 2402–2406.

Motoyanagi,

J., Yamamoto, Y., Saeki, A., Alam, M. A., Kimoto, A., Kosaka, A., Fukushima, T., Seki, S.,

Tagawa, S., and Aida, T. 2009. Unusual side-chain effects on charge-carrier lifetime in discotic liquid

crystals.

Chem. Asian J. 4: 876–880.

Myny,

K., Steudel, S., Vicca, P., Genoe, J., and Heremans, P. 2008. An integrated double half-wave organic

Schottky

diode rectier on foil operating at 13.56

mHz.

Appl. Phys. Lett. 93: 093305-1–093305-3.

Nagashima,

K., Yanagida, T., Tanaka, H., Seki, S., Saeki, A., Tagawa, S., and Kawai, T. 2008. Effect of the

heterointerface

on transport properties of in situ formed mgo/titanate heterostructured nanowires. J. Am.

Chem. Soc. 130: 5378–5382.

Ohnishi,

Y., Saeki, A., Seki, S., and Tagawa, S. 2009. Conformational relaxation of sigma-conjugated polymer

radical

anion on picosecond scale. J. Chem. Phys. 130: 204907.

Okamoto,

K., Kozawa, T., Yoshida, Y., and Tagawa, S. 2001. Study on intermediate species of polystyrene by

using

pulse radiolysis. Radiat. Phys. Chem. 60: 417–422.

Okamoto,

K., Saeki, A., Kozawa, T., Yoshida, Y., and Tagawa, S. 2003. Subpicosecond pulse radiolysis study

geminate ion recombination in liquid benzene. Chem. Lett. 32: 834–835.

Okamoto,

K., Kozawa, T., Miki, M., Yoshida, Y., and Tagawa, S. 2006. Pulse radiolysis of polystyrene in

cyclohexane – Effect of carbon tetrachloride on kinetic dynamics of dimmer radical cation. Chem. Phys.

Lett.

426: 306–310.

Okamoto,

K., Kozawa, T., Saeki,A.,Yoshida,Y., and Tagawa, S. 2007. Subpicosecond pulse radiolysis in liquid

methyl-substituted

benzene derivatives. Radiat. Phys. Chem. 76: 818–826.

Okamoto,

K., Kozawa, T., Natsuda, K., Seki, S., and Tagawa, S. 2008. Formation of intramolecular poly(4-

hydroxystyrene)

dimer radical cation. J. Phys. Chem. 112: 9275–9280.

Okamoto,

K., Tanaka, M., Kozawa, T., and Tagawa, S. 2009. Dynamics of radical cation of poly(4-

hydroxystyrene) and its copolymer for extreme ultraviolet and electron beam resists. Jpn. J. Appl. Phys.

Part 2

48: 06FC06.

Olejniczak,

K., Rosiak, J., and Charlesby, A. 1991. Gel/dose curves for polymers undergoing simultaneous

crosslinking

and scission. Radiat. Phys. Chem. 37: 499–504.

Pieter,

A. C., Sweelssen, J., Koetse, M. M., Savenije, T. J., and Siebbeles, L. D. A. 2007. Formation and decay

of charge carriers in bulk heterojunctions of MDMO-PPV or P3HT with new n-type conjugated poly-

mers.

J. Phys. Chem. C 111: 4452–4457.

Pitt,

C. G. 1977. Conjugative properties of polysilanes and catenated σ-systems. In Homoatomic Rings, Chains,

and Macromolecules of Main Group Elements,A. L. Rheingold (ed.).Amsterdam, the Netherlands: Elsevier.

Podzorov, V., Menard, E., Borissov, A., Kiryukhin, V., Rogers, J. A., and Gershenson, M. E. 2004. Intrinsic

charge

transport on the surface of organic semiconductors. Phys. Rev. Lett. 93: 086602-1–086602-4.

Pollard,

B. and Lucovsky, G. 1982. Phonons in polysilane alloys. Phys. Rev. B 26: 3172–3180.

Prins,

P., Grozema, F. C., Schins, J. M., Patil, S., Scherf, U., and Siebbeles, L. D. A. 2006. High intrachain hole

mobility on molecular wires of ladder-type poly(p-phenylenes). Phys. Rev. Lett. 96: 146601-1–146601-4.

706 Charged Particle and Photon Interactions with Matter

Rice,

M. 1979. Charged pi-phase kinks in lightly doped polyacetylene. Phys. Lett. 71A: 152.

Rice,

M. J. and Phillpot, S. R. 1987. Polarons and bipolarons in a model tetrahedrally bonded homopolymer.

Phys. Rev. Lett.

58: 937–940.

Saeki,

A., Kozawa, T., Yoshida, Y., and Tagawa, S. 2002. Study on radiation-induced reaction in micro-

scopic region for basic understanding of electron beam patterning in lithographic process (II)—

Relation between resist space resolution and space distribution of ionic species. Jpn. J. Appl. Phys.

41: 4213–4216.

Saeki, A., Kozawa, T., Yoshida, Y., and Tagawa, S. 2004. Adjacent effect on positive charge transfer from

radical cation of n-dodecane to scavenger studied by picosecond pulse radiolysis, statistical model, and

Monte

Carlo simulation. J. Phys .Chem. A 108: 1475–1481.

Saeki,

A., Kozawa, T., Yoshida, Y., and Tagawa, S. 2005a. Multi spur effect on decay kinetics of geminate ion

recombination

using Monte Carlo technique. Nucl. Instrum. Meth. B 234: 285–290.

Saeki,

A., Seki, S., Koizumi, Y., Sunagawa, T., Ushida, K., and Tagawa, S. 2005b. Increase in the mobility of

photogenerated

positive charge carriers in polythiophene. J. Phys .Chem. B 109: 10015–10019.

Saeki,

A., Seki, S., Sunagawa, T., Ushida, K., and Tagawa, S. 2006a. Charge-carrier dynamics in polythio-

phene lms studied by in-situ measurement of ash-photolysis time-resolved microwave conductivity

(FP-TRMC)

and transient optical spectroscopy (TOS). Philos. Mag. 86: 1261–1276.

Saeki,

A., Seki, S., and Tagawa, S. 2006b. Electrodeless measurement of charge carrier mobility in pentacene

microwave and optical spectroscopy techniques. J. Appl. Phys. 100: 023703–023708.

Saeki,

A., Seki, S., Koizumi, Y., and Tagawa, S. 2007. Dynamics of photogenerated charge carrier and mor-

phology dependence in polythiophene lms studied by in situ time-resolved microwave conductivity and

transient

absorption spectroscopy. J. Photochem. Photobiol. A 186: 158–165.

Saeki,

A., Ohsaki, S., Seki, S., and Tagawa, S. 2008a. Electrodeless determination of charge carrier mobility in

poly(3-hexylthiophene) lms incorporating perylenediimide as photoconductivity sensitizer and spectro-

scopic

probe. J. Phys. Chem. C 112: 16643–16650.

Saeki,

A., Seki, S., Takenobu, T., Iwasa, Y., and Tagawa, S. 2008b. Mobility and dynamics of charge carriers

in rubrene single crystals studied by ash-photolysis microwave conductivity and optical spectroscopy.

Adv. Mater.

20: 920–923.

Sagstuen,

E., Hole, E. O., Nelson, W. H., and Close, D. M. 1992. Protonation state of radiation-produced

cytosine anions and cations in the solid state: EPR/ENDOR of cytosine monohydrate single crystals

x-irradiated

at 10

J. Phys. Chem. 96: 8269–8276.

Saito,

O. 1958. Effects of high energy radiation on polymers II. End-linking and gel fraction. J. Phys. Soc. Jpn.

13:

1451–1464.

Saito,

I., Nakamura, T., Nakatani, K.,Yoshioka, Y., Yamaguchi, K., and Sugiyama, H. 1998. Mapping of the hot

spots for DNA damage by one-electron oxidation: Efcacy of GG doublets and GGG triplets as a trap in

long-range

hole migration. J. Am. Chem. Soc 120: 12686–12687.

Sakurai,

T., Shi, K., Sato, H., Tashiro, K., Osuka, A., Saeki, A., Seki, S., Tagawa, S., Sasaki, S., Masunaga,H.,

Osaka, K., Takata, M., and Aida, T. 2008. Prominent electron transport property observed for triply

fused metalloporphyrin dimer: Directed columnar liquid crystalline assembly by amphiphilic molecular

design.

J. Am. Chem. Soc. 130: 13812–13813.

Sariciftci,

N. S., Smilowitz, L., Heeger, A. J., and Wudl, F. 1992. Photoinduced electron transfer from a con-

ducting

polymer to buckminsterfullerene. Science 258: 1474–1476.

Sauer,

M. C. and Jonah, C. D. 1980. Kinetics of solute excited-state formation in the pulse-radiolysis of liquid

alkanes—Comparison

between theory and experiment. J. Phys. Chem. 84: 2539–2544.

Schreiber,

M. and Abe, S. 1993. The effect of disorder on optical spectra of conjugated polymers. Synth. Met.

55–57:

50–55.

Schuster,

G. B. and Landman, U. 2004. The mechanism of long-distance radical cation transport in duplex DNA:

Ion-gated hopping of polaron like distorsion. In Long Range Charge Transfer in DNA. I and II, Topics

in Current Chemistry,

G. B. Shuster (ed.), pp. 139–161. Berlin/Heidelberg, Germany: Springer-Verlag.

Seki,

K., Mori, T., Inokuchi, H., and Murano, K. 1988. Electronic structure of poly(dimethylsilane) and polysi-

lane

studied by XPS, UPS, and band calculation, Bull. Chem. Soc. Jpn. 61: 351–358.

Seki,

S., Shibata, H., Ban, H., Ishigure, K., and Tagawa, S. 1996a. Radiation effects of ion beams on

poly(methylphenylsilane).

Radiat. Phys. Chem. 48: 539–544.

Seki,

S., Tagawa, S., Ishigure, K., Cromack, K. R., and Trifunac, A. D. 1996b. Observation of silyl radical in

γ-radiolysis

of solid poly(dimethylsilane). Radiat. Phys. Chem. 47: 217–219.

Seki,

S., Kanzaki, K., Yoshida, Y., Shibata, H., Asai, K., Tagawa, S., and Ishigure, K. 1997. Positive-negative

inversion of silicon based resist materials: Poly(di-n-hexylsilane) for ion beam irradiation. Jpn. J. Appl.

Phys.

36: 5361–5364.

Nanoscale Charge Dynamics and Nanostructure Formation in Polymers 707

Seki, S., Cromack, K. R., Trifunac, A. D., Yoshida, Y., Tagawa, S., Asai, K., and Ishigure, K. 1998. Radical

stability of aryl substituted polysilanes with linear and planar silicon skeleton structures. J. Phys. Chem.

102: 8367–8371.

Seki,

S.,Yoshida, Y., Tagawa, S., and Asai, K. 1999a. Electronic structure of radical anions and cations of poly-

silanes

with structural defects. Macromolecules 32: 1080–1086.

Seki,

S., Maeda, K., Kunimi, Y., Tagawa, S., Yoshida, Y., Kudoh, H., Sugimoto, M., Morita, Y., Seguchi, T.,

Iwai, T., Shibata, H., Asai, K., and Ishigure, K. 1999b. Ion beam induced crosslinking reactions in

poly(di-n-hexylsilane).

J. Phys. Chem. B 103: 3043–3408.

Seki,

S., Kunimi,Y., Nishida, K., Aramaki, K., and Tagawa, S. 2000. Optical properties of pyrrolyl-substituted

polysilanes.

J. Organomet. Chem. 611: 62–68.

Seki,

S.,Yoshida,Y., and Tagawa, S. 2001a. Charged radicals of polysilane derivatives studied by pulse radioly-

sis.

Radiat. Phys. Chem. 60: 411–415.

Seki,

S., Kunimi, Y., Nishida, K., Yoshida, Y., and Tagawa, S. 2001b. Electronic state of radical anions on

poly(methyl-n-propylsilane)

studied by low temperature pulse radiolysis. J. Phys. Chem. B 105: 900.

Seki,

S., Maeda, K., Tagawa, S., Kudoh, H., Sugimoto, M., Morita, Y., and Shibata, H. 2001c. Formation of

quantum

wires along ion projectiles in Si backbone polymers. Adv. Mater. 13: 1663–1665.

Seki,

S., Matsui, Y., Yoshida, Y., Tagawa, S., Koe, J. R., and Fujiki, M. 2002. Dynamics of charge carriers on

poly[bis(p-alkylphenyl)silane]s

by electron beam pulse radiolysis. J. Phys. Chem. B 106: 6849–6852.

Seki,

S., Tsukuda, S., Yoshida, Y., Kozawa, T., Tagawa, S., Sugimoto, M., and Tanaka, M. 2003. Jpn. J. Appl.

Phys.

43: 4159.

Seki,

S., Koizumi, Y., Kawaguchi, T., Habara, H., and Tagawa, S. 2004a. Dynamics of positive charge carriers

Si chains of polysilanes. J. Am. Chem. Soc. 126: 3521–3528.

Seki,

S., Tsukuda, S., Maeda, K., Matsui, Y., Saeki, A., and Tagawa, S. 2004b. Inhomogeneous distribution of

crosslinks

in ion tracks in polystyrene and polysilanes. Phys. Rev. B 70: 144203.

Seki,

S., Acharya, A., Koizumi, Y., Saeki, A., Tagawa, S., and Mochida, K. 2005a. Mobilities of charge carriers

in dendrite and linear oligogermanes by ash photolysis time-resolved microwave conductivity tech-

nique.

Chem. Lett. 34: 1690–1691.

Seki,

S.,Tsukuda, S., Maeda, K.,Tagawa, S., Shibata, H., Sugimoto, M., Jimbo, K., Hashitomi, I.,andKoyama,A.

2005b. Effects of backbone conguration of polysilanes on nanoscale structures formed by single-parti-

cle

nanofabrication technique. Macromolecules 38: 10164–10170.

Seki,

S., Tsukuda, S., Tagawa, S., and Sugimoto, M. 2006. Correlation between width roughness of nanowires

and

backbone conformation of polymer materials. Macromolecules 39: 7446–7450.

Seki,

S., Saeki, A., Acharya, A., Koizumi, Y., Tagawa, S., and Mochida, K. 2008. Intra-molecular mobility of

charge carriers along oligogermane backbones studied by ash photolysis time-resolved microwave con-

ductivity

and transient optical spectroscopy techniques. Radiat. Phys. Chem. 77: 1323–1327.

Shao,

F., O’Neill, M. A., and Barton, J. K. 2004. Long damage to cytosines in duplex DNA. Proc. Natl. Acad.

Sci. USA

101: 17914–17919.

Sheats,

J. R., Antoniadis, H., Hueschen, M., Leonard, W., Miller, J., Moon, R., Roitman, D., and Stocking, A.

1996.

Organic electroluminescent devices. Science 273: 884–888.

Shimamori,

H. and Hatano, Y. 1977. Thermal electron attachment to O

in the presence of various com-

pounds as studied by a microwave cavity technique combined with pulse radiolysis. Chem. Phys. 21:

187–201.

Shimamori, H. and Sunagawa, T. 1997. Electron energy loss rates in gaseous argon determined from transient

microwave

conductivity. J. Chem. Phys. 106: 4481–4490.

Shiraishi,

H., Taniguchi, Y., Horigome, S., and Nonogaki, S. 1980. Iodinated polystyrene—An ion-millable

negative

resist. Polym. Eng. Sci. 20: 1054–1057.

Shukla,

P., Cotts, P. M., Miller, R. D., Russel, T. P., Smith, B. A., Wallraff, G. M., Baier, M., and Thiyagarajan,

P. 1991. Conformational transition studies of organosilane polymers by light and neutron scattering.

Macromolecules

24: 5606–5613.

Sirringhaus,

H., Tessler, N., and Friend, R. H. 1998. Integrated optoelectronic devices based on conjugated

polymers.

Science 280: 1741–1744.

Sirringhaus,

H., Brown, P. J., Friend, R. H., Nielsen, M. M., Bechgaard, K., Langeveld-Voss, B. M. W., Spiering,

A. J. H., Janssen, R. A. J., Meijer, E. W., Herwing, P., and de Leeuw, D. M. 1999. Two-dimensional

charge

transport in self-organized, high-mobility conjugated polymers. Nature 401: 685–688.

Steenken,

S. 1989. Purine-bases, nucleosides, and nucleotides-aqueous solution redox chemistry and

transformation

reactions of their radical cations and e-and OH adducts. Chem. Rev. 89: 503–520.

Steenken,

S. 1997. Electron transfer in DNA? Competition by ultra-fast proton transfer. Biol. Chem. 378:

1293–1297.

708 Charged Particle and Photon Interactions with Matter

Steenken, S. and Javanovic, S. V. 1997. How easily oxidizable is DNA? One-electron reduction potentials

adenosine

and guanosine radicals in aqueous solution. J. Am. Chem. Soc. 119: 617–618.

Steenken,

S., Telo, J. P., Novais, H. M., and Candeias, L. P. 1992. One-electron reduction potentials of pyrim-

idine-bases, nucleosides, and nucleotides in aqueous-solution-consequences for DNA redox chemistry.

J.Am. Chem. Soc.

114: 4701–4709.

Stegman,

J. and Cronkright, W. 1970. Formation of Wurster’s blue in benzene at 25 deg. J. Am. Chem. Soc. 92:

6736–6743.

Sundar, V. C., Zaumseil, J., Podzorov, V., Menard, E., Willett, R. L., Someya, T., Gershenson, M. E., and

Rogers, J. A. 2004. Elastomeric transistor stamps: Reversible probing of charge transport in organic

crystals.

Science 303: 1644–1646.

Suzuki,

E. and Hatano,Y. 1986a. Electron thermalization processes in rare gases with the Ramsauer minimum.

J. Chem. Phys.

84: 4915–4918.

Suzuki,

E. and Hatano, Y. 1986b. Electron thermalization processes in a He–Kr bicomponent system and a Ne

pure

system. J. Chem. Phys. 85: 5341–5344.

Suzuki,

H., Meyer, H., Hoshino, S., and Haarer, D. 1996. Charge carrier and exciton dynamics in

polysilane-based multilayer light-emitting diodes as monitored with electroluminescence. J. Lumin.

66–67: 423–428.

Tabata, Y., Tagawa, S., and Washio, M. 1984. Pulse-radiolysis studies on the mechanism of the high-sensitivity

chloromethylated polystyrene as an electron negative resist. ACS Symp. Ser. 255: 151–163.

Tabata,

Y., Tagawa, S., Washio, M., and Hayashi, N. 1985. Study on sensitized degradation and crosslinking of

polymers

by means of picosecond pulse-radiolysis. Radiat. Phys. Chem. 25: 305–316.

Tachibana,

H., Kawabata, Y., Koshihara, S., and Tokura, Y. 1990. Exciton states of polysilanes as investigated

electro-absorption spectra. Sol. State Commun. 75: 5–9.

Tagawa,

S. 1986. Pulse-radiolysis and laser photolysis studies on radiation-resistance and sensitivity of poly-

styrene

and related polymers. Radiat. Phys. Chem. 27: 455–459.

Tagawa,

S. 1987. Main reactions of chlorine-containing and silicon-containing electron and deep-UV (excimer

laser)

negative resists. ACS Symp. Ser. 346: 37–45.

Tagawa,

S. 1991a. Pulse radiolysis studies of polymers. ACS Symp. Ser. 475: 2–30.

Tagawa,

S., 1991b. Pulse radiolysis studies on polymers. In: CRC Handbook of Radiation Chemistry,Y. Tabata,

Ito, and S.Tagawa (eds.). Boca Raton, FL: CRC Press.

Tagawa,

S. 1993. Radiation effects of ion beams on polymers. Adv. Polym. Sci. 105: 99–116.

Tagawa,

S. and Schnabel, W. 1980a. Laser ash-photolysis studies on excited single-states of benzene, toluene,

para-xylene,

polystyrene, and poly-alpha-methylstyrene. Chem. Phys. Lett. 75: 120–122.

Tagawa,

S. and Schnabel, W. 1980b. On the mechanism of the photolysis of polystyrene in chloroform

solution—Laser

ash-photolysis studies. Macromol. Chem., Rapid Commun. 1: 345–350.

Tagawa,

S. and Schnabel, W. 1983. On the kinetics of polymer degradation. 10. Laser ash-photolysis of

poly-alpha-methylstyrene

in chloroform solution. Polym. Photochem. 3: 203–209.

Tagawa,

S., Arai, S., Kira, A., Arai, S., Imamura, M., Tabata, Y., and Oshima, K. 1972. Pulse radiolysis study of

polymerization

of vinylcarbazole in benzonitrile solutions. Polym. Sci. C10: 295–299.

Tagawa,

S., Tabata,Y., Arai, S., and Imamura, M. 1974. Solvent effects on both transient optical-spectra and prod-

ucts in radiation-induced polymerization and dimerization of vinylcarbazole. J. Polym. Sci. C12: 545–548.

Tagawa, S., Washio, M., and Tabata, Y. 1979. Picosecond time-resolved uorescence studies of poly(n-

vinylcarbazole)

using a pulse-radiolysis technique. Chem. Phys. Lett. 68: 276–281.

Tagawa,

S., Schnabel, W., Washio, M., and Tabata, Y. 1981. Picosecond pulse-radiolysis and laser ash-

photolysis studies on polymer degradation of polystyrene and poly-alpha-methylstyrene. Radiat. Phys.

Chem.

18: 1087–1095.

Tagawa,

S., Washio, M., Kobayashi, H., Katsumura, Y., and Tabata, Y. 1983. Picosecond pulse-radiolysis stud-

ies

on geminate ion recombination in saturated-hydrocarbon. Radiat. Phys. Chem. 21: 45–52.

Tagawa,

S., Nakashima, N., andYoshihara, K. 1984. Absorption-spectrum of the triplet-state and the dynamics

intramolecular motion of polystyrene. Macromolecules 17: 1167–1169.

Tagawa,

S., Hayashi, N., Yoshida, Y., Washio, M., and Tabata, Y. 1989. Pulse-radiolysis studies on liquid

alkanes

and related polymers. Radiat. Phys. Chem. 34: 503–511.

Tagawa,

S., Kashiwagi, M., Kamada, T., Sekiguchi, M., Hosobuchi, K., Tominaga, H., Ooka, N., and Makuuchi,

K. 2002. Economic scale of utilization of radiation (I) Industry comparison between Japan and the USA.

J. Nucl. Sci. Technol.

39: 1002–1007.

Tagawa,

S., Seki, S., and Kozawa, T. 2004. Charged particle and photon-induced reactions in polymers. In

Charged Particle Interactions with Matter: Chemical, Physicochemical, and Biological Consequences

with Applications, A.

Mozumder and

Hatano (eds.), pp. 551–578. New

York:

Marcel Dekker.

Nanoscale Charge Dynamics and Nanostructure Formation in Polymers 709

Takenobu, T., Takahashi, T., Takeya, J., and Iwasa,Y. 2007. Effect of metal electrodes on rubrene single-crystal

transistors.

Appl. Phys. Lett. 90: 013507-1–013507-3.

Takeya,

J., Nishikawa, T., Takenobu, T., Kobayashi, S., Iwasa, Y., Mitani, T., Goldmann, C., Krellner, C., and

Batlogg, B. 2004. Effects of polarized organosilane self-assembled monolayers on organic single-crystal

eld-effect

transistors. Appl. Phys. Lett. 85: 5078–5080.

Takeya,

J., Kato, J., Hara, K., Yamagishi, M., Hirahara, R., Yamada, K., Nakazawa, Y., Ikehata, S.,

Tsukagoshi, K., Aoyagi, Y., Takenobu, T., and Iwasa, Y. 2007. In-crystal and surface charge trans-

port of electric-eld-induced carriers in organic single-crystal semiconductors. Phys. Rev. Lett. 98:

196804-1–196804-4.

Thomas, J. K., Johnson, K., Klippert, T., and Lowers, R. 1968. Nanosecond pulse radiolysis studies of reaction

ions in cyclohexane solutions. J. Chem. Phys. 48: 1608.

Trefonas,

P., West, R., and Miller, R. D. 1985. Polysilane high polymers: Mechanism of photodegradation.

J.Am. Chem. Soc.

107: 2737.

Tsukuda,

S., Seki, S., Saeki, A., Kozawa, T., Tagawa, S., Sugimoto, M., Idesaki, A., and Tanaka, S. 2004a.

Precise control of nanowire formation based on polysilane for photoelectronic device application. Jpn.

J. Appl. Phys.

43: 3810.

Tsukuda,

S., Seki, S., Tagawa, S., Sugimoto, M., Idesaki, A., Tanaka, S., and Ohshima, A. 2004b. Fabrication

nano-wires using high-energy ion beams. J. Phys. Chem. B 108: 3407.

Tsukuda,

S., Seki, S., Sugimoto, M., and Tagawa, S. 2005a. Nanowires with controlled sizes formed by single

ion

track reactions in polymers. Appl. Phys. Lett. 87: 233119.

Tsukuda,

S., Seki, S., Sugimoto, M., and Tagawa, S. 2005b. Formation of nanowires based on π-conjugated

polymers

by high-energy ion beam irradiation. Jpn. J. Appl. Phys. 44: 5839–5842.

Tsukuda,

S., Seki, S., Sugimoto, M., and Tagawa, S. 2006. Customized morphologies of self-condensed multi-

segment

polymer nanowires. J. Phys. Chem. B 110: 19319–19322.

Umemoto,

Y., Ie, Y., Saeki, A., Seki, S., Tagawa, S., and Aso, Y. 2008. Electronegative oligothiophenes fully

annelated with hexauorocyclopentene: Synthesis, properties, and intrinsic electron mobility. Org. Lett.

10:

1095–1098.

van

de Craats, A. M., Warman, J. M., de Haas, M. P., Adam, D., Simmerer, J., Haarer, D., and Schuhmacher, P.

1996. The mobility of charge carriers in all four phases of the columnar discotic material hexakis(heylthio)

triphenylene:

Combined

TOF

and PR-TRMC results. Adv. Mater. 8: 823–826.

van

den Ende, C. A. M., Nyikos, L., Warman, J. M., and Hummel, A. 1980. Geminate ion decay kinetics in

nanosecond pulse irradiated cyclohexane solutions studied by optical and microwave-absorption. Radiat.

Phys. Chem.

15: 273–281.

van

den Ende, C. A. M., Luthjens, L. H., Warman, J. M., and Hummel, A. 1982. Geminate ion recombination

irradiated liquid CCl

. Radiat. Phys. Chem. 19: 455–466.

Voityuk, A. A., Jortner, J., Bixon, M., and Rõsch, N. 2000. Energetics of hole transfer in DNA. Chem. Phys.

Lett.

324: 430–434.

Warman,

J. M. and Fessenden, R. W. 1968. Three body electron by nitrous oxide. J. Chem. Phys. 49: 4718–4719.

Warman, J. M., Fessenden, R. W., and Bakale, G. 1972. Dissociative attachment of thermal electrons to N

and

subsequent electron detachment. J. Chem. Phys. 57: 2702–2711.

Warman,

J. M., de Haas, M. P., Grätzel, M., and Infelta, P. P. 1984. Microwave probing of electronic processes

small particle suspensions. Nature 310: 306–308.

Warman,

J. M., Gelinck, G. H., and de Haas, M. P. 2002. The mobility and relaxation kinetics of charge carri-

ers in molecular materials studied by means of pulse-radiolysis time-resolved microwave conductivity:

Dialkoxy-substituted

phenylene-vinylene polymers. J. Phys.: Condens. Matter 14: 9935–9954.

Warman,

J. M., de Haas, M. P., Dicker, G., Grozema, F. C., Piris, J., and Debije, M. G. 2004. Charge mobilities

in organic semiconducting materials determined by pulse-radiolysis time-resolved microwave conductiv-

ity:

π-Bond-conjugated polymers versus π– π-stacked discotics. Chem. Mater. 16: 4600–4609.

Warman,

J. M., Piris, L., Pisula, W., Kastler, M., Wasserfallen, D., and Müllen, K. 2005. Charge recombina-

tion via intercolumnar electron tunneling through the lipid-like mantle of discotic hexa-alkyl-hexa-peri-

hexabenzocoronenes.

J. Am. Chem. Soc. 127: 14257–14262.

Washio,

M., Tagawa, S., and Tabata,Y. 1981. Pulse-radiolysis studies on poly(n-vinylcarbazole) cation. Polym.

13: 935–938.

Washio,

M., Tagawa, S., and Tabata, Y. 1983. Pulse-radiolysis of polystyrene and benzene in cyclohexane,

chloroform

and carbon-tetrachloride. Radiat. Phys. Chem. 21: 239–243.

West, R. 1986.

The

polysilane high polymers. J. Organomet. Chem. 300: 327–346.

Yamagami,

R., Kobayashi, K., Saeki, A., Seki, S., and Tagawa, S. 2006. Photogenerated hole mobility in DNA

measured

by time-resolved microwave conductivity. J. Am. Chem. Soc. 128: 2212–2213.
