250 8. Theoretical and Computational Approaches to Biomolecular Structure

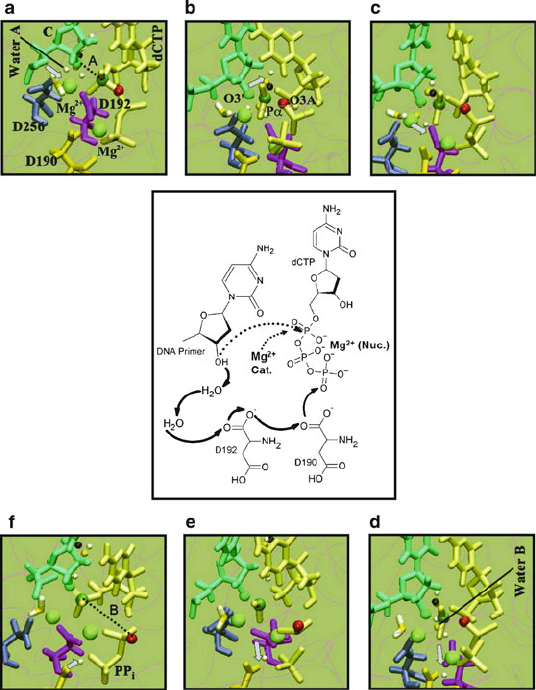

Figure 8.4. Mechanism of Grotthuss hopping chemical reaction along with key

intermediates captured during phosphoryl transfer in pol β common to the G:C and G:A

systems [1033]. Solid arrows in the scheme indicate the migration path of the proton,

and the dotted lines represent the nucleophilic attack and formation of pyrophosphate

(PP

)[1033]. The reaction intermediates shown are: (a) reaction state of the closed nu-

cleotide-bound enzyme state; (b) de-protonation of the the O3



H to water; (c,d) proton

transfers to Asp192; (e) proton transfers to Asp190; (f) proton reaches the pyrophosphate

unit to obtain the ﬁnal product. The colors represent: blue (D256), gold (D190), magenta

(D192), yellow (dCTP), cyan (CYT: terminal DNA primer), black (the O3



H-proton),

green (the O3



oxygen, attacking nucleophile), dark green (central phosphorus), red (leav-

ing O3A oxygen), and light green (Magnesium). The oxygen and hydrogen atoms of

water molecules are in gold and white, respectively. The key distances A = O3



–P

and

B = P–O3A are shown; in the reaction, A decreases from 2.90

A in the reactant state to

A = 1.70

A in the product, and B increases from 1.7

A in the reactant state to 5.8

Ain

the product state. The rate limiting step in the chemical pathway is found to be the initial

de-protonation of the O3



H. The activation energy was found to be about 17 kcal/mol for

G:C and ≥ 21 kcal/mol for G:A. The QM/MM procedure involves a novel protocol using

energy minimization, dynamics simulations, and quasi-harmonic free-energy calculations.

8.3. Molecular Mechanics: Underlying Principles 251

nonbonded

interaction

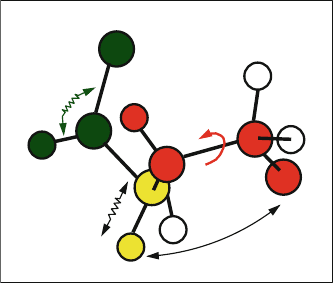

Figure 8.5. A molecule is considered a mechanical system in which particles are connected

by springs, and where simple physical forces dictate its structure and dynamics.

8.3 Molecular Mechanics: Underlying Principles

In theory, the overall effectiveness of molecular mechanics depends on the

validity of its three underlying principles: (1) basic thermodynamic assumption,

(2) additivity of the effective energy potentials, and (3) transferability of these

potentials.

8.3.1 The Thermodynamic Hypothesis

Does Sequence Imply Structure?

The thermodynamic hypothesis assumes that many macromolecules are driven

naturally to their folded native structure (i.e., with minimal or no intervention of

catalysts) largely on the grounds of thermodynamics. This behavior is in contrast

to other processes in the central dogma that require the crucial interplay of en-

zyme machinery to lower activation barriers. Though it is important to consider

these complex factors when modeling macromolecules, the basic thermodynamic

hypothesis of the empirical approach appears reasonable for many biomolecules

under study by molecular mechanics and dynamics.

Indeed, experiments have supported the intrinsic folding/entropy connection

for many small globular proteins [52]. Thus, a strong thermodynamic force drives

‘scrambled’ conformations of high free energy to the native state of low free

energy. Folding in many cases is reversible (denatured ⇐⇒ native state) and

attainable from many different conﬁgurations.

Theoretical analyses based on statistical studies of spin glasses further suggest

that the probability that a randomly synthesized protein will exhibit a thermody-

namically dominant fold (i.e, the global minimum of the free energy) increases

rapidly as temperature decreases [1167].

252 8. Theoretical and Computational Approaches to Biomolecular Structure

As discussed in Chapter 3, the resilience in general of overall protein structures

to small mutations — in some cases even at critical regions, as in the Rop

turn ([205] and Figure 3.10) — is another indicator of the strong thermody-

namic tendency of proteins to adopt and retain native structure/folds. For higher

organizational forms of DNA, the intrinsic topology also appears to induce a

folded conﬁguration determined in large part by base composition and the ionic

medium [269].

The kinetics involved in such folding processes represent another subject of

intense interest (see [861,1257], the discussion in Chapter 2,andBox8.2).

Box 8.2: The Thermodynamic Hypothesis as Exempliﬁed by The Levinthal Paradox

The concept introduced by Cyrus Levinthal in 1969 [744], which became termed the

“Levinthal paradox”, is that a protein cannot ﬁnd its native state by a random search

through all its possible conformations. This is because such an exhaustive enumeration

would in theory require eons of years, while real proteins fold on the sub-second and

second timeframe. Levinthal thus hypothesized that well deﬁned pathways must exist for

protein folding in nature [743].

Recently, protein-folding kinetics have been analyzed and interpreted on the basis of

simple simulations of polypeptide models. The “old view” that emerged from Levinthal’s

work is now being merged with the “new view” [313, 314, 707], which promotes many

competing folding pathways rather than a unique pathway with well-deﬁned intermediates.

The two views can be merged when the folding pathways all share a unifying pattern of

native contacts and can be described within a common multidimensional energy landscape

[1385]. (See also discussion in Chapter 2).

While this protein folding problem is generally formulated purely in terms of “sequence

dictates structure”, it is clear that in many cases the folding process in vivo is enhanced

or facilitated through the external intervention of additional molecules such as chaper-

ones. Such agents may stabilize intermediates, prevent aggregates of misfolded proteins,

and/or reduce the activation energies effectively [561, 833]. Members of the chaperone

class that includes the heat-shock protein hsp70 bind to newly-synthesized proteins and

short linear peptides, possibly preventing aggregates. Other chaperones assist in protein

translocation across membranes. Members of the chaperonin class include the well-studied

GroEL/GroES complex from bacteria [387] that bind to partially-folded polypeptides and

assist in the folding. Many questions are now being investigated regarding the folding

kinetics in all these systems (see [519,1326], for example).

8.3.2 Additivity

The molecular mechanics principle of additivity assumes that the effective

molecular energy can be expressed as a sum of potentials derived from simple

physical forces: van der Waals, electrostatic, mechanical-like strains arising from

8.3. Molecular Mechanics: Underlying Principles 253

“ideal” bond length and angle deviations, and internal torsion ﬂexibility (rotation

of two chemical groups about the bond joining them). The forces can be separated

into local (bonded) and nonbonded (nonlocal) terms.

Local Terms

The local components for macromolecules can typically be written as:

local

(X)=



bonds

bond



bond angles

bang

(θ



dihedral angles

tor

(τ

(8.3)

where summations extend over the sets of bonds {b

}, bond angles {θ

},and

dihedral angles {τ

} (see Fig. 8.5). Functional forms are typically harmonic (e.g.,

S[b −

) and trigonometric (e.g., functions of cos(θ)), as discussed in the next

chapter. Note that all internal variables are functions of interatomic distances,

. Cross terms (like E(b, b



) or E(b, θ)) are not commonly used for proteins

and nucleic acids because the associated force constants (‘off-diagonals’ in the

force-constant matrix) usually have much smaller values than those associated

with the ‘diagonal’ terms. Such force constants, for example S



for bond/bond

interactions or K

bθ

for bond/bond-angle terms, are associated with potentials of

the form S



(b −

b)(b



−



) and K

bθ

(b −

b)(θ −

θ), respectively, which are

common in small-molecule force ﬁelds (e.g., [30]).

Nonlocal Terms

The nonlocal components can be written as:

nonlocal

(X)=



nonbonded pairs

(i,j),i<j

), (8.4)

where the functions are often rational (e.g.,



i=1

−m

). These energies are

usually comprised of van der Waals and Coulombic contributions between non-

bonded atom pairs. (Nearby atom pairs counted in the local energy may be omitted

to avoid double counting).

Beneﬁts of Separability

The natural separability into bonded (local) and nonbonded (nonlocal) terms can

be exploited in the design of minimization algorithms that use function structure

to accelerate convergence (see Chapter 11). This separability is also the basis for

multiple-timestep protocols for molecular dynamics that update local and nonlo-

cal forces at different frequencies (see Chapters 13 and 14). This difference in

force updating is reasonable because the local terms generally change rapidly,

while the nonlocal terms change more slowly, with distance and time.

While the number of nonbonded terms grows quadratically O(N

) with the

number of atoms, the number of local terms — involving pairs, triplets, and

quadruplets of bonded atomic sequences — grows only linearly with size.

254 8. Theoretical and Computational Approaches to Biomolecular Structure

This computational complexity of the nonbonded terms is especially a burden in

simulation protocols for large systems that require updating for many iterations,

as in macromolecular dynamics. Fortunately, some work can be reduced since the

nonbonded Coulomb forces change more slowly with distance than the bonded

terms, and hence can be updated less often than the local forces. Chapter 10 is

devoted to the nonbonded forces.

Multibody Potentials

In this typical energy formulation, nonbonded interactions are “effective pair

potentials” (i.e., additive two-body forces). For electrostatic interactions, for ex-

ample, these effective pair potentials only reﬂect in some average sense the charge

distribution due to molecular polarizability. It is clear that many-body contribu-

tions are important for accurate reproduction of certain molecular properties. For

example, accurate account of dispersion forces for polar molecules (i.e., mole-

cules in which the charges are nonuniformly distributed), such as water, require

three-body interaction potentials:

ijk

These potentials can be expressed as a composite of trigonometric and rational

functions in terms of three bond lengths and three bond angles [131]. Indeed, the

importance of water as a solvent for proteins and nucleic acids was realized in the

1970s [1344] and has prompted development of ‘polarized’ water potentials [244,

1343, for example]. In practice, these models increase the number of interaction

sites per water molecule.

8.3.3 Transferability

The principle of transferability assumes that potentials can be developed to in-

corporate all experimental data for representative structures and then be applied

successfully to the prediction of large biological molecules composed of the same

chemical subgroups. This is basically a reasonable assumption since bond lengths

and bond angles tend to adopt similar values in different molecular species under

normal conditions. However, under special straining forces, such as in cycloalka-

nes, these values may vary signiﬁcantly from ‘ideal’ or average values. Modeling

the structures and properties of complex aromatic or conjugated systems

also

requires special treatment, such as using sophisticated quantum-mechanical cal-

culations to obtain bond orders of conjugated bonds, which can be related to

bond lengths and stretching constants, and in this way reducing the problem to

molecular mechanics ([29,899,1210,1246,1341], for example).

Aromatic compounds are benzene-like in structure and properties. Conjugation is a structural

feature caused by the overlap of the π orbital with other orbitals in the molecule.

8.3. Molecular Mechanics: Underlying Principles 255

Functional Variations in Geometry

In small molecules, the environment-dependence of geometric trends can be

modeled by a function rather than a constant. For example, Allinger and

coworkers devised functions for bond lengths in small-molecule force ﬁelds

(MM3/MM4) to account for the electronegativity of attached substituents [1210]

and for hyperconjugation [26]. The former parameterization [1210] can, for ex-

ample, accurately model the shorter C–C bond in ﬂuoroethane (C

F) relative

to ethane (C

), since the ﬂuorine is electronegative; similarly, it can also ac-

count for a longer C–O bond in an alcohol where the electropositive hydrogen is

attached to an oxygen (like ethyl alcohol, CH

OH), relative to an analogous

molecule in which a carbon rather than hydrogen is attached (as in dimethyl ei-

ther, C

). A functional dependence for reference bond lengths used for

hyperconjugated systems [26] can account for bond-length trends in molecular

species in which bond orbitals overlap and lead to resonance, like longer C–H or

C–C bonds in carbonyl compounds (e.g., H–C–C=O ↔ H

+ C=C–O).

Proliferation of Atom Types

An alternative approach for incorporating the environment dependence of geo-

metric tendencies is to increase the number of ‘atom types’. Thus, atom types

reﬂect the molecular environment (e.g., aromatic carbon in a nitrogenous base)

and hybridization (e.g., sp

or sp

)[175,805,1359].

There are around 160 atom types, for example, in the CHARMM force ﬁeld

for proteins (version 22) and nucleic acids (version 27) [415, 804–806]: 62 car-

bons, 31 hydrogens, 28 nitrogens, 18 oxygens, 4 sulfurs, 3 phosphorus atoms,

6 ﬂuorines, one heme iron, and 7 different ions; see Table 8.1 for some examples

of these atom types and Figure 8.6 for illustrations for selected residues [805].The

proliferation of atom types in modern force ﬁelds thus attempts to improve com-

patibility with experiment. Alternatively, force ﬁelds may be restricted to certain

families of molecules such as alkanes, amides, and carboxylic acids [185,764].

I emphasize that individual functions should not be transferred from one force

ﬁeld to another, since the entire potential is parameterized as a whole to reproduce

consistently experimental data.

Overall, while the transferability assumption is inherent in this empirical

science, molecular mechanics has steadily gained recognition through many im-

portant contributions. Today’s force ﬁelds are excellent for deducing structures

and properties of many molecular systems, especially for small molecules us-

ing specialized force ﬁelds. One advantage of theoretical calculations is that the

thermal motions and lattice effects that inﬂuence crystallographically-determined

structures may not be a problem when accurate force ﬁelds are used to predict

molecular structures and properties.

256 8. Theoretical and Computational Approaches to Biomolecular Structure

Table 8.1. Examples of atom types deﬁned in CHARMM 22 and 27 [415,804–806].

Atom Symbol Atom modiﬁer

Carbon C polar (carbonyl, peptide backbone)

CA aromatic

CC carbonyl(Asn,Asp,Gln,Glu)

CPT inter-ring in tryptophan

CP1, CP2, CP3 special tetrahedral, in proline

CT1 aliphatic sp3 in CH

CT2 aliphatic sp3 in CH

CT3 aliphatic sp3 in CH

CN1 nucleic acid carbonyl carbon

CN3 nucleic acid aromatic carbon

Oxygen O carbonyl

OC carboxylate

OH1 hydroxyl

ON6 nucleic acid deoxyribose ring oxygen

ON6B nucleic acid ribose ring oxygen

Nitrogen N proline

NH1 peptide

NH2 amide

NN1 nucleic acid amide nitrogen

NN2 nucleic acid protonated ring nitrogen

Hydrogen H polar

HA nonpolar

HP aromatic

HS thiol

HN1 nucleic acid amine proton

HN2 nucleic acid ring nitrogen proton

8.4 Molecular Mechanics: Model and Energy

Formulation

In practice, the challenge and success of molecular mechanics rely on both

effective formulation of the potential energy function and the application of

suitable search algorithms (e.g., multivariate minimization, sampling, dynamic

simulations). With the well known difﬁculties of large-scale minimization (see

Chapter 11) and the timestep problem in dynamics (Chapters 13 and 14), the struc-

tural outcome — and hence biological implications of any calculation — depends

on the combination of modeling and algorithmic techniques employed. Indeed,

8.4. Molecular Mechanics: Model and Energy Formulation 257

N C

HAH

OH CT1

NH1

CH (CH

)

CT3

CT1

CT3

CT2

OH1 H

CT2

S HS

CT2

NH2

CP1

CP3

CP2

CA CA

CACA

HP HP

HPHP

CT2

CPT

CT2

Polypeptide Building Block

Alanine R:

Serine R:

Proline R:

Valine R:

Phenylalanine R:

COO

Asparagine R:

Typical Nomenclature

Tryptophan R:

Cysteine R:

Figure 8.6. Examples of atom types as used in polypeptides in the CHARMM program

[805, 806].

258 8. Theoretical and Computational Approaches to Biomolecular Structure

some strengths and weaknesses of molecular mechanics have been debated openly

in a series of papers [455, 668, 1068, 1069]; see also Homework Assignment 7.

Some valid questions are:

• How accurate are quantum-mechanically derived partial charges?

• How do Cartesian and dihedral-angle representations affect results?

• Is it appropriate to introduce arbitrary scale factors in energy coefﬁcients to

enhance agreement with experiment?

The cautions and possible pitfalls of force ﬁeld derivations and parameter choices

are thus important to emphasize, even for state-of-the-art force ﬁelds.

In formulation of the energy, three basic and important decisions are involved:

(1) representative conﬁguration space, (2) functional form, and (3) numerical

values for the parameters. We discuss each in turn.

8.4.1 Conﬁguration Space

A Question of Size

The atomic conﬁguration

space for a molecular system consists of 3N −6

degrees of freedom, where N is the number of atoms. (Six degrees of freedom

are removed for rigid-body translation and rotation invariance of the energy).

Thus, the number of degrees of freedom for proteins and nucleic acids typically

ranges in order from 10

to 10

. With explicit representation of water mole-

cules, this number rises by at least an order of magnitude (see, for example,

solvated-macromolecular system sizes in Table 1.2 of Chapter 1).

The complete set of 3N − 6 degrees of freedom can be described directly by

lists of Cartesian coordinates for all the atoms in the system. Alternatively, internal

variables such as bond lengths, bond angles, and dihedral angles may be used; this

internal representation has been quite successful for the study of proteins [1068,

for example].

Other representations have been used for biomolecules to reduce this number

of variables. Reductions are possible by ﬁxing bond lengths and angles and work-

ing in dihedral angle space, or by restricting energetic pathways to approximate

formulations. However, these representations do not usually lead to enhanced

efﬁciency unless the work involved in the nonbonded computations — the real

computational ‘bottleneck’, see Chapter 10 — is reduced signiﬁcantly.

Conﬁguration, a more general term than conformation, is often used by mathematicians to

describe the shapes of objects in space. The more chemical term conformation often refers to

conﬁgurations that differ from one another through rotations of groups of atoms about the bond con-

necting them (i.e., dihedral angles). Note, however, that in organic chemistry a conﬁguration refers

to stereoisomers, molecules with different connectivity arrangements which cannot be converted into

one another through rotations about bonds.

8.4. Molecular Mechanics: Model and Energy Formulation 259

The Pseudorotation Description

An example of a parameter reduction approach is the pseudorotation path

developed for nucleic acids [35,271,750]. This energetic path, initially developed

for the hydrocarbon cyclopentane [766] and later extended to ribose and deoxyri-

bose sugars, constrains the energy of ﬁve-membered sugar rings to a wavelike

motion from a mean plane. This plane can be deﬁned in various ways by po-

sitions of the ﬁve skeletal ring atoms. See Chapter 5 for a discussion of these

descriptions in the section on furanose conformations.

While conceptually simple, the reduction in degrees of freedom from 9 (3·5−6)

to 2 is clearly approximate. The pseudorotation approximation was noted to pro-

duce anomalies in overall nucleic acid structures [937,944], inconsistencies with

ring closure, and mathematical difﬁculties in expressing the energy derivatives

in terms of the independent conformational variables. More generally, while for

some systems simpliﬁcations in the representative conformation space may be ac-

ceptable, it is usually advantageous to avoid constraints altogether [1101]. (The

pseudorotation concept remains a useful analysis tool, however).

Cartesian Space

Cartesian coordinate space is most convenient for direct differentiation of the

energy in terms of the independent parameters, as realized in the early days of

force ﬁeld development by Lifson and Warshel [766], and therefore application

of efﬁcient second-derivative Newton minimization methods (see Chapter 11).

Cartesian space is also most natural for implementation of molecular dynamics,

since the generated molecular trajectories

{X(t

),X(t

+Δt), ..., X(t

+ n Δt), ...},

where t

is the initial time reference and Δt is the timestep (see molecular dynam-

ics chapters), generally rely on recursive expressions. That is, the new positions

and velocities

X(t

+ n Δt)andV (t

+ n Δt)

are explicit functions of the previous positions and velocities

X(t

+(n −1) Δt)andV (t

+(n −1) Δt) .

With all these considerations, it is usually advantageous to enforce con-

straints — if necessary — by means of penalty functions (i.e., soft constraints).

Harmonic penalty functions can be used, for example, to keep bond lengths and

angles close to their observed values.

8.4.2 Functional Form

Composition

The potential energy E of a molecular model is typically constructed as the sum of

contributions from the following types of terms: bond length and bond angle strain
