Handbook of dielectric, piezoelectric and ferroelectric materials560

>>3 nm such effects are extrinsic, usually caused by oxygen vacancy gradients

or strain gradients near the electrode interfaces (Bratkovsky and Levanyuk,

2005). This conclusion is based on recent Belfast–Cambridge studies on

very thin (50–100 nm) single crystals, prepared via FIB. The use of FIBs to

cut nano-ferroelectrics was pioneered by Ramesh’s group in Maryland (Ganpule

et al., 1999) for ceramic films but recently extended by Gregg’s group in

Belfast to preparing single crystals of BaTiO

(Saad et al., 2004). The results

of the latter team have been to characterize single-crystal capacitors of thickness

down to ca. 65nm. This has shown unambiguously that effects of Curie

temperature shift or dielectric peak broadening are extrinsic (Bratkovsky

and Levanyuk, 2005), contrary to the previous conventional wisdom. The

availability of single crystals with thickness d < 50nm should permit clear

tests of finite-thickness theory. Cho et al. (2002) have shown that they permit

some elegant optical devices for the future, despite the high cost of such

single-crystal devices.

18.14 Summary

It has now been over 80 years since ferroelectricity was discovered (Valasek,

1921) and 62 years since oxide ferroelectrics without hydrogen bonds

(originally thought to be requisite) were found in several countries during

World War II (von Hippel, 1944). The progress in the past few years has

been quite rapid, emphasizing thin films and nano-devices. A brief review

has been given in this chapter of a dozen subtopics of current experimental

interest in modern ferroelectricity. Most relate to nano-structures, and many

suggest device development of great commercial potential. Present commercial

ferroelectric cells in 64Mb or 32Mb FRAMs (Figs 18.1 and 18.13) are as

small as 450 × 400 × 120nm

in ceramic form; single crystals as thin as

250 nm

Ir/IrO

Pb(Zr

0.4

0.6

Pt/IrO

/Ir

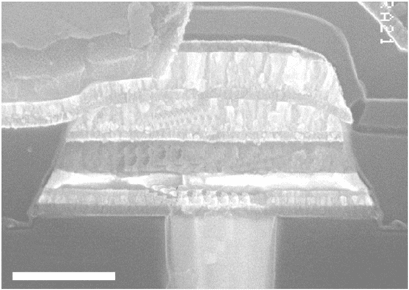

18.13

32 Mbit PZT FRAM (Samsung).

WPNL2204

Ferroelectric nanostructures for device applications 561

50–70nm and films as thin as 2nm are under study at universities, as are

high-aspect DRAM trenches (Fig. 18.14) and [3D] nanotubes for microfluidics

as well as 5nm diameter rings and 1 nm domain widths, with PZT/Pt-nanowire

arrays giving nearly 1Tb/in

nonvolatile memory arrays. Read–write speeds

are as fast as 280ps for laboratory devices and e-beam lithography (Fig.

18.15) still leads self-assembly techniques for the registration required for

commercial random access memories.

18.15 Future trends

The near-term predictions for ferroelectrics are that they will emphasize

submicrometre thin films. These are already at 140nm for commercial FRAM

memories and could go down to ca. 20nm without incurring very detrimental

leakage currents. Lateral sizes are ca. 400nm in 64Mb FRAMs, and could

decrease further to real nano-scale (<100nm) and still produce enough switched

charge for the sense amplifiers (>1000 e is a good rule of thumb). In the next

five years the competition between MRAMs and FRAMs to replace ‘flash’

EEPROMs should be a stimulus for researchers. In other non-memory areas,

the application to microfluidic transport seems appealing. Pfizer has a new

insulin inhaler on the market (‘Exubera’), and the need for this and similar

medical devices for monodisperse small droplets is paramount. There are

500 nm

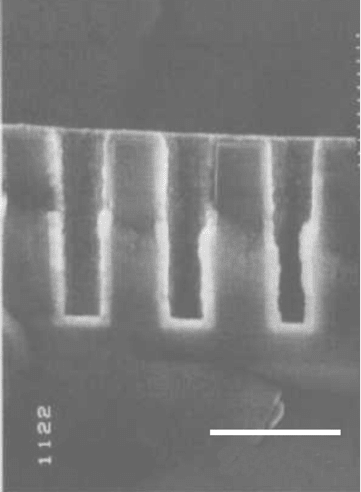

18.14

Ruthenium nano-trenches in Si (Funakubo).

WPNL2204

Handbook of dielectric, piezoelectric and ferroelectric materials562

190 million people with diabetes in the world, and the US market for diabetes

is $25 million/year and growing at more than 10% per year as the population

ages and obesity becomes more common. Similar inroads may occur with

inkjet printers, where nano-tube piezoelectric print heads could give improved

grey scale control. Finally, the combination of carbon nanotubes with

piezoelectric/pyroelectric PZT tips seems intriguing (Jang et al., 2005;

Kawasaki et al., 2007), for both pyroelectric detectors and piezoelectric

arrays. Both nano-scale lithography (‘top-down’) and self-assembly (‘bottom-

up’) techniques will continue to share importance, with lithography continuing

to dominate industry products for another decade but self-assembly becoming

dominant thereafter. It is likely that the optoelectronic aspects of such devices

will be useful. Photonic arrays utilizing registered self-patterned ferroelectrics

are already in prototype form (Gregg and Scott, 2007). It should be noted

that GaAs and GaN are available in mesoporous form, so ferroelectric nanotubes

and nanorods need not be limited to Si or Al

. Although non-oxide

ferroelectrics, especially fluorides, will receive increased attention, commercial

devices are likely to emphasize oxide films for the foreseeable future, with

some increase in the use of polymeric ferroelectrics, such as polyvinylidene

fluoride (PVDF). The replacement of SQUIDs by much cheaper

magnetoelectric (ferroelectric) sensors for weak magnetic fields may occur

within the decade, on the basis of room temperature operation. This could

permit portable devices for geologists and oil exploration, along with solid-

state research devices.

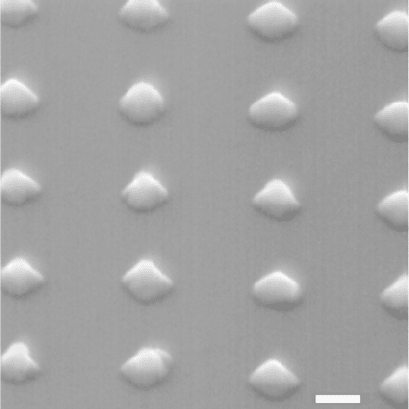

18.15

e-beam lithography: PZT capacitor array (Alexe) lithography:

PZT capacitor array (Alexe

et al

., 2001).

100 nm

WPNL2204

Ferroelectric nanostructures for device applications 563

18.16 Further reading

The attention of readers is called to the Proceedings of the Rank Prize

Conference on Electrooptics, Grasmere, UK (September 11–14, 2006), which

will be published as a special issue in Ferroelectrics (2007), edited by J. M.

Gregg and J. F. Scott. This issue deals primarily with applications of ferroelectric

nanostructures to electrooptics. Other recent topical reviews on the subjects

discussed here are to be found by Miranda et al., (2002) – agile microwave

devices, Scott (2006a) – nano-ferroelectrics, Fiebig (2005), Catalan (2006),

Catalan and Scott (2007), Hill (2000) Hemberger et al., (2005), Schmid

(2001) – magnetoelectrics, Auciello et al. (1998), Auciello (2006) – electroding

and interface physics, Dawber et al. (2005a) theory and experiment of oxide

films and Eerenstein et al. (2006) – multiferroics. The Springer series ‘Topics

in Applied Physics’ provides very good texts on ferroelectric memories

(FRAMs), especially that of Ishiwara et al. (2004) and the earlier text by the

present author (Scott, 2000) [available also in Japanese (Springer Japan,

translated by M. Tanaka et al., Tokyo 2003) and in Chinese (Tsinghua Press,

translated by J. Zhu, Beijing, 2004)]. The rapid increase in ferroelectric

memory R&D in China is noticeable, and the author hopes this very inexpensive

Chinese text will help. Another book in this series, emphasizing nano-

ferroelectric memory devices and the Samsung FRAM design strategy, is

expected in 2007 by the author’s group (Jung et al., 2007).

18.17 References

Abrahams S C (1996), ‘New ferroelectric inorganic materials predicted in point group

4mm’, Acta Cryst. B52, 790–805.

Abrahams S C (1999), ‘Systematic prediction of new inorganic ferroelectrics in point

group 4’, Acta Cryst. B55, 494–506.

Abrahams S C, Mirsky K, and Nielson R M (1996), ‘Prediction of ferroelectricity in

recent inorganic crystal structure database entries under space group Pba2’, Acta

Cryst. B52, 806–809.

Alexe M and Hesse D (2006), ‘Self-assembled nanoscale ferroelectrics’, J. Mater. Sci.

41, 1–11.

Alexe M, Scott J F, Curran C, Zakharov N D, Hesse D, and Pignolet A (1998), ‘Self-

patterning nano-electrodes on ferroelectric thin films for gigabit memory applications’,

Appl. Phys. Lett. 73, 1592–1594.

Alexe M, Harnagea C, Hesse D, and Goesele U (2001), ‘Polarization imprint and size

effects in mesoscopic ferroelectric structures,’ Appl. Phys. Lett. 79, 242–244.

Andreev A F (1981), ‘Faceting transactions in crystal’, 2h. Eksp. Teor. Fiz. 80, 2042–

2052.

Ascher E, Rieder H, Schmid H, and Stoessel H (1966), ‘Some properties of

ferromagnetoelectric nickel iodine boracite’, J. Appl. Phys. 37, 1404–1405.

Astrov D N (1960), ‘The magnetoelectric effect in antiferromagnets’, Sov Phys JETP 11,

708–709.

Auciello O (2006), ‘Science and technology of thin films and interfacial layers in ferroelectric

WPNL2204

Handbook of dielectric, piezoelectric and ferroelectric materials564

and high-dielectric constant heterostructures and application to devices’, J. Appl.

Phys. 100, 051614 (2006).

Auciello O, Scott J F, and Ramesh R (1998), ‘The physics of ferroelectric memories’,

Physics Today 51, 22–27.

Auciello O, Ray M A, Palmer D, Duarte J, McGuire G E, and Temole D (1995), ‘Low

voltage electron emission from Pb(ZrxTi

1–x

–based thin film cathodes’, Appl. Phys.

Lett. 66, 2183–2185.

Baniecki J D et al. (2003), ‘Barium strontium titanate thin-film capacitors for low inductance

decoupling devices’, MRS Proc 748, 441–450.

Borovik-Romanov S (1960), ‘Piezomagnetism in the antiferromagnetic fluorides of cobalt

and manganese, Sov. Phys. JETP 11, 786–790.

Bratkovsky A M and A. P. Levanyuk A P (2005), ‘Smearing of phase transition due to a

surface effect or a bulk inhomogeneity in ferroelectric nanostructures’, Phys. Rev.

Lett. 94, 107601.

Brown W F Jr., Hornreich R M, and Shtrikman S (1968), ‘Upper bound on the

magnetoelectric susceptibility’, Phys. Rev. 168, 574–577.

Catalan G (2006), ‘Magnetocapacitance without magnetoelectric coupling’, Appl. Phys.

Lett. 88, 102902.

Catalan G and Scott J F (2006), ‘Comments on “Giant dielectric response in the one-

dimensional charge–ordered semiconductor (NbSe

)

I” and “Colossal magnetocapacitance

and colossal magnetoresistance in HgCr

S”’, Phys. Rev. Lett. (submitted).

Catalan G and Scott J F (2007), ‘Is CdCr254 a multiferroic relaxor?’ Nature 448, E4–E5.

Cho Y, Fujimoto K, Hiranaga Y, Wagatsuma, Onoe A, Terabe K and Kitamura K, (2002),

‘Tbit/inch

ferroelectric data storage based on scanning nonlinear dielectric microscopy’,

Appl. Phys. Lett. 81, 4401–4403.

Chu M W, Szafraniak I, Scholz R, Harnagea C, Hesse D, Alexe M and Gosele U (2004),

‘Impact of misfit dislocations on the polarization instability of epitaxial nanostructured

ferroelectric perovskites’, Nature Mat. 3, 87–90.

Clark N A and Lagerwall S T (1980), ‘Submicrosecond bistable electrooptic switching in

liquid crystals’, Appl. Phys. Lett. 36, 899–901.

Conley J W and Mahan G D (1967), ‘Tunneling spectroscopy in GaAs’, Phys. Rev. 161,

681–695.

Contreras J R et al. (2003a), ‘Surface treatment effects on the thickness dependence of

the remanent polarization of 5 PbZr

0.52

0.48

capacitors‘, Appl. Phys. Lett. 83, 126–

128.

Contreras J R et al. (2003b), ‘Resistive switching in metal–ferroelectric–metal junctions’,

Appl. Phys. Lett. 83, 4595–4597.

Contreras J R et al. (2003c), ‘Structure and ferroelectric properties of epitaxial

PbZr

0.52

0.48

and BaTiO

thin films prepared on SrRuO

/SrTiO

(100) substrates’,

MRS Proc. 688, C8.10.

Dawber M, Chandra P, Littlewood P B, and Scott J F (2003a), ‘Depolarization corrections

to the coercive field in thin- film ferroelectrics’, J. Phys. Condens. Mat. 15, L393–

398.

Dawber M, Szafraniak I, Alexe M, and Scott J F (2003b), ‘Self-patterning of arrays of

ferroelectric capacitors: description by theory of substrate mediated strain interactions’,

J. Phys. Condens. Mat. 15, L667–671.

Dawber M, Rabe K M, and Scott J F (2005a), ‘Physics of thin-film ferroelectric oxides’,

Rev. Mod. Phys. 77, 1083–1131.

Dawber M et al. (2005b) ‘Unusual behavior of the ferroelectric polarization in PbTiO

SrTiO

superlattices’, Phys. Rev. Lett. 95, 177601.

WPNL2204

Ferroelectric nanostructures for device applications 565

Dubovik V M and Tugushev V V (1990), ‘Toroid moments in electrodynamics and solid-

state physics’, Physics Reports 187, 145–202.

Dzyaloshinskii I E (1959), ‘On the magnetoelectrical effects in antiferromagnets’, Sov

Phys JETP 10, 628–629.

Ederer C and Spaldin N A (2006a), ‘Origin of ferroelectricity in the multiferroic barium

fluorides BaMF

: a first principles study’, Phys. Rev. B 74, 024102.

Ederer C and Spaldin N A (2006b), ‘Electric-field-switchable magnets: the case of BaNiF

’,

Phys. Rev. B 74, 020401.

Eerenstein W et al. (2005), ‘Comment on epitaxial BiFeO

multiferroic thin-film

heterostructures’, Science 419, 1203a.

Eerenstein W, Mathur N D, and Scott J F (2007), ‘Multiferroic and magnetoelectric

materials’, Nature 442, 759–765.

Eerenstein W, Wiora M, Prieto J L, Scott J F and Mathur N D (2007), ‘Giant, sharp and

persistent converse magnetoelectric effects in multiferroic epitaxial heterostructures’,

Nature Maker 6, 348–351.

Evans P R Zhu X H, Baxter P. et al. (2007), ‘Toward self-assembled ferroelectric random

access memories. Hard-wired switching capacitor arrays with almost tb/in (2) densitier.

Nano. Letters 7, 1134–1137.

Fan H-J et al. (2006), ‘Monocrystalline spinel nanotube fabrication based on the Kirkendall

effect’, Nature Mat. 5, 627–631.

Fatuzzo E and Merz W (1967), ‘Ferroelectricity,’ North-Holland, Amsterdam, Ertson,

Phys. Rev, B 67, 134110.

Fiebig M (2005), ‘Revival of the magnetoelectric effect’, J. Phys. D 38, R123–152.

Fox D L and Scott J F (1977), ‘Ferroelectrically induced ferromagnetism’, J. Phys. C 10,

L329–331.

Ganpule C S et al. (1999), ‘Scaling of ferroelectric properties in thin films’, Appl. Phys.

Lett. 75, 409–411.

Gerra G, Tagantsev A K, Setter N, and Parlinski K (2006), ‘Ionic polarizability of conductive

metal oxides and critical thickness for ferroelectricity in BaTiO

’, Phys. Rev. Lett. 96,

107603.

Glickman Y, Winebrand E, Arie A, and Rosenman G (2006), ‘Electron-beam-induced

domain poling in LiNbO

for two-dimensional nonlinear frequency conversion’, Appl.

Phys. Lett. 88, 011103.

Gundel H W (1995), ‘Nature and application of ferroelectric electron-beam sources (FEBS)’,

Integ. Ferroelec. 9, 115–116.

Gregg J M and Scott J F (eds) (2007), Proc. Rank Prize Conference (Grasmere, September

2006); Integrated Ferroelectrics.

Gundel H W (1996), ‘High-intense pulsed electrion emission by fast polarization changes

in ferroelectrics’, Ferroelectrics 184, 89–98.

Harrison R J, Dunin-Borkowski R E, and Putnis A (2002), ‘Direct imaging of nanoscale

magnetic interactions in minerals’, Proc. US Nat. Acad. Sci. 99, 16556–16561.

Hartmann A J, Nielson M, Lamb R N, Watanabe K, and Scott J F (2000), ‘Ruthenium

oxide and strontium ruthenate electrodes for ferroelectric thin-film capacitors’, Appl.

Phys. A70, 239–242.

Hemberger J, Lunkenheimer P, Fishtl R and Loidi A (2005), ‘Relaxor ferroelectricity and

colossal magnetocapacitive coupling in ferromagnetic CdCr

’, Nature 434, 364–

367.

Hernandez B A et al. (2002), ‘Sol–gel template synthesis and characterization of BaTiO

and PbTiO

nanotubes’, Chem. Mater. 14, 481–482.

WPNL2204

Handbook of dielectric, piezoelectric and ferroelectric materials566

Hill N A (2000), ‘Why are there so few magnetic ferroelectrics?’, J. Phys. Chem. B104,

6694–6709.

Hou S L and Bloembergen N (1965), ‘Paramagnetoelectric effects in NiSO

· 6H

O’,

Phys. Rev. 138, A1218–1226.

Hur N et al. (2004), ‘Electric polarization reversal and memory in a multiferroic material

induced by magnetic fields’, Nature 429, 392–395.

Ishiwara H, Okuyama M, and Arimoto Y (2004), Ferroelectric Random Access Memories,

Springer, Heidelberg.

Isobe C, Ami T et al. (1997), ‘Characteristics of ferroelectric strontium bismuth tantalite

thin films grown by “flash” MOCVD’, Integ. Ferroelec. 14, 95–103.

Jamnik J, Maier J and Pejovnik S (1995), ‘Interfaces in solid ionic conductors’, Solid St.

Ionics 75, 51–58.

Jana F and Shirane G (1962), Ferroelectric Crystals, Macmillan, New York.

Jang J E et al. (2005), ‘Nanoscale capacitors based on metal–insulator–carbon nanotube–

metal structures’, Appl. Phys. Lett. 87, 263103.

Jiang A Q, Scott J F, Dawber M, and Wang C (2002), ‘Fatigue in artificially layered

Pb(Zr, Ti)O

ferroelectric films’, J. Appl. Phys. 92, 6756–6761.

Jiang A Q, Scott J F, Lu H, and Chen Z (2003), ‘Phase transitions and polarizations in

epitaxial BaTiO

/SrTiO

superlattices studied by second-harmonic generation’, J. Appl.

Phys. 93, 1180–1185.

Johnston K, Huang X, Neaton J B, and Rabe K M (2005), ‘First-principles study of

symmetry lowering and polarization in BaTiO

/SrTiO

superlattices with in-plane

expansion’, Phys. Rev. B71, 100103.

Jung D J, Kim K, and Scott J F (2005), ‘Switching kinetics in nanoferroelectrics’, J. Phys.

Condens. Mat. 17, 4843–4852.

Jung D J, Morrison F D, and Scott J F (2007), Nano-ferroelectric Memories, Springer,

Heidelberg (to be published).

Junquera J and Ghosez P (2003), ‘Critical thickness for ferroelectricity in perovskite

ultrathin films’, Nature 422, 506–509.

Kafadaryan E A (2006), Ashtarak-2, Armenia (unpublished).

Kawasaki S, Scott. J F, Angel M, Fan H, Catalan G, Gregg J, Morrison F D, Tatsuta T and

Tsuji O (2007) ‘Recent progress of liquid source misted chemical deposition process

for related three-dimensional nano-ferroelectrics,’ paper 7A-110, ISIF-19, Bordeaux,

France.

Kim D C, Jo W, Lee H M, and Kim K Y (1997), ‘Properties of (Ba, Sr)TiO3 thin films

prepared by liquid source delivery chemical vapor deposition’, Integ. Ferroelec. 18,

137–144.

Kimura T, Goto T, Shintani H, Ishizaka K, Arima T and Tokura Y. (2003), ‘Magnetic

control of ferroelectric polarization’, Nature 426, 55–58.

Kittel C (1946), ‘Theory of the structure of ferromagnetic domains in films and small

particles’, Phys. Rev. 70, 965–971.

Kohlsdtedt H, Pertsev N A, and Waser R (2002), ‘Size effects of polarization in epitaxial

ferroelectric films and the concept of ferroelectric tunnel junctions including first

results’, MRS Proc. 688, C6.5.

Lagerwall S T (2004), ‘Ferroelectric and antiferroelectric liquid crystals’, Ferroelectrics

301, 15–45.

Landauer R, Young D R, and Drougard M E (1956), ‘Polarization reversal in the barium

titanate hysteresis loop’, J. Appl. Phys. 27, 752–758.

Li J, Nagaraj B, Liang H, et al. (2004), ‘Ultrafast polarization switching in thin-film

ferroelectrics’, Appl. Phys. Lett. 84, 1174–1176.

WPNL2204

Ferroelectric nanostructures for device applications 567

Li P and Lu T-M (1991), ‘Conduction mechanisms in BaTiO

thin films’, Phys. Rev. B 43,

14261–14264.

Lines M and Glass A M (1967), Principles and Applications of Ferroelectrics and Related

Materials, Clarendon, Oxford.

Liu S and Li Y (2004), ‘Research on the electrocaloric effect of PMN/PT solid solution

for ferroelectrics MEMS microcooler’, Mat. Sci. & Eng. B113, 46–49.

Lou X, Zhang M, Redfern S A T, and Scott J F (2006), ‘Local phase decomposition as a

cause of polarization fatigue in ferroelectric thin films’, Phys. Rev. Lett. 97, 177601

(2006).

Ma W H and Hesse D (2004), ‘Microstructure and piezoelectric properties of sub-80 nm

high polycrystalline SrBi

nanostructures within well-ordered arrays’, Appl.

Phys. Lett. 85, 3214–3216.

Mao Y, Park T-J and Wong S S (2005), ‘Synthesis of classes of ternary metal oxide

nanostructures’, Chem. Commun. 2005, 5721–5735.

Masuda H and Fukuda K (1995), ‘Ordered metal nanohole arrays made by a two-step

replication of honeycomb structures of anodic alumina’, Science 268, 1466–1468.

Mermin N D (1979), ‘The topological theory of defects in ordered media’, Rev. Mod.

Phys. 51, 591–648.

Milliken A D, Bell A J, and Scott J F (2006), ‘Dependence of breakdown field on

dielectric (inter-electrode) thickness in base-metal electroded multilayer capacitors’,

Appl. Phys. Lett. 90, 112910.

Miranda F A et al. (2002), ‘Ferroelectric thin films-based technology for frequency- and

phase-agile microwave communications applications’, Integ. Ferroelectrics 42, 131.

Mischenko A, Zhang Q, Scott J F, Whatmore R W, and Mathur N D (2006), ‘Giant

electrocaloric effect in thin-film PZT’, Science 311, 1270–1271.

Mishina E D, Vorotilov K A, Vasil’ev V A, et al. (2002), ‘Porous silicon-based ferroelectric

nanostructures’, J. Exp. Theor. Phys. 95, 502–504.

Mishina E D, Sherstyuk N E, Stadnuchyuk V, et al. (2003), ‘Ferroelectrics templated in

nanoporous silicon membranes’, Ferroelectrics 286. 927–933.

Mishina E D (2005), ‘Nonlinear optics of ferroelectrics: towards nanometers and

picoseconds’, Ferroelectrics 314, 57–72.

Mitsui T and Furuichi J (1953), ‘Domain structure of rochelle salt and KH2P04,’ Phys.

Rev. 90, 193–202.

Mitsui T, Tatsuzaki, I and Nakamurta E (1969), ‘An introduction to the physics of

ferroelectrics,’ Maki-Shoten, Tokyo, (translation: Gorden and Breach, London, 1976).

Morrison F D, Ramsay L and Scott J F (2003), ‘High aspect ratio piezoelectric strontium–

bismuth–tantalate nanotubes’, J. Phys. Condens. Mat. 15, L527–532.

Naranjo B, Gimzewski J K, and Putterman S (2005), ‘Observation of nuclear fusion

driven by a pyroelectric crystal’, Nature 434, 1115–1117.

Naumov I, Bellaiche L and Fu H (2004), ‘Unusual phase transitions in ferroelectric

nanodisks and nanorods’, Nature 432, 737–740.

Paruch P, Giamarchi T, Tybell T and Triscone J-M (2006), ‘Nanoscale studies of domain

wall motion in epitaxial ferroelectric thin films’, J. Appl. Phys. 100, 051608.

Parsuch P, Tybell T and Triscone J M (2001), ‘Nanoscale control of ferroelectric polarization

and domain size in epitaxial Pb(ZrO.2TiO.8)0-3 thin films. Applied Physics Letters,

79: 530–532.

Paz de Araujo C A, Cuchiaro J D, McMillan L D, Scott M C, and Scott J F (1995),

‘Fatigue-free ferroelectric capacitors with platinum electrodes’, Nature 374, 627–629.

Pintilie L and Alexe M (2005), ‘Metal–ferroelectric–metal heterostructures with Schottky

contacts. I. Influence of the ferroelectric properties’, J. Appl. Phys. 98, 124103.

WPNL2204

Handbook of dielectric, piezoelectric and ferroelectric materials568

Pintilie L et al. (2005), ‘Metal–ferroelectric–metal structures with Schottky contacts. II.

Analysis of the experimental current–voltage and capacitance–voltage characteristics

of Pb(Zr,Ti)O

thin films’, J. Appl. Phys. 98, 124104.

Ponomareva I, Naumov I, and Bellaiche L (2005a), ‘Low-dimensional ferroelectrics

under different electrical and mechanical boundary conditions: atomistic simulations’,

Phys. Rev. B72, 214118.

Ponomareva I, Naumov I, Kornev I, Fu H, and Bellaiche L (2005b), ‘Atomistic treatment

of depolarizing energy and field in ferroelectric nanostructures’, Phys. Rev. B72,

140102.

Privratska J and Janovec V (1997), ‘Pyromagnetic domain walls connecting

antiferromagnetic non-ferroelastic magnetoelectric domains’, Ferroelectrics 204, 321–

331.

Prosandeev S, Ponomareva I, Kornev I, Naumov I, and Bellaiche L (2006), ‘Controlling

toroidal moment by means of an inhomogeneous static field: an ab initio study’,

Phys. Rev. Lett. 96, 237601.

Pulvari C F and Kuebler W (1958a), ‘Phenomenological theory of polarization reversal

in BaTiO

single crystals’, J. Appl. Phys. 29, 1315–1321.

Pulvari C F and Kuebler W (1958b), ‘Polarization reversal in tri-glycine fluoberyllate and

tri-glycine sulfate single crystals’, J. Appl. Phys. 29, 1742–1746.

Ríos

S, Ruediger

A, Jiang A Q, Scott J F, Lu

H and Chen

Z (2003), ‘Orthorhombic

strontium titanate in BaTiO

–SrTiO

superlattices’, J. Phys. Condens. Mat. 15, L305–

310.

Roitbord A L (1976) ‘Equilibrium structure of epitaxial layers’, Phys. Status Solid A 37,

329–339.

Rosenblum B, Bräunlich P, and Carrico J P (1974), Thermally stimulated field emission

from pyroelectric LiNbO

’, J. Appl. Phys. 25, 17–19.

Rosenman G, Shur D, Krasik Y E, and Dunaevsky D (2000), ‘Electron emission from

ferroelectrics’, J. Appl. Phys. 88, 6109–6161.

Saad M M, Baxter P, Bowman R M, Gregg J M, Morrison F D, and Scott J F (2004),

‘Intrinsic dielectric response in ferroelectric nano-capacitors’, J. Phys. Condens. Mat.

16, L451–456.

Saad M M, Baxter P, McAneney J, Gregg J M, Catalan G and Scott J F (2006), ‘Investigating

the effects of reduced size on the properties of ferroelectrics,’ IEEE Transactions on

Ultrasonics Ferroelectrics and Frequency Control, 55, 2208–2225.

Schilling A, Adams T B, Bowman R M, Gregg J M, Catalan A and Scott J F (2006),

‘Scaling of domain periodicity with thickness measured in BaTiO

single crystal

lamellae and comparison with other ferroics’, Phys. Rev. B 74, 024115.

Schmid H (1994), ‘Introductions to the Proceedings of the Second International Conference

on Magnetoelectrics’, Ferroelectrics 161, 1–28.

Schmid H (2001), ‘On ferrotoroidics and electrotoroidic, magnetotoroidic and piezotoroidic

effects’, Ferroelectrics 252, 41–50.

Schnupp H (1967), ‘Model for tunnelling through a non-crystalline thin dielectric film’,

Phys. Stat. Sol. 21, 567.

Scott J F (1993), ‘Dielectric properties of insulators’, Encyclopedia of Applied Physics

(ed. George Trigg, VCH Pub. Co., Berlin); Vol. 5, pp. 25–45.

Scott J F (2000), Ferroelectric Memories, Springer, Heidelberg.

Scott J F (2005), ‘Novel geometric ordering of ferroelectricity’, Nature Materials 4, 13–

14.

Scott J F (2006a), ‘Nanoferroelectrics: statics and dynamics’, J. Phys. Condens. Mat. 18,

R361–386.

WPNL2204

Ferroelectric nanostructures for device applications 569

Scott J F (2006b), ‘Applications of modern ferroelectrics’, Science (in press).

Scott J F (2007), ‘A comparison of FRAMs and MRAMs’, in Ferro- and Antiferroelectricity

(eds. Dalal N S and Bussmann-Holder A; Springer, Berlin), pp. 199–208).

Scott J F and C A Araujo (1989), ‘Ferroelectric memories’, Science 246, 1400–1406.

Sebald G, Qiu J and Guyomar D (2005), ‘Modelling the lateral resonance mode of

piezoelectric fibers with metal core’, J. Phys. D 38, 3733–3740.

Shebanov L and Borman K (1992), ‘On lead-scandium tantalite solid solutions with high

electrocaloric effect’, Ferroelectrics 127, 143–148.

Solayappan N, McMillan L D, Paz de Araujo C A, and Grant B (1997), Integ. Ferroelec.

18, 127–134.

Strukov B A (1967), ‘Electrocaloric effect in triglycine sulfate’, Sov. Phys. Crystallog. 11,

757–762.

Svirdov E, Le Bihan R, Liateni S F, and Descures A (1998), ‘Electron emission spectra

from lead zirconate titanate ferroelectric films on stainless-steel substrates’, Appl.

Phys. Lett. 73, 3953–3955.

Tagantsev A K, Stolichnov I, Setter N, Cross J S, and Tsukada M (2002), Phys. Rev. B66,

214109.

Tanaka M and Makino Y (1998), ‘Ferroelectricity in barium titanate nano-particles’,

Ferroelec. Lett. 24, 13–18.

Tenne R (2004), ‘Materials physics – doping control for nanotubes’, Nature 431, 640–

641.

Tenne D A et al. (2006), ‘Probing nanoscale ferroelectricity by ultraviolet Raman

spectroscopy’, Science 313, 1614–16.

Tuttle B A and Payne D A (1981), ‘The effects of microstructure on the electrocaloric

properties of Pb(Zr,Sn,Ti)O

ceramics’, Ferroelectrics 37, 603–606.

Valasek J (1921), ‘Piezo-electric and allied phenomena in Rochelle salt’, Phys. Rev. 17,

475–482 (1921).

von Hippel A (1944), US National Defense Research Committee report 300.

Walker D, Thomas P A, Jiang Q, Pernot–Rejmánková P, Baruchel J and Ayguavives T

(2005), ‘X-ray imaging investigation of periodically electroded rubidium titanyl arsenate,

RbTiOAsO

, under an applied electric field’, J. Phys. D: Appl. Phys. 38, A55–60.

Wang J et al. (2003), ‘Epitaxial BiFeO3 multiferroic thin-film heterostructures’, Science

299, 1719–1725.

Wang J et al. (2005), ‘Response to comment on epitaxial BiFeO

multiferroic

heterostructures’, Science 419, 1203b.

Zheng H M, Straub F, Zhau Q et al. (2006), ‘Self-assembled growth of BiFeO3-CoFe204

nanostructures’, Advanced Materials, 18, 2747–2751.

Zhu X H et al. (2006), ‘Perovskite lead zirconium titanate nanorings: towards nanoscale

ferroelectric “solenoids”?’, Appl. Phys. Lett. 89, 129913.

Zubko P, Jung D J, and Scott J F (2006a), ‘Space charge effects in ferroelectric thin

films,’ J. Appl. Phys. 100, 114112.

Zubko. P, Jung D J, and Scott J F (2006b), ‘Electrical characterization of PbZr

0.4

0.6

capacitors’, J. Appl. Phys. 100, 114113.

WPNL2204
