Bhushan B. and Venkatesan, S. (1993c), “Friction and Wear Studies of Silicon in Sliding Contact with

Thin-Film Magnetic Rigid Disks,” J. Mater. Res. 8, 1611–1628.

Bhushan, B., and Koinkar, V.N. (1994a), “Tribological Studies of Silicon for Magnetic Recording Appli-

cations,” J. Appl. Phys. 75, 5741–5746.

Bhushan, B. and Koinkar, V.N. (1994b), “Nanoindentation Hardness Measurements Using Atomic Force

Microscopy,” Appl. Phys. Lett. 64, 1653–1655.

Bhushan B., Koinkar, V.N., and Ruan, J. (1994c), “Microtribology of Magnetic Media,” Proc. Inst. Mech.

Eng. Part J: J. Eng. Tribol. 208, 17–29.

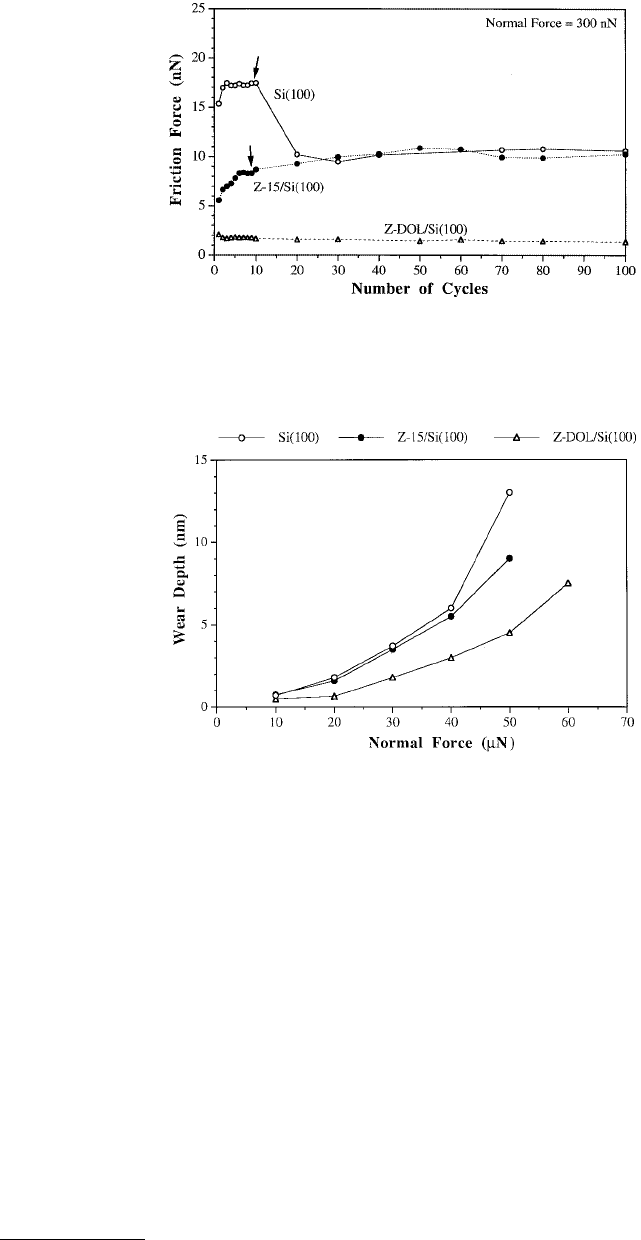

FIGURE 14.61 Friction force as a function of number of cycles using Si

tip at a normal force of 300 nN for

unlubricated and lubricated samples in ambient environment. Arrows in the ﬁgure indicate signiﬁcant changes in

the friction force because of removal of surface or lubricant ﬁlm. (From Koinkar, V.N. and Bhushan, B., 1996, J. Vac.

Sci. Technol. A 14, 2378–2391. With permission.)

FIGURE 14.62 Wear depth as a function of normal force using diamond tip for unlubricated and lubricated samples

after one cycle. (From Koinkar, V.N. and Bhushan, B., 1996, J. Vac. Sci. Technol. A 14, 2378–2391. With permission.)

Bhushan, B., Koinkar, V.N., and Ruan, J. (1994d), “Microtribological Studies by Using Atomic Force and

Friction Force Microscopy and Its Applications,” in Determining Nanoscale Physical Properties of

Materials by Microscopy and Spectroscopy (M. Sarikaya, H.K. Wickramasinghe, and M. Isaacson,

eds.), Vol. 332, pp. 93–98, Materials Research Society, Pittsburgh.

Bhushan, B. and Ruan, J. (1994e), “Atomic-Scale Friction Measurements Using Friction Force Microscopy:

Part II — Application to Magnetic Media,” ASME J. Tribol. 116, 389–396.

Bhushan, B. and Koinkar, V.N. (1995a), “Microtribology of PET Polymeric Films,” Tribol. Trans. 38, 119–127.

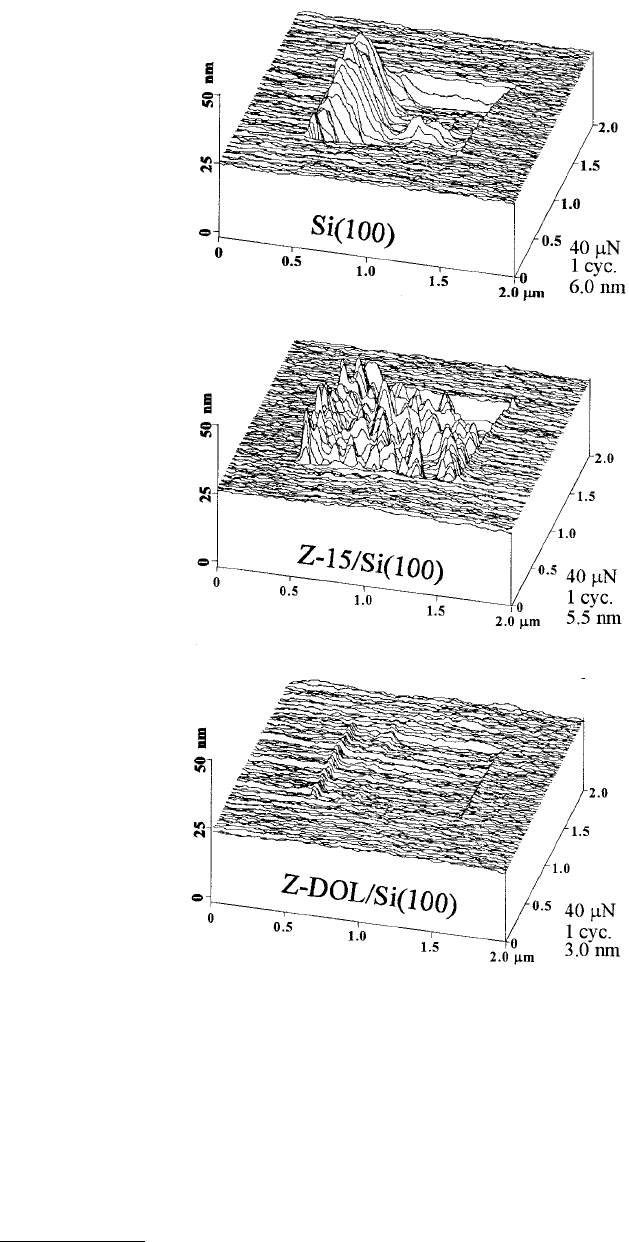

FIGURE 14.63 Wear maps for unlubricated and lubricated samples after microwear using diamond tip. Normal

force used and wear depths are listed in the ﬁgure. (From Koinkar, V.N. and Bhushan, B., 1996, J. Vac. Sci. Technol. A

14, 2378–2391. With permission.)

Bhushan, B. and Koinkar, V.N. (1995b), “Macro and Microtribological Studies of CrO

Video Tapes,”

Wear 180, 9–16.

Bhushan, B. and Koinkar, V.N. (1995c), “Microtribology of Metal Particle, Barium Ferrite and Metal

Evaporated Magnetic Tapes,” Wear 181–183, 360–370.

Bhushan, B., Israelachvili, J.N., and Landman, U. (1995d), “Nanotribology: Friction, Wear and Lubrica-

tion at the Atomic Scale,” Nature 374, 607–616.

Bhushan, B. and Koinkar, V.N. (1995e), “Microscale Mechanical and Tribological Characterization of

Hard Amorphous Carbon Coatings as Thin as 5 nm for Magnetic Disks,” Surf. Coat. Technol. 76–77,

655–669.

Bhushan, B. and Kulkarni, A.V. (1995f), “Effect of Normal Load on Microscale Friction Measurements,”

Thin Solid Films 278, 49–56.

Bhushan, B., Miyamoto, T., and Koinkar, V.N. (1995g), “Microscopic Friction between a Sharp Diamond

Tip and Thin-Film Magnetic Rigid Disks by Friction Force Microscopy,” Adv. Info. Storage Syst. 6,

151–161.

Bhushan, B., Kulkarni, A.V., Bonin, W., and Wyrobek, J.T. (1996), “Nanoindentation and Picoindentation

Measurements Using a Capacitance Transducer System in Atomic Force Microscopy,” Philos. Mag.

74, 1117–1128.

Bhushan, B. and Koinkar, V.N. (1997a), “Microtribological Studies of Doped Single-Crystal Silicon and

Polysilicon Films for MEMS Devices,” Sensors Actuators A 57, 91–102.

Bhushan, B. and Li, X. (1997b), “Micromechanical and Tribological Characterization of Doped Silicon

and Polysilicon Films for MEMS Devices,” J. Mater. Res. 12, 54–63.

Bhushan, B., Sundararajan, S., Scott, W.W., and Chilamakuri, S. (1997c), “Stiction Analysis of Magnetic

Tapes,” IEEE Trans. Magn. 33, 3211–3213.

Bhushan, B. and Sundararajan, S. (1998), “Micro/Nanoscale Friction and Wear Mechanisms of Thin

Films Using Atomic Force and Friction Force Microscopy,” Acta Mater. 46, 3793–3804.

Bowden, F.P. and Tabor, D. (1950 and 1964), The Friction and Lubrication of Solids, Part 1 (1950) Part 2

(1964), Clarendon Press, Oxford, U.K.

Callahan, D.L. and Morris, J.C. (1992), “The Extent of Phase Transformation in Silicon Hardness Inden-

tations,” J. Mater. Res. 7, 1612–1617.

Chu, M.Y., Bhushan, B., and DeJonghe, L. (1992), “Wear Behavior of Ceramic Sliders in Sliding Contact

with Rigid Magnetic Thin-Film Disks,” Tribol. Trans. 35, 603–610.

Derjaguin, B.V., Chuarev, N.V., and Muller, V.M. (1987), Surface Forces, Consultants Bureau, New York.

DeVecchio, D. and Bhushan, B. (1997), “Localized Surface Elasticity Measurements Using an Atomic

Force Microscope,” Rev. Sci. Instrum. 68, 4498–4505.

Foster, J. and Frommer, J. (1988), “Imaging of Liquid Crystal Using a Tunneling Microscope,” Nature

333, 542–547.

Frisbie, C.D., Rozsnyai, L.F., Noy, A., Wrighton, M.S., and Lieber, C.M. (1994), “Functional Group

Imaging by Chemical Force Microscopy,” Science 265, 2071–2074.

Gane, N. and Cox, J.M. (1970), “The Micro-Hardness of Metals at Very Light Loads,” Philos. Mag. 22,

881–891.

Ganti, S. and Bhushan, B. (1995), “Generalized Fractal Analysis and Its Applications to Engineering

Surfaces,” Wear 180, 17–34.

Grafstrom, S., Neitzert, M., Hagen, T., Ackermann, J., Neumann, R., Probst, O., and Wortge, M. (1993),

“The Role of Topography and Friction for the Image Contrast in Lateral Force Microscopy,”

Nanotechnology 4, 143–151.

Heideman, R. and Wirth, M. (1984), “Transforming the Lubricant on a Magnetic Disk into a Solid

Fluorine Compound,” IBM Tech. Disclosure Bull. 27, 3199–3205.

Hibst, H. (1993), “Metal Evaporated Tapes and Co-Cr Media for High Deﬁnition Video Recording,” in

High Density Digital Recording (K.H.J. Buschow, G.J. Long, and F. Grandjean, eds.), Vol. E229,

pp. 137–159, Kluwer Academic, Dordrecht.

Homola, A.M., Lin, L.J., and Saperstein, D.D. (1990), “Process for Bonding Lubricant to a Thin Film

Magnetic Recording Disk,” U.S. Patent 4,960,609, October 2.

Israelachvili, J.N. (1992), Intermolecular and Surface Forces, 2nd ed., Academic Press, New York.

Kaneko, R. and Miyamoto, T. (1988), “Friction and Adhesion on Magnetic Disk Surface,” IEEE Trans.

Magn. Mag. 24, 2641–2643.

Kaneko, R., Miyamoto, T., and Hamada, E. (1991a), “Development of a Controlled Frictional Force

Microscope,” Adv. Info. Storage Syst. 1, 267–277.

Kaneko, R., Oguchi, S., Andoh, Y., Sugimoto, I., and Dekura, T. (1991b), “Direct Observation of the

Conﬁguration, Adsorption, and Mobility of Lubricants by Scanning Tunneling Microscopy,” Adv.

Info. Storage Syst. 2, 23–34.

Koinkar, V.N. and Bhushan, B. (1996a), “Microtribological Studies of Al

, Al

–TiC, Polycrystalline

and Single-Crystal Mn–Zn Ferrite and SiC Head Slider Materials,” Wear 202, 110–122.

Koinkar, V.N. and Bhushan, B. (1996b), “Microtribological Studies of Unlubricated and Lubricated

Surfaces Using Atomic Force/Friction Force Microscopy,” J. Vac. Sci. Technol. A 14, 2378–2391.

Koinkar, V.N. and Bhushan, B. (1997a), “Effect of Scan Size and Surface Roughness on Microscale Friction

Measurements,” J. Appl. Phys. 81, 2472–2479.

Koinkar, V.N. and Bhushan, B. (1997b), “Microtribological Properties of Hard Amorphous Carbon

Protective Coatings for Thin-Film Magnetic Disks and Heads,” Proc. Inst. Mech. Eng. Part J: J. Eng.

Tribol. 211, 365–372.

Kulkarni, A.V. and Bhushan, B. (1997), “Nanoindentation Measurements of Amorphous Carbon Coat-

ings,” J. Mater. Res. 12, 2707–2714.

Lipson, M., and Mercer, E.H. (1946), “Frictional Properties of Wool Treated with Mercuric Acetate,”

Nature 157, 134–135.

Lu, C.J. and Bogy, D.B. (1995), “Sub-Microindentation Hardness Tests on Thin Film Magnetic Disks,”

Adv. Info. Storage Syst. 6, 163–175.

Maivald, P., Butt, H.J., Gould, S.A.C., Prater, C.B., Drake, B., Gurley, J.A., Elings, V.B., and Hansma, P.K.

(1991), “Using Force Modulation to Image Surface Elasticities with the Atomic Force Microscope,”

Nanotechnology 2, 103–106.

Majumdar, A. and Bhushan, B. (1990), “Role of Fractal Geometry in Roughness Characterization and

Contact Mechanics of Surfaces,” ASME J. Tribol. 112, 205–216.

Majumdar, A. and Bhushan, B. (1991), “Fractal Model of Elastic-Plastic Contact Between Rough Surfaces,”

ASME J. Tribol. 113, 1–11.

Makinson, K.R. (1948), “On the Cause of the Frictional Difference of the Wool Fiber,” Trans. Faraday

Soc. 44, 279–282.

Mate, C.M. (1992a), “Application of Disjoining and Capillary Pressure to Liquid Lubricant Films in

Magnetic Recording,” J. Appl. Phys. 72, 3084–3090.

Mate, C.M. (1992b), “Atomic-Force-Microscope Study of Polymer Lubricants on Silicon Surface,” Phys.

Rev. Lett. 68, 3323–3326.

Mate, C.M. (1993a), “Nanotribology of Lubricated and Unlubricated Carbon Overcoats on Magnetic

Disks Studied by Friction Force Microscopy,” Surf. Coat. Technol. 62, 373–379.

Mate, C.M. (1993b), “Nanotribology Studies of Carbon Surfaces by Force Microscopy,” Wear 168, 17–20.

Mate, C.M., McClelland, G.M., Erlandsson, R., and Chiang, S. (1987), “Atomic-Scale Friction of a

Tungsten Tip on a Graphite Surface,” Phys. Rev. Lett. 59, 1942–1945.

Mate, C.M., Lorenz, M.R., and Novotny, V.J. (1989), “Atomic Force Microscopy of Polymeric Liquid

Films,” J. Chem. Phys. 90, 7550–7555.

Mate, C.M., Lorenz, M.R., and Novotny, V.J. (1990), “Determination of Lubricant Film Thickness on a

Particulate Disk Surface by Atomic Force Microscopy,” IEEE Trans. Magn. Mag. 26, 1225–1228.

Mate, C.M. and Novotny, V.J. (1991), “Molecular Conformation and Disjoining Pressures of Polymeric

Liquid Films,” J. Chem. Phys. 94, 8420–8427.

Mercer, E.H. (1945), “Frictional Properties of Wool Fibers,” Nature 155, 573–574.

Meyer, G., and Amer, N.M. (1990), “Simultaneous Measurement of Lateral and Normal Forces with an

Optical-Beam-Deﬂection Force Microscope,” Appl. Phys. Lett. 57, 2089–2091.

Meyer, E., Overney, R., Luthi, R., Brodbeck, D., Howald, L., Frommer, J., Guntherodt, H.-J, Wolter, O.,

Fujihira, M., Takano, T., and Gotoh, Y. (1992), “Friction Force Microscopy of Mixed Langmuir-

Blodgett Films,” Thin Solid Films 220, 132–137.

Miyamoto, T., Kaneko, R., and Ando, Y. (1990), “Interaction Force between Thin Film Disk Media and

Elastic Solids Investigated by Atomic Force Microscope,” ASME J. Tribol. 112, 567–572.

Miyamoto, T., Kaneko, R., and Andoh, Y. (1991a), “Microscopic Adhesion and Friction between a Sharp

Diamond Tip and Al

–TiC,” Adv. Info. Storage Syst. 2, 11–22.

Miyamoto, T., Kaneko, R., and Andoh, T. (1991b), “Microscopic Friction on Silicon Oxide and Amor-

phous Carbon Films Investigated by Point Contact Microscopy and Frictional Force Microscopy,”

Adv. Info. Storage Syst. 3, 137–146.

Miyamoto, T., Kaneko, R., and Miyake, S. (1991c), “Tribological Characteristics of Amorphous Carbon

Films Investigated by Point Contact Microscopy,” J. Vac. Sci. Technol. B 9, 1336–1339.

Miyamoto, T., Miyake, S., and Kaneko, R. (1993), “Wear Resistance of C

-Implanted Silicon Investigated

by Scanning Probe Microscopy,” Wear 162–164, 733–738.

Novotny, V.J. (1990), “Migration of Liquid Polymers on Solid Surfaces,” J. Chem. Phys. 92, 3189–3196.

Novotny, V.J., Hussla, I., Turlet, J.M., and Philpott, M.R. (1989), “Liquid Polymer Conformation on Solid

Surfaces,” J. Chem. Phys. 90, 5861–5868.

Oden, P.I., Majumdar, A., Bhushan, B., Padmanabhan, A., and Graham, J.J. (1992), “AFM Imaging, Roughness

Analysis and Contact Mechanics of Magnetic Tape and Head Surfaces,” ASME J. Tribol. 114, 666–674.

Overney, R.M., Meyer, E., Frommer, J., Brodbeck, D., Luthi, R., Howard, L., Guntherodt, H.-J., Fujihira,

M., Takano, H., and Gotoh, Y. (1992), “Friction Measurements on Phase-Separated Thin Films

with a Modiﬁed Atomic Force Microscope,” Nature 359, 133–135.

Overney, R. and Meyer, E. (1993), “Tribological Investigations Using Friction Force Microscopy,” MRS

Bull. 18, 26–34.

Page, T.F., Oliver, W.C., and McHargue, C.J. (1992), “The Deformation Behavior of Ceramic Crystals

Subjected to Very Low Load Indentation,” J. Mater. Res. 7, 450–473.

Pharr, G.M., Oliver, W.C., and Clarke, D.R. (1990), “The Mechanical Behavior of Silicon during Small-

Scale Indentation,” J. Electron. Mater. 19, 881–887.

Pharr, G.M. (1991), “The Anomalous Behavior of Silicon during Nanoindentation,” in Thin Films: Stresses

and Mechanical Properties III (W.D. Nix, J.C. Bravman, E. Arzt, and L.B. Freund, eds.), Vol. 239,

pp. 301–312, Materials Research Society, Pittsburgh.

Poon, C.Y. and Bhushan, B. (1995a), “Comparison of Surface Roughness Measurements by Stylus Proﬁler,

AFM and Non-Contact Optical Proﬁler,” Wear 190, 76–88.

Poon, C.Y. and Bhushan, B. (1995b), “ Surface Roughness Analysis of Glass-Ceramic Substrates and

Finished Magnetic Disks, and Ni–P Coated Al–Mg and Glass Substrates,” Wear 190, 89–109.

Ruan, J. and Bhushan, B. (1993), “Nanoindentation Studies of Fullerene Films Using Atomic Force

Microscopy,” J. Mater. Res. 8, 3019–3022.

Ruan, J. and Bhushan, B. (1994a), “Atomic-Scale Friction Measurements Using Friction Force Microscopy:

Part I — General Principles and New Measurement Techniques,” ASME J. Tribol. 116, 378–388.

Ruan, J. and Bhushan, B. (1994b), “Atomic-Scale and Microscale Friction of Graphite and Diamond

Using Friction Force Microscopy,” J. Appl. Phys. 76, 5022–5035.

Ruan, J. and Bhushan, B. (1994c), “Frictional Behavior of Highly Oriented Pyrolytic Graphite, J. Appl.

Phys. 76, 8117–8120.

Saperstein, D.D. and Lin, L.J. (1990), “Improved Surface Adhesion and Coverage of Perﬂuoropolyether

Lubricant Following Far-UV Irradiation,” Langmuir 6, 1522–1524.

Sargent, P.M. (1986), “Use of the Indentation Size Effect on Microhardness for Materials Characteriza-

tion,” in Microindentation Techniques in Materials Science and Engineering (P.J. Blau and B.R. Lawn,

eds.), STP 889, pp. 160–174, ASTM, Philadelphia.

Scherer, V., Bhushan, B., Rabe, U., and Arnold, W. (1997), “Local Elasticity and Lubrication Measurements

Using Atomic Force and Friction Force Microscopy at Ultrasonic Frequencies,” IEEE Trans. Magn.

33, 4077–4079.

Sugawara, Y., Ohta, M., Konishi, T., Morita, S., Suzuki, M., and Enomoto, Y. (1993), “Effect of Humidity

and Tip Radius on the Adhesive Force Measured with Atomic Force Microscopy,” Wear 168, 13–16.

Sundararajan, S. and Bhushan, B. (1998), “Micro/Nanotribological Studies of Polysilicon and SiC Films

For MEMS Applications,” Wear (in press).

Thomson, H.M.S. and Speakman, J.B. (1946), “Frictional Properties of Wool,” Nature 157, 804.

Ericson, E.; et. al “Mechanical Properties of Materials in Microstructure...”

Handbook of Micro/Nanotribology.

Ed. Bharat Bhushan

Boca Raton: CRC Press LLC, 1999

Mechanical Properties

of Materials

in Microstructure

Technology

Fredric Ericson and Jan-Åke Schweitz

15.1 Introduction

15.2 Cohesion and Crystal Structures

System Energy and Interatomic Binding • Lattice Structures

and Structural Defects

15.3 Elasticity Properties

Isotropic Elasticity • Anisotropic Elasticity

15.4 Internal Stresses

Thermal Film Stress • Intrinsic Film Stress • Substrate and

Interface Stresses

15.5 Plasticity and Thermomechanical Properties

Elastic–Ductile Response • Time-Dependent Effects

15.6 Fracture Properties

Fracture Limit and Fracture Toughness • Some Fracture

Data • Fracture Initiation • Weibull Statistics • Fatigue

15.7 Adhesive Properties and Inﬂuence of Coatings

Adhesion • Inﬂuence of Coatings

15.8 Testing

General Test Structures and Testing Methods • Elasticity

Testing by Static Techniques • Elasticity Testing by Dynamic

Techniques • Testing of Other Properties

15.9 Modeling and Error Analysis

Single-Layer Beam • Two-Layer Beam • Resonant Beam •

Micro vs. Bulk Results

15.10 Summary and Conclusions

References

15.1 Introduction

Mechanical properties are of critical importance to any material that is used for transmission of forces

or moments, or just for sustaining loads. The gradual introduction of microcomponents in practical

applications within microstructure technology (MST) has instigated an increasing demand for insight

into the fundamental factors that determine the mechanical integrity of such elements, for instance, their

long-term reliability or how to choose proper safety limits in design and use. The mechanical integrity

of a microsystem is not only of importance in mechanical applications. It is not unusual that mechanical

(or thermomechanical) integrity is a prerequisite for reliable performance of microsystems with primarily

nonmechanical functions, e.g., electric, optic, or thermal.

Do we have enough knowledge about mechanical properties to determine the long-time reliability of

a micromechanical component or to choose proper safety limits? In general, the answer to this question

is negative. Are the properties of bulk materials applicable to microsystems? Again, we do not know for

certain in every case; we cannot even be absolutely sure that bulk data on the fundamental elastic constants

are valid for a micromachined element. Furthermore, the materials used in semiconductor technology

are usually well characterized from an electronic viewpoint, but from a mechanical viewpoint they are

in many cases more or less uncharted. In some cases we do not even have access to bulk data. This leads

to the conclusion that much more work is required on the systematic exploration of the mechanical

properties of microsized elements, as well as on the inﬂuence of the manufacturing processes on these

properties.

This chapter aims to deﬁne some basic concepts concerning mechanical properties, and to relate these

concepts to experimental procedures and to some practial design aspects. For many properties we give

numerical examples, if they exist, mostly concerning silicon and related materials. Sometimes compari-

sons of these materials with other types of materials are made. Silicon-based micromechanics is predom-

inant today. In the future, mechanically high-performing materials like SiC may be frequently used in

micromachined structures in high-temperature applications, for instance. For this reason, a number of

thermomechanical phenomena are brieﬂy deﬁned and discussed in this chapter.

15.2 Cohesion and Crystal Structures

15.2.1 System Energy and Interatomic Binding

Mechanical properties such as elasticity, plasticity, fracture strength, adhesion, internal stresses, etc.,

depend on the fundamental mechanisms of cohesion between atoms. Basically, the atoms in a solid

material are held together by electrostatic attraction between charges of opposite signs. Magnetic forces

are of minor importance to the cohesion. The potential energy of interatomic binding consists of terms

of classical electrostatic interaction as well as terms of electrostatic quantum interaction (exchange

effects). At equilibrium, the attractive potential energy U

is balanced by the repulsive kinetic energy

in a state of minimum system energy

(15.1)

see Figure 15.1. Neglecting boundary effects, the balance between potential and kinetic energy at equi-

librium is given by the virial theorem:

(15.2)

where

is positive (repulsive) and

is negative (attractive). In Figure 15.1 the parameter

represents

some measure that is proportional to the average interatomic distance, for instance, the lattice parameter.

If the state of equilibrium is shifted by external forces, compressive or tensile, the value of

will decrease

or increase, and the system will move along the curve of Figure 15.1 away from the state of minimum

system energy. The virial theorem is then modiﬁed into

ooo

UT=+,

20TU

+=,

(15.3)

where

= –

∂

is the force striving to restore equilibrium at minimum energy. For small deviations

from equilibrium,

is a harmonic function of

in most materials, and the restoring force

is a linear

function of the change in

. This is one way of expressing

Hooke’s law

of elasticity:

(15.4)

where

is the applied stress (force per area unit),

is the resulting strain

∆

, and

Young’s modulus

of the material. Hence, Young’s modulus (= linear modulus of elasticity) is proportional to the second

derivative of the system energy

with respect to the lattice parameter

at equilibrium (

Depending on the electron structure of the constituent atoms, the mechanism of cohesion can vary

from weak dipole interaction (van der Waals interaction) to strong covalent binding. In silicon the latter

type is predominant, but some materials of interest for micromachining also exhibit ionic binding or

metallic binding. In III-V semiconductors, for instance, the cohesion is of a mixed covalent and ionic

nature, and in tungsten metallic binding is predominant.

Ionic binding

is found in chemical compounds such as common salt, NaCl. One or more electrons are

transferred from one type of atom to the other, whereby electrostatic attraction between ions of opposite

electric charge occurs.

Metallic binding

occurs in metallic elements or compounds. In this case the loosely bound valence

electrons are disconnected from the atoms, and form a quasi-free electron gas, the conduction electron

gas. These electrons are at liberty to move between the ion cores and to a large extent also through them.

The high mobility of these electrons gives rise to the good electric conductivity found in most metals.

Hence, the positive ions are immersed in a sea of negative conduction electrons, which act as a ﬂuid

cement holding the ions together.

Covalent binding

is found in some elemental solids (e.g., silicon) as well as in very complicated

molecular structures (e.g., polymers). The cohesive mechanism is complex, but in a very simpliﬁed picture

it can be described in terms of negative-valence electrons preferring to locate themselves in the regions

between a positive ion and its nearest neighbors, by which an electrostatic coupling occurs. This type of

binding is usually strong and “directional”; i.e., the interatomic bonds are formed at speciﬁc angles,

resulting in well-deﬁned molecular or crystalline structures.

The strength of the interatomic bonds is decisive for the stiffness and the brittleness of the crystal.

Strong and directional covalent bonds give silicon high stiffness and strength. In GaAs the bonds are of

a mixed covalent and ionic type, making this material less stiff and more fragile than Si. Also the melting

points (Table 15.1) are affected by the bond strength.

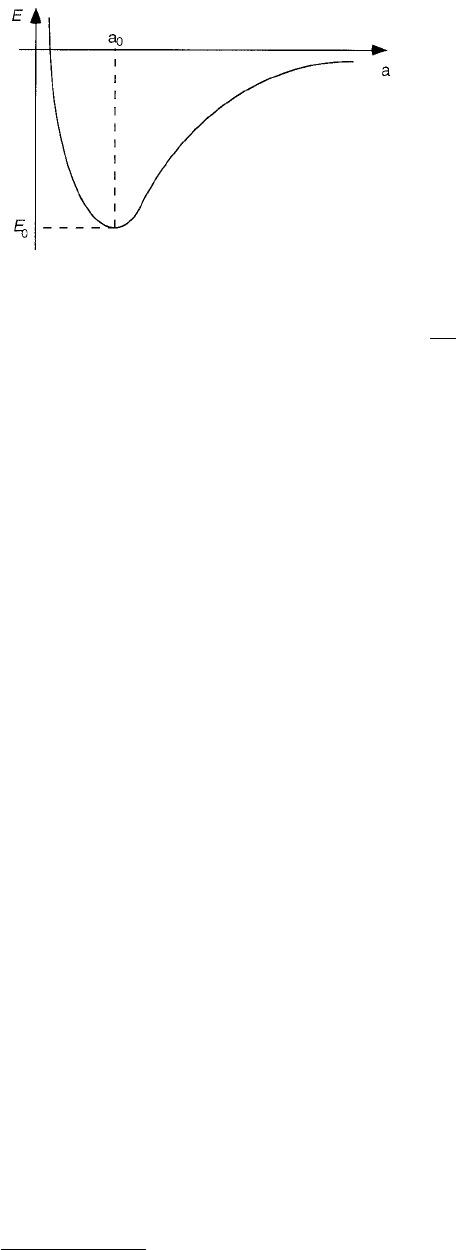

FIGURE 15.1

Crystal system energy

vs. lattice

spacing parameter

2TU a

+=−

∂

σε= E ,
