Table B-5
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
I00. .550
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .98321
200. .98320
300. .97923
400. .97239
500. .96348
600. .95308
700. .94173
800. .92983
900. .91775
i000. .90577
ii00. .89413
1200. .88300
1300. .87251
1400. .86274
1500. .85374
1600. .84556
1700. .83820
1800. .83167
1900. .82599
2000. .82116
2100. .81720
2200. .81411
2300. .81192
2400. .81062
2500. .81021
2600. .81067
2700. .81199
2800. .81410
2900. .81694
3000. .82043
3100. .82449
3200. .82901
3300. .83390
3400. .83905
3500. .84439
3600. .84982
3700. .85528
3800. .86071
3900. .86608
4000. .87137
4100. .87660
4200. .88179
4300. .88699
4400. .89228
4500. .89778
4600. .90360
4700. .90993
4800. .91694
4900. .92487
5000. .93398
827

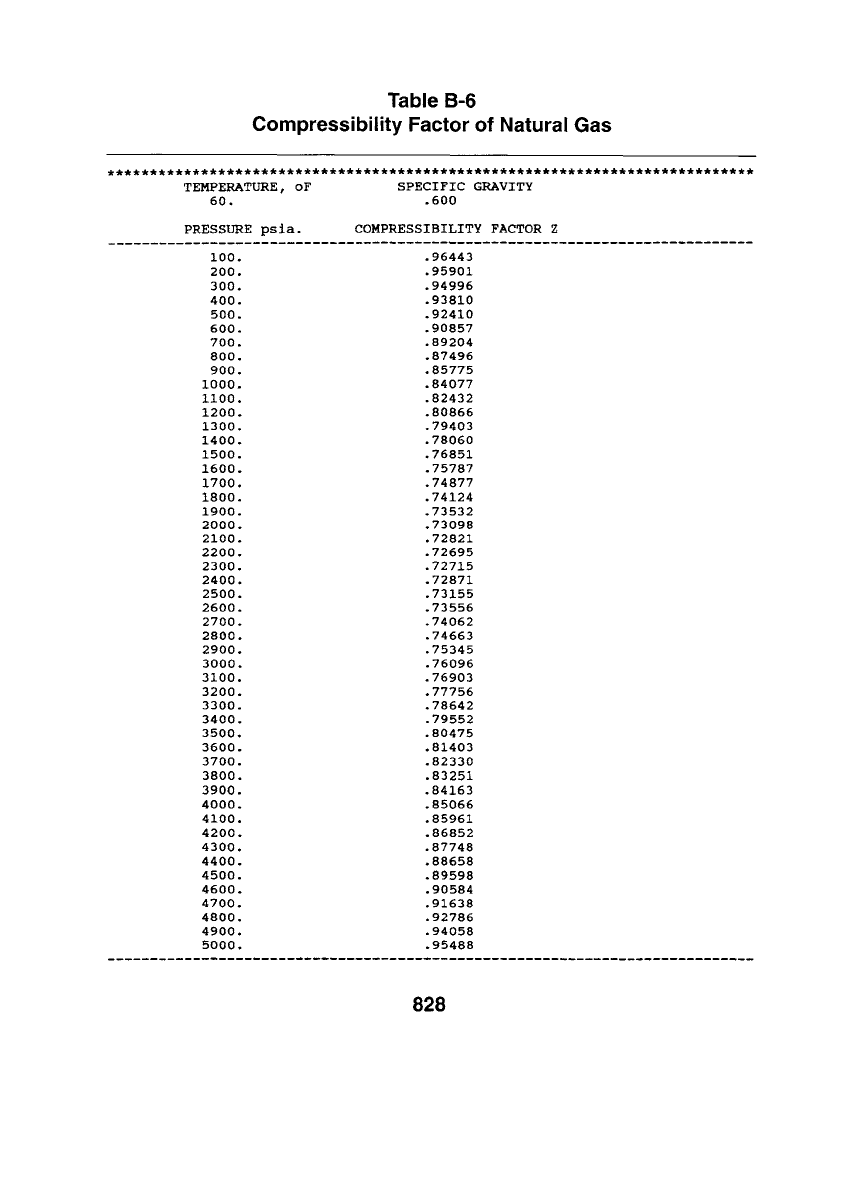

Table B-6
Compressibility Factor of Natural Gas
TEMPERATURE, oF SPECIFIC GRAVITY
60. .600
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .96443
200. .95901
300. .94996
400. .93810
500. .92410
600. .90857
700. .89204
800. .87496
900. .85775
i000. .84077
ii00. .82432
1200. .80866
1300. .79403
1400. .78060
1500. .76851
1600. .75787
1700. .74877
1800. .74124
1900. .73532
2000. .73098
2100. .72821
2200. .72695
2300. .72715
2400. .72871
2500. .73155
2600. .73556
2700. .74062
2800. .74663
2900. .75345
3000. .76096
3100. .76903
3200. .77756
3300. .78642
3400. .79552
3500. .80475
3600. .81403
3700. .82330
3800. .83251
3900. .84163
4000. .85066
4100. .85961
4200. .86852
4300. .87748
4400. .88658
4500. .89598
4600. .90584
4700. .91638
4800. .92786
4900. .94058
5000. .95488
828
Table B-7
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
70. .600
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .96511
200. .96051
300. .95238
400. .94152
500. .92858
600. .91413
700. .89868
800. .88267
900. .86649
1000. .85049
1100. .83495
1200. .82015
1300. .80628
1400. .79352
1500. .78201
1600. .77186
1700. .76314
1800. .75589
1900. .75015
2000. .74589
2100. .74311
2200. .74175
2300. .74175
2400. .74304
2500. .74553
2600. .74912
2700. .75370
2800. .75917
2900. .76540
3000. .77229
3100. .77970
3200. .78754
3300. .79569
3400. .80406
3500. .81255
3600. .82110
3700. .82963
3800. .83810
3900. .84649
4000. .85478
4100. .86300
4200. .87119
4300. .87942
4400. .88779
4500. .89643
4600. .90552
4700. .91525
4800. .92587
4900. .93767
5000. .95097
829

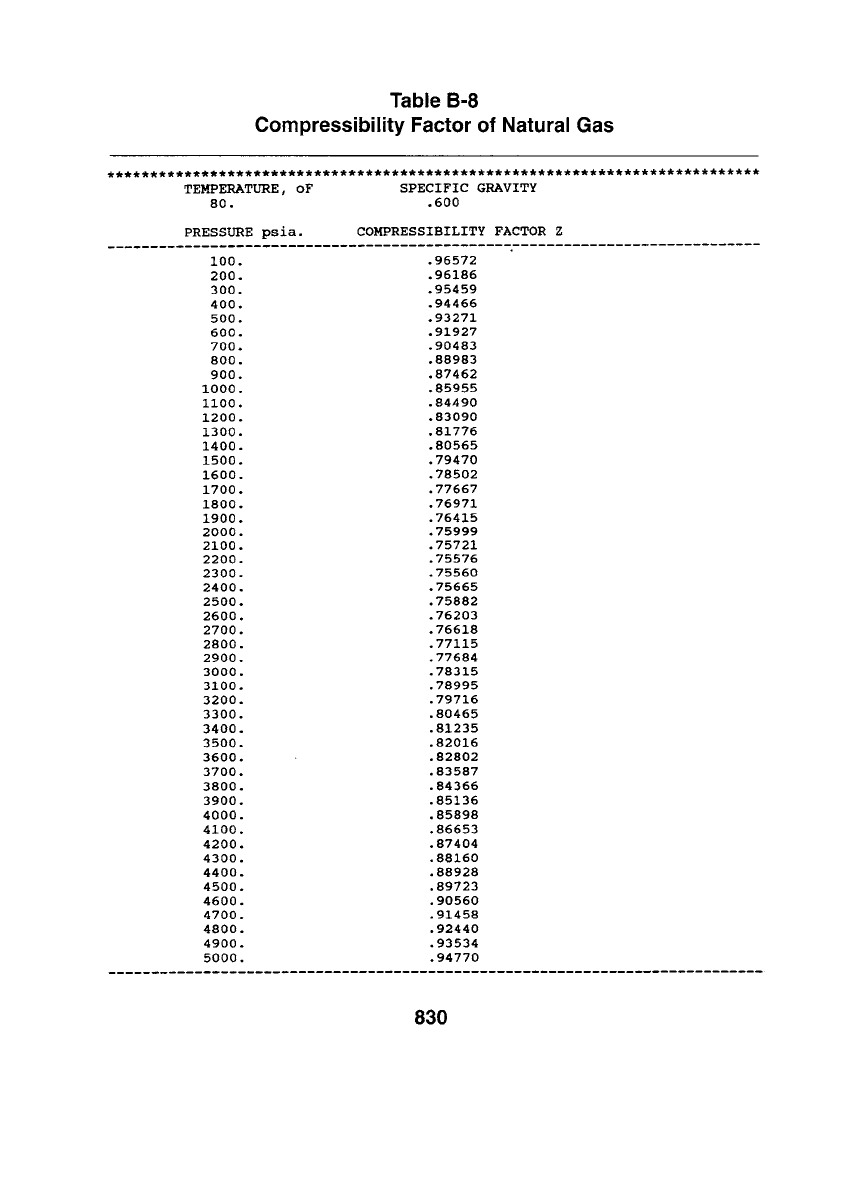

Table B-8
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
80. .600
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .96572
200. .96186
300. .95459
400. .94466
500. .93271
600. .91927
700. .90483
800. .88983
900. .87462
I000. .85955
ii00. .84490
1200. .83090
1300. .81776
1400. .80565
1500. .79470
1600. .78502
1700. .77667
1800. .76971
1900. .76415
2000. .75999
2100. .75721
2200. .75576
2300. .75560
2400. .75665
2500. .75882
2600. .76203
2700. .76618
2800. .77115
2900. .77684
3000. .78315
3100. .78995
3200. .79716
3300. .80465
3400. .81235
3500. .82016
3600. .82802
3700. .83587
3800. .84366
3900. .85136
4OO0. .85898
4100. .86653
4200. .87404
4300. .88160
4400. .88928
4500. .89723
4600. .90560
4700. .91458
4800. .92440
4900. .93534
5000. .94770
830

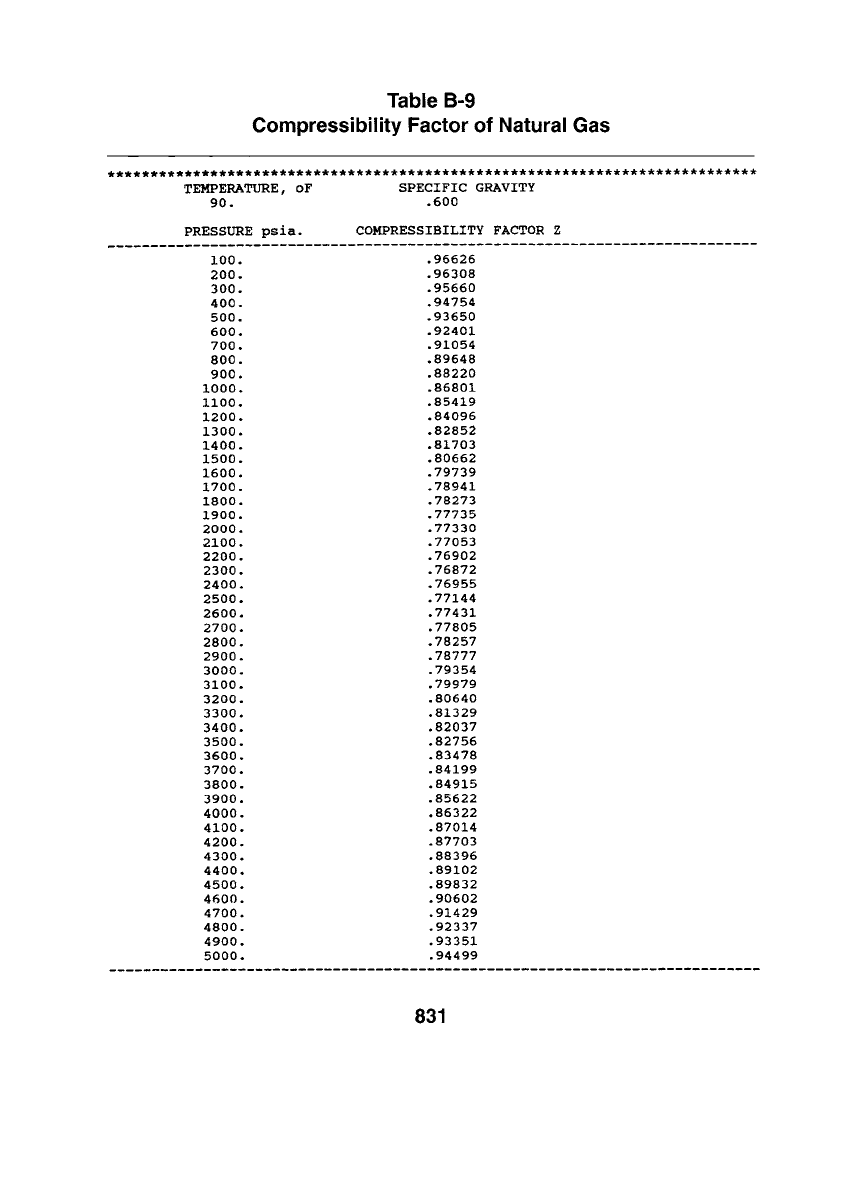

Table B-9
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
90. .600
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .96626
200. .96308
300. .95660
400. .94754
500. .93650
600. .92401
700. .91054
800. .89648
900. .88220
I000. .86801
ii00. .85419
1200. .84096
1300. .82852
1400. .81703
1500. .80662
1600. .79739
1700. .78941
1800. .78273
1900. .77735
2000. .77330
2100. .77053
2200. .76902
2300. .76872
2400. .76955
2500. .77144
2600. .77431
2700. .77805
2800. .78257
2900. .78777
3000. .79354
3100. .79979
3200. .80640
3300. .81329
3400. .82037
3500. .82756
3600. .83478
3700. .84199
3800. .84915
3900. .85622
4000. .86322
4100. .87014
4200. .87703
4300. .88396
4400. .89102
4500. .89832
4600. .90602
4700. .91429
4800. .92337
4900. .93351
5000. .94499
831
Table B-IO
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
i00. .600
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .96674
200. .96419
300. .95843
400. .95018
500. .94000
600. .92840
700. .91583
800. .90266
900. .88926
i000. .87590
ii00. .86287
1200. .85037
1300. .83860
1400. .82771
1500. .81782
1600. .80903
1700. .80141
1800. .79499
1900. .78981
2000. .78586
2100. .78312
2200. .78156
2300. .78113
2400. .78178
2500. .78341
2600. .78596
2700. .78934
2800. .79345
2900. .79819
3000. .80348
3100. .80920
3200. .81528
3300. .82161
3400. .82811
3500. .83472
3600. .84136
3700. .84798
3800. .85455
3900. .86104
4000. .86745
4100. .87380
4200. .88012
4300. .88647
4400. .89293
4500. .89964
4600. .90672
4700. .91434
4800. .92273
4900. .93212
5000. .94279
832
Table B-11
Compressibility Factor of Natural Gas
*****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
60. .650
PRESSURE psia. COMPRESSIBILITY FACTOR Z
I00. .94835
200. .93926
300. .92722
400. .91276
500. .89642
600. .87870
700. .86004
800. .84088
900. .82161
i000. .80258
ii00. .78414
1200. .76659
1300. .75021
1400. .73524
1500. .72189
1600. .71033
1700. .70067
1800. .69302
1900. .68738
2000. .68375
2100. .68206
2200. .68223
2300. .68411
2400. .68756
2500. .69242
2600. .69851
2700. .70565
2800. .71370
2900. .72248
3000. .73185
3100. .74169
3200. .75188
3300. .76231
3400. .77288
3500. .78353
3600. .79418
3700. .80478
3800. .81531
3900. .82573
4000. .83606
4100. .84632
4200. .85656
4300. .86688
4400. .87737
4500. .88819
4600. .89954
4700. .91163
4800. .92474
4900. .93919
5000. .95536
833

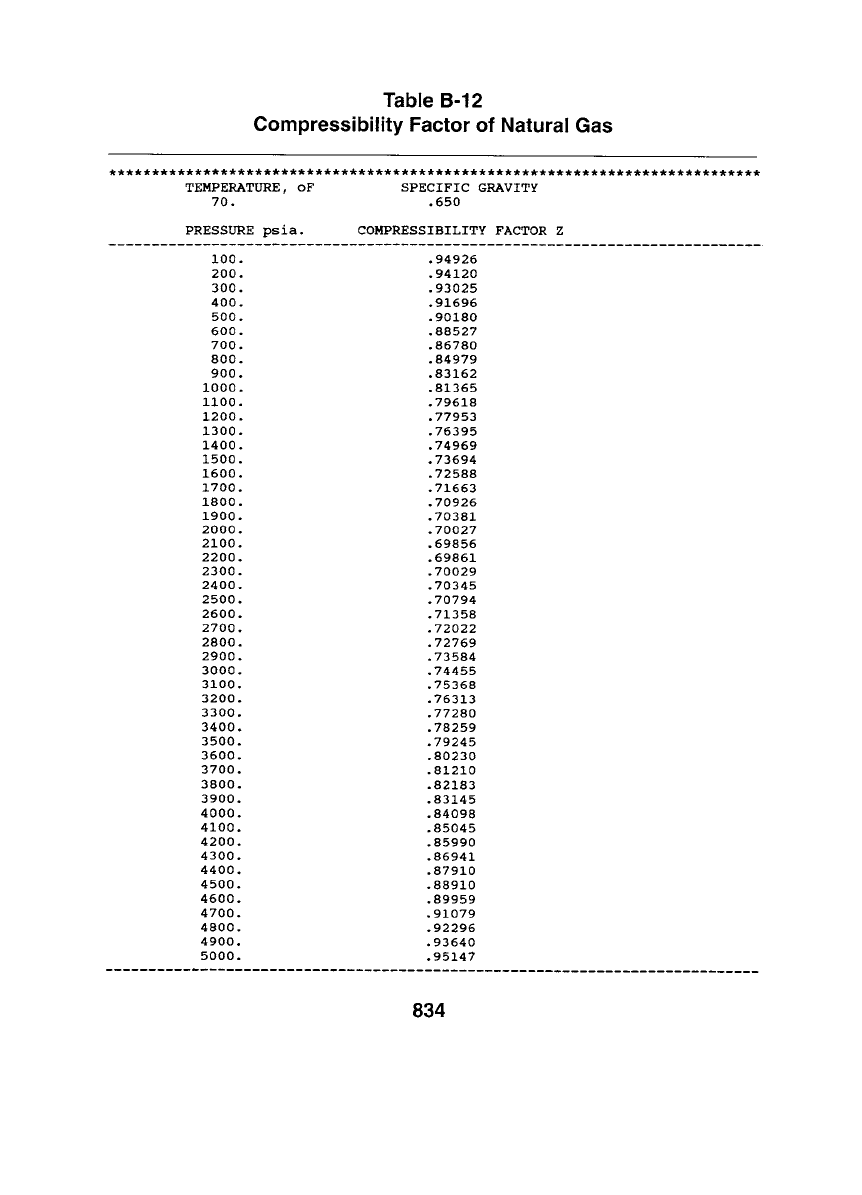

Table B-12
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
70. .650
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .94926
200. .94120
300. .93025
400. .91696
500. .90180
600. .88527
700. .86780
800. .84979
900. .83162
i000. .81365
ii00. .79618
1200. .77953
1300. .76395
1400. .74969
1500. .73694
1600. .72588
1700. .71663
1800. .70926
1900. .70381
2000. .70027
2100. .69856
2200. .69861
2300. .70029
2400. .70345
2500. .70794
2600. .71358
2700. .72022
2800. .72769
2900. .73584
3000. .74455
3100. .75368
3200. .76313
3300. .77280
3400. .78259
3500. .79245
3600. .80230
3700. .81210
3800. .82183
3900. .83145
4000. .84098
4100. .85045
4200. .85990
4300. .86941
4400. .87910
4500. .88910
4600. .89959
4700. .91079
4800. .92296
4900. .93640
5000. .95147
834
Table B-13
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
80. .650
PRESSURE psia. COMPRESSIBILITY FACTOR Z
I00. .95008
200. .94295
300. .93303
400. .92081
500. .90677
600. .89136
700. .87501
800. .85809
900. .84098
i000. .82400
ii00. .80747
1200. .79167
1300. .77687
1400. .76329
1500. .75114
1600. .74058
1700. .73172
1800. .72465
1900. .71940
2000. .71595
2100. .71426
2200. .71422
2300. .71573
2400. .71863
2500. .72279
2600. .72803
2700. .73420
2800. .74115
2900. .74874
3000. .75683
3100. .76531
3200. .77408
3300. .78305
3400. .79213
3500. .80125
3600. .81037
3700. .81943
3800. .82841
3900. .83730
4000. .84609
4100. .85482
4200. .86354
4300. .87231
4400. .88125
4500. .89049
4600. .90019
4700. .91056
4800. .92186
4900. .93435
5000. .94839
835

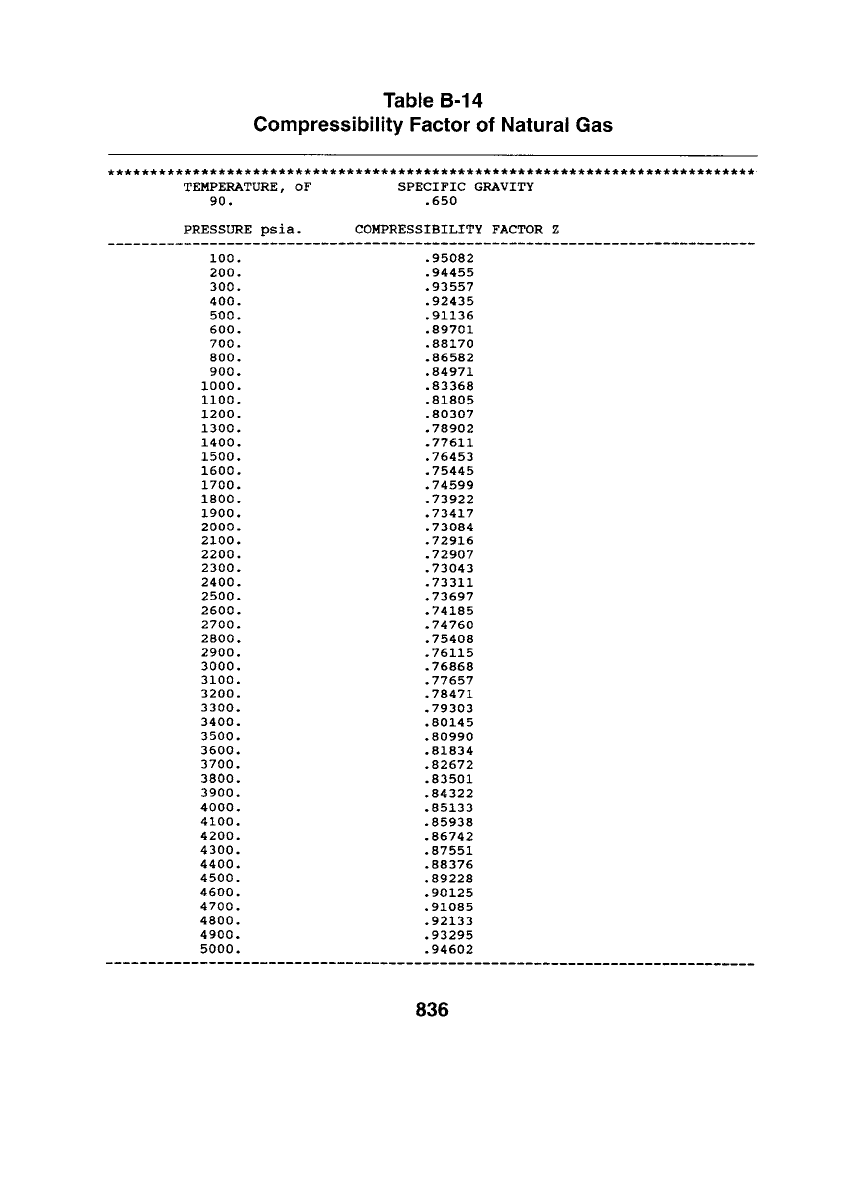

Table B-14
Compressibility Factor of Natural Gas
TEMPERATURE, oF SPECIFIC GRAVITY
90. .650
PRESSURE psia. COMPRESSIBILITY FACTOR Z
I00. .95082
200. .94455
300. .93557
400. .92435
500. .91136
600. .89701
700. .88170
800. .86582
900. .84971
i000. .83368
ii00. .81805
1200. .80307
1300. .78902
1400. .77611
1500. .76453
1600. .75445
1700. .74599
1800. .73922
1900. .73417
2000. .73084
2100. .72916
2200. .72907
2300. .73043
2400. .73311
2500. .73697
2600. .74185
2700. .74760
2800. .75408
2900. .76115
3000. .76868
3100. .77657
3200. .78471
3300. .79303
3400. .80145
3500. .80990
3600. .81834
3700. .82672
3800. .83501
3900. .84322
4000. .85133
4100. .85938
4200. .86742
4300. .87551
4400. .88376
4500. .89228
4600. .90125
4700. .91085
4800. .92133
4900. .93295
5000. .94602
