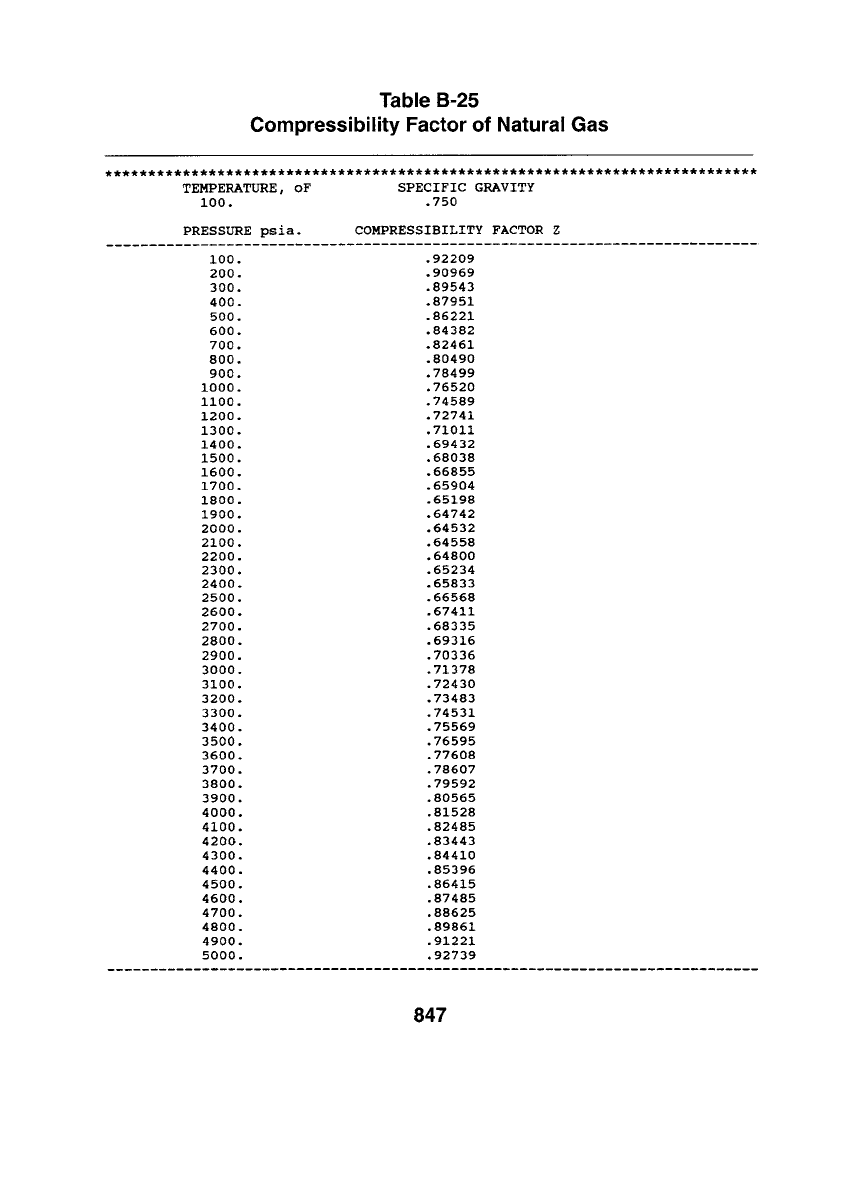

Table B-25

Compressibility Factor of Natural Gas

TEMPERATURE, oF SPECIFIC GRAVITY

i00. .750

PRESSURE psia. COMPRESSIBILITY FACTOR Z

i00. .92209

200. .90969

300. .89543

400. .87951

500. .86221

600. .84382

700. .82461

800. .80490

900. .78499

i000. .76520

ii00. .74589

1200. .72741

1300. .71011

1400. .69432

1500. .68038

1600. .66855

1700. .65904

1800. .65198

1900. .64742

2000. .64532

2100. .64558

2200. .64800

2300. .65234

2400. .65833

2500. .66568

2600. .67411

2700. .68335

2800. .69316

2900. .70336

3000. .71378

3100. .72430

3200. .73483

3300. .74531

3400. .75569

3500. .76595

3600. .77608

3700. .78607

3800. .79592

3900. .80565

4000. .81528

4100. .82485

4200. .83443

4300. .84410

4400. .85396

4500. .86415

4600. .87485

4700. .88625

4800. .89861

4900. .91221

5000. .92739

847

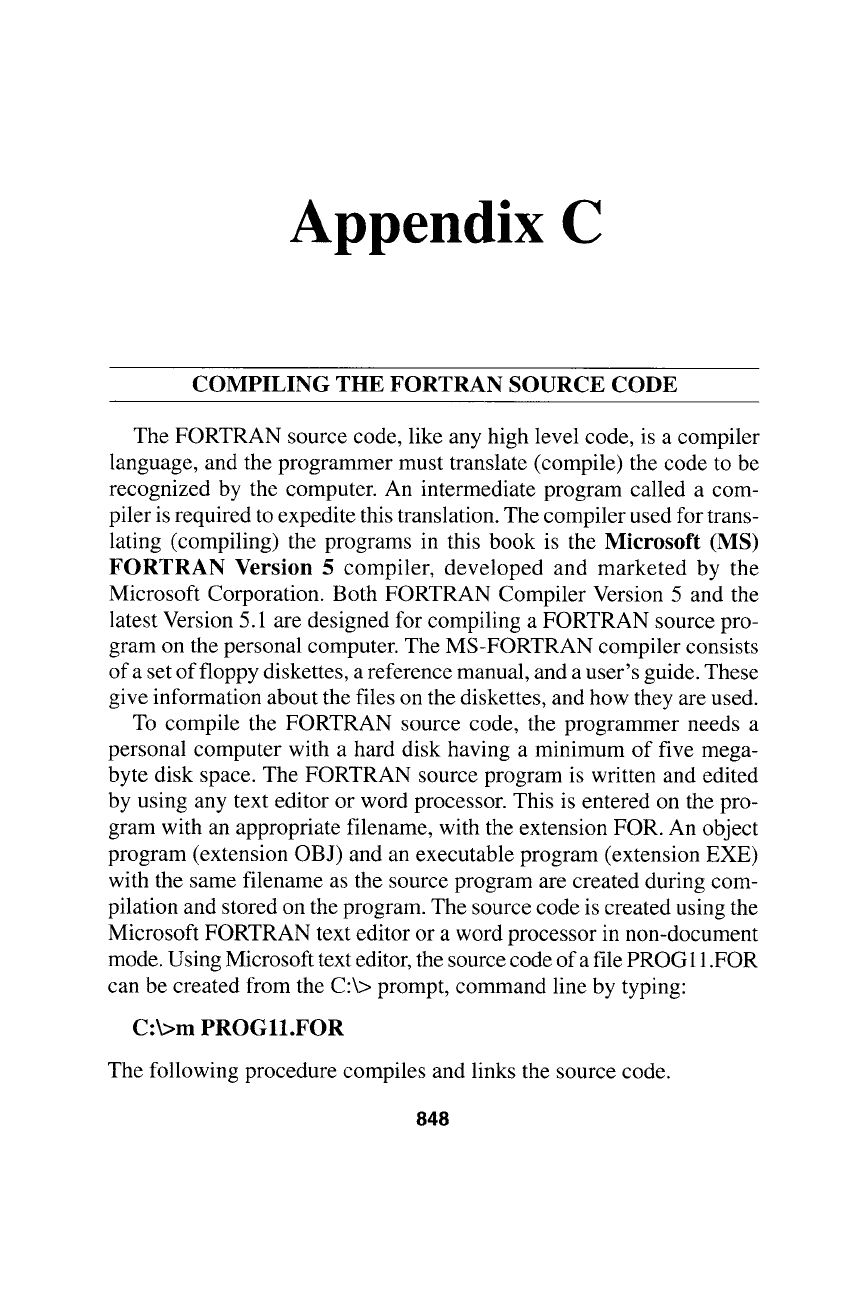

Appendix C

COMPILING THE FORTRAN SOURCE CODE

The FORTRAN source code, like any high level code, is a compiler

language, and the programmer must translate (compile) the code to be

recognized by the computer. An intermediate program called a com-

piler is required to expedite this translation. The compiler used for trans-

lating (compiling) the programs in this book is the Microsoft (MS)

FORTRAN

Version 5 compiler, developed and marketed by the

Microsoft Corporation. Both FORTRAN Compiler Version 5 and the

latest Version 5.1 are designed for compiling a FORTRAN source pro-

gram on the personal computer. The MS-FORTRAN compiler consists

of a set of floppy diskettes, a reference manual, and a user's guide. These

give information about the files on the diskettes, and how they are used.

To compile the FORTRAN source code, the programmer needs a

personal computer with a hard disk having a minimum of five mega-

byte disk space. The FORTRAN source program is written and edited

by using any text editor or word processor. This is entered on the pro-

gram with an appropriate filename, with the extension FOR. An object

program (extension OBJ) and an executable program (extension EXE)

with the same filename as the source program are created during com-

pilation and stored on the program. The source code is created using the

Microsoft FORTRAN text editor or a word processor in non-document

mode. Using Microsoft text editor, the source code of a file PROG 11.FOR

can be created from the C:\> prompt, command line by typing:

C:k>m PROGll.FOR

The following procedure compiles and links the source code.

848

Appendix C

849

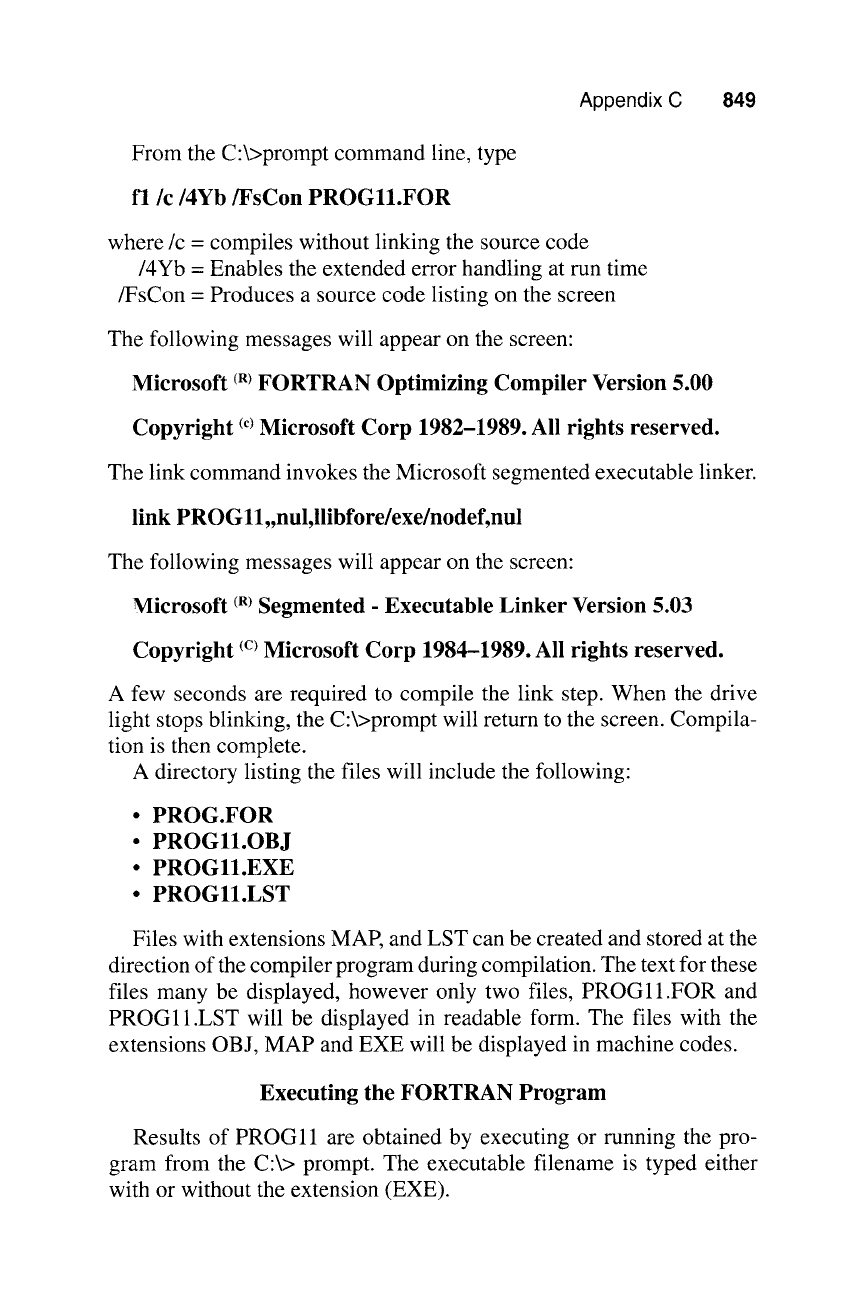

From the C:\>prompt command line, type

fl/c/4Yb/FsCon PROGll.FOR

where/c = compiles without linking the source code

/4Yb = Enables the extended error handling at run time

/FsCon = Produces a source code listing on the screen

The following messages will appear on the screen:

Microsoft ~a) FORTRAN Optimizing Compiler Version 5.00

The link command invokes the Microsoft segmented executable linker.

link PROG ll,,nul,llibfore/exe/nodef, nul

The following messages will appear on the screen:

Microsoft ~a) Segmented - Executable Linker Version 5.03

A few seconds are required to compile the link step. When the drive

light stops blinking, the C:\>prompt will return to the screen. Compila-

tion is then complete.

A directory listing the files will include the following:

9 PROG.FOR

9 PROGll.OBJ

9 PROGll.EXE

9 PROGll.LST

Files with extensions MAP, and LST can be created and stored at the

direction of the compiler program during compilation. The text for these

files many be displayed, however only two files, PROG11.FOR and

PROG11.LST will be displayed in readable form. The files with the

extensions OBJ, MAP and EXE will be displayed in machine codes.

Executing the FORTRAN Program

Results of PROGll are obtained by executing or running the pro-

gram from the C:\> prompt. The executable filename is typed either

with or without the extension (EXE).

850

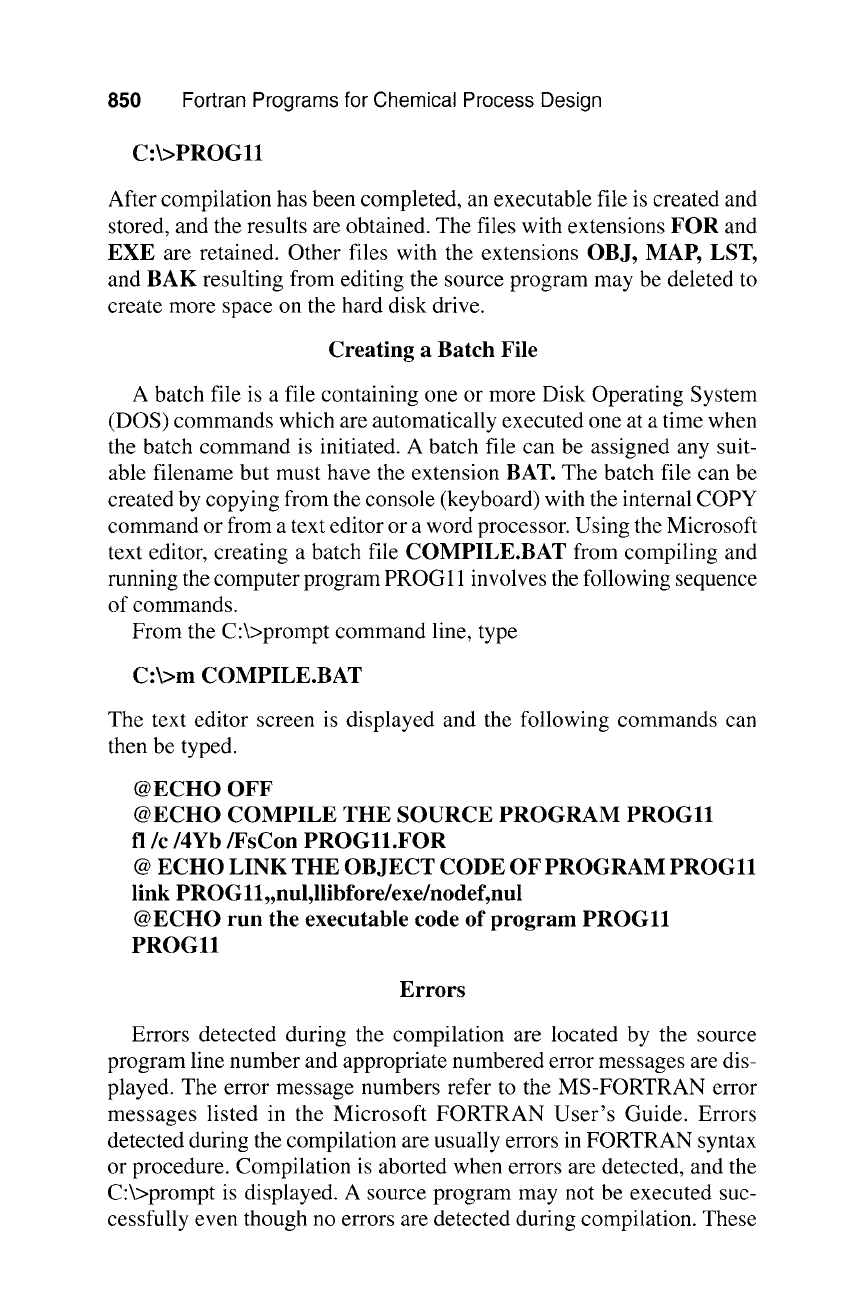

Fortran Programs for Chemical Process Design

C:\>PROGll

After compilation has been completed, an executable file is created and

stored, and the results are obtained. The files with extensions FOR and

EXE

are retained. Other files with the extensions OBJ, MAP, LST,

and BAK resulting from editing the source program may be deleted to

create more space on the hard disk drive.

Creating a Batch File

A batch file is a file containing one or more Disk Operating System

(DOS) commands which are automatically executed one at a time when

the batch command is initiated. A batch file can be assigned any suit-

able filename but must have the extension BAT. The batch file can be

created by copying from the console (keyboard) with the internal COPY

command or from a text editor or a word processor. Using the Microsoft

text editor, creating a batch file COMPILE.BAT from compiling and

running the computer program PROG 11 involves the following sequence

of commands.

From the C:\>prompt command line, type

C:\>m

COMPILE.BAT

The text editor screen is displayed and the following commands can

then be typed.

@ECHO OFF

@ECHO COMPILE THE SOURCE PROGRAM PROGll

fl/c/4Yb/FsCon PROGll.FOR

@ ECHO LINK THE OBJECT CODE OF PROGRAM PROGll

link PROGll,,nul,llibfore/exe/nodef, nul

@ECHO run the executable code of program PROGI1

PROGll

Errors

Errors detected during the compilation are located by the source

program line number and appropriate numbered error messages are dis-

played. The error message numbers refer to the MS-FORTRAN error

messages listed in the Microsoft FORTRAN User's Guide. Errors

detected during the compilation are usually errors in FORTRAN syntax

or procedure. Compilation is aborted when errors are detected, and the

C:\>prompt is displayed. A source program may not be executed suc-

cessfully even though no errors are detected during compilation. These

Appendix C 851

are known as run time errors. These types of errors abort execution and

display error messages to assist in identifying the errors. These error

messages may be explicit and are sometimes difficult to detect. Examples

of these errors are an attempt to calculate the square root of a negative

number or divide by zero. A way of de-bugging errors is by having print

or write statements at various stages of computation. Alternatively, a

debugger software tool can be used to permit the programmer to

execute his program one instruction at a time, and thus allows him to

examine the state of his program variables after any instruction. Microsoft

provides a high-level code degugger (CodeView) for this purpose.

Running the FORTRAN Program

Once the program has been typed into the computer using a text

editor or a word processor in non-document mode and stored in a file, it

must be compiled. A compiler is a program that translates a high-level

language to machine language. The compilation step is the first stage in

running the FORTRAN program on the computer. As the compiler trans-

lates statements, it also checks for syntax errors. These errors, also called

compiler errors, are errors in the statements such as misspellings and

punctuation errors. If these errors are detected, the compiler will print

error messages or diagnostics for the programmer. After debugging the

program, it can be recompiled using the MS-FORTRAN compiler.

After a successful compilation, a linkage editor program performs the

final stage before the program is executed.

The FORTRAN program is often referred to as the source program.

The source code is converted into the machine language by the com-

piler and prepared for execution by the linkage editor. The linking pro-

cess inserts pieces of the program in the right places in the object code

to produce an executable program. This is sometimes known as a binary

program, which is stored in a file. The data are inputted in the execution

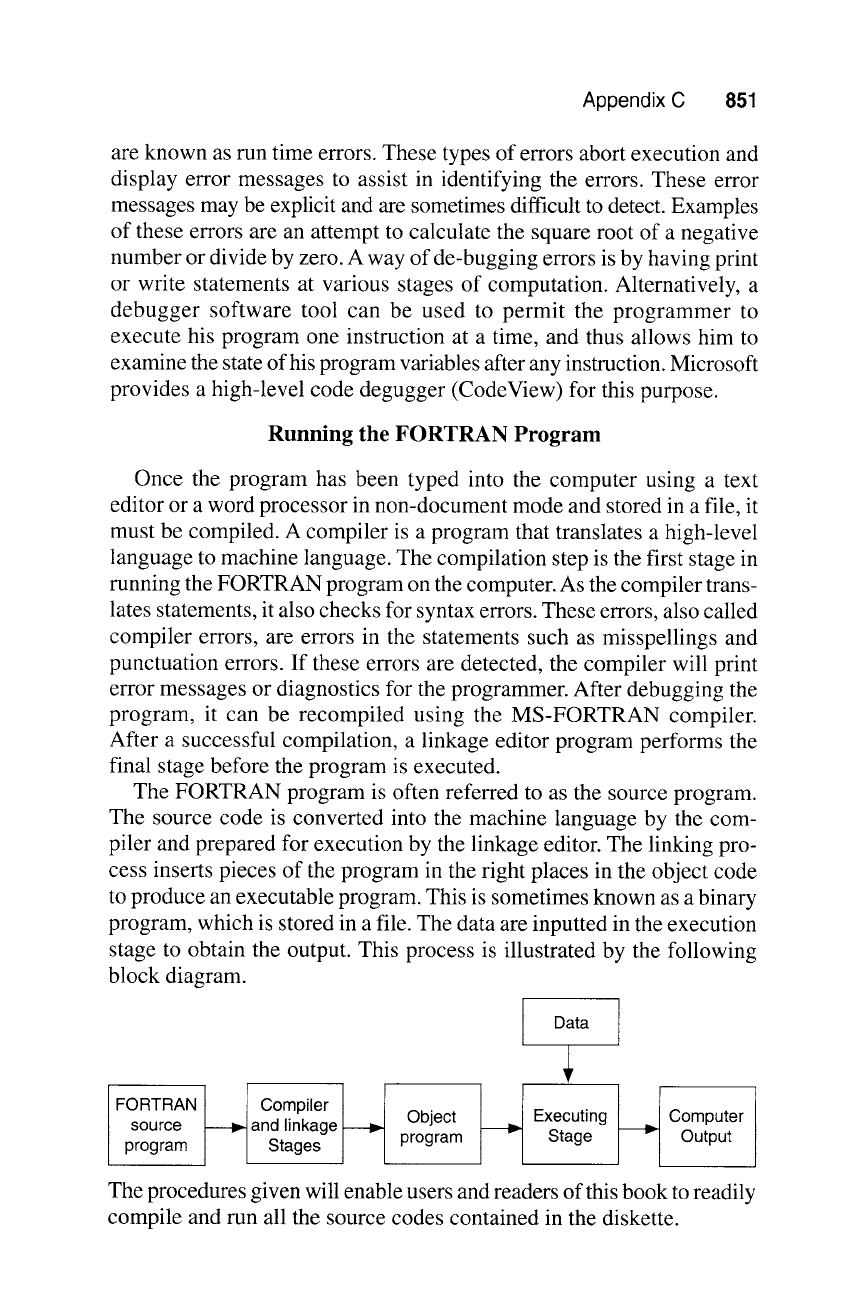

stage to obtain the output. This process is illustrated by the following

block diagram.

FORTRAN

source

program

Compiler

and linkage

Stages

Object

program

Data

Executing

Stage

Computer

Output

The procedures given will enable users and readers of this book to readily

compile and run all the source codes contained in the diskette.
