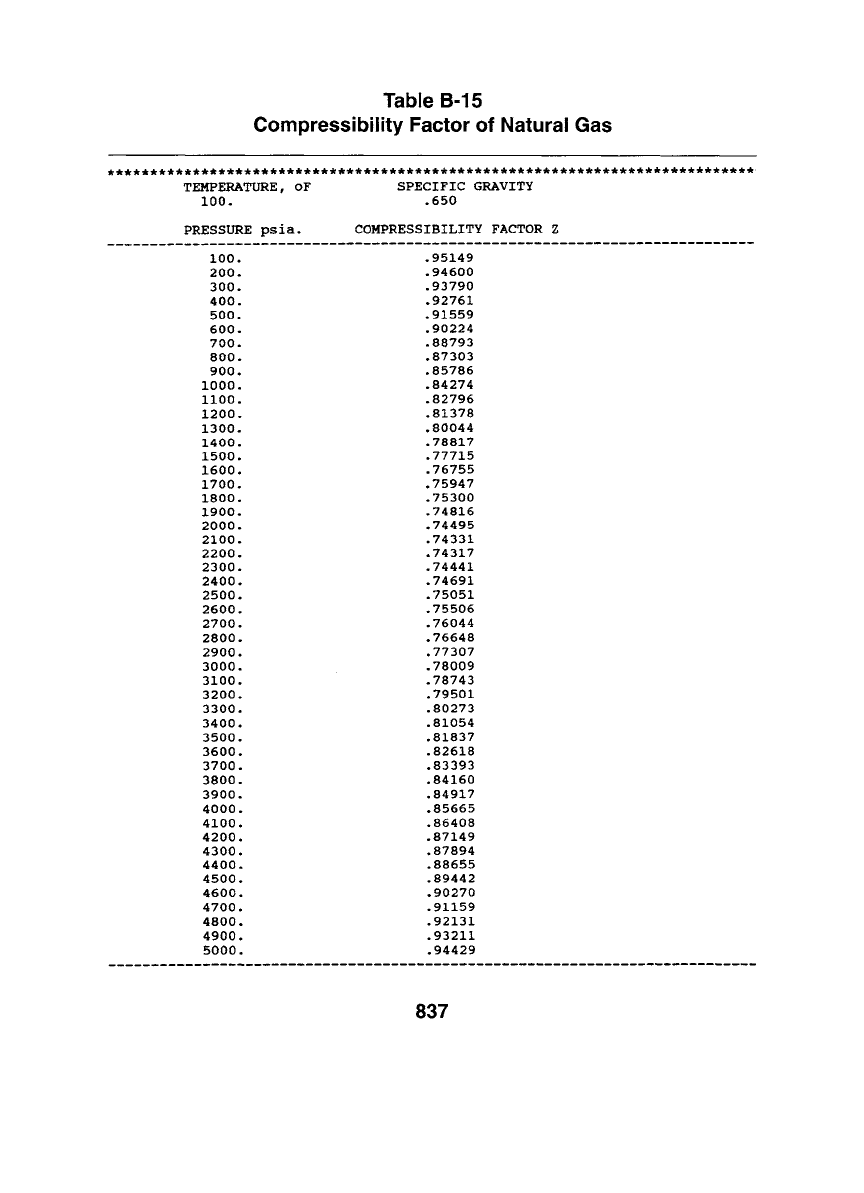

Table B-15
Compressibility Factor of Natural Gas
*****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
i00. .650
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .95149
200. .94600
300. .93790
400. .92761
500. .91559
600. .90224
700. .88793
800. .87303
900. .85786
i000. .84274
ii00. .82796
1200. .81378
1300. .80044
1400. .78817
1500. .77715
1600. .76755
1700. .75947
1800. .75300
1900. .74816
2000. .74495
2100. .74331
2200. .74317
2300. .74441
2400. .74691
2500. .75051
2600. .75506
2700. .76044
2800. .76648
2900. .77307
3000. .78009
3100. .78743
3200. .79501
3300. .80273
3400. .81054
3500. .81837
3600. .82618
3700. .83393
3800. .84160
3900. .84917
4000. .85665
4100. .86408
4200. .87149
4300. .87894
4400. .88655
4500. .89442
4600. .90270
4700. .91159
4800. .92131
4900. .93211
5000. .94429
837

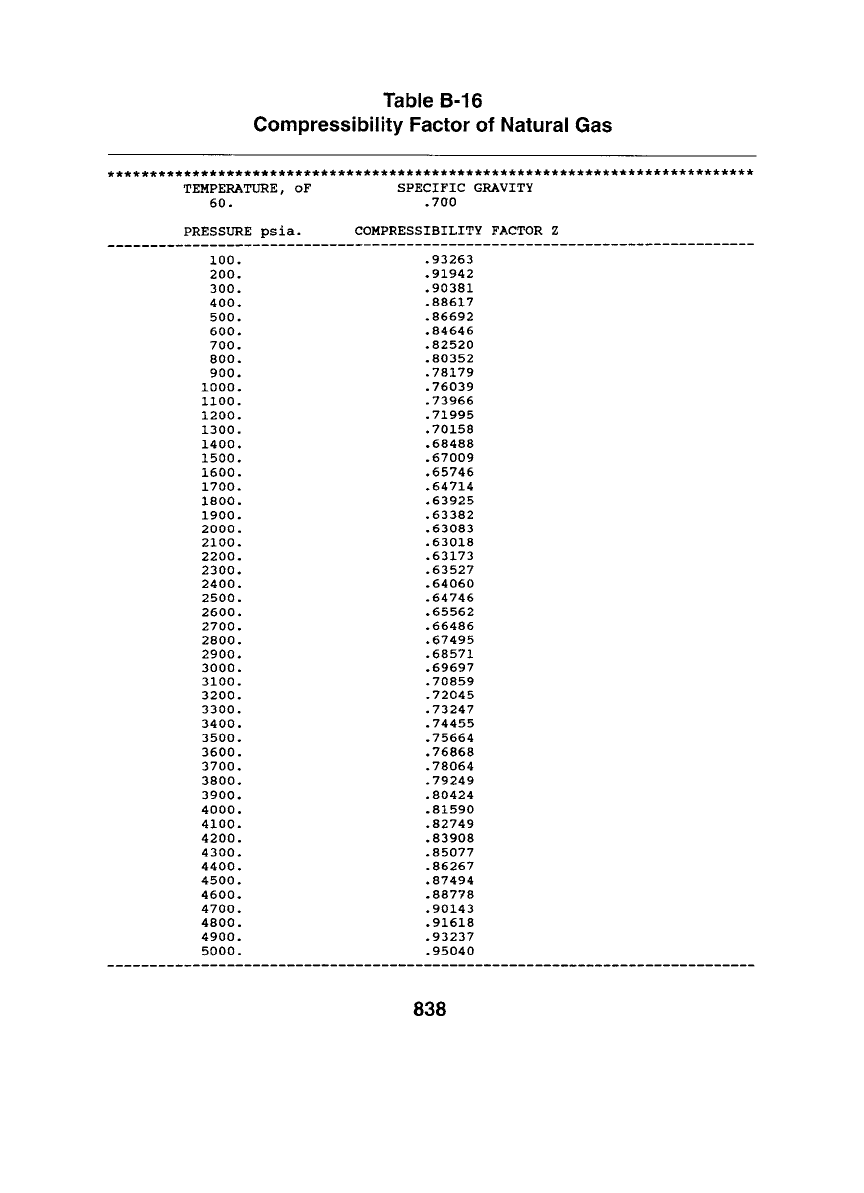

Table B-16
Compressibility Factor of Natural Gas
TEMPERATURE, oF SPECIFIC GRAVITY
60. .700
PRESSURE psia. COMPRESSIBILITY FACTOR Z
I00. .93263
200. .91942
300. .90381
400. .88617
500. .86692
600. .84646
700. .82520
800. .80352
900. .78179
i000. .76039
Ii00. .73966
1200. .71995
1300. .70158
1400. .68488
1500. .67009
1600. .65746
1700. .64714
1800. .63925
1900. .63382
2000. .63083
2100. .63018
2200. .63173
2300. .63527
2400. .64060
2500. .64746
2600. .65562
2700. .66486
2800. .67495
2900. .68571
3000. .69697
3100. .70859
3200. .72045
3300. .73247
3400. .74455
3500. .75664
3600. .76868
3700. .78064
3800. .79249
3900. .80424
4000. .81590
4100. .82749
4200. .83908
4300. .85077
4400. .86267
4500. .87494
4600. .88778
4700. .90143
4800. .91618
4900. .93237
5000. .95040
838

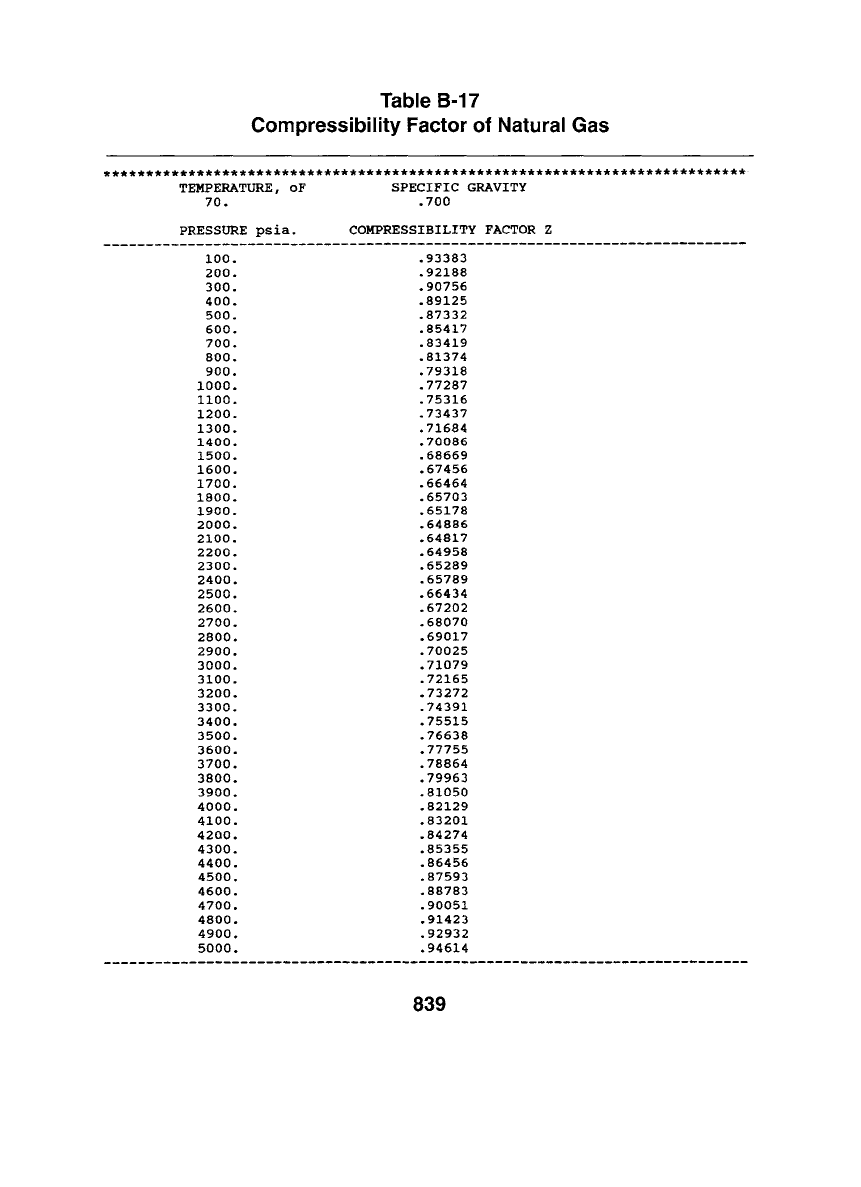

Table B-17
Compressibility Factor of Natural Gas
*****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
70. .700
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .93383
200. .92188
300. .90756
400. .89125
500. .87332
600. .85417
700. .83419
800. .81374
900. .79318
I000. .77287
ii00. .75316
1200. .73437
1300. .71684
1400. .70086
1500. .68669
1600. .67456
1700. .66464
1800. .65703
1900. .65178
2000. .64886
2100. .64817
2200. .64958
2300. .65289
2400. .65789
2500. .66434
2600. .67202
2700. .68070
2800. .69017
2900. .70025
3000. .71079
3100. .72165
3200. .73272
3300. .74391
3400. .75515
3500. .76638
3600. .77755
3700. .78864
3800. .79963
3900. .81050
4000. .82129
4100. .83201
4200. .84274
4300. .85355
4400. .86456
4500. .87593
4600. .88783
4700. .90051
4800. .91423
4900. .92932
5000. .94614
839

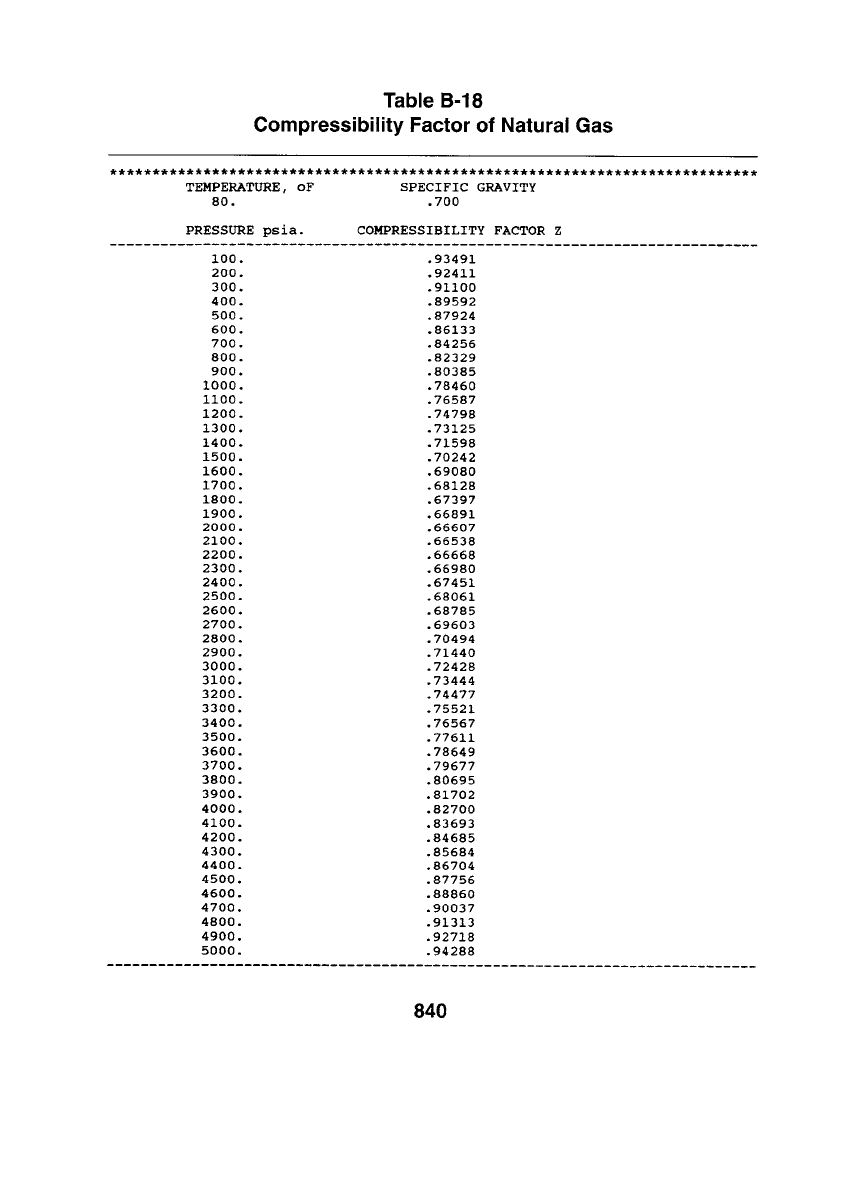

Table B-18
Compressibility Factor of Natural Gas
TEMPERATURE, oF SPECIFIC GRAVITY
80. .700
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .93491
200. .92411
300. .91100
400. .89592
500. .87924
600. .86133
700. .84256
800. .82329
900. .80385
I000. .78460
ii00. .76587
1200. .74798
1300. .73125
1400. .71598
1500. .70242
1600. .69080
1700. .68128
1800. .67397
1900. .66891
2000. .66607
2100. .66538
2200. .66668
2300. .66980
2400. .67451
2500. .68061
2600. .68785
2700. .69603
2800. .70494
2900. .71440
3000. .72428
3100. .73444
3200. .74477
3300. .75521
3400. .76567
3500. .77611
3600. .78649
3700. .79677
3800. .80695
3900. .81702
4000. .82700
4100. .83693
4200. .84685
4300. .85684
4400. .86704
4500. .87756
4600. .88860
4700. .90037
4800. .91313
4900. .92718
5000. .94288
840

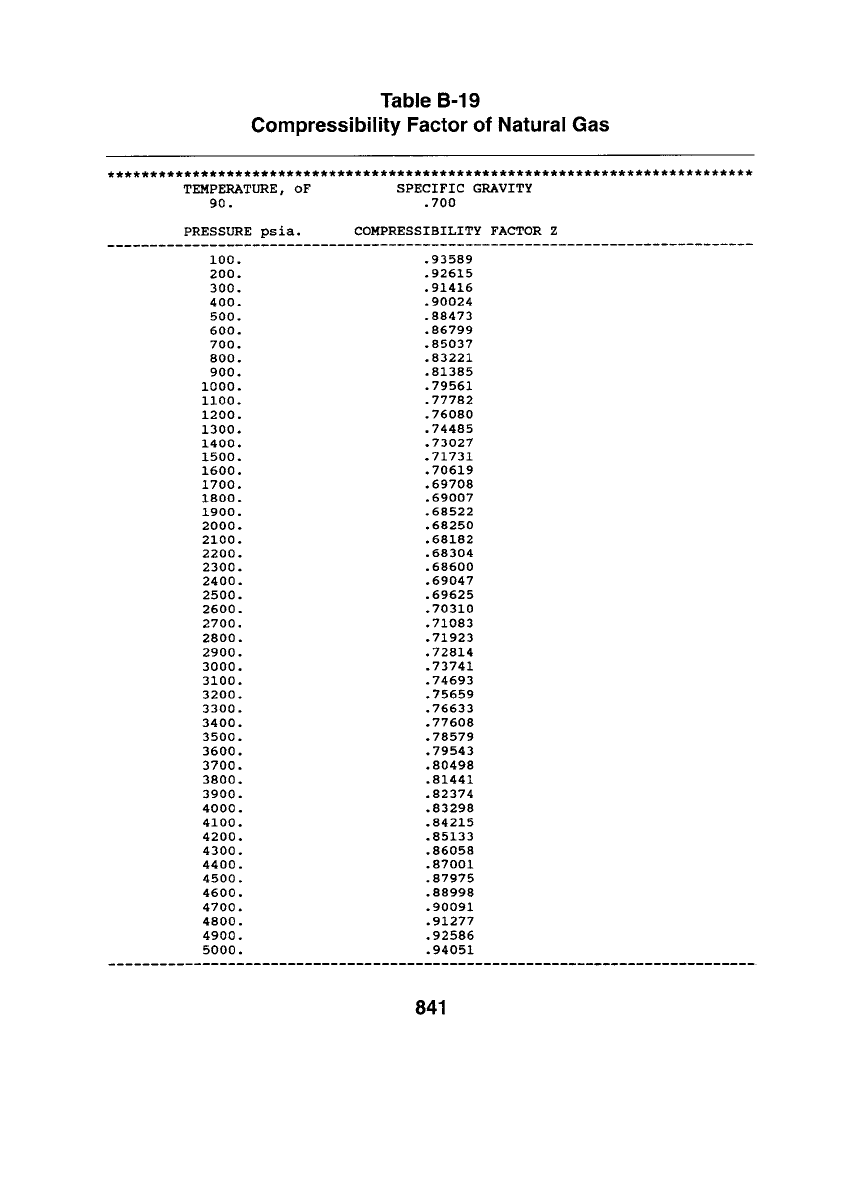

Table B-19
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
9O. .70O
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .93589
200. .92615
300. .91416
400. .90024
500. .88473
600. .86799
700. .85037
800. .83221
900. .81385
i000. .79561
ii00. .77782
1200. .76080
1300. .74485
1400. .73027
1500. .71731
1600. .70619
1700. .69708
1800. .69007
1900. .68522
2000. .68250
2100. .68182
2200. .68304
2300. .68600
2400. .69047
2500. .69625
2600. .70310
2700. .71083
2800. .71923
2900. .72814
3000. .73741
3100. .74693
3200. .75659
3300. .76633
3400. .77608
3500. .78579
3600. .79543
3700. .80498
3800. .81441
3900. .82374
4000. .83298
4100. .84215
4200. .85133
4300. .86058
4400. .87001
4500. .87975
4600. .88998
4700. .90091
4800. .91277
4900. .92586
5000. .94051
841
Table B-20
Compressibility Factor of Natural Gas
TEMPERATURE, oF SPECIFIC GRAVITY
i00. .700
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .93677
200. .92801
300. .91706
400. .90422
500. .88981
600. .87418
700. .85765
800. .84055
900. .82321
i000. .80594
ii00. .78906
1200. .77287
1300. .75769
1400. .74378
1500. .73141
1600. .72078
1700. .71207
1800. .70538
1900. .70074
2000. .69814
2100. .69750
2200. .69868
2300. .70150
2400. .70577
2500. .71127
2600. .71778
2700. .72510
2800. .73304
2900. .74144
3000. .75016
3100. .75909
3200. .76814
3300. .77724
3400. .78633
3500. .79538
3600. .80434
3700. .81320
3800. .82195
3900. .83059
4000. .83914
4100. .84763
4200. .85612
4300. .86467
4400. .87340
4500. .88242
4600. .89190
4700. .90204
4800. .91307
4900. .92527
5000. .93894
842
Table B-21
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
60. .750
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .91676
200. .89894
300. .87920
400. .85783
500. .83515
600. .81149
700. .78720
800. .76262
900. .73811
i000. .71403
ii00. .69075
1200. .66866
1300. .64813
1400. .62953
1500. .61318
1600. .59936
1700. .58829
1800. .58009
1900. .57483
2000. .57244
2100. .57280
2200. .57572
2300. .58092
2400. .58813
2500. .59701
2600. .60728
2700. .61862
2800. .63080
2900. .64357
3000. .65675
3100. .67019
3200. .68378
3300. .69742
3400. .71106
3500. .72463
3600. .73811
3700. .75147
3800. .76471
3900. .77782
4000. .79084
4100. .80381
4200. .81680
4300. .82990
4400. .84324
4500. .85699
4600. .87136
4700. .88660
4800. .90302
4900. .92099
5000. .94090
843

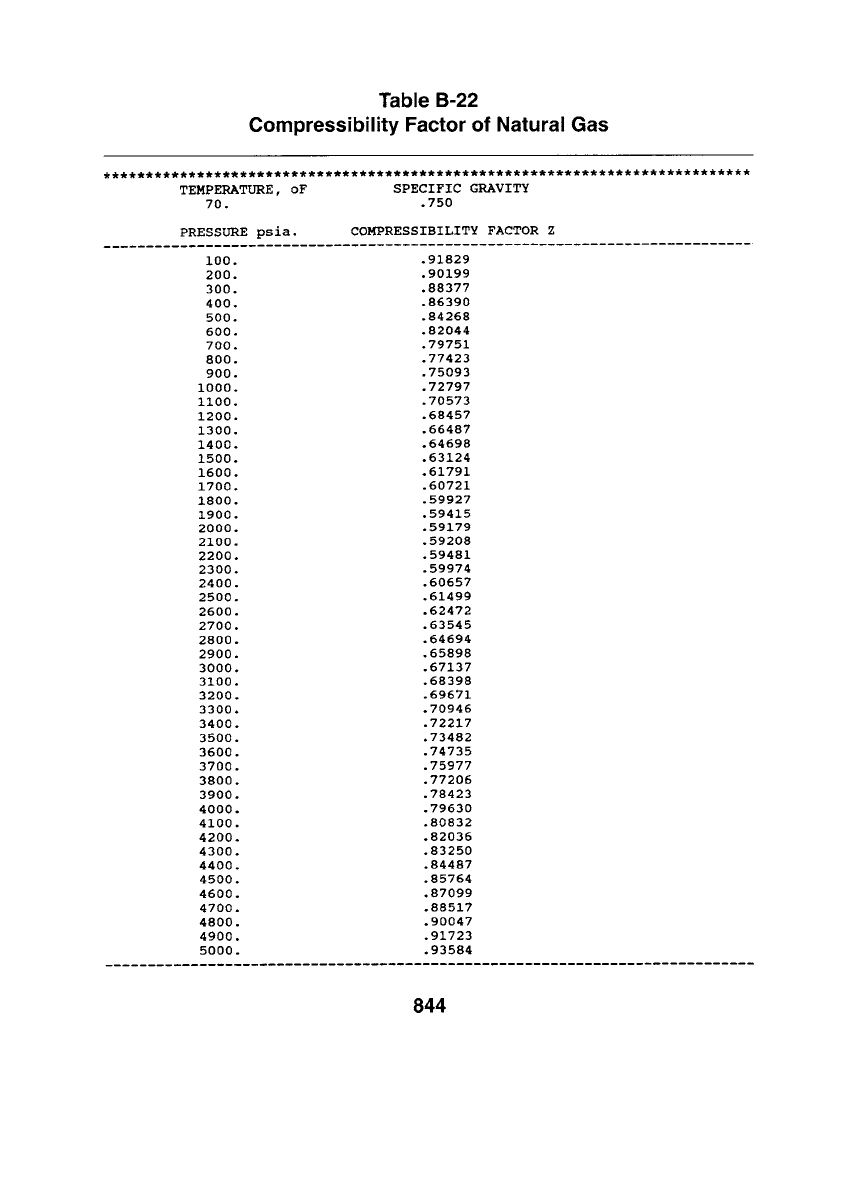

Table B-22
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
70. .750
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .91829
200. .90199
300. .88377
400. .86390
500. .84268
600. .82044
700. .79751
800. .77423
900. .75093
i000. .72797
ii00. .70573
1200. .68457
1300. .66487
1400. .64698
1500. .63124
1600. .61791
1700. .60721
1800. .59927
1900. .59415
2000. .59179
2100. .59208
2200. .59481
2300. .59974
2400. .60657
2500. .61499
2600. .62472
2700. .63545
2800. .64694
2900. .65898
3000. .67137
3100. .68398
3200. .69671
3300. .70946
3400. .72217
3500. .73482
3600. .74735
3700. .75977
3800. .77206
3900. .78423
4000. .79630
4100. .80832
4200. .82036
4300. .83250
4400. .84487
4500. .85764
4600. .87099
4700. .88517
4800. .90047
4900. .91723
5000. .93584
844

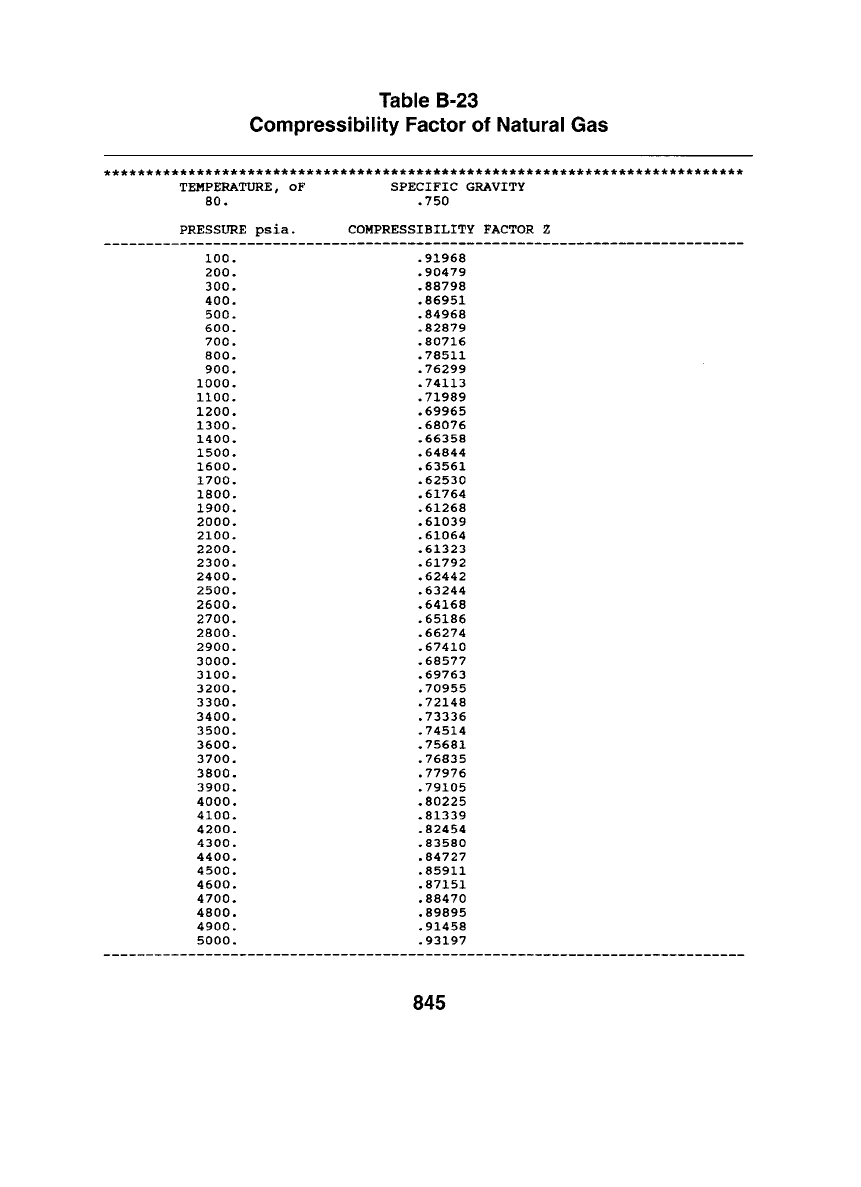

Table B-23
Compressibility Factor of Natural Gas
TEMPERATURE, oF SPECIFIC GRAVITY
80. .750
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .91968
200. .90479
300. .88798
400. .86951
500. .84968
600. .82879
700. .80716
800. .78511
900. .76299
i000. .74113
ii00. .71989
1200. .69965
1300. .68076
1400. .66358
1500. .64844
1600. .63561
1700. .62530
1800. .61764
1900. .61268
2000. .61039
2100. .61064
2200. .61323
2300. .61792
2400. .62442
2500. .63244
2600. .64168
2700. .65186
2800. .66274
2900. .67410
3000. .68577
3100. .69763
3200. .70955
3300. .72148
3400. .73336
3500. .74514
3600. .75681
3700. .76835
3800. .77976
3900. .79105
4000. .80225
4100. .81339
4200. .82454
4300. .83580
4400. .84727
4500. .85911
4600. .87151
4700. .88470
4800. .89895
4900. .91458
5000. .93197
845

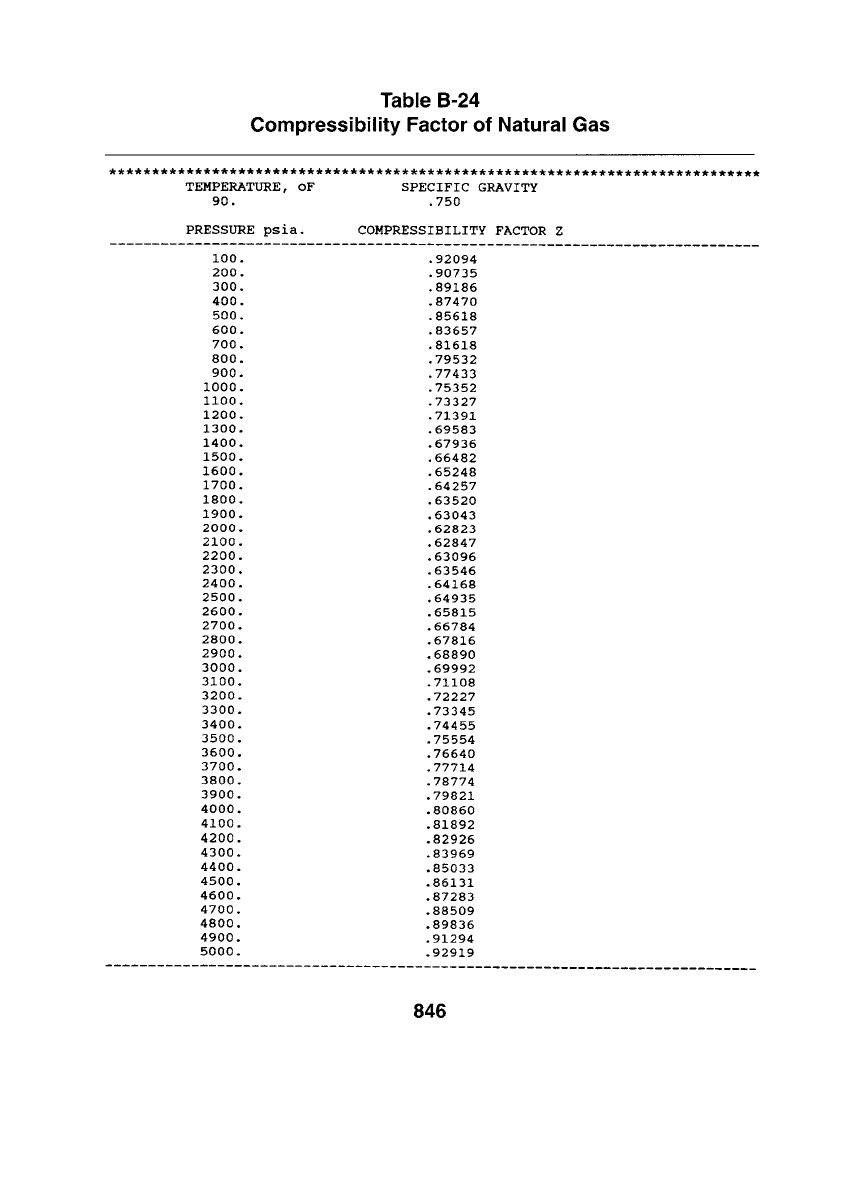

Table B-24
Compressibility Factor of Natural Gas
****************************************************************************
TEMPERATURE, oF SPECIFIC GRAVITY
90. .750
PRESSURE psia. COMPRESSIBILITY FACTOR Z
i00. .92094
200. .90735
300. .89186
400. .87470
500. .85618
600. .83657
700. .81618
800. .79532
900. .77433
i000. .75352
ii00. .73327
1200. .71391
1300. .69583
1400. .67936
1500. .66482
1600. .65248
1700. .64257
1800. .63520
1900. .63043
2000. .62823
2100. .62847
2200. .63096
2300. .63546
2400. .64168
2500. .64935
2600. .65815
2700. .66784
2800. .67816
2900. .68890
3000. .69992
3100. .71108
3200. .72227
3300. .73345
3400. .74455
3500. .75554
3600. .76640
3700. .77714
3800. .78774
3900. .79821
4000. .8O86O
4100. .81892
4200. .82926
4300. .83969
4400. .85033
4500. .86131
4600. .87283
4700. .88509
4800. .89836
4900. .91294
5000. .92919
846
