658 Phase contrast microscopy
(a)
(b)
(c)
(d)
1 µm

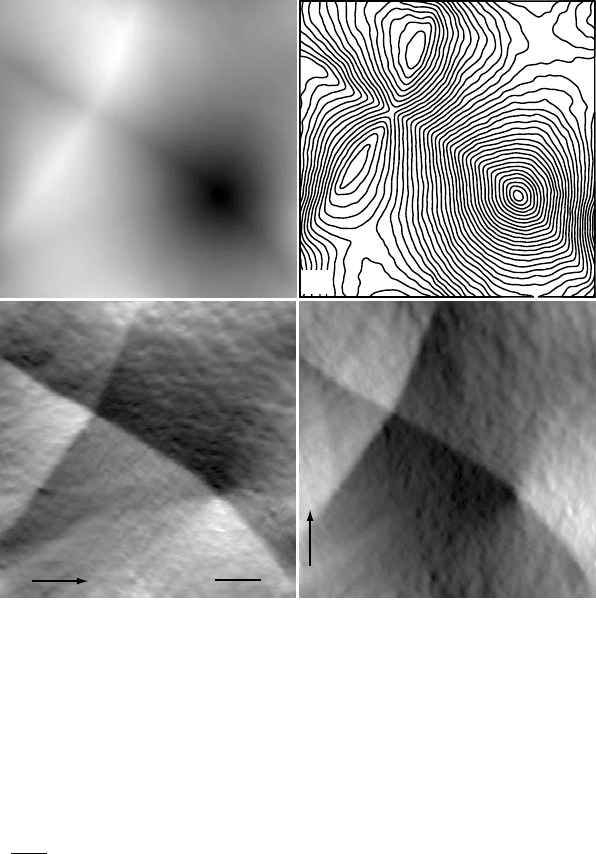

Fig. 10.38.
(a) Reconstructed phase for the square area outlined in Fig.
4.28(c). (b) Contour
plot of the phase φ(r); the vortex is clearly visible to the lower right. (c) B
x
and (d) B
y
maps, obtained by numerical differentiation of the phase. The maps are only qualitatively
correct, since the microscope defocus was not calibrated.
Exercises
10.1 Show that the paraxial image intensity in Lorentz mode is given by equation (10.78).
10.2 Derive equation (10.93) for the inverse Laplacian operator.
10.3 Show that the gradient of the aberration function χ(Q) reaches a minimum at Q =
√
D/3.
10.4 Consider the microscope I
2
from Table 10.1. If this machine
is equipped with a
1K×1K CCD camera with a pixel size of 25 × 25 µm
2
, then what microscope mag-
nification should be used to record images that contain spatial frequencies out to
the chromatic information limit (assuming the sample contains such spatial frequen-
cies)? How many pixels of the CCD camera cannot be used because of the detector
envelope function?
10.5 Adapt the
HREMExample.f90 program to use any pair of parameters as variables
for the output matrix. As an example, you may want to study the source code of the
ctf2.pro ION program on the website.
10.6 Final remarks 659
500 nm

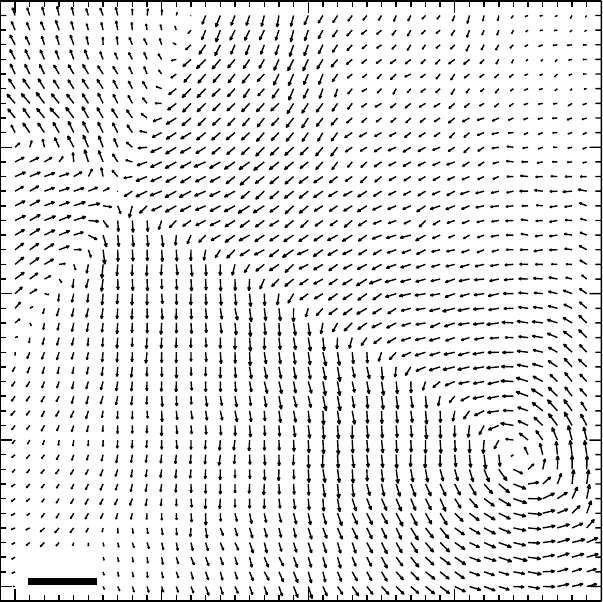

Fig. 10.39. Vector map derived from the component images in Figs 10.38(c) and (d). Each
vector is an average over a 4 × 4 pixel square region (or 100 × 100 nm
2
).
10.6 Use an amorphous Ge film (or, if you do not have one,aCfilm)todetermine the
spherical aberration of the microscope you use for your observations. How accurately
can
you determine
C
s
?
10.7 Use your thin foil of GaAs to obtain a [110] high-resolution through-focus series
for two different diffraction aperture diameters. Simulate the images, and compare
simulations and experiments.
10.8 The transport-of-intensity equation can be used to reconstruct the phase of the elec-
tron wave for Lorentz-type observations. Can you think of a way to adapt the formal-
ism to high-resolution
images? What would happen if the formalism were applied
to images from a C
s
-corrected microscope?
10.6 Final remarks
Well, you have reached the end of this book. Hopefully, you found it to be a useful
book. If you were new to microscopy, it is hoped that this text has provided you
660 Phase contrast microscopy
1 µm
(a) (b) (c)
(d) (e) (f)

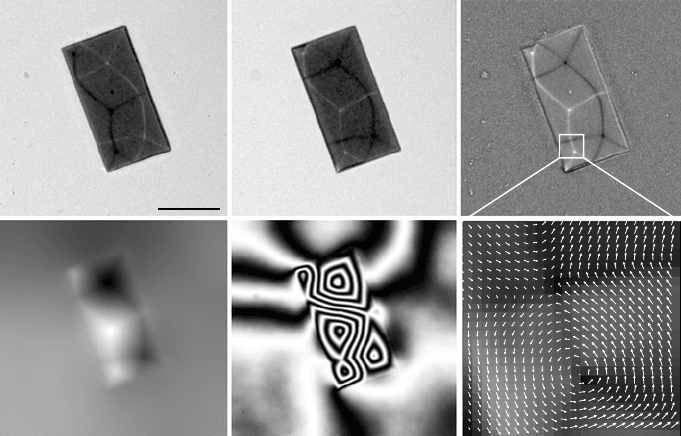

Fig. 10.40. (a) and (b) under- and over-focus Fresnel images (400 kV, zero-loss filtered)
ofa1× 2 µm Permalloy island on an Si
3
N
4
support membrane. The derivative ∂ I/∂ z is
shown in (c), along with the reconstructed phase φ in (d), and cos φ in (e). (f) is a vector
representation of the square area outlined in (c). (Sample courtesy of J. Chapman, Univ.
Glasgow.)
with a solid introduction to the physical principles underlying the interaction of
electrons with the specimen, and the subsequent propagation of those electrons
down the microscope column. If you like computers and simulations, then perhaps
the source code accompanying this book was just what you needed to get started. If
you are an experienced microscopist, it is hoped that you could find something new
in this text, perhaps a derivation that suddenly makes sense, or an illustration that
provoked what the German language so efficiently describes as an “Aha-Erlebnis”.
†
The field of electron optical methods is vast, and what you have learned in this
book is truly just an introduction to the operation and use of one the most important
instruments of materials science. The material covered in this text should give
you a basic knowledge of elastic scattering in crystalline matter. You can build on
this knowledge when you expand your studies to include inelastic scattering and
analytical observation methods.
†
An Aha-Erlebnis is “Ein eigenartiges im Denkverlauf auftretendes-lustbetontes Erlebnis, das sich bei pl¨otzlicher
Einsicht in einen zuerst undurchsichten Zusammenhang einstellt.” (K. B¨uhler, speech psychologist.)
Appendix A1
Explicit crystallographic equations
In Chapter 1, we have derived the general equations for angles and distances in both direct
and reciprocal space. Sometimes it is useful to have the explicit versions of those
equations for a particular crystal system. For instance, the d-spacing for the planes (hkl)
in a cubic crystal is given by
d
hkl
=
a
√
h
2
+ k
2
+l
2
,
and for manual calculations this is indeed easier to use than the more formal tensor
relations. For implementations in a computer program, it is much easier to use the tensor
formalism, because then one need not distinguish between the seven crystal systems (but,
beware of the hexagonal system!). The equations
for the hexagonal reference frame are
only valid for the
3-index system.
In this appendix, we list the explicit equations for the direct and reciprocal metric
tensors, the length of a vector t
uvw
(Table A1.1), the angle between two vectors t
u
1
v
1
w
1
and
t
u
2
v
2
w
2
(Table A1.2), the length of a reciprocal lattice vector g
hkl
(Table A1.3), and the
angle between two reciprocal lattice vectors g
h
1
k
1
l
1
and g
h
2
k
2
l
2
(Table A1.4). All equations
in the tables were directly derived from the expressions for the direct and reciprocal
metric tensors below.
(i) Direct metric tensors:
g
c
=
a
2
00
0 a
2
0
00a
2
, g
t
=
a
2
00
0 a
2
0
00c
2
,
g
o
=
a
2
00
0 b
2
0
00c
2
, g
h
=
a
2
−a
2
/20
−a
2
/2 a
2
0
00c
2
,
g
r
=
a
2
a
2
cos α a
2
cos α
a
2
cos α a
2
a
2
cos α
a
2
cos α a
2
cos α a
2
, g
m
=
a
2
0 ac cos β
0 b
2
0
ac cos β 0 c
2
,
661
