can also have an impact on the phenotype and be seriously misleading but this

problem can be solved by analyzing iPSCs from different affected individuals as

well as unaffected controls (ideally from the same family to eliminate the effects of

a different genetic background). It is also remarkable that, following the success of

iPSC derivation, cells resembling neurons have been produced directly from mouse

ﬁbroblasts by overexpressing neural enriched transcription factors [90]. These

neurons display electrical activity and can form synapses, but it is unclear yet

whether they bear extensive neuron-like epigenetic remodeling and the ﬁbroblast

genetic program has been effectively shut down. In the near future we may see other

examples of direct transdifferentiation (Fig. 1), and if the transformation is accurate

this may end up being more practical than the uphill differentiation into iPSCs and

then downhill into speciﬁc lineages. In any case, this experiment is a clear indica-

tion that iPSC technology is forcing us to think of cell fate as a navigable condition

rather than a ﬁxed state, and this directly or indirectly will likely inﬂuence how we

perceive human physiology and disease.

Acknowledgments Work in the authors’ laboratories, Chinese Academy of Sciences, National

Natural Science Foundation of China, Ministry of Science and Technology 973 program, National

High Technology Research and Development Program of China, Bureau of Science and Technol-

ogy of Guangzhou Municipality.

References

1. Red-Horse K, Zhou Y, Genbacev O, Prakobphol A, Foulk R, McMaster M, Fisher SJ (2004)

J Clin Invest 114:744–754

2. Lindstrom J (1999) Trends Ecol Evol 14:343–348

3. Thomson JA, Itskovitz-Eldor J, Shapiro SS, Waknitz MA, Swiergiel JJ, Marshall VS, Jones

JM (1998) Science 282:1145–1147

4. Evans MJ, Kaufman MH (1981) Nature 292:154–156

5. Vallier L, Alexander M, Pedersen RA (2005) J Cell Sci 118:4495–4509

6. Qi X, Li TG, Hao J, Hu J, Wang J, Simmons H, Miura S, Mishina Y, Zhao GQ (2004) Proc

Natl Acad Sci USA 101:6027–6032

7. Ying QL, Nichols J, Chambers I, Smith A (2003) Cell 115:281–292

8. Hanna J, Markoulaki S, Mitalipova M, Cheng AW, Cassady JP, Staerk J, Carey BW, Lengner

CJ, Foreman R, Love J, Gao Q, Kim J, Jaenisch R (2009) Cell Stem Cell 4:513–524

9. Hayashi K, Lopes SM, Tang F, Surani MA (2008) Cell Stem Cell 3:391–401

10. Bao S, Tang F, Li X, Hayashi K, Gillich A, Lao K, Surani MA (2009) Nature 461:1292–1295

11. Guo G, Yang J, Nichols J, Hall JS, Eyres I, Mansﬁeld W, Smith A (2009) Development

136:1063–1069

12. Brevini TA, Antonini S, Cillo F, Crestan M, Gandolﬁ F (2007) Theriogenology 68(Suppl 1):

S206–S213

13. Rao M (2008) Gene Ther 15:82–88

14. Kassem M, Kristiansen M, Abdallah BM (2004) Basic Clin Pharmacol Toxicol 95:209–214

15. Johnson MH (2008) Cell Stem Cell 2:103–104

16. Wilmut I, Schnieke AE, McWhir J, Kind AJ, Campbell KH (1997) Nature 385:810–813

17. Takahashi K, Yamanaka S (2006) Cell 126:663–676

18. Yamanaka S (2009) Cell 137:13–17

138 M.A. Esteban et al.

19. Briggs R, King TJ (1952) Proc Natl Acad Sci USA 38:455–463

20. Gurdon JB (1962) J Embryol Exp Morphol 10:622–640

21. Meng L, Ely JJ, Stouffer RL, Wolf DP (1997) Biol Reprod 57:454–459

22. Simerly C, Navara C, Hyun SH, Lee BC, Kang SK, Capuano S, Gosman G, Dominko T,

Chong KY, Compton D, Hwang WS, Schatten G (2004) Dev Biol 276:237–252

23. Marson A, Levine SS, Cole MF, Frampton GM, Brambrink T, Johnstone S, Guenther MG,

Johnston WK, Wernig M, Newman J, Calabrese JM, Dennis LM, Volkert TL, Gupta S, Love

J, Hannett N, Sharp PA, Bartel DP, Jaenisch R, Young RA (2008) Cell 134:521–533

24. Kim J, Chu J, Shen X, Wang J, Orkin SH (2008) Cell 132:1049–1061

25. Nichols J, Zevnik B, Anastassiadis K, Niwa H, Klewe-Nebenius D, Chambers I, Scholer H,

Smith A (1998) Cell 95:379–391

26. Chambers I, Colby D, Robertson M, Nichols J, Lee S, Tweedie S, Smith A (2003) Cell

113:643–655

27. Mitsui K, Tokuzawa Y, Itoh H, Segawa K, Murakami M, Takahashi K, Maruyama M, Maeda

M, Yamanaka S (2003) Cell 113:631–642

28. Chambers I, Silva J, Colby D, Nichols J, Nijmeijer B, Robertson M, Vrana J, Jones K,

Grotewold L, Smith A (2007) Nature 450:1230–1234

29. Liang J, Wan M, Zhang Y, Gu P, Xin H, Jung SY, Qin J, Wong J, Cooney AJ, Liu D,

Songyang Z (2008) Nat Cell Biol 10:731–739

30. Bernstein BE, Mikkelsen TS, Xie X, Kamal M, Huebert DJ, Cuff J, Fry B, Meissner A,

Wernig M, Plath K, Jaenisch R, Wagschal A, Feil R, Schreiber SL, Lander ES (2006) Cell

125:315–326

31. Peterson CL, Laniel MA (2004) Curr Biol 14:R546–R551

32. Okita K, Ichisaka T, Yamanaka S (2007) Nature 448:313–317

33. Wernig M, Meissner A, Foreman R, Brambrink T, Ku M, Hochedlinger K, Bernstein BE,

Jaenisch R (2007) Nature 448:318–324

34. Takahashi K, Tanabe K, Ohnuki M, Narita M, Ichisaka T, Tomoda K, Yamanaka S (2007)

Cell 131:861–872

35. Yu J, Vodyanik MA, Smuga-Otto K, Antosiewicz-Bourget J, Frane JL, Tian S, N ie J,

Jonsdottir GA, Ruotti V, Stewart R, Slukvin II, Thomson JA (2007) Science 318:

1917–1920

36. Nakagawa M, Koyanagi M, Tanabe K, Takahashi K, Ichisaka T, Aoi T, Okita K, Mochiduki

Y, Takizawa N, Yamanaka S (2008) Nat Biotechnol 26:101–106

37. Wernig M, Meissner A, Cassady JP, Jaenisch R (2008) Cell Stem Cell 2:10–12

38. Rowland BD, Bernards R, Peeper DS (2005) Nat Cell Biol 7:1074–1082

39. Hochedlinger K, Yamada Y, Beard C, Jaenisch R (2005) Cell 121:465–477

40. Soldner F, Hockemeyer D, Beard C, Gao Q, Bell GW, Cook EG, Hargus G, Blak A, Cooper O,

Mitalipova M, Isacson O, Jaenisch R (2009) Cell 136:964–977

41. Stadtfeld M, Nagaya M, Utikal J, Weir G, Hochedlinger K (2008) Science 322:945–949

42. Zhou W, Freed CR (2009) Stem Cells 27:2667–2674

43. Yu J, Hu K, Smuga-Otto K, Tian S, Stewart R, Slukvin II, Thomson JA (2009) Science

324:797–801

44. Zhou H, Wu S, Joo JY, Zhu S, Han DW, Lin T, Trauger S, Bien G, Yao S, Zhu Y, Siuzdak G,

Scholer HR, Duan L, Ding S (2009) Cell Stem Cell 4:381–384

45. Kim D, Kim CH, Moon JI, Chung YG, Chang MY, Han BS, Ko S, Yang E, Cha KY, Lanza R,

Kim KS (2009) Cell Stem Cell 4:472–476

46. Huangfu D, Maehr R, Guo W, Eijkelenboom A, Snitow M, Chen AE, Melton DA (2008) Nat

Biotechnol 26:795–797

47. Esteban MA, Wang T, Qin B, Yang J, Qin D, Cai J, Li W, Weng Z, Chen J, Ni S, Chen K, Li

Y, Liu X, Xu J, Zhang S, Li F, He W, Labuda K, Song Y, Peterbauer A, Wolbank S, Redl H,

Zhong M, Cai D, Zeng L, Pei D (2010) Cell Stem Cell 6:71–79

48. Maherali N, Hochedlinger K (2009) Curr Biol 19:1718–1723

Induced Pluripotent Stem Cell Technology in Regenerative Medicine and Biology 139

49. Ichida JK, Blanchard J, Lam K, Son EY, Chung JE, Egli D, Loh KM, Carter AC, Di Giorgio

FP, Koszka K, Huangfu D, Akutsu H, Liu DR, Rubin LL, Eggan K (2009) Cell Stem Cell

5:491–503

50. Lin T, Ambasudhan R, Yuan X, Li W, Hilcove S, Abujarour R, Lin X, Hahm HS, Hao E,

Hayek A, Ding S (2009) Nat Methods 6:805–808

51. Yan X, Qin H, Qu C, Tuan RS, Shi S, Huang GT (2009) Stem Cells Dev (Epub ahead of print)

52. Qin D, Gan Y, Shao K, Wang H, Li W, Wang T, He W, Xu J, Zhang Y, Kou Z, Zeng L, Sheng

G, Esteban MA, Gao S, Pei D (2008) J Biol Chem 283:33730–33735

53. Kim JB, Sebastiano V, Wu G, Arauzo-Bravo MJ, Sasse P, Gentile L, Ko K, Ruau D, Ehrich M,

van den Boom D, Meyer J, Hubner K, Bernemann C, Ortmeier C, Zenke M, Fleischmann BK,

Zaehres H, Scholer HR (2009) Cell 136:411–419

54. Giorgetti A, Montserrat N, Aasen T, Gonzalez F, Rodriguez-Piza I, Vassena R, Raya A, Boue

S, Barrero MJ, Corbella BA, Torrabadella M, Veiga A, Izpisua Belmonte JC (2009) Cell Stem

Cell 5:353–357

55. Haase A, Olmer R, Schwanke K, Wunderlich S, Merkert S, Hess C, Zweigerdt R, Gruh I,

Meyer J, Wagner S, Maier LS, Han DW, Glage S, Miller K, Fischer P, Scholer HR, Martin U

(2009) Cell Stem Cell 5:434–441

56. Aasen T, Raya A, Barrero MJ, Garreta E, Consiglio A, Gonzalez F, Vassena R, Bilic J,

Pekarik V, Tiscornia G, Edel M, Boue S, Izpisua Belmonte JC (2008) Nat Biotechnol

26:1276–1284

57. Pickering SJ, Minger SL, Patel M, Taylor H, Black C, Burns CJ, Ekonomou A, Braude PR

(2005) Reprod Biomed Online 10:390–397

58. Mateizel I, De Temmerman N, Ullmann U, Cauffman G, Sermon K, Van de Velde H, De Rycke

M, Degreef E, Devroey P, Liebaers I, Van Steirteghem A (2006) Hum Reprod 21:503–511

59. Saha K, Jaenisch R (2009) Cell Stem Cell 5:584–595

60. Colman A, Dreesen O (2009) Cell Stem Cell 5:244–247

61. Urbach A, Schuldiner M, Benvenisty N (2004) Stem Cells 22:635–641

62. Hockemeyer D, Soldner F, Beard C, Gao Q, Mitalipova M, DeKelver RC, Katibah GE, Amora

R, Boydston EA, Zeitler B, Meng X, Miller JC, Zhang L, Rebar EJ, Gregory PD, Urnov FD,

Jaenisch R (2009) Nat Biotechnol 27:851–857

63. Song H, Chung SK, Xu Y (2010) Cell Stem Cell 6:80–89

64. Ebert AD, Yu J, Rose FF Jr, Mattis VB, Lorson CL, Thomson JA, Svendsen CN (2009) Nature

457:277–280

65. Lee G, Papapetrou EP, Kim H, Chambers SM, Tomishima MJ, Fasano CA, Ganat YM, Menon

J, Shimizu F, Viale A, Tabar V, Sadelain M, Studer L (2009) Nature 461:402–406

66. Agarwal S, Loh YH, McLoughlin EM, Huang J, Park IH, Miller JD, Huo H, Okuka M, Dos

Reis RM, Loewer S, Ng HH, Keefe DL, Goldman FD, Klingelhutz AJ, Liu L, Daley GQ

(2010) Nature (Epub ahead of print)

67. Zhao XY, Li W, Lv Z, Liu L, Tong M, Hai T, Hao J, Guo CL, Ma QW, Wang L, Zeng F, Zhou

Q (2009) Nature 461:86–90

68. Kang L, Wang J, Zhang Y, Kou Z, Gao S (2009) Cell Stem Cell 5:135–138

69. Boland MJ, Hazen JL, Nazor KL, Rodriguez AR, Gifford W, Martin G, Kupriyanov S,

Baldwin KK (2009) Nature 461:91–94

70. Fulka J Jr, Fulka H (2007) Adv Exp Med Biol 591:93–102

71. Colman A (1999) Cloning 1:185–200

72. Chin MH, Mason MJ, Xie W, Volinia S, Singer M, Peterson C, Ambartsumyan G, Aimiuwu

O, Richter L, Zhang J, Khvorostov I, Ott V, Grunstein M, Lavon N, Benvenisty N, Croce CM,

Clark AT, Baxter T, Pyle AD, Teitell MA, Pelegrini M, Plath K, Lowry WE (2009) Cell Stem

Cell 5:111–123

73. Ghosh Z, Wilson KD, Wu Y, Hu S, Quertermous T, Wu JC (2010) PLoS One 5:e8975

74. Lister R, Pelizzola M, Dowen RH, Hawkins RD, Hon G, Tonti-Filippini J, Nery JR, Lee L, Ye

Z, Ngo QM, Edsall L, Antosiewicz-Bourget J, Stewart R, Ruotti V, Millar AH, Thomson JA,

Ren B, Ecker JR (2009) Nature 462:315–322

140 M.A. Esteban et al.

75. Doi A, Park IH, Wen B, Murakami P, Aryee MJ, Irizarry R, Herb B, Ladd-Acosta C, Rho J,

Loewer S, Miller J, Schlaeger T, Daley GQ, Feinberg AP (2009) Nat Genet 41:1350–1353

76. Pick M, Stelzer Y, Bar-Nur O, Mayshar Y, Eden A, Benvenisty N (2009) Stem Cells 27:

2686–2690

77. Hanna J, Wernig M, Markoulaki S, Sun CW, Meissner A, Cassady JP, Beard C, Brambrink T,

Wu LC, Townes TM, Jaenisch R (2007) Science 318:1920–1923

78. Li W, Wei W, Zhu S, Zhu J, Shi Y, Lin T, Hao E, Hayek A, Deng H, Ding S (2009) Cell Stem

Cell 4:16–19

79. Liao J, Cui C, Chen S, Ren J, Chen J, Gao Y, Li H, Jia N, Cheng L, Xiao H, Xiao L (2009) Cell

Stem Cell 4:11–15

80. Buehr M, Meek S, Blair K, Yang J, Ure J, Silva J, McLay R, Hall J, Ying QL, Smith A (2008)

Cell 135:1287–1298

81. Li P, Tong C, Mehrian-Shai R, Jia L, Wu N, Yan Y, Maxson RE, Schulze EN, Song H, Hsieh

CL, Pera MF, Ying QL (2008) Cell 135:1299–1310

82. Liu H, Zhu F, Yong J, Zhang P, Hou P, Li H, Jiang W, Cai J, Liu M, Cui K, Qu X, Xiang T, Lu

D, Chi X, Gao G, Ji W, Ding M, Deng H (2008) Cell Stem Cell 3:587–590

83. Esteban MA, Xu J, Yang J, Peng M, Qin D, Li W, Jiang Z, Chen J, Deng K, Zhong M, Cai J,

Lai L, Pei D (2009) J Biol Chem 284:17634–17640

84. Wu Z, Chen J, Ren J, Bao L, Liao J, Cui C, Rao L, Li H, Gu Y, Dai H, Zhu H, Teng X, Cheng

L, Xiao L (2009) J Mol Cell Biol 1:46–54

85. Ezashi T, Telugu BP, Alexenko AP, Sachdev S, Sinha S, Roberts RM (2009) Proc Natl Acad

Sci USA 106:10993–10998

86. Vackova I, Ungrova A, Lopes F (2007) J Reprod Dev 53:1137–1149

87. Esteban MA, Peng M, Deli Z, Cai J, Yang J, Xu J, Lai L, Pei D (2010) IUBMB Life (Epub

ahead of print) PMID: 20101630

88. Smith KP, Luong MX, Stein GS (2009) J Cell Physiol 220:21–29

89. Cai J, Li W, Su H, Qin D, Yang J, Zhu F, Xu J, He W, Guo H, Labuda K, Peterbauer A,

Wolbank S, Zhong M, Li Z, Wu W, So KF, Redl H, Zeng L, Esteban MA, Pei D (2010) J Biol

Chem (Epub ahead of print) PMID: 20139068

90. Vierbuchen T, Ostermeier A, Pang ZP, Kokubu Y, Sudhof TC, Wernig M (2010) Nature

463:1035–1041

Induced Pluripotent Stem Cell Technology in Regenerative Medicine and Biology 141

Adv Biochem Engin/Biotechnol (2010) 123: 143–162

DOI: 10.1007/10_2009_25

Springer-Verlag Berlin Heidelberg 2010

Published online: 21 January 2010

Production Process for Stem Cell

Based Therapeutic Implants: Expansion

of the Production Cell Line and Cultivation

of Encapsulated Cells

C. Weber, S. Pohl, R. Poertner, Pablo Pino-Grace, D. Freimark,

C. Wallrapp, P. Geigle, and P. Czermak

Abstract Cell based therapy promises the treatment of many diseases like diabetes

mellitus, Parkinson disease or stroke. Microencapsulation of the cells protects them

against host-vs-graft reactions and thus enables the usage of allogenic cell lines for

the manufacturing of cell therapeutic implants. The production process of such

implants consists mainly of the three steps expansion of the cells, encapsulation of

the cells, and cultivation of the encapsulated cells in order to increase their vitality

and thus quality. This chapter deals with the development of ﬁxed-bed bioreactor-

based cultivation procedures used in the ﬁrst and third step of production. The

bioreactor system for the expansion of the stem cell line (hMSC-TERT) is based on

non-porous glass spheres, which support cell growth and harvesting with high yield

and vitality. The cultivation process for the spherical cell based implants leads to an

increase of vitality and additionally enables the application of a medium-based

differentiation protocol.

Keywords Cell therapy, Mesenchymal stem cells, Encapsulation, Fixed bed

bioreactor, Glass carrier

C. Weber, S. Pohl, P. Pino-Grace, D. Freimark, and P. Czermak

Institute of Biopharmaceutical Technology, University of Applied Sciences Giessen-Friedberg,

Giessen, Germany

R. Poertner

Institute of Bioprocess and Biosystem Technology, University of Hamburg-Harburg, Hamburg,

Germany

C. Wallrapp and P. Geigle

CellMed AG, Alzenau, Germany

P. Czermak (*)

Department of Chemical Engineering, Kansas State University, Manhattan, KS, USA

e-mail: peter.czermak@tg.fh-giessen.de

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

2 Expansion of hMSC-TERT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

2.1 Reactor System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

2.2 Expansion of hMSC-TERT on a Laboratory Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

2.3 Theoretical Scale Up of the hMSC-TERT Expansion Process . . . . . . . . . . . . . . . . . . . . . . 156

3 Cultivation of Encapsulated Cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

3.1 The Reactor System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

3.2 Cultivation of Encapsulated Cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

3.3 Theoretical Scale Up of the Cell Bead Cultivation Process . . . . . . . . . . . . . . . . . . . . . . . . . 160

3.4 Conclusion and Outlook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

1 Introduction

Cell based therapy can be deﬁned as the implantation of autologous, allogenic, or

xenogenic cells for the replacement of damaged cells or organ functions. Either the

implanted cells are able to assume this function by themselves or they stimulate

other cells, which then can cause a regeneration of the tissue or organ function.

Examples are the treatment o f diabetes mellitus with insulin- and GLP-1-secreting

cells or Parkinson disease with dopamine-secreting cells as well as the implantation

of mesenchymal stem cells for rege neration of heart, cartilage, or bone tissue [1–6].

The implantation of allogenic (or xenogenic) cells demands a protection against

host-vs-graft reactions which can be achieved by a suppression of the recipient’s

immune system or by an encapsulation of the transplanted cells.

Promising, for the treatment of many endocrine or degenerative diseases are

microencapsulated stem cells, for example the CellBead

system developed by the

CellMed AG (Alzenau, Germany). These cell beads consist of an inner cell contain-

ing core which is surrounded by an alginate capsule (Fig. 1). Each cell bead

contains about 2,000–3,000 cells in a non-proliferating state. The diameter of the

cell containing core bead is about 400 mm and the diameter of the alginate capsule

between 500 and 600 mm.

Core bead: 2000 – 3000 cells

Alginate capsule

Fig. 1 Light-microscopic image of cell beads

144 C. Weber et al.

The allogenic production cell line is based on human mesenchymal stem cells,

which are transfected with the gene of the catalytic subunit of human telomerase.

The telomerase activity counteracts the shortening of the telomeres after each cell

cycle, which indicates a transformation of the cells to a permanent cell line [7].

Dependent on the designated use the cells are genetically modiﬁed with additional

therapeutic genes.

The cell beads can be implanted by injection using a sterile syringe. At the

implantation site the cells are provided with nutrients by diffusion through the capsule

and in turn release therapeutic molecules. Antigens and components of the host

immune system cannot penetrate through the capsule (Fig. 2). The advantages of

this therapeutical system are a continuous drug delivery and, due to the local applica-

tion, high drug concentrations at the point of implantation. Furthermore, a production

in stock is possible since a cell line is used.

The implantation of this cell therapeutic system behind the blood-brain barrier

makes them suitable for the treatment of, e.g., stroke. Clinical phase 1 studies with

GLP-1-transfected cells revealed a reduced loss of neuronal cells in a controlled

cortical impact rat model due to the implantation of GLP-1 secreting cell beads

[8]. Originally, intestinal cells secrete GLP-1in response to food intake. GLP-1

enhances insulin secretion of beta-cells as well as promoting insulin sensitivity.

Since GLP-1 receptors are also expressed throughout the mammalian brain, the

implantation of GLP-1 secreting cell beads into the brain may cause neurotrophic

and neuroprotective effects.

The production process of cell based implants consists of three steps, whereas

this chapter is focused on the ﬁrst and third production steps (Fig. 3).

Due to the fact that the cells themselves are the product, the requirements of the

stem cell expansion process differ from a common mammalian cell culture where,

for example, a virus or protein is the product.

The cultivation and harvesting procedure for the expansion of the stem cell

based production cell line should be very gentle in order to obtain high yields and

vitalities of harvested cells. Th e used carrier should be non-porous which eases the

separation of detached cells from the carrier.

The cell bead cultivation process aims to increase the vitality of the encapsulated

cells. A decrease of the cell vitality of the implants may be caused by the harvesting

Nutrients, oxygen,

therapeutic molecules

Antibodies, complement,

Macrophages, ...

Antigens

Alginate capsule

Core bead

Fig. 2 The alginate capsule of a cell bead acts as a semipermeable membrane

Production Process for Stem Cell Based Therapeutic Implants 145

and encapsulation proce dure. Apoptotic cells will be decomposed during this

cultivation.

An optional differentiation of the cell beads may support cell survival at the

transplantation place. Furthermore, a differentiati on may induce the expression of

therapeutic molecules.

Here we introduce two ﬁxed-bed bioreactor systems, one for the expansion of

the adherent production cell line and the other for the cultivation of the cell beads.

As an example, the application of an adipogenic differentiation protocol was

investigated.

Both ﬁxed-bed systems have to be transferred into a GMP-process. Therefore

some requirements are addressed to the reactor systems. For maintaining sterility

during the process they have to be designed as a closed system with the possibility

of online monitoring. Furthermore, automation of the process should be enabled to

reduce human error and labor input. A simple design of the reactor system and its

peripheral components beneﬁts the man ufacturing of disposables, which reduces

extensive cleaning procedures and documentation effort. Figure 3 gives an over-

view about the cell bead production process and its requirements.

2 Expansion of hMSC-TERT

2.1 Reactor System

Many disposable reactor systems used in the cultivation of adherent animal cells

like T-ﬂasks, roller bottles, wave reactors, stirred-tank reactors, or spinner ﬂasks are

established, but they show more or less drawbacks. T-ﬂasks and their cognate

1. Expansion of hMSC-TERT

2. Encapsulation of the cells

3. Cultivation of the CellBeads®

– Gentle cultivation and

harvesting procedure

High vitality

– Increasing of the vitality

– Differentiation of the cells

Transfer into GMP process

Closed systems

Online monitoring

Automation

Disposable

Fig. 3 Steps and requirements of the cell bead production process

146 C. Weber et al.

systems are labor consuming in operation, or intricate in automation. Suspension

reactors in combination with a microcarrier have the drawback that a special system

for the separation of the enzymatically detached cells from the carrier is necessary.

This counteracts a simple design which is demanded for manufacturing as a

disposable. Therefore a ﬁxed-bed bioreactor system was developed, which is

based on a non-porous carrier. The advantage of a non-porous carrier is that the

adherent cells, located on the carrier surface, can be easily ﬂushed out of the reactor

with the medium ﬂow after enzymatic detachment. A carrier screening has revealed

that non-porous borosilicate glass spheres (BSGS) are most suitable with respect to

the growth behavior, cell harvest, and nutrient supply.

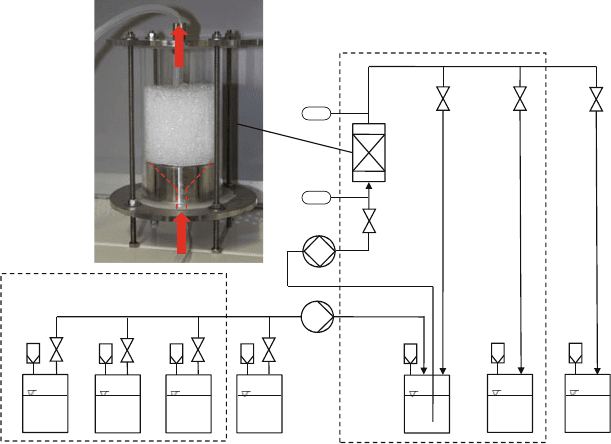

Figure 4 shows a prototype of the ﬁxed-bed reactor. It consists of a glass

cylinder with a stainless steel lid and bottom plate, which are equipped with

hose connectors for the medium inlet and outlet. A funnel shaped insert leads to a

nearly uniform inﬂow. The periphery of the ﬁxed bed consists of some ﬂasks that

act as conditioning, collecting, waste, and storage vessels, the tubing, some pinch

valves, two peristaltic pumps, single use noninvasive oxygen sensors (PreSens –

Precision Sensing GmbH, Regensburg, Germany) for process monitoring, and

sterile air ﬁlters for adjustment of the vessel pressure. All parts except the valves

and the pumps can be designed for production as a disposable, or they are already

available as commercial single use items. A further advantage of this system is a

Conditioning

vessel

Collecting

vessel

Enzyme

solution

IPO2

Incubator

37°C

5% CO

Waste

Medium PBS

Inoculum

4°C

Fig. 4 Fixed-bed reactor system for the expansion of hMSC-TERT

Production Process for Stem Cell Based Therapeutic Implants 147

comfortable automation of the process including the inoculation, culturing, and

harvesting procedures.

The oxygen supply can be provided by surface aeration or in larger systems with

a single use membrane oxygenator. Bubble aeration would have the drawbacks of

foam forming when serum containing medium is used.

The reactor system can be operated in a humidiﬁed incubator at 37



C and 5%

. Larger scales demand special heating strategies for the ﬁxed bed and the

conditioning vessel. Furthermore, a gas mix station is demanded when the medium

is aerated by using membrane oxygenators in order to enrich the feed air with CO

which is necessary for a pH adjustment of sodi um bicarbonate buffered medium.

For determination of growth and consumption kinetics and for scale up calcu-

lations a mathematical model was used that is shown here in a simpliﬁed form

(Fig. 5).

The system is mainly composed of the interacting compartments, the ﬁxed bed,

and the conditioning vesse l. The concentration c of any nutrient component in the

ﬁxed bed depends on time and axial position z and can be expressed by the

convection-consumption equation

e 

¼v 

   q  X

ðtÞ (1)

with the superﬁcial velocity, v, which is deﬁned as the ﬂow velocity in the reactor

tube without the packed bed, the cell speciﬁc consumption rate q of the regarded

nutrient component, the time dependent and volume speciﬁc cell density

ðtÞ¼X

 e

mt

(2)

()

vqXt

d d

×=-×-××

(, )

Fixed bed

Conditioning

vessel

cftz=

()

cft=

Effectiveness

factor

Consumption

rate

Cell densitySuperficial velocity

Porosity

Oxygen supply

Vc×

Fig. 5 Simpliﬁed illustration of the mass balances of the ﬁxed-bed reactor and its associated

conditioning vessel

148 C. Weber et al.
