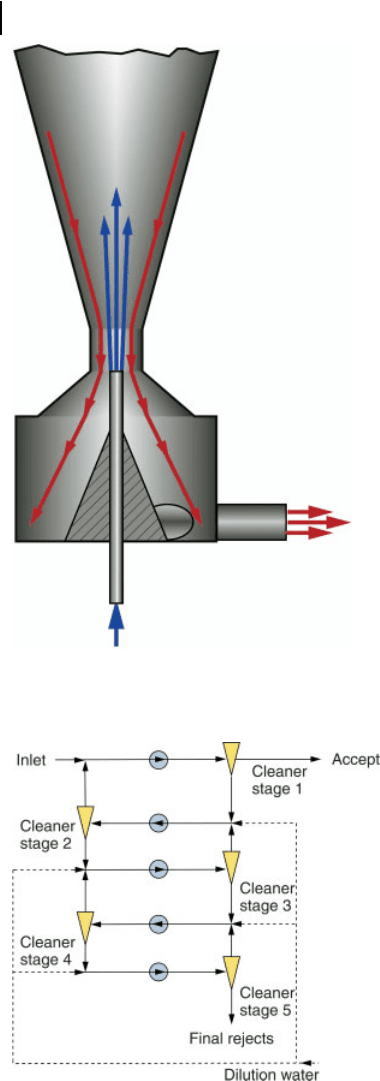

Fig. 4.28 Heavy weight LC cleaner with optimized flow design

in the reject outlet area (source: Voith).

Fig. 4.29 Cleaner cascade system.

4 Stock Preparation

172

4.2.5

Refining

The objective of refining or beating is to “design” the fibers to match the require-

ments of

• the paper making process

• the desired properties of the finished paper.

For example good dewatering characteristics of the stock are desired in the form-

ing and press sections as well as a high potential for good formation quality in the

forming section. Sufficient web strength is required for safe web transfer in the

press and dryer sections when the paper web is still wet. Desirable paper proper-

ties may include certain strength properties (tensile, tear, burst, fold, Young’s mod-

ulus), bulk, air permeability, opacity or printability. During refining all stock and

paper characteristics are more or less affected so optimization of the refining pa-

rameters has to ensure a sound compromise of the resulting stock and paper

properties.

Refining is very important in the stock preparation process for virgin chemical

pulp. For mechanical and recycled fibers refining has lower importance. The refin-

ing of recycled fibers usually aims for strength increase and shive elimination or

reduction.

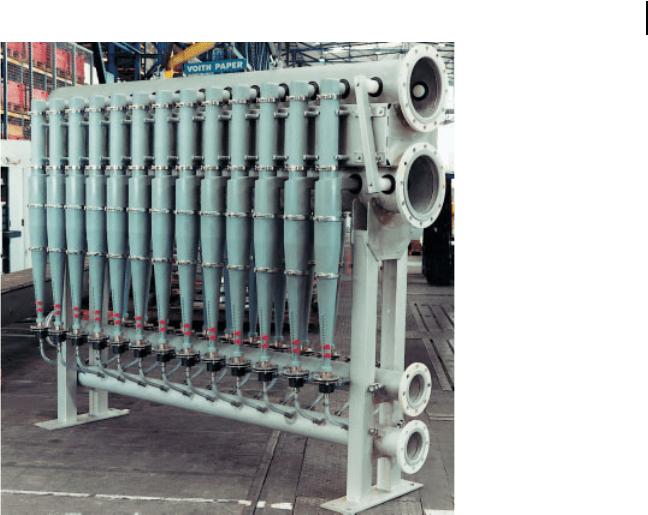

Fig. 4.30 Two rows cleaner battery (source: Voith).

4.2 Main Unit Processes and Equipment

173

By refining, the shape of the fibers is changed. They may be shortened, split

lengthwise, collapsed or fibrillated. Refining is done either at low consistency (vir-

gin fibers, secondary fibers) of about 3–6% or at high consistency (mainly secon-

dary fibers) of about 30% and more.

In refining the fibers pass between the bars of the fillings of the stator and rotor

of a refiner. The operating parameters influencing the result in low consistency

refining are

• geometry (and material) of the fillings

• net refining energy

• specific edge load

In Fig. 4.31 a segment of a filling is shown. The angle between the bars of the rotor

and the stator (cutting angle), the bar width and bar edge sharpness are the main

influencing parameters of the fillings. As the bars are subjected to wear during

operation the bar edges develop a shape that depends on the bar material and the

load applied. The net refining energy is the amount of energy transferred to a

specific amount of stock. It is the difference between total power consumption for

the refining process and the “no-load” power when a defined volume flow of water

or stock is pumped through the refiner at large spacing between the fillings. The

refining energy transferred is controlled by the force pressing the stator and rotor

together. The specific edge load is calculated from the net refining energy divided

by the cutting edge length per second. The cutting edge length refers to the length

formed per second by the edges of the bars as they move past each other.

Compared with fibrillation, cutting reduces the fiber length far more which

results, for instance, in easier dewatering and helps to improve formation quality.

On the other hand with cutting the strength potential of the fibers – especially tear

– will not be fully developed. Shortening of the fibers is more pronounced using

fillings with a small cutting angle, small bar width and sharp bar edges. Fur-

thermore, refining should be done under high specific edge load. Less energy is

needed to increase the SR value of a stock.

In contrast, for fibrillation of the fibers the bars of the rotor and the stator should

have a large angle, and the specific edge load should be low. The result is for

instance better utilization of the strength potential of the furnish, but there is a

negative influence on formation quality and dewatering. Fibrillating refining

needs more energy to increase the SR value of a stock.

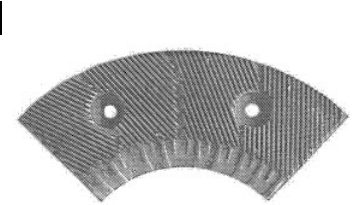

Fig. 4.31 Filling of a double disk refiner

for low consistency refining (source:

Voith).

4 Stock Preparation

174

Today’s refiners for low consistency refining are double disk refiners, or refiners

with conical or cylindrical geometry of the rotor/stator unit. Figure 4.32 shows a

double disk refiner. Both sides of the rotor are equipped with fillings acting against

the stator fillings of the front side (with loading device) and the backside (with

drive). The front stator is moved by the loading device, the rotor can slide along the

center shaft when loaded or unloaded. The peripheral speed of the rotor is about

25ms

–1

In Fig. 4.33 a refiner with cylindrical rotor/stator geometry is shown. The stock

enters the center of the machine via the hollow center shaft and is refined during

its helical horizontal path to the two stock outlet pipes. The refining energy is

controlled by the gap between the rotor and the stator which is adjusted by cone-

shaped means.

High consistency (30% and more) refining is mainly based on the shear force

effect between the fibers. This is why high consistency of the stock is required,

which in turn necessitates its dewatering. To save costs HC refining is best placed

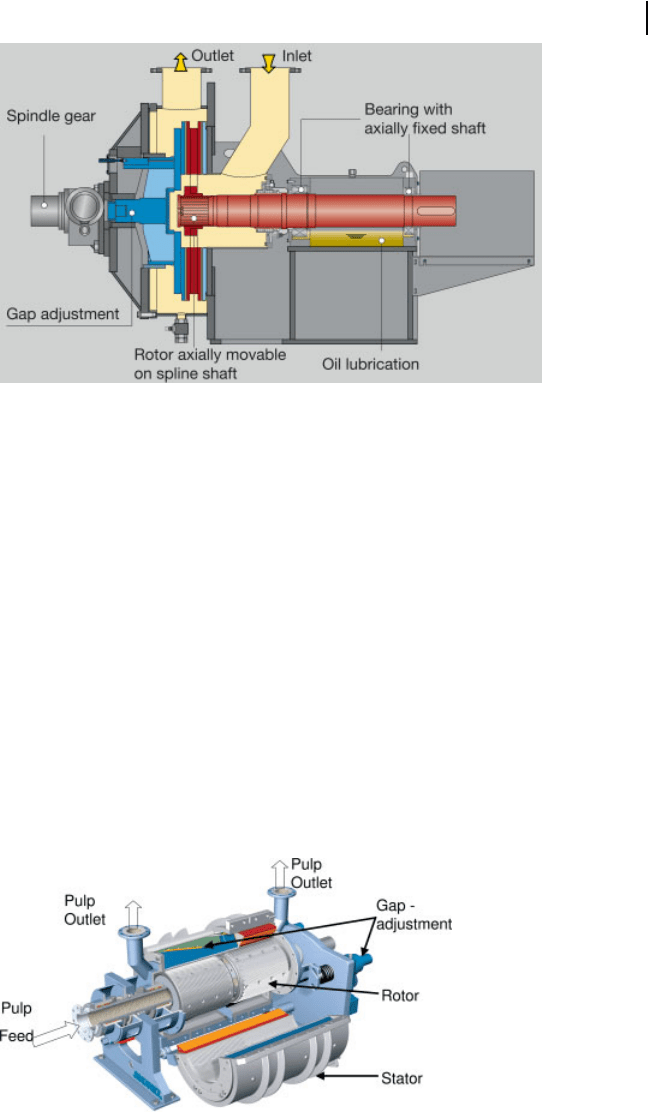

Fig. 4.32 Double disk refiner (source: Voith).

Fig. 4.33 Refiner with

cylindrical rotor/stator

geometry (source:

Andritz).

4.2 Main Unit Processes and Equipment

175

in a system position where the stock is already dewatered for other purposes e.g. in

order to separate the water loops (see Section 4.3).

HC refining preserves fiber length to a high degree, resulting in high dynamic

strength properties, high elongation and porosity. HC refining is done either in

special HC refiners or with disk dispergers such as described in Section 4.2.9. In

this application the disk disperger is operated without steam heating.

Freeness (Canadian Standard Freeness CSF) or Schopper Riegler (SR value) are

often used to check the effect of refining. Unfortunately this value can only partly

characterize the actual properties of a stock. The properties of papers made from

the same original stock but with a different kind of refining may vary in a wide

range in spite of the same measured value of CSF or SR value. The same is true for

the behavior of the stock in the paper machine. It needs additional measurements

such as fiber length distribution, specific surface or flexibility of the fibers to ob-

tain a better picture of a stock or refining process.

The refining energy required to increase the SR value is about 0.5 to

2kWht

–1

°SR

–1

. This value is influenced by the type of stock processed, the SR

value and the refining conditions, as explained before. Some paper mills use a

laboratory refiner (Fig. 4.34) to check the incoming fiber materials and to elaborate

optimum refining conditions for their individual furnishes.

4.2.6

Flotation

4.2.6.1 Selective Flotation

Selective flotation is used in stock preparation systems for recovered paper proc-

essing. The objective is to remove contaminants from the suspension such as

printing ink, stickies, fillers, coating pigments, and binders. In selective flotation

air is injected into the suspension generating bubbles that are mixed with the

suspension. Such an air bubble may catch one or more particles. The particles

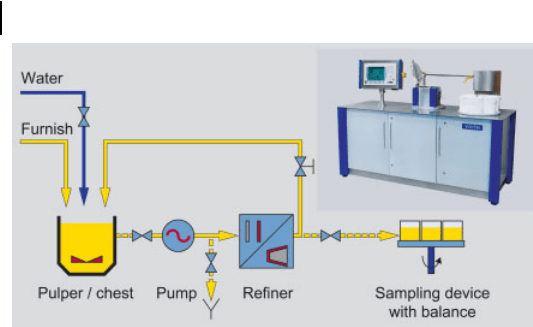

Fig. 4.34 System and photograph of a laboratory refiner

(source: Voith).

4 Stock Preparation

176

remain attached to the bubble and are carried to the surface of the suspension. The

resulting foam containing the dirt particles is then withdrawn from the suspen-

sion. The selection criterion in flotation is the different surface wettability of the

fibers to be retained and the particles to be removed. The surface of these particles

is or has been rendered hydrophobic (water repellent). The size of the particles that

can be removed at least reasonably effectively by selective flotation is limited to a

range of about a minimum of 5 to10 mm up to a maximum of 250 to 500 mm.

“Deinking” of the stock is the main purpose of flotation in recovered paper

processing: Removing ink particles increases brightness, removing dirt specks en-

hances cleanliness. Particles larger than 50 mm are usually called dirt specks and

are visible with the naked eye. Depending on the recovered paper mixture and on

the product demands, up to three flotation lines are installed in a system at differ-

ent positions. The deinkability of the paper mixtures is different and depends e.g.

on the paper grades, the printing process and the time after printing or on the

water hardness in the mill. To optimize the mill’s operating parameters a labo-

ratory flotation cell or a pilot flotation cell is often used. It is important that these

test cells work on the same flotation principle as the actual system in the mill.

The main prerequisites for a good deinking result are

• The particles have to move freely in the suspension: they have to be detached

from the fibers.

• The particles must have a floatable size and shape: larger particles have to be

reduced in size, too small particles have to be agglomerated into larger ones, flat

particles should be reshaped to cubic ones.

• The particles should have sufficient hydrophobicity: if not given by nature to a

sufficient extent this can be accentuated by applying surfactants to the suspen-

sion.

• The air bubbles have to move freely: the consistency should not be too high

• A sufficient number of air bubbles of convenient size (in the 1 mm range)

should be uniformly distributed in the suspension: effective bubble generation

and mixing of bubbles and suspension have to be ensured.

In the past a large variety of flotation cell designs were used. All cells have to

ensure bubble generation, collision of the ink particles with the bubbles, transport

of the ink-bubble aggregate to the suspension surface, and foam removal.

• Bubble generation:

A simple way to generate bubbles is to press air through a permeable body such

as perforated metal sheeting or ceramics. Here the bubble size depends mainly

on the surface tension of the suspension, the air injection volume, the air injec-

tion openings and the suspension velocity at the openings. Dynamic mixers

have rotating impellers with air outlets fed by compressed air. Static mixers

make use of natural aspiration for air supply and of the kinetic energy for mix-

ing. In this case bubble size is determined by the suspension properties and the

energy involved. The relative air load (total air volume flow to total suspension

volume flow) is mostly about 300%, in some cases up to 1000 %.

4.2 Main Unit Processes and Equipment 177

• Collision of the dirt particles with the bubbles:

Collision is a matter of probability and can only happen by relative movement of

bubble and particle. Using a permeable body for bubble generation needs a

longer residual time – and thus ascending path length – of the bubbles in the

suspension to increase collision probability. With dynamic mixers collision of

bubbles and particles is intensified in the vicinity of the rotating mixing body. In

static mixers the complete streams of both suspension and air pass through the

mixing element and undergo an intensive mixing with high collision probabil-

ity.

• Transport of particle-bubble aggregate to the suspension surface:

As soon as a particle has been attached to the bubble its detachment has to be

avoided. Detachment may occur by too high shear forces due to turbulence,

buoyancy and gravity. This suggests that one should make the ascending path

length as short as possible. On the other hand a certain height of the suspension

level is also advantageous: Collision probability is increased, especially impor-

tant in designs where the collision probability at the moment of bubble genera-

tion is lower. It also often helps to still the suspension surface to enable effective

foam removal and to avoid remixing of the foam with the suspension.

• Foam removal:

Foam discharge is done e.g. by free overflow over a weir, where a scraper may

support the removal. In other designs the foam is discharged through sucking

pipes by pressure difference, either by vacuum outside or pressure inside the

cell.

• Cell body:

The cell body can be open but nowadays the cells are usually closed for environ-

mental reasons. The closed cells can be pressurized or operate under a slight

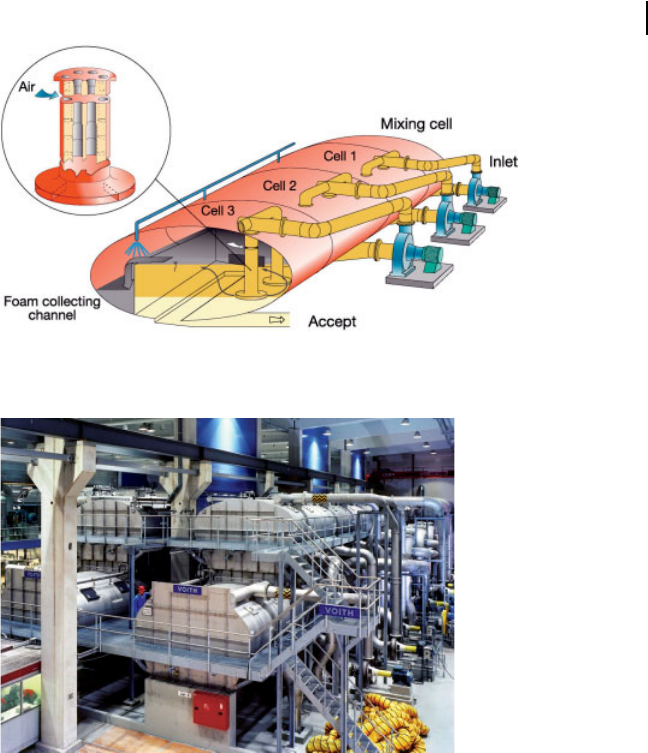

vacuum to avoid exhausts. One flotation line usually consists of several flotation

steps where the accept stream of the preceding step is the inlet flow of the

following one. The arrangement of these steps can also be different: individual

cells for each flotation step connected by pipes to a complete line, individual cell

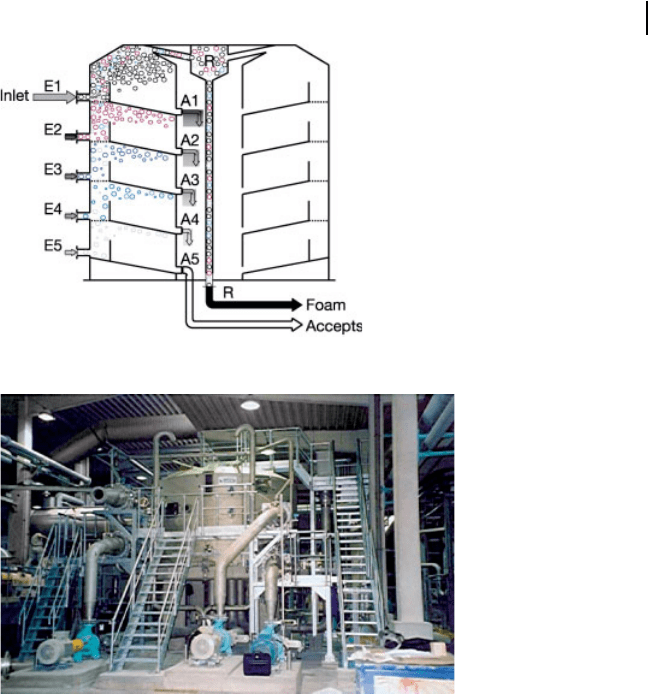

compartments which are aligned in a horizontal or vertical direction in one

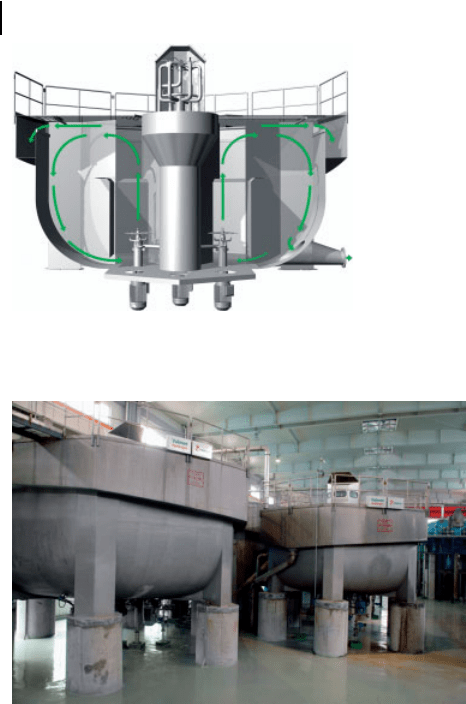

overall cell body, and column-like cells with internal recirculation are all found.

A special case is a vertical cyclone-shaped cell where the ascent of the bubbles is

mainly due to the centrifugal forces and is directed to the center.

Figures 4.35–4.40 show schematic arrangements and photographs of three of the

numerous different cell designs which also differ in the arrangements of the in-

dividual flotation steps. The circular cell in Fig. 4.35 and 4.36 is closed and pressur-

ized. It is divided into 3–5 superimposed elementary cells. The suspension flows

from top to bottom and is aerated after each elementary cell before being fed to the

next lower one. Aeration is achieved by static mixers with self aspiration. The

bubbles injected in each elementary cell ascend through the upper cells to the

foam layer at the top. The foam is removed through pipes by pressure difference to

the ambient. A reject valve allows control of the reject rate and composition in

order to omit a secondary stage. Figures 4.37 and 4.38 show a flotation line with

4 Stock Preparation178

individual cells arranged in a horizontal circle. An air-dispersion rotor is used for

aeration and mixing of air and suspension. The pressure difference between the

inner aeration sector and the outer separation sector in the cell initiates the flow of

the suspension from one cell to the next. The foam is removed over a weir to a

common reject channel. The cell in Fig. 4.39 and 4.40 consists of an elliptical tube

which contains individual cells arranged in line. In each cell the suspension is

aerated by a self-aspirating static mixer working on the step diffuser principle. The

foam flows over a weir and is collected in a common channel.

The foam from the flotation line contains – besides the particles to be removed –

some fiber material, mainly short fibers and fines as well as fillers. This loss in

valuable raw material has to be minimized. Reducing the amount of reject foam is

limited as this negatively influences brightness and cleanliness. For quality and

economic reasons a secondary flotation stage where the reject of the primary stage

is floated to recover fibers, fines and some fillers, is in common use. The reject of

Fig. 4.35 Schematic arrangement of

the KADANT LAMORT MAC

flotation cell (source: KADANT

LAMORT).

Fig. 4.36 KADANT LAMORT MAC flotation cell installation

(source: KADANT LAMORT).

4.2 Main Unit Processes and Equipment

179

the primary cells contains large quantities of air. Deaeration of the reject is often

necessary to ensure stable operation of the secondary cells. This can be done e.g.

in a deaeration cyclone including a mechanical foam breaker.

Typically, flotation lines operate at stock consistencies of 0.8–1.5 % and tem-

peratures of 40–70 °C, neutral to slightly caustic suspension conditions (pH 7–9)

and water hardness 5–30 °dH.

4.2.6.2 Nonselective Flotation (Dissolved Air Flotation DAF)

Nonselective flotation is used for process water clarification in the water loops (see

Chapter 5). The objective is to dispose of all the undesired water components

which cannot be removed by mechanical separation, such as anionic trash, fines,

or microstickies. These components would negatively affect the production proc-

ess and/or the product quality. As flotation is based on bubbles generated by de-

Fig. 4.37 Schematic arrangement of the Metso OptiBright

MC flotation cell (source: Metso Paper).

Fig. 4.38 Metso OptiBright

MC flotation cell installation

(source: Metso Paper).

4 Stock Preparation

180

pressurizing air-saturated water this unit process is called dissolved air flotation

(DAF).

The different steps in nonselective flotation are:

• Generating flocs: Flocculants (cationic polymers) are added and mixed with the

water to be clarified. As a result the fine particles agglomerate to flocs. In addi-

tion coagulants can be used to transfer colloidal material (“anionic trash”) into

microflocs in order to make it accessible to flocculants.

• Bubble generation: First a side stream of the untreated water (sometimes also

clarified water) is air-saturated in a tank at about 7 bar. The amount of air dis-

solved in the water is proportional to the pressure. With increasing temperature

the amount of dissolved air is less. All remaining nondissolved air is removed as

Fig. 4.39 Schematic arrangement of the Voith EcoCell (source:

Voith).

Fig. 4.40 Voith EcoCell installation (source: Voith).

4.2 Main Unit Processes and Equipment

181
