APPENDIX II

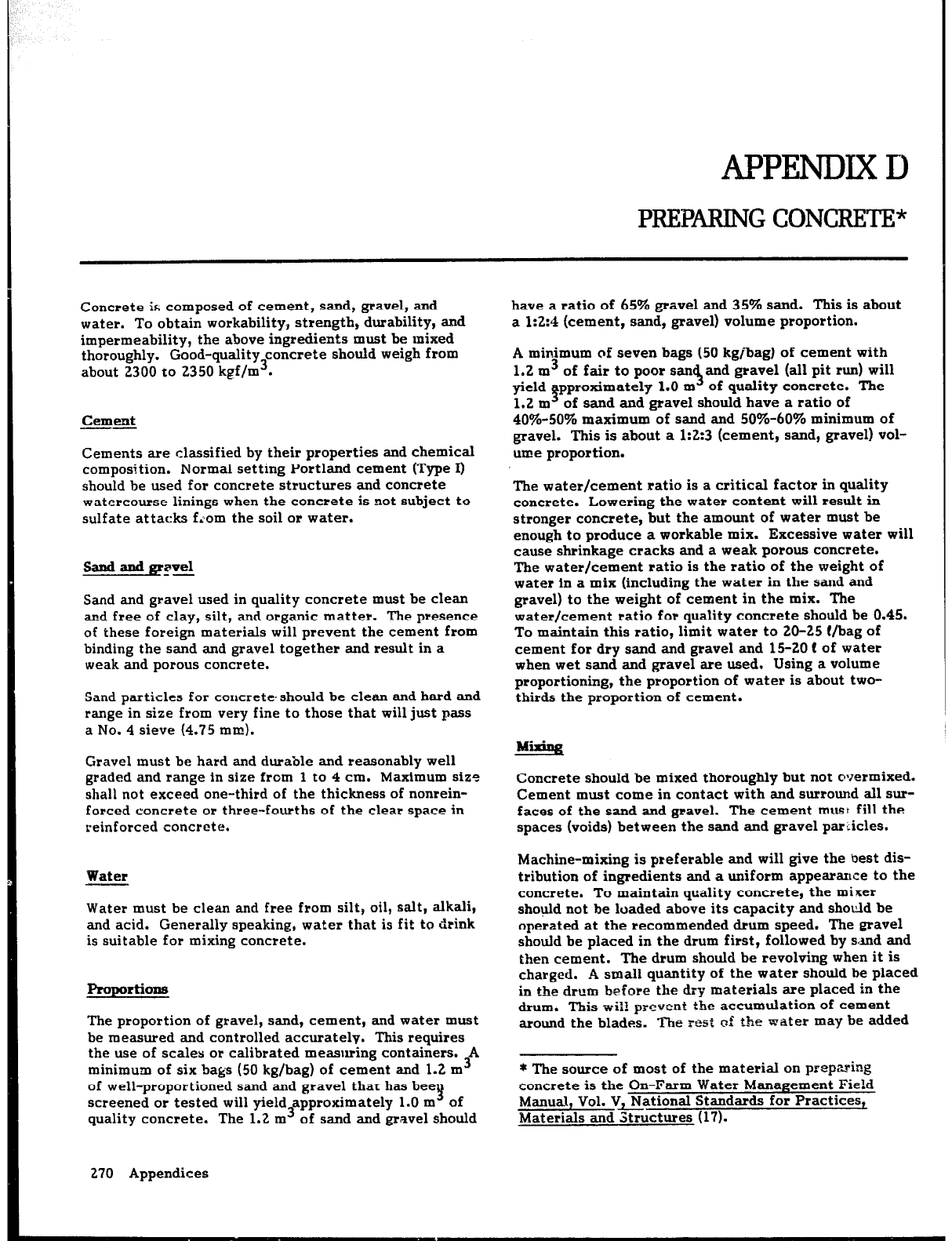

PREPWG CONCRETE*

Concrete is composed of cement, sand, gravel, and

water. To obtain workability, strength, durability, and

impermeability, the above ingredients must be mixed

thoroughly. Good-quality concrete should weigh from

about 2300 to 2350 kgf/m3.

Cement

--~

Cements are classified by their properties and chemical

composition. Normal setting Portland cement (Type I)

should be used for concrete structures and concrete

watercourse linings when the concrete is not subject to

sulfate attacks from the soil or water.

Sand and gravel

--

Sand and gravel used in quality concrete must be clean

and free of clay, silt, and organic matter. The presence

of these foreign materials will prevent the cement

from

binding the sand and gravel together and result in a

weak and porous concrete.

Sand particles for concreteshould be clean and hard and

range in size from very fine to those that will just pass

a No. 4 sieve (4.75 mm).

Gravel must be hard and durable and reasonably well

graded and range in size from 1 to 4 cm. Maximum size

shall not exceed one-third of the thickness of nonrein-

forced concrete or three-fourths of the clear space in

reinforced concrete.

Water

Water must be clean and free from silt, oil, salt, alkali,

and acid. Generally speaking, water that is fit to drink

is suitable for mixing concrete.

Pmportlons

The proportion of gravel, sand, cement, and water must

be measured and controlled accurately. This requires

the use of scales or calibrated measuring containers. A

minimum of six bags (50 kg/bag) of cement and 1.2 m3

of well-proportioned sand and gravel that has bee

screened or tested will yield approximately 1.0 m

Y

of

quality concrete. The 1.2 m3 of sand and gravel should

270 Appendices

have a ratio of 65% gravel and 35% sand. This is about

a 1:2:4 (cement, sand, gravel) volume proportion.

A minimum of seven bags (50 kg/bag) of cement with

1.2 m3 of fair to poor sangand gravel (all pit run) will

yield 3pproximately 1.0 m of quality concrete. The

1.2 m of sand and gravel should have a ratio of

40%-50% maximum of sand and 50%-60% minimum of

gravel. This is about a 1:2:3 (cement, sand, gravel) vol-

ume proportion.

The water/cement ratio is a critical factor in quality

concrete. Lowering the water content will result in

stronger concrete, but the amount of water must be

enough to produce a workable mix. Excessive water will

cause shrinkage cracks and a weak porous concrete.

The water/cement ratio is the ratio of the weight of

water in a mix (including the

water

in the sand and

gravel) to the weight of cement in the mix. The

water/cement ratio for quality concrete should be 0.45.

To maintain this ratio, limit water to 20-25 C/bag of

cement for dry sand and gravel and 15-20 C of water

when wet sand and gravel are used. Using a volume

proportioning, the proportion of water is about two-

thirds the proportion of cement.

Concrete should be mixed thoroughly but not overmixed.

Cement must come in contact with and surround all sur-

faces of the sand and gravel. The cement must fill the

spaces (voids) between the sand and gravel par;icles.

Machine-mixing is preferable and will give the oest dis-

tribution of ingredients and a uniform appearance to the

concrete. To maintain quality concrete, the mixer

should not be loaded above its capacity and should be

operated at the recommended drum speed. The gravel

should be placed in the drum first, followed by smd and

then cement. The drum should be revolving when it is

charged. A small quantity of the water should be placed

in the drum before the dry materials are placed in the

drum. This wii! prevent

the accumulation of cement

around the blades. The rast oi

r‘ the water may be added

* The source of most of the material on preparing

concrete is the On-Farm Water Management Fie!d

Manual, Vol. Vfiational Standards for Practices,

Materials and structures (17).

simultaneously with the dry materials. There is no need

for any dry mixing before the water is added. The min-

imum time of mixing should be two minutes.

Hand-mixing concrete must be done on a clean water-

tight platform or wheelbarrow. The amount of ?and and

gravel should be limited to approximately 0.1 m . The

concrete mixing and its placement should be completed

within 10 minutes. Cement and sand should first be

mixed while dry until the mixture is thoroughly blended

and uniform in color. The gravel should then be added

to the mixture of sand and cement and mixed by turning

the ingredients a minimum of three times before adding

water. The measured amount of water then is added

and the ingredients turned a minimum of five times.

Mixing should continue until the concrete is of a uni-

form color.

Placing the cimaete

Preparation before placement of concrete includes

compacting and moistening the soil and erecting the

forms. If concrete is placed against dry soil and forms,

excessive water will be extracted from the concrete.

To maintain quality concrete, be sure the soil and forms

are moist. Forms should be clean, tight, and adequately

braced; sawdust, nails, and other debris should be

removed before concrete is placed. Forms treated with

motor oil will facilitate removal from concrete that has

set.

Place the concrete immediately after mixing. Place in

a position and manner to limit flow and subsequent

segregation of the gravel and sand particles.

Thoroughly tamp and compact the concrete as it is

being placed to eliminate voids or honey combing.

Screed to the grade of the forms or templates and finish

by troweling. Do not

overtrowel,

because this will

result in flaking and a porous surface of the finishing

concrete.

Excessive or rapid evaporation Of water from freshly

placed

concrete will cause cracking,

shrinkage, and low-

quality concrete.

Protect concrete from rapid drying or curing

for

five

days after placement. This may be accomplished by

submerging in water, applying membrane curing, or

covering with continuously moist burlap, canvas, straw,

plastic,

or

soil.

Do not place concrete when there is danger of frost,

unless provision has been made to protect the concrete

from freezing.

Removal

of forms

Forms may be removed when the concrete attains suffi-

cient strength to support the dead loads and live loads

imposed upon it. Generally speaking, good-quality con-

crete

under

ideal conditions will attain a strength of

approximately 35 kgf/cm’/day in the first three or four

days; thereafter, the curing

process

slows down consid-

erably. Table D.l can be used as a guide for removing

forms and placing concrete structures in moderate

ser-

vice.

Description of concrete structure

Minimum t3hmgth

requirements

Minimum curing

time required

04

Concrete not subject to appreciable bending or direct stress, not

reliant on forms for vertical support, not liable to injury by removal

of forms or other construction activity.

35 kgf/cm2

(500 psi)

24

Concrete subject to appreciable bending or direct stress and partially

reliant on forms for vertical support.

Subject to dead load only.

50 kgf/cm2

(750 psi)

36

Subject to dead load and live load.

110 kgf/cm2

(1500 psi)

72

Concrete

subject to high bending stress and wholly or almost wholly

reliant on forms for vertical support.

140 kgf/cm2

(2000 psi)

108

Appendices 27 1

APPENDIX E

MASONRY*

Brick or stone masonry is frequently used in the con-

struction of portions of the civil works for small hydro-

power projects, for the diversion structure, intake, and

forebay, and sometimes for the powerhouse and lining of

the power canal. The principal reasons for this are the

difficulty of obtaining cement in sufficient quantity

for

concrete structures in many developing countries, its

high cost, and difficulties in transporting it to remote,

rural areas. Brick or stone masonry permits use of local

materials to replace some of the volume for which con-

crete would otherwise be necessary. Because a signifi-

cant portion of the volume of quality concrete uses

locally available sand and aggregate, the savings of con-

crete may not be as great as they might initially appear,

but they are still significant.

For a typical wall of brick masonry, about 20% of the

volume is joint mortar. If the surface of the structure

is plastered, an additional 5% of the volu

‘s

e of brick

masonry is plaster mortgr. Although 1 m

of quality

conSrete requires 0.2 m of cement (six 50 kg bags),

1 m 05 plastered brick masonry requires about 25% or

0.25 m of mortar or about 0.07 m of cement (two

50 kg bags). Consequently, if plastered brick masonry is

used, only about one-third of the amount of cement as

that required for poured concrete would be needed. If

the structure is not plastered, only about 25% of the

amount of cement required for poured concrete would

be needed. Further savings in concrete can be obtained

by using stones larger than bricke in the masonry.

Brick and stone masonry requires a mix of cement and

sand to join the bricks into on impervious stable mass.

Portland cement is used; the sand should be well graded,

clean, and free from harmful substances; and the water

should be free from undesirable impurities (see

APPEN-

DDC D, p. 270).

The mortar for the joints should be prepared with a

cement/sand ratio of 1:4 by volume to obtain a workable

mix; about 23 t’ of water per 50 kg sack of cement

should be added with a fine spray. This assumes that

the sand is dry. Because any mortar not used after 30

minutes should be discarded, the quantity mixed each

time should be determined accordingly.

If bricks are to be used, only the best should be

selected. They should be soaked in a tank for at least

24 hours before they are used. They are then laid with

fresh, well-mixed mortar. The horizontal joints should

be parallel. The vertical joints on alternate courses

should be directly

over

one another. The thickness of

the joints should be about 1.0 cm, and these should be

properly filled with mortar. To achieve this, mortar is

applied to the sides of the bricks already laid. The next

(wet) brick is laid 3-5 cm away and then pressed toward

the first brick, squeezing out the mortar indicating that

the joint has been filled. The joints on the surfaces to

be plastered or pointed (Fig. E.l) should be raked out to

a depth of 1 cm before the mortar sets.

The other

joints should be filled and struck smooth before the

mortar sets. Curing is done by keeping the masonry wet

a minimum of five days by covering with wet burlap or

other saturated material or by sprinkling with water.

stone-cement masonry

I

(a)

0.d

] i

brick-cement masonry

Fig. E.1. Se&Ion views of stone-

and brick-

masonry work

with (a) joints raked in prepamtton for

0 plastering or (cl

polnttng.

Plastering

If the surface is to be plastered, a 1:3 cement/sand ratio

should be used. A good key must be provided in the

masonry work for the plaster to hold on firmly to pre-

vent its crazing or cracking off. For this purpose, all

joints in the masonry should be raked to a depth of 1 cm

before the mortar has set. Before plaster is applied, the

masonry should be brushed to remove all loose dust,

thoroughly washed with water, and watered for

* A significant portion of this material is from On-Farm

Water Management Field Manual, Vol. V. National

Standards For Practices, Materials and Structures. (17).

272 Appendices

24 hours. A 1 cm-thick layer of plaster is then laid on

the masonry. Vertical screeds or wooden strips csn be

placed temporarily at regular intervals along the BUT-

face. A straight-edge then worked sideways and upward

along the screeds ensures sufficient thickness of the

plaster and a flat surface.

The surface is then finished

with a wooden float.

smooth and watertight. A 1:2 cement/sand mortar is

then necessary, with only enough water to make a work-

able mix. The surface of the masonry work is prepared

in a manner similar to that required for plastering. ‘fhe

joints are then filled in with the mortar and compacted

using a pointing trowel.

Rather than plastering, pointing can be used to fill in

the joints in brick- or stone-masonry work to make it

Appendices 273

APPENDIX F

WmRHAMMER

Descriptia of phenomenon

Water hammer is a term which refers to the transient

pressure peaks which occur in a pipe when there is a

rapid change in the flow velocity within it. Figure F.l

illustrates how a velocity change caused by an instanta-

neous closure of a gate at the end of a pipe creates

pressure waves traveling within the pipe.

Initially, water flows at some velocity “v ’ as shown in

(a). When the gate is closed, the water f&wing within

the pipe has a tendency to continue flowing because of

its momentum. Because it is physically prevented from

so doing, it “piles up” behind the gate; the kinetic

energy of the element of water nearest the gate is con-

verted to pressure energy, which slightly compresses the

water and expands the circumference of the pipe at this

point (b). This action is repeated by the following ele-

ments of water (c), and the wave front of increased

pressure travels the length of the pipe until the velocity

of the water “v. ” is destroyed, the water is compressed,

and the pipe is expanded its entire length (d). At this

point, the water’s kinetic energy has all been converted

to strain energy of the water (under increased compres-

sion) and strain energy of the pipe (under increased ten-

sion).

Because the water in the reservoir remains under nor-

mal static pressure but the water in the pipe is now

under a higher pressure, the flow reverses and is forced

back into the reservoir again with velocity “vO” (e). As

the water under compression starts flowing back, the

pressure in the pipe is reduced to normal static pres-

sure. A pressure “unloading” wave then travels down

the pipe toward the gate (f) until all the strain energy is

converted back into kinetic

energy

(g). However, unlike

case (a), the water is now flowing in the opposite direc-

tion and because of its momentum, the water again tries

to maintain this velocity. In so doing, it stretches the

element of water nearest the gate, reducing the pres-

sure there and contracting the pipe (h). This happens

with successive elements of water and a negative pres-

sure wave propagates back to the reservoir (i) until the

entire pipe is under compression and water under

reduced pressure (j). This negative pressure wave would

have the same absolute magnitude as the initial positive

pressure wave if it is assumed that friction losses do not

exist. The velocity then returns to zero but the lower

pressure in the pipe compared to that in the reservoir

forces water to flow back into the pipe (k). The pres-

sure surge travels back toward the gate (e) until the

274 Appendices

entire cycle is complete and a second cycle commences

(b). The velocity with which the pressure front moves is

a function of the speed of sound in water modified by

the elastic characteristics of the pipe material.

In reality, the penstock pipe is usually inclined but the

effect remains the same, with the surge pressure at

each point along the pipe adding to or subtracting from

the static pressure at that point. Also, the damping

effect of friction within the pipe causes the kinetic

energy of the flow to dissipate gradually and the ampli-

tude of the pressure oscillations to decrease with time.

Critical time

-

Although some valves close almost instantaneously, clo-

sure usually takes at least several seconds. Still, if the

valve is closed before the initial pressure surge returns

to the gate end of the pipeline (g), the pressure peak

will remain unchanged-all the kinetic energy contained

in the water near the gate will eventually be converted

to strain energy and result in the same peak pressure as

if the gate were closed instantaneously. However, if

the gate has been closed only partially by the time the

initial pressure surge returns to the gate (g), not all the

kinetic energy will have been converted to strain energy

and the pressure peak will be lower. If the gate then

continues closing, the positive pressure surge which it

would then create will be reduced somewhat by the

negative pressure (h) surge which originated whsen the

gate originally began closing. Consequently, if the gate

opens or closes in more time than that required for the

pressure surge to travel to the reservoir and back to the

gate, peak surge pressures are reduced. This time is

called the critical time “Tc” and is equal to:

T, = $+

(5.18)

The wave velocity, or speed of sound, in water is

approximately 1420 m/s. However, the wave velocity in

a pipe-the speed with which the pressure surge travels

along the pipe-is a function of both the elastic charac-

teristics of water and the pipe material. An expression

for the wave velocity is:

1420

(5.19)

(1)

L ,,,,

)’

p , p, (pcsitive surge)

m p = p, (static pressure, functioa of depth only)

n p < p, (negative surge)

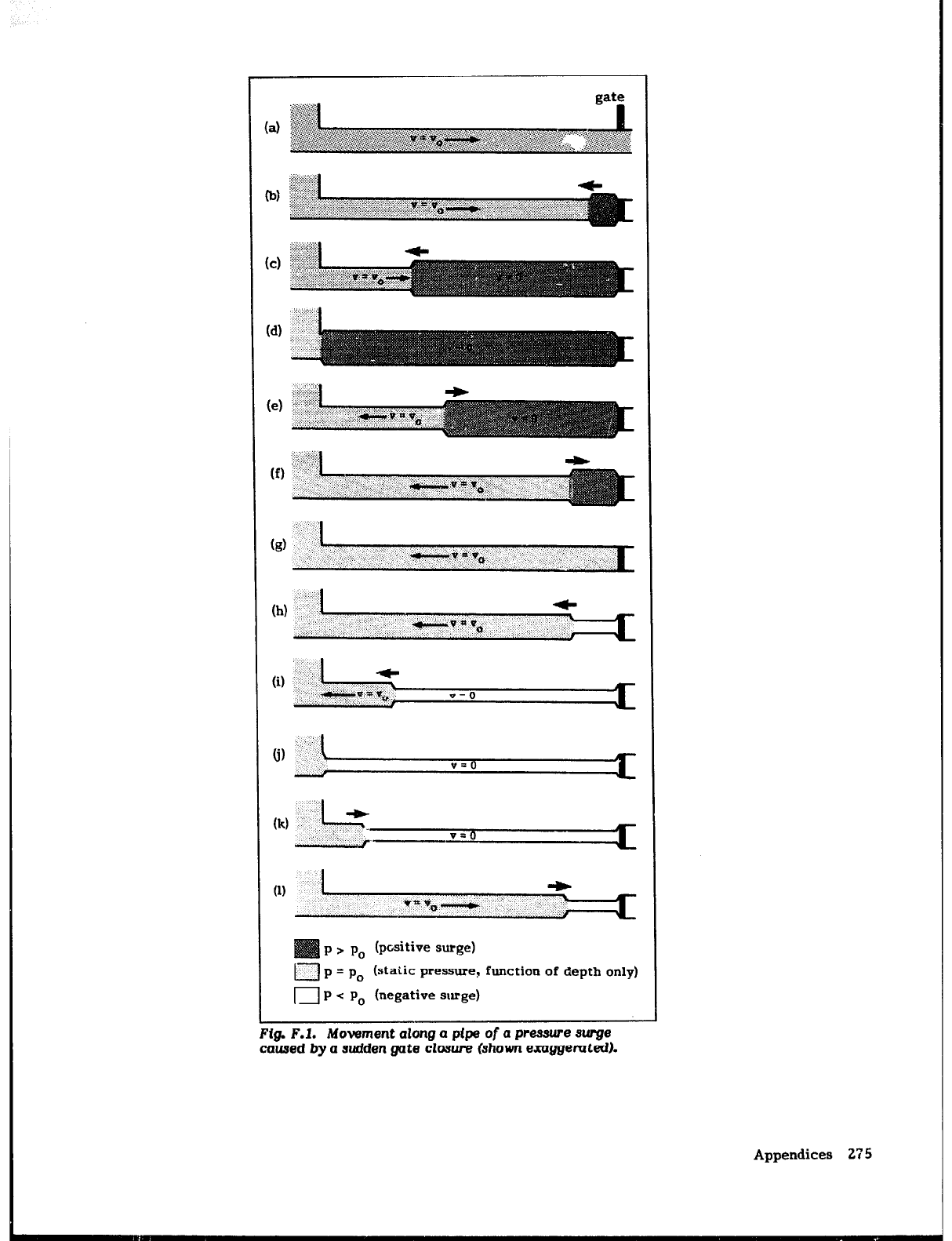

Ig. F.1. Movement

along a pipe of a

Pale Surge

_ _

_ -

_ *

. . .

Caused by a Sudden gate closure (shown exagyerutew.

Appendices 27 5

REFERENCES

The commonly used acronyms included within some of

the following references are described under ACRO-

NYMS AND ADDRESSES (p. 282). Other publications

1.

--, Atlas of World Water Balance, prepared by

the USSR National Committee for the Interna-

tional Hydrological Decade, The UNESCO Press,

Paris, 1977.

2.

--, Brief Information on The Forthcoming

SKAT Publication, Design Manual for a Simple

Mechanical Governor, SKAT, 1982.

3.

-, “Clamp and Coupling Products, Expansion

Joints,” Rockwell International Corp. (400 North

Lexington Ave., Pittsburg, PA 15208), 1985.

4. --, Crossflow Turbine, Type: BYS/T3, SKAT.

5. -, Desi gn Standards No. 3, Canals and Related

Structures, U.S. Dept. of the Interior, Bureau of

Reclamation, Denver, 1967 (available from

Burec; $15.25 plus $1.30 foreign handling).

6.

-, Development of Kam Pong, Mae Ton

Luang, Huai Pui, and Bo Kaeo Micro-Hydropower

Projects, USAID/Bangkok (Department of State,

Washington, DC 20523), Bangkok, 1984.

7. --*

“The Effects of Ultraviolet Aging on PVC

Pipe,” Uni-Bell Plastic Pipe Association (2655

Villa Creek Dr., Suite 150, Dallas, TX 75234),

1981.

8. ---, Energy Primer, Portola Institute (558 Santa

Cruz Ave., Menlo Park, CA 94025), 1974.

9.

--, Engineering Field Manual for Conservation

Practices, U.S. Dept. of Agriculture, Soil Con-

servation Service, Washington, DC, June 1979

(available from NTIS; accession number

PB244668/AS).

10.

---, Handbook of PVC Pipe, Design and Con-

struction, The Uni-Bell Plastic Pipe Association

(2655 Villa Creek Dr., Suite 150, Dallas,

TX

75234), 1980 ($25.00).

11.

-, Hydraulic Turbines, Catalog 307, Chris-

tiana Machine Co. (now available from MacLeod

& Co., P.O. Box 286, Glenmoore, PA 19343).

not referred to in tie Sourcebook but of possible

interest to readers are included in OTHER

REFERENCES (p. 281).

12. - Manual for Rural Water Supply, SKAT,

1980’(SFr. 34). (This publication is also available

in French for SFr. 39 and Spanish for SFr. 30.)

13.

-, Manual Para la Pianificacion y el Dimen-

sionamiento de Obras Hidraulicas de una Mini-

central Hidroelectrica, prepared by Projekt-

Planung-Lauterjung for GTZ.

14. - Mini & Micro Hyde1 Plants, Appropriate

Tec$lology Development Organization (1-B 47th

Street, F-7/1, P.O. Box 1306, Islamabad, Pakis-

tan).

15. ---,

1980 Hydrology Rata, Vol. I., National

Energy Administration, Bangkok, Thailand.

16. -, On-Farm Water Management Field Manual,

Vol. III, Watercourse Improvement, Water Man-

agement Wing, Ministry of Food, Agriculture and

Cooperatives, Government of Pakistan, Islama-

bad, December, 1980.

17.

-, On-Farm Water Management Field

MamalL

Vol. V, National Standards for Practices, Mate-

rials and Structures, Water Management Wing,

Ministry of Food, Aariculture and Cooperatives,

Government of Paki&n, Islamabad, D&ember,-

1980.

18. -I--, Ossberger Turbinenfabrik, personal corres-

pondence, October 28, 1981.

19. ---,

The Planning, Installation and Maintenance

of Low-Voltage Rural Electrification Systems

and Subsystems, VITA, April 1969 ($5.95).

20. -

“Ponds-Planning, Design, Construction,”

Agriiulture Handbook No. 590, Soil Conservation

Service, U.S. Department of Agriculture, June

1982.

21. --, “Reciprocating Wire Power Transmission

for Water Wheels,” Village Technology Handbook,

VITA, 1975.

References 277

22.

-, Steel Plate En

gineering Data, Welded Steel

w Vol. 3, American Iron and Steel Institute

(1000 16th Street, NW, Washington, DC 20036),

1980.

23.

-, Water Current Turbiues, A Field Worker’s

Guide, ITDG, 1986 (flO.OO).

24.

-, Water Measurement Manual, U.S. Depart-

ment of Interior, Bureau of Reclamation, Denver,

1967 (available from GPO; stock number 024-

003-00098-1).

25.

-, Water Turbines, Gilbert Gilkes and Gordon

Ltd. (Kendal, Cumbria, England LA9 7BZ), 1974

(available at E 2.50 plus postage or from Gilkes

Inc., P.O. Box 628, Seabrook, TX 77586).

26.

---, “Welded Steel Penstocks,” Water Resources

Technical Publication, Engineering Monograph

No. 3, U.S. Department of the Interior, Bureau of

Reclamation, 1966 (available from Burec; $0.40).

27. Alex Arter, Durchstrijmturbine, Diplomarbeit,

Abend-Technikum Ziirich, Switzerland, February

1980

(Xerox

copies available from SKAT).

28. A. Bachmann and A.M. Nakarmi, New Himalayan

Water Wheels, Sahayogi Press, Tripureshwar,

Kathmandu, Nepal, November 1983.

29. H.K. Barrows,

Water

Power Engineering, Tata

McGraw-Hill Publishing Co. Ltd., New Delhi,

1972.

30. Harold Frank Birchal, Modern Surveying for Civil

Engineers, Philosophical Library, Inc., New York,

1956.

31. J.T. Boys, J.L. Woodward, et al., “A Low-Cost

AC Generating System, Suitable for Use With

Small Hydro Plants,” Department of Electrical

Engineering, University of Auckland, New Zea-

land (1981).

32. Ernest F. Brater and Horace W. King, Handbook

--

m McGraw-Hill Book Co., New York,

1976.

33. Andrew Brown, “Stream Flow Measurement by

Salt Dilution Gauging,” ITIS, November 1983.

34. Gautschi Christoph, Gloor Wilhelm, and Wong

Thin

Mun,

Experimentelle Unterschung einer

DurchstrSmturbine des Typs Banki, Diplomarbeit,

HGhere Technische Lehranstalt Brugg, Windisch,

Switzerland, 1980 (Xerox copies available from

SKAT).

35. Broughton Coburn, The Development of Alter-

nate Energy Sources and the Implementation of a

Micro Hydro-electric Facility in Sagarmatha

National Park, Nepal, UNESCO (Division of Eco-

logical Sciences, 7 Place de Fontenoy, 75700

Paris, France), January 1984.

36. Broughton Coburn, “Namche 27 kW Micro Hydra

Project,” (a narrated slide tape presentation),

1984. (Further information can be obtained from

NRECA.)

37. Norman H. Crawford and Steven Thurin, Hydro-

logic Estimates for Small Hydroelectric Projects,

NRECA, Washington, DC, 1981.

38. William Creager and Joel Justin, Hydroelectric

Handbook, John Wiley & Sons, New

York,

1950.

39. M.M. Dandekar and K.N. Sharma, Water Power

Engineering, Vikas Publishing House Pvt. Ltd.,

New Delhi, 1979.

40. Calvin Victor Davis (ed.), Handbook of Applied

Hydraulics, McGraw-Hill Book Co., Inc., Ner

York, 1942.

41. M.M. Dcsmukh, Water Power Engineering, Dhan-

pat Rai & Sons (1682 Nai Sarak,

De&i 110006,

hia), 1978.

42. Martin Dietz, “Report About the Co-operatively

Run Water-mill in Upallo Arkhala Panchayat,”

unpublished Butwal report, August 1981.

43. Mohammad Durali, Design of Small Water Tur-

bines for Farms and Small Communities, TAP

Report 76-1, Technology Adaptation Program

(Massachusetts Institute

of

Technology, Cam-

bridge, MA 02139), Spring 1976.

44. Andrew Eberhardt. “An Assessment of Penstock

Design,” Water Power and Dam Construction,

pp. 249-253, June/July 1975.

45. Elder, Boys, and Woodward, “Self-excited induc-

tion machine as a small low-cost generator,”

IEEE Proceedings, Vol. 131, Pt. C, pp. 33-41,

1984.

46. Etcheverry and Harding, Irrigation Practice and

En&ineerina McGraw-Hill Book Co., 2nd ed.,

Vol. II, 1933.

47. Jack Fritz (ed.), Small and Mini Hydropower Sys-

tems; Resource AGment and Project Feasibil-

G McGraw-Hill Book Co., New York, 1984.

48. J.L. Gordon, “Vortices

at Intakes,’

Water Power,

April 1970.

49. Jaime Lobo Guerrero,

personal correspondence,

BogotL, Colombia, August 24, 1977.

50. Jaime

Lobo

Guerrero

and John D. Burton,

“Hvdraulic Governor for Small Pelton Turbines,”

Appropriate Technology, ITDG, Vol. 6, NO. 4,

pp. 17-18.

278 References

51. Jaime Lobo Guerrero and Jose Rafael Toro,

“Development of a Re-entry Cup Governor for

Pelton Wheels,” (unpublished), Dept. of Mechani-

cal Engineering, Universit6 de 10s Andes, Bogot8.

52. John S. Gulliver, et al., “Intake Design to Avoid

Free-Surface Vortices” (submitted to Intema-

tional Water Power and Dam ConstructiorT).

53. J.S. Gulliver and A.J. Rindels, “Guidelines for

Hydroplant Intake Design Without Free Surface

Vortices,” paper presented at Waterpower ‘83,

Knoxville, TN, September 1983.

54. Carroll A. Hackbart (ea.), On-Farm Water Man-

agement Field Manual, Vol. IV, Irrigation Water

Management, Water Management Wing, Ministry

of Food, Agriculture and Cooperatives, Govern-

ment of Pakistan, Islamabad, December, 1980.

55. David L. Hagen, “Advances in Controls to Govern

Mini and Micro Hydropower Systems,”

Water-

power ‘85 Conference Proceedings, ASCE, 1985.

56. Hans

W.

Hamm, Low Cost Development of Small

Water Sites, VITA, 1967.

57. Julian Hinds, “Design, Construction and Use of

Metal Flumes,” En&eering News-Record, Vol.

88, No. 21, May 25, 1922.

58. Lee Wing Ho, Manufacture and Evaluation of a

Five-Kilowatt Axial-Flow Water Turbine, Master

of Science in Mechanical Engineering thesis

(Massachusetts Institute of fechnollgy, Cam-

bridge, MA 02139), 1976.

59. R. Holland, “Energy for Rural Development,”

International Wat& Power and Dam Con&c-

tion, Vol. 34, No. 12, December 1982, pp. 29-32.

60. Rik Hothersall, Micro-hydro fievt&.pment for

P.N.G. (thesis), Dept. of Mechanical Engineering,

UNlTECH, 1984.

61. R. Hothersall, “A Review of the Cross-Flow Tur-

bine,” Wate&wer ‘85 Conference Proceedings,

ASME(345 Easz’tth Street., New York. NY

10017-2398), 1985.

62. John Ingersoll, “Now, Energy Lj the Bucket From

Back-Yard Powerplants,” Popular Mechanics,

February 1981, pp. 122 ff.

63. Allen R. Inversin, A Pelton Micro-Hydro Proto-

type Design, Research Series Yl, Appropriate

Technology Development Institute, UNITECH,

June 1980.

64. Allen R. Inversin, Technical Notes on the Bain-

doang Micro-Hydra and Water Supply Scheme,

Research Series 62. ADDrowiate Technolom

Development Instit&-UilTECH, May 19ii.

65. Charles A. Keith, “Civil Works and Structures,”

Proceedings of the Microhydro Seminar, The Uni-

versity of Auckland, New Zealand, 23-24 Novem-

ber 1981.

66. C.P. Kittredge, “Centrifugal Pumps Used as

Hydraulic Turbines,” Transactions of the ASME,

Journal of Engineering for Power, Januq 1961.

67. Ed Kramer, “Small Hydropower: Which Approach

is Appropriate?,” Small Hydropower in Africa,

NRECA, 1983.

68. Edwin B. Kurtz and Thomas M. Shoemaker, The

Linesman’s and Cableman’s Handbook, Fifth=-

tion, McGraw-Hill Book Co., New York, 1976.

69. Jagdish Lal, Hydraulic Machines, Including Fluid-

its 6th edition, Metropolitan Book Co. Pvt. Ltd.

f

1 Netaji Subhash Marg, New Delhi, India

110002), 1977.

70. Harry F. Langhome, “Hand-Made Hydro Power,”

Alternative Sources of EnergyJ October 197 7,

pp. 7-11.

71. Ray K. Linsley and Joseph B. Franzini, Water-

Resources Engineerin& 3rd Edition, McGraw-Hill

Book Co., New York, 1979.

72. D.S. Mansell, et al.,

“Micro-Hydro: Civil Engi-

neering Aspects,” Dept. of Civil Engineering,

UNITECH, Papua New Guinea.

73. Lionel S. Marks (ed.), Mechanical Engineers’

Handbook, McGraw-Hill Book Co., New York.

74. Juan Mata, “Design Criteria of Typical Civil

Works for Minihydropower Plant Projects,” Small

Hydroelectric Powerplants, NRECA, 1980.

75. Joseph A. McCurdy, Standby Equipment

for

Elec-

tric Fower Interruptionss The Pennsylvania State

University.

76. J.D. McKinney, et al., Microhydropower Hand-

book, EG&G Idaho, Inc., Idaho Falls, 1983 (avail-

able from NTIS).

77. Ueli Meier, The Dhading Micro-Hydropower

Plant Working Paper WP 6/83, SKAT, 1983

7X-8).

78. Ueli Meier, et al., Local Experience with Micro-

---

Technology, Hydro

SKAT (SFr 321, 169 pp, 1983.

(This publication is also available in Spanish for

SFr 30.)

79. Ueli Meier, Markus Eisenring, and Alex Arter,

“The Segner Turbine,” SKAT, March 1983 ($2.00).

80. B. Felix Meinikheim, “A Working Pelton Wheel,”

Alternative Sources

of

Energy, ASE, October

1977.

References 279

81. Reinhold Metzler, The Heat Generator, A Device

to Convert Mechanical Power Directly into Pro-

cess Heat, SKAT (1984) (SFr.22).

82. Reinhold Metzler, “Problems Encountered in

Designing and Producing Small Scale Water Tur-

bines in Nepal,” ID/WG.305/26 (UNIDO), Septem-

ber 1979.

83. A.M. Michael, Irrigation,

Theory

and Practice,

Vikas Publishing House Pvt. Ltd., New Delhi,

1978.

84. Dennis A. Minott, “Mini-Hydroelectric Genera-

tion-Local Manufacture,” First Caribbean Con-

ference on Mini-Hydropower Generation,

March 9-14, 1981, Rousseau, Dominica.

85. C.A. Mockmore and Fred Merryfield, “The Banki

Water Turbine,” Bulletin Series No, 25, Oregon

State University (Engineering Experimental Sta-

tion, Corvallis, OR 97331), February 1949.

86. Peter Molinari, “The Need for an Integrated

Approach in Rural Electrification in Nepal,”

ID/WG.305/41(UNIDO), September 1979.

87. Horace Denton

Morgan

and Donald David Reid

Thomas, “Maintenance of Hydro-electric

Schemes and the Development of Sidestream

Intakes,” Institute of Civil Engineering: Proceed-

& Vol. 20, pp. 345-370, November 1961.

88. Dale L. Nafziger, “A Mill Lighting System in

Nepal,” DCS report, January 13, 1982.

89. A.-M. Nakarmi and A. Bachmann, MPPU, Multi-

Purpose Power-Unit With Horizontal Water Tur-

bine, Vol. I (Basic Information) and Vol. II (Opera-

tion and Maintenance Manual), Sahayogi Press,

Kathmandu, March 1983 and February 1984,

respectively (available from UNICEF, P.C. Box

1187, Kathmandu, Nepal).

90. Tsuguo Nozaki, Guia para la Elaboration de Pro-

yectos de Pequenas Centrales Hidroelectricas

Destinadas a la Electrjficacion Rural de Peru,

Japan International Cooperation Agency, June

1980.

91. B. Oettli, Namche Bazar Micro Hydropower

P&nt, The Supplier’s FinalEport, Baiaju Ynntra

Shala (P.) Ltd. (P.G. Box 209, Balaju, Kathmandu,

Nepal), January 1984.

92. William G. Ovens, “A Design Manual for Water

Wheels,” VITA, 1975.

93. Bennett D. Reischauer, “Design of Civil Works

for Small-Hydropower Facilities,” Small Hydro-

power in Africa, NRECA, 1983.

94.

Alan J. Rindels and John S. Gulliver, An Experi-

mental Study of Critical Submergence to Avoid

Free-Surface Vortices of Vertical Intakes, Proj-

ect Report No. 224, St. Anthony

Falls

Hydraulic

Laboratory (University of Minnesota, St: Paul,

MN 55414), June 1983.

95. Bennie N. Rinehart, et al., DOE Small-Scale

Hydropower Program, Annual Status Report

1984, EG&G Idaho, Inc. (P.O. Box 1625, Idaho

Falls, ID 83415), September 1984 (available from

NTIS, printed copy A03, microfiche AOl).

96. Helmut Scheuer and Bob Yoder, “A Report on the

Inspection of Existing Small Turbine-run Mills in

the Kaski, Parbat, Baglung and Gulmi Districts,”

unpublished DCS-BTI report, February 1976.

97. Helmut Scheurer, Reinhold Metzler, and Robert

Yoder, Small Water Turbines, GATE, September

1980.

98. Valentine Schnitxer, et al., Activatinp Tradi-

tional Indigenous Techniques: Development and

Improvement of the Nepalese Watermill ‘Ghatta’,

GATE (1983).

99. Martin P. Schroeder and P.K.C. Tu, An assess-

ment of SWECS/Mechanical Heating Systems,

RFP-3261, UC-60, Rockwell International Corp.,

Golden, CO, July 1981 (available from NTIS;

printed copy $8.00).

100. James K. Searcy, Flow-Duration Curves, Geolo-

gical Survey Water-Supply Paper 1542-A, U.S.

Department of the Interior, 1959 (available from

GPO).

101. L. Shafer and A. Agostinelli, “Centrifugal Pumps

as Hydraulic Turbines for the Small Hydropower

Market,” Worthington Group (McGraw-Edison

Co., Taneytown, MD 21787).

102. H.O. Sharp and R.K. Palmer, “Faster and

Cheaper Field Surveys,” Engineering News-

Record, September 30, 1948, pp. 75-78.

103. Djoko Susanto, “Micro-Hydro Axial Flow Turbine

for

a Battery Charging System in Remote Areas,”

Small Hydropower for Asian Rural Development,

NRECA, 1983.

104. Vito A. Vanoni (ed.), Sedimentation Engineering,

ASCE, New York, 1977.

105. P. Verhaart, “Blade Calculations for Water Tur-

bines of the Banki Type,” Report WP3-

83.03.R351, Eindhoven University of Technology,

Eindhoven, Netherlands, March 1982.

106. C.C. Warnick, Hydropower Entineering, Pren-

tice-Hall, Inc. (Englewood Cliffs, NJ 07632),

1984.

280 References

Inversin R. Allen Micro-hydropower Sourcebook

Подождите немного. Документ загружается.
