eyelids and eyelashes are selected. From each selected

region, eight iris blocks are derived and transformed

using Independent Component Analysis thus obtain-

ing 16 feature vectors. In order to take into account

the intra-class variations, the blocks extracted from

each image are clustered, employing a K-means algo-

rithm, thus generating an iris code of sixteen 8-bit

symbols, which represents the elements of the locking

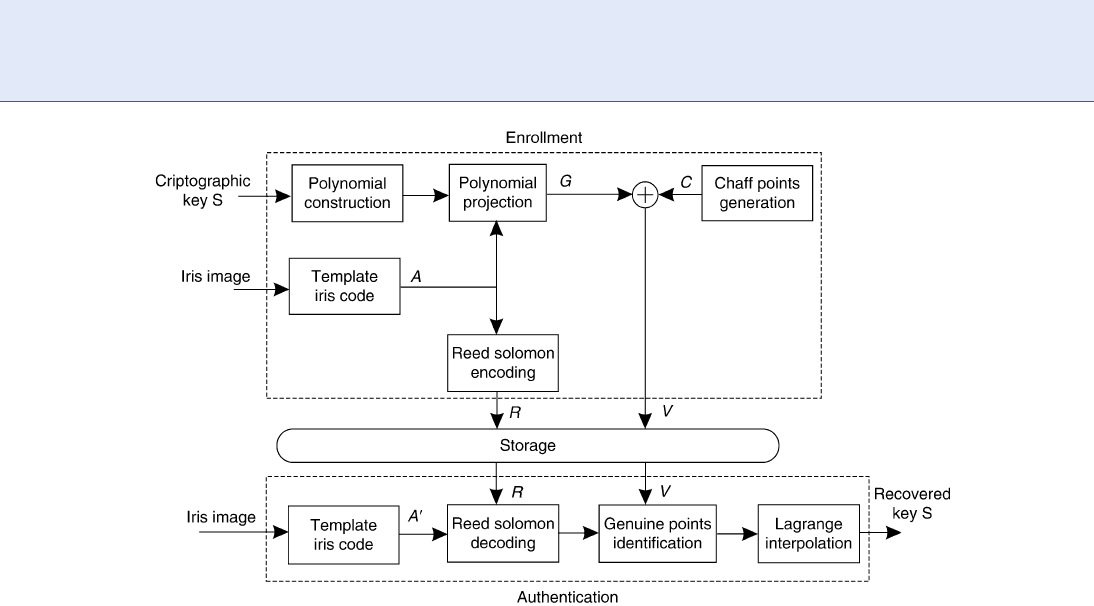

set A. The vault locking is performed as sketched in

Figure 3 and uses the general principle of the fuzzy

vault scheme. However, in the implementation

proposed in [12], the locking set A is also encoded

using Reed Solomon codes, thus obtaining a set

R which is stored together with the set V obtained

by concatenating the genuine points at v obtained

concatenation G ¼fða

; pða

ÞÞ; ða

; pða

ÞÞ; ; ða

;

pða

ÞÞg, coming from the polynomial pðxÞ, and the

set c derived from the chaff point set C ¼fðc

; d

Þ;

ðc

; d

Þ; ; ðc

; d

Þg. The set R is employed during

authentication to correct potential errors, due to intra-

class variations, in the query iriscode. When the query

iris image is analyzed during authentication, the iris

blocks are extracted, compared with the cluster maps

thus generating a new iris code, which is corrected using

the stored Reed Solomon redundancy set and employed

to unlock the vault. The secret key is thus revealed.

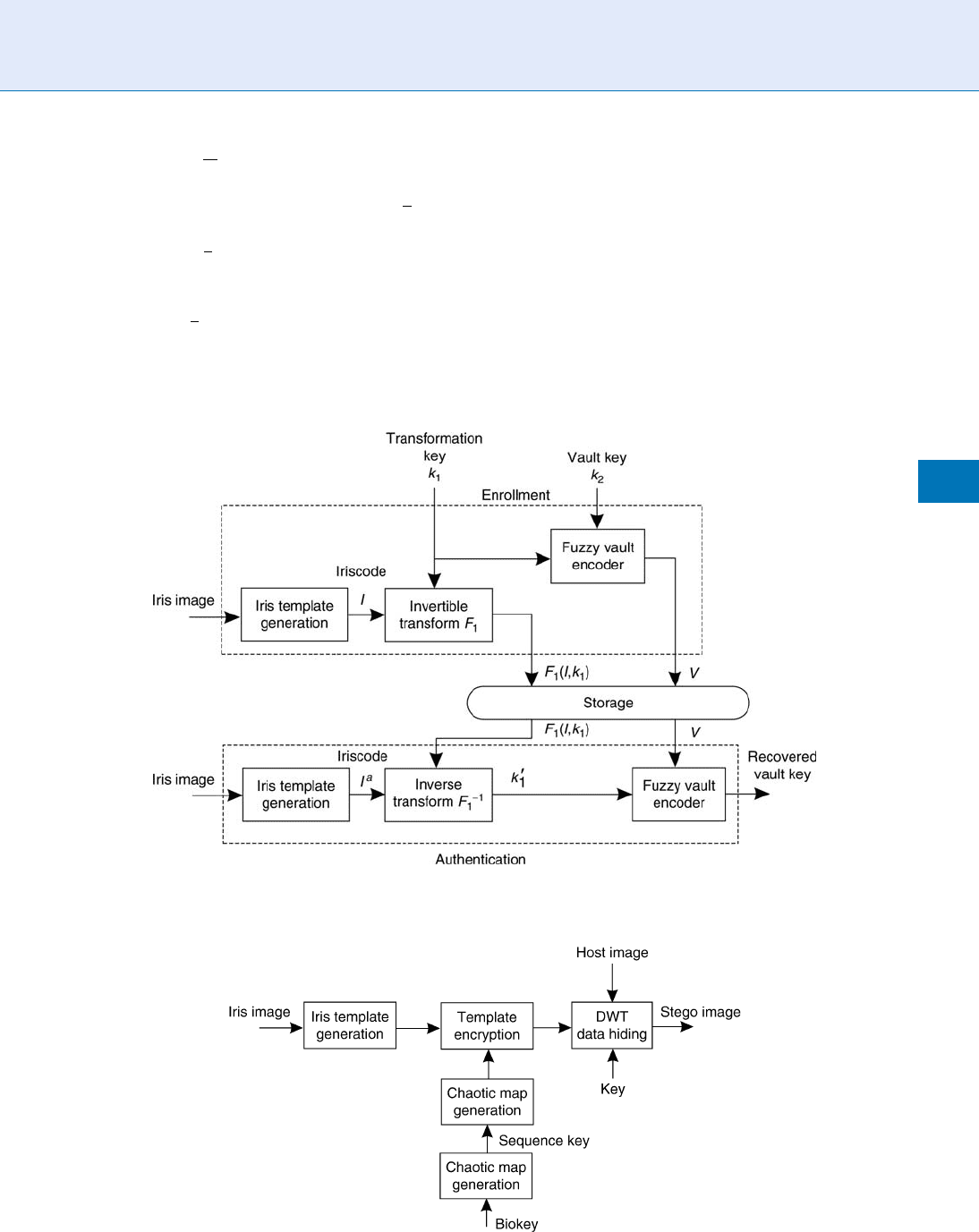

In [13] an iris cryptosystem relying on an invertible

transform, followed by fuzzy vault locking has been

proposed to secure the iriscode [6]. The scheme is

given in Fig. 4. More in detail the proposed iris cryp-

tosystem is a two step process. In the ﬁrst step, an

invertible transform F

, chosen on the base of a ran-

domly generated transformation key k

, is applied to

the iriscode I. In the second step, the fuzzy vault

scheme, with key k

, is applied to secure the transfor-

mation key k

, thus giving the vault V . Both the trans-

formed iriscode and the vault, which locks the

transformation key k

, are eventually stored. In the

authentication stage, the inverse transformation F

1

is applied to the transformed iris code template using

the query iriscode I

, thus obtaining the transforma-

tion key k

. Then the transformation key k

is used to

decode the vault V. If the vault key k

is successfully

recovered this implies that there is a match between the

iriscode template I and the iriscode used in the authen-

tication stage I

. The author of [13] points out that

both the invertible transform and the fuzzy vault intro-

duce error correction, therefore the proposed crypto-

system is able to manage a higher intra class variation.

The protection of iris templates is also discus sed in

[14], where a trade-off between the authentication

performances and the security of key binding schemes,

is discussed from an information theoretic perspective.

A practical cryptosystem for iris templates, based on

Low Density Parity Codes (LDPC) and belief propaga-

tion, is also proposed. The pre-processing of the iris

Iris Template Protection. Figure 3 Fuzzy Vault scheme as in [12].

870

Iris Template Protection

images is performed according to [6], thus obtaining a

binary sequence

m. The bits corresponding to unreli-

able positions, identiﬁed during training, are discar-

ded from m. The obtained binary vector

z is then

mapped into the secure biometr ic S by computing

the syndrome of

z with respect to a low density parity

check code, whose parity check matrix H is randomly

chosen. When a user claims his identity, the realiable

feature vector

is computed and a belief propaga-

tion algorithm is applied to retrieve the sequence

whose syndrome is S. The trade-off between the False

Rejection Rate and the security of the proposed

implementation is discussed, while the False Accep-

tance Rate is not taken into account.

Iris Template Protection using Data

Hiding

In [15] a steganagraphic technique for covert commu-

nication of biometric data using chaos theory is pro-

posed with application to irisdata. The proposed data

hiding scheme is sketched in Fig. 5. Speciﬁcally, the iris

template, namely the iriscode, is extracted using the

Iris Template Protection. Figure 4 Iris cryptosystem [13].

Iris Template Protection. Figure 5 Chaos based data hiding scheme [15].

Iris Template Protection

871

method in [6]. Then two chaotic maps are used for

encrypting the iris template. The ﬁrst map is used to

generate a 1D sequence of real numbers used as a

sequence key. A biometric generated key, the biokey,

is used to set the initial condition and the parameters

of the chaotic map. Then, the so obtained 1D sequence

is used as the sequence key of a different chao tic map

which is used to encrypt the template. The authors of

[15] point out that this approach assures robus tness

against different kind of attacks. After encryption, the

template is embedded into the cover image by using a

discrete wavelet transform (DWT) decomposition. The

template extraction and decryption is made on the

authentication side by performing dual operations

with respect to the ones done at the embedding side.

The authors hig hlights that their method offers better

performance than those given by using only one cha-

otic map.

Summary

Template protection is a key requirement when de-

signing a biometric based authentication system. A

brief overview of the main approaches based on the

use of transforms, bio metric cryptosystems, and data

hiding techniques, either speciﬁcally tailored or simply

applied to iris template protection have been here

outlined.
