APPENDIX G 467

The predictions and experiments show good agreement, which illustrates the

capability of CFD in predicting complex ﬂows. The predictions reproduce

the main features of the experiments and, despite the coarse grid, the pre-

dictions agree well with the experimental data.

G.4 Laminar flow in a circular pipe driven by periodic

pressure variations

The problem considered

Many engineering problems involve unsteady behaviour. In some cases,

for instance paint mixing, the ﬂow may be steady but the distribution of a

transported scalar variable changes with time. In the present example we

consider one of the simplest cases of the class of problems with genuinely

unsteady ﬂow ﬁelds: the periodic oscillations of an incompressible laminar

ﬂow in a circular pipe driven by harmonic pressure variations between inlet

and outlet. Blood ﬂows in veins and arteries, pressure waves in oil pipelines

and air ﬂows in intake manifolds of internal combustion engines can be

modelled as periodic duct ﬂows.

The applied pressure difference between the pipe ends is varied

according to

∆P = K cos nt (G.1)

Figure G.7 Comparison of predicted and measured temperature distributions for LLNL test MOD08

ANIN_Z07.qxd 29/12/2006 04:50PM Page 467

The amplitude K is taken to be 50 000 (Pa) and the circular frequency n is

equal to 2

Hz, giving an oscillation period of 1 s. Schlichting (1979) gives

the analytical solution for the axial velocity component u(r, t) as a function of

radius r and time t for periodic laminar ﬂow in a very long pipe as the real

part of the following expression:

(G.2)

In this formula

and L are the ﬂuid density, kinematic viscosity and the

length of the pipe respectively, J

denotes the Bessel function of the ﬁrst

kind of order 0, and i is −1. The general features of the velocity distribu-

tions are dependent on the value of the non-dimensional parameter (n/

)R.

The solution behaviour for small and large values of this parameter will be

discussed below. Here we calculate the ﬂow for two intermediate values of

n by taking the pipe radius R equal to 0.01 m and frequency n as 2

Hz in

conjunction with a constant ﬂuid density of 1000 kg/m

and dynamic vis-

cosity of 0.4 and 0.1 kg/m.s. This yields values of (n/

)R of 1.253 and

2.507 respectively.

CFD simulation

In order to set up a valid comparison between the analytical and ﬁnite

volume solution of this problem we need to consider a pipe of sufﬁcient

length. The boundary layer ﬂow near the inlet of a pipe changes in the down-

stream direction, and in a steady ﬂow the velocity distribution becomes fully

developed after a distance l

given by (Schlichting, 1979)

= 0.25 (G.3)

An estimate of the maximum possible mean velocities X (approximately 4 m/s

here) can be obtained from the Hagen–Poiseuille formula (Schlichting,

1979). This leads to a maximum Reynolds number of 800 and hence a value

of l

of 1 m. Since the ﬂow switches direction in the course of a cycle it is

necessary to employ a computational domain of length greater than two

times l

to ensure that there is always a section of fully developed ﬂow half

way along the duct. In this simulation we use a domain with a length L equal

to 2.5 m and consider the solution in a cross-sectional plane at a distance of

1.25 m from its ends.

The ﬂow is axisymmetric, and we use a grid of 250 axial and 20 radial

nodes distributed uniformly in the z- and r-directions. Figure G.8 shows a

sketch of the solution domain and part of the mesh used. At r = 0 a symme-

try boundary condition ensures that there is no ﬂow across the axis and that

the gradients of all variables in the radial direction are locally zero. At r = R

= 0.01 m the usual wall boundary condition is maintained. The cosinusoidal

driving pressure difference given by Figure G.9 and equation 10.36 is

applied by means of prescribed pressure boundary conditions at z = 0 and

ur t i

int

(, )

=−

⎛

⎝

⎜

⎞

⎠

⎟

−

⎛

⎝

⎜

⎞

⎠

⎟

−

⎛

⎝

⎜

⎞

⎠

⎟

⎡

⎣

⎢

⎤

⎦

⎥

468 APPENDIX G

ANIN_Z07.qxd 29/12/2006 04:50PM Page 468

APPENDIX G 469

z = L = 2.5 m. The solution procedure is SIMPLER with fully implicit

time marching; the time step is 1 ms. The parabolic velocity proﬁle of a

steady laminar pipe ﬂow is used as the initial velocity ﬁeld.

Specimen results

Figures G.9 and G.10 compare the numerical and analytical solutions half

way along the pipe at time intervals of 0.125 s. The ﬁnite volume solution is

studied after three pressure cycles, allowing time for the initial transients to

die out. It is clear from the solution that the agreement between numerical

and analytical solutions is generally excellent. There are minor discrepancies

in the simulation with (n/

)R = 2.507 during those parts of the solution

cycle where the ﬂow near the boundary moves in the opposite direction

to that in the core of the pipe. These can be explained by the fact that the

local pressure gradient

∂

x is somewhat different from the overall pres-

sure gradient ∆p/L due to energy losses between the inlet and the solution

cross-section.

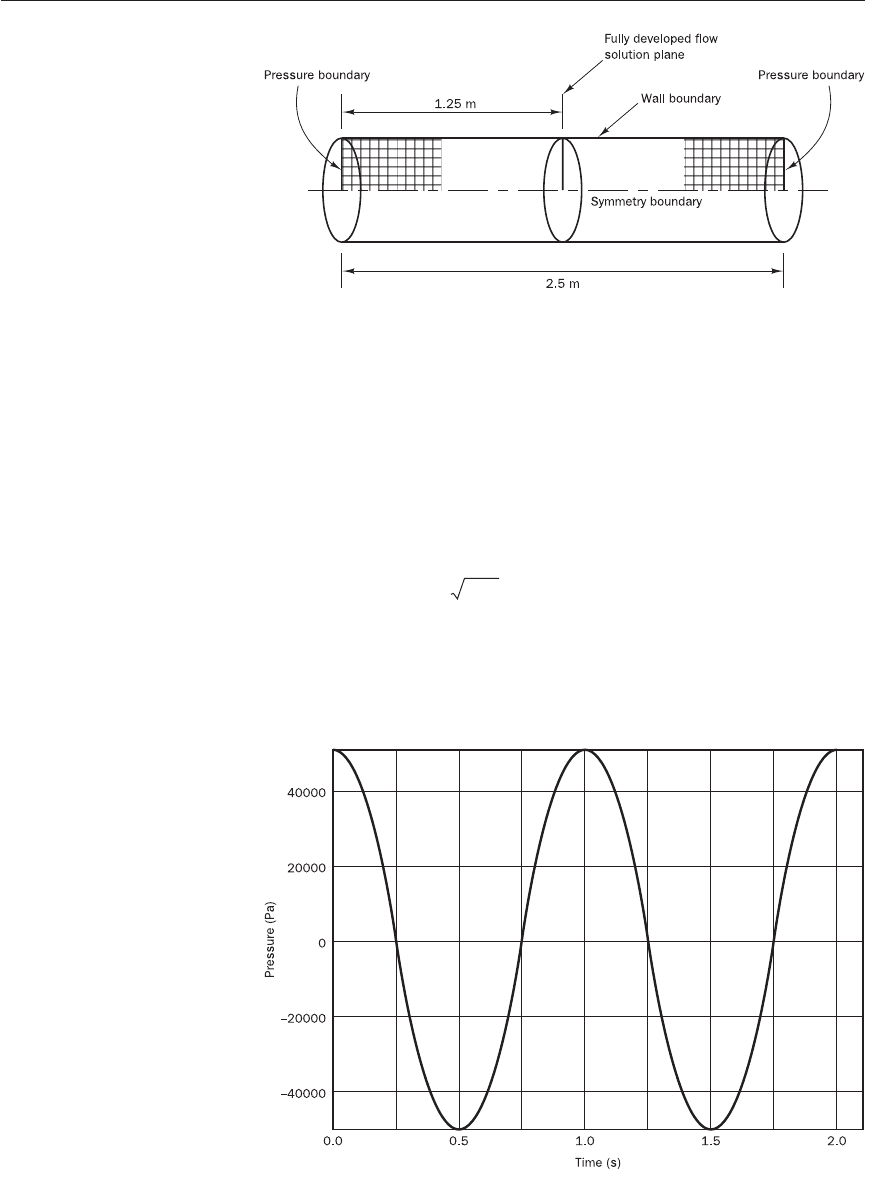

Figure G.8 Solution domain and

a part of the mesh for simulation

of periodic laminar pipe ﬂow

Figure G.9 Imposed transient

pressure cycle

ANIN_Z07.qxd 29/12/2006 04:50PM Page 469

Overall ﬂow behaviour can be explained by considering appropriate

expressions (Abramowitz and Stegun, 1964) of the Bessel function J

in the

analytical solution.

For very slow oscillations (n/

)R → 0 we obtain

u(r, t) = (R

− r

) cos nt (G.4)

This exhibits the parabolic velocity distribution of a steady, fully developed,

laminar pipe ﬂow with a periodic time variation. The amplitude depends on

the ﬂuid viscosity, and the oscillations are in phase with the driving pressure

difference. For fast oscillations (n/

)R →∞we have

u(r, t) = sin nt − exp − (R − r) sin nt − (R − r) (G.5)

Expression (G.5) contains two sinusoidal terms, the ﬁrst of which is

independent of viscosity. It describes the ﬂow in the central core of the pipe,

which has a uniform velocity distribution with an amplitude inversely pro-

portional to the oscillation frequency and a phase lag of

/2 radians behind

the excitation force. The amplitude and the phase of the second term are

viscosity dependent. The term decays quickly with distance (R − r) from the

pipe wall due to the exponential factor. It can be shown that this boundary

layer ﬂow lags behind the driving pressure difference by

/4 radians. The

phase difference between the core and the boundary layer gives rise to an

annular ﬂow pattern during fast oscillations. It is clear that the results of

Figures G.10 and G.11 exhibit the main characteristics of the slow and fast

solution respectively.

470 APPENDIX G

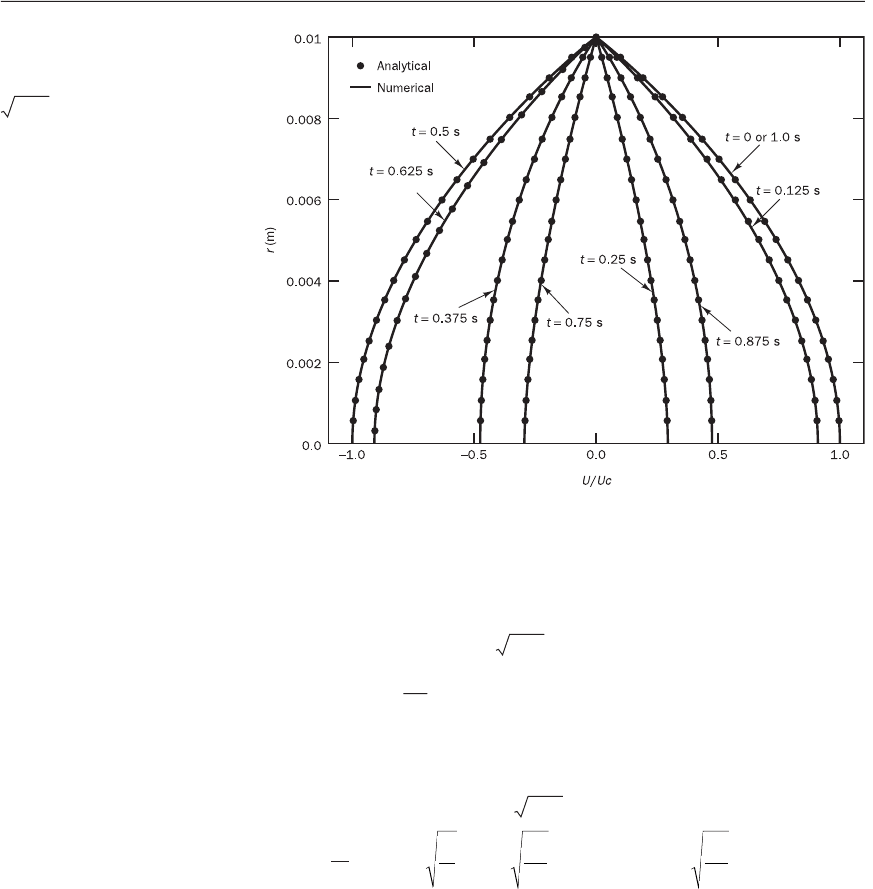

Figure G.10 Velocity

distribution for periodic

laminar pipe ﬂow with

(n/

)R = 1.253

ANIN_Z07.qxd 29/12/2006 04:50PM Page 470

APPENDIX G 471

The above ﬂow can be comfortably calculated on a workstation, but this

success should not mislead the prospective user of commercial CFD codes.

Other types of unsteady ﬂow problems with complex geometries and/or

ﬂuid physics such as turbulent intake manifold ﬂows (Chen, 1994), pulsed

combustion (Benelli et al., 1992), transient free convective cooling of warm

crude oil in storage tanks (Cotter and Charles, 1993) or hydrodynamic insta-

bilities such as vortex shedding require very large computing resources.

Often such ﬂow calculations are only practical within reasonable time limits

on dedicated large computers with advanced architecture and specially

adapted algorithm structures.

Figure G.11 Velocity

distribution for periodic

laminar pipe ﬂow with

(n/

)R = 2.507

ANIN_Z07.qxd 29/12/2006 04:50PM Page 471
