Acknowledgments
The author thanks his colleagues and co-workers for many enlightening discussions. Special thanks go
to Jaime Colchero, Michael Hipp, Eva Weilandt, Sabine Hild, Armin Rosa, Bernd Zink, Georg Krausch,
Bernd Heise, Martin Pietralla, Gerd-Ingo Asbach, Roland Winkler, and Joachim Spatz. Many of the
insights have been gained while preparing lectures for very interesting students.

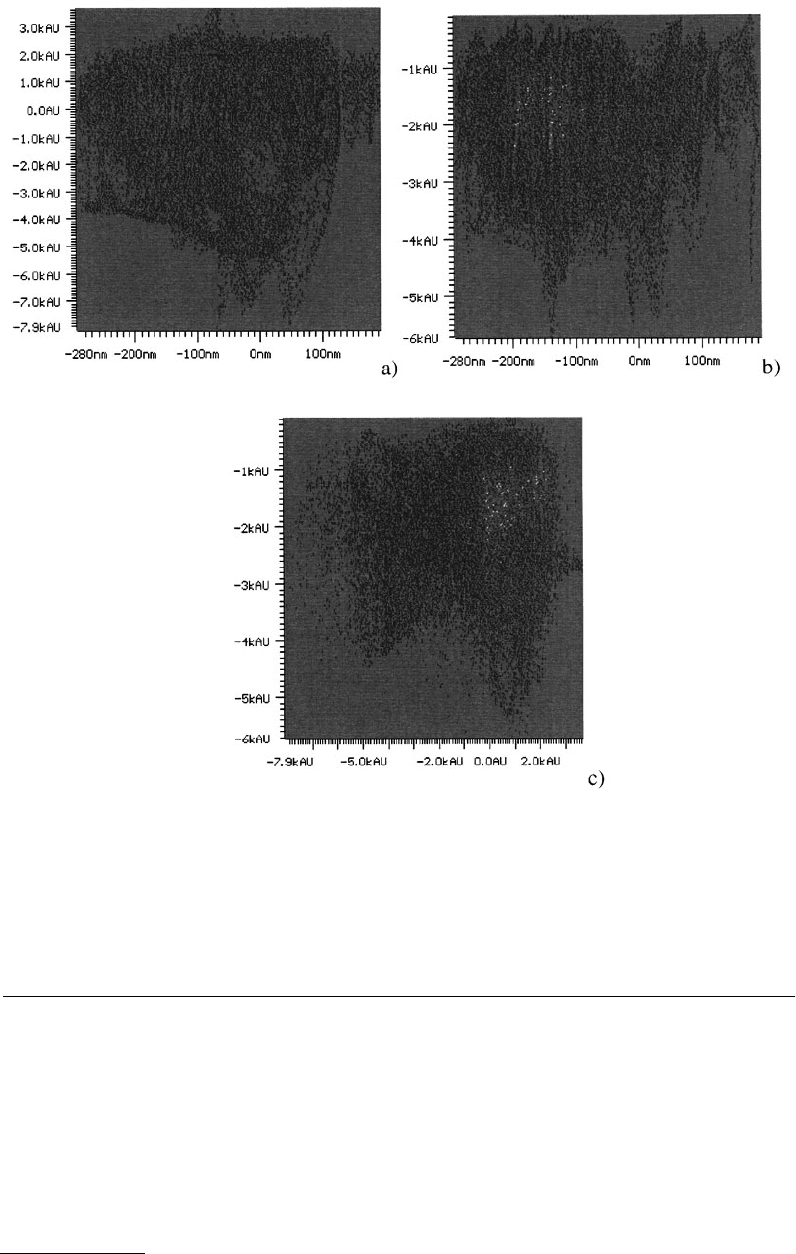

FIGURE 2.50 Two-dimensional histograms between the different channels. (a) shows the correlation between the
topography (horizontal) and the local stiffness. (b) shows the correlation between the topography (horizontal) and
the adhesion. (c), finally, is the correlation between the local stiffness (horizontal) and the adhesion.
© 1999 by CRC Press LLC
FIGURE 2.51(a-d)
© 1999 by CRC Press LLC

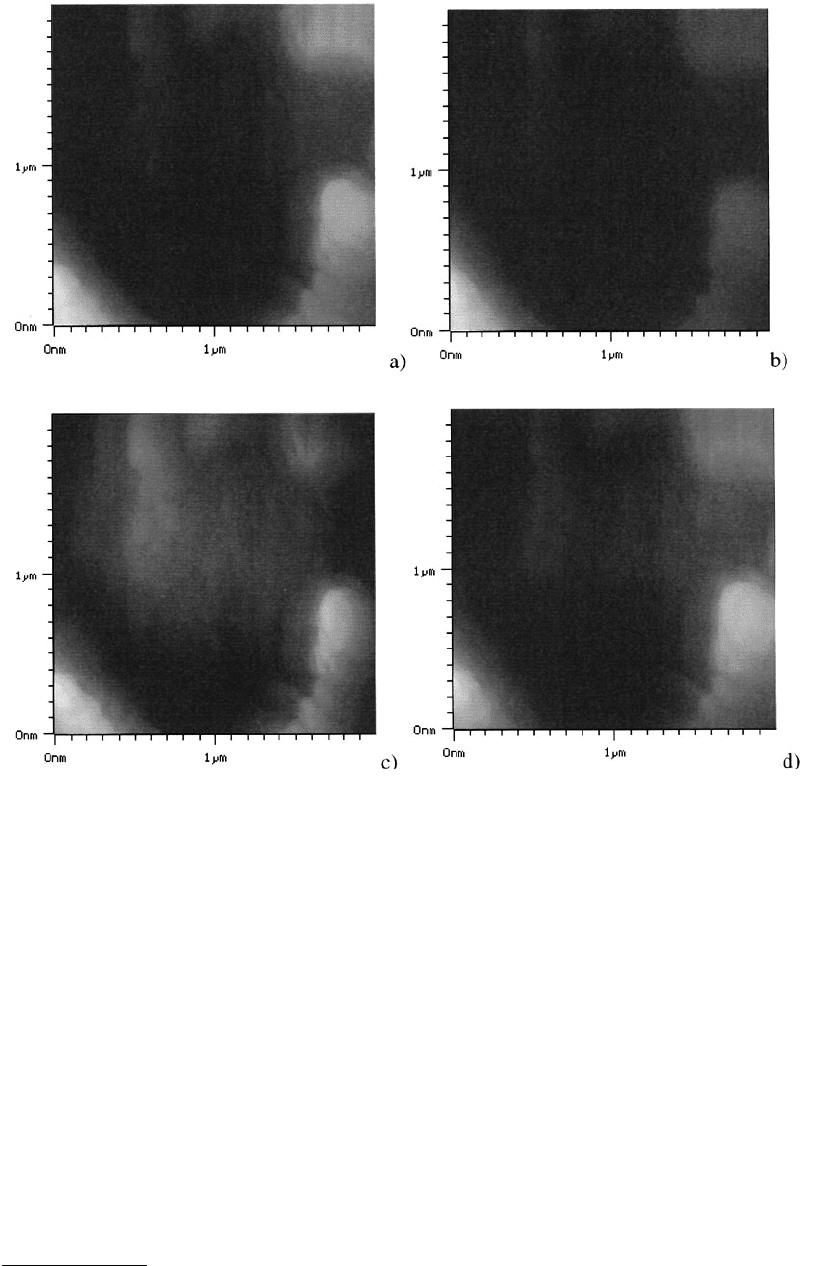

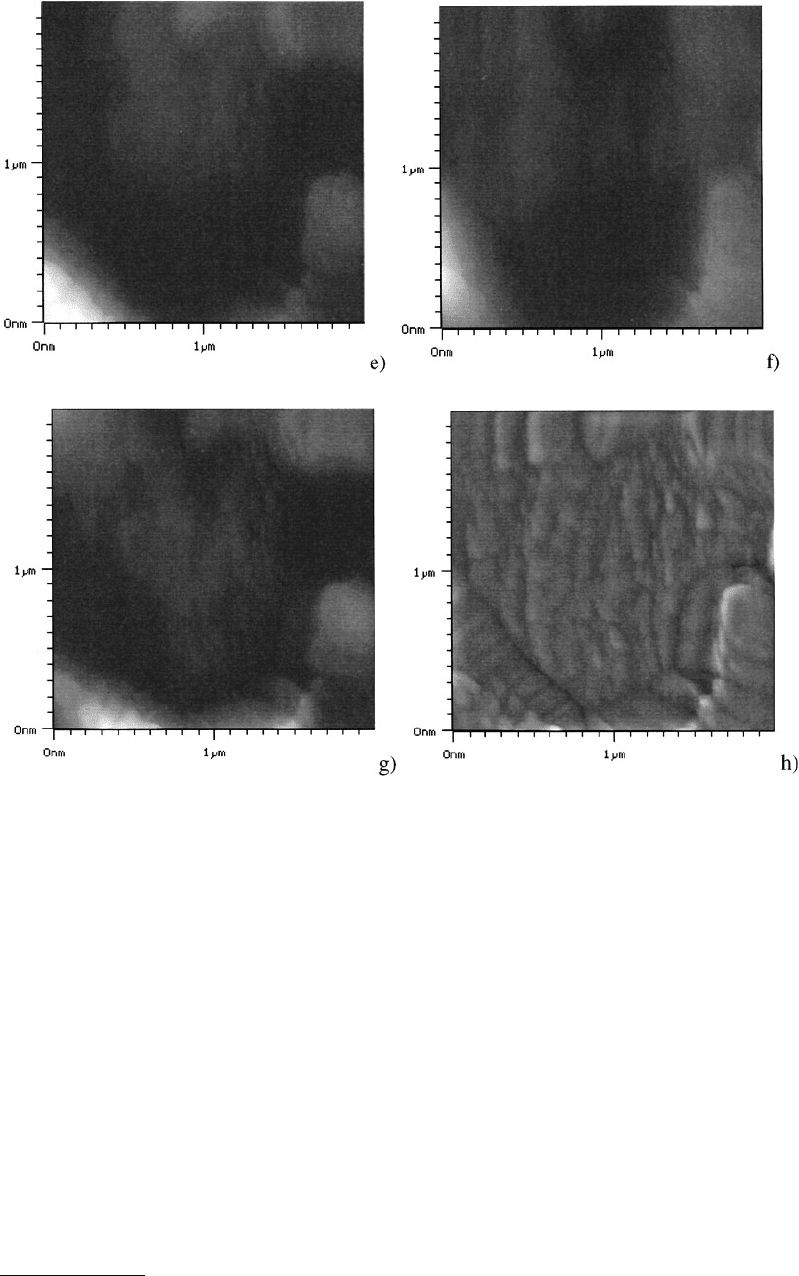

FIGURE 2.51 The effect of different slope correction algorithms. (a) shows the original data. In (b) a plane was
fitted to the data and subtracted. (c) show the effect of subtracting a second-order surface from the data. (c) shows
the effect of setting the average of each row to 0. In (e) the same has been done with the columns. (f) shows the
effect of setting the average and the average slope of each row to 0. (g), finally, shows the same, but for the columns.
(h) shows the effect of unsharp masking with an averaging area of about one fifth of the image size.
© 1999 by CRC Press LLC
