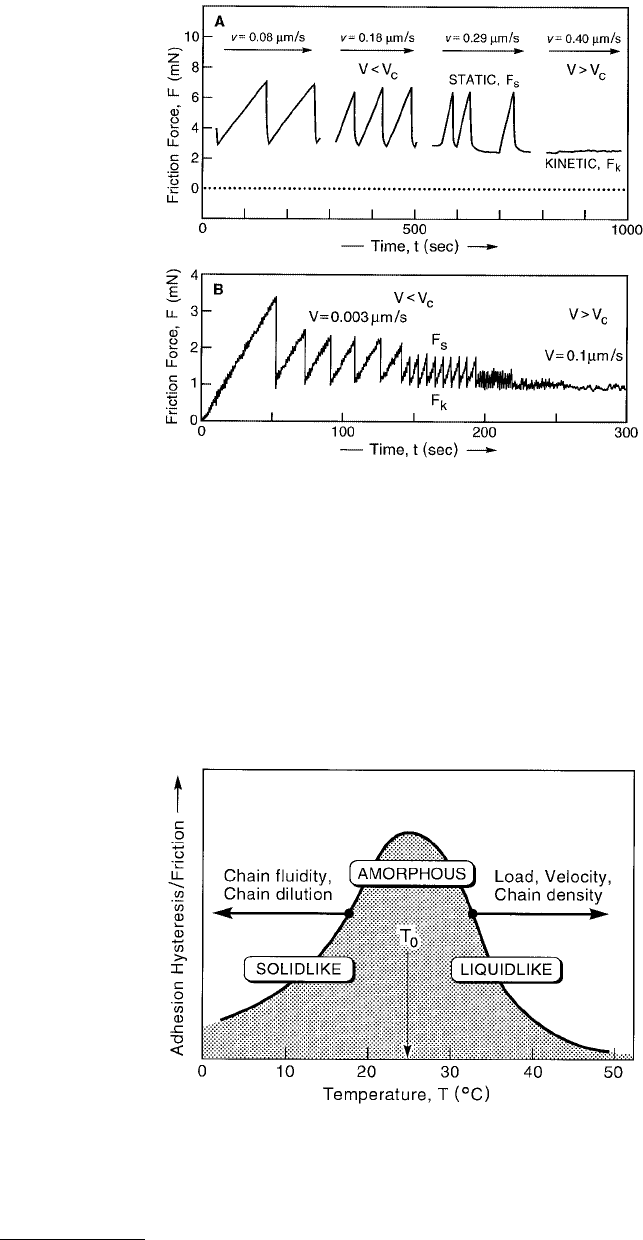

FIGURE 9.36 Exact reproductions of chart-recorded traces of friction forces at increasing sliding velocities V (in

µm/s) plotted as a function of time for a hydrocarbon liquid (A) and a boundary monolayer (B). In general, with

increasing sliding speed, the stick-slip spikes increase in frequency and decrease in magnitude. As the critical sliding

velocity V

is approached, the spikes become erratic, eventually disappearing altogether at V = V

. At higher sliding

velocities the sliding continues smoothly in the kinetic state. Such friction traces are fairly typical for simple liquid

lubricants and dry boundary lubricant systems, and may be referred to as the “conventional” type of static-kinetic

friction. (A) Liquid hexadecane (C

) ﬁlm between two untreated mica surfaces. Experimental conditions (see

Figure 9.30): contact area, πr

= 4 × 10

–9

; load, L ≈ 1 g; ﬁlm thickness, D = 0.4 to 0.8 nm; V = 0.08 to 0.4 µm/s;

≈ 0.3 µm/s; atmosphere: dry N

gas; T = 18°C. (B) Close-packed surfactant monolayers on mica (dry boundary

lubrication) showing qualitatively similar behavior to that obtained above with a liquid hexadecane ﬁlm. In this case,

≈ 0.1 µm/s.

FIGURE 9.37 Schematic “friction phase diagram” representing the trends observed in the boundary friction of a

variety of different surfactant monolayers (Yoshizawa et al., 1993). The characteristic bell-shaped curve also correlates

with the monolayer adhesion energy hysteresis. The arrows indicate the direction in which the whole curve is dragged

when the load, velocity, etc., are increased.

Such effects are also commonly observed in other energy-dissipating phenomena such as polymer

viscoelasticity (Ferry, 1980), and it is likely that a similar physical mechanism is at the heart of all such

phenomena. A possible molecular process underlying the energy dissipation of chain molecules during

boundary layer sliding is illustrated in Figure 9.38, which shows the three main dynamic phase states of

boundary monolayers.

Acknowledgment

This work was supported by ONR grant N00014-931D269.

References

Andrade, J. D., Smith, L. M., and Gregonis, D. E. (1985), “The Contact Angle and Interface Energetics,”

in Surface and Interfacial Aspects of Biomedical Polymers, Vol. 1 (J.D. Andrade, ed.), pp. 249–292,

Plenum, New York.

Attard, P. and Batchelor, M. T. (1988), “A Mechanism for the Hydration Force Demonstrated in a Model

System,” Chem. Phys. Lett., 149, 206–211.

Awschalom, D. D. and Warnock, J. (1987), “Supercooled Liquids and Solids in Porous Glass,” Phys. Rev. B,

35, 6792–6799.

Barquins, M. and Maugis, D. (1982), “Adhesive Contact of Axisymmetric Punches on an Elastic Half-

Space: The Modiﬁed Hertz-Herber’s Stress Tensor for Contacting Spheres,” J. Mec. Theor. Appl. 1,

331–357.

Baumberger, T., Heslot, F., and Perrin., B. (1994), “Crossover from Creep to Inertial Motion in Friction

Dynamics,” Nature, 367, 544–546.

Berman, A. (1996), “Dynamics of Molecules at Surface,” Ph.D. dissertation, University of California,

Santa Barbara.

Berman, A. D. and Israelachvili, J. N. (1997), “Control and Minimization of Friction via Surface Modi-

ﬁcation,” in Micro/Nanotribology and Its Applications, B. Bhushan, ed., NATO Advanced Institute

Series, Kluwer Academic Publishers, Dordrecht, pp. 317–329.

Berman, A., Ducker, W., and Israelachvili, J. (1996a), “Origin and Characterization of Different Stick-

Slip Friction Mechanisms,” Langmuir 12, 4559–4563.

Berman, A., Ducker, W., and Israelachvili, J. (1996b), “Experimental and Theoretical Investigations of

Stick-Slip Friction,” in Physics of Sliding Friction (B. Persson and E. Tosati, eds.), NATO Advanced

Science Institute Series, Kluwer Academic Publishers, Dordrecht, pp. 51–67.

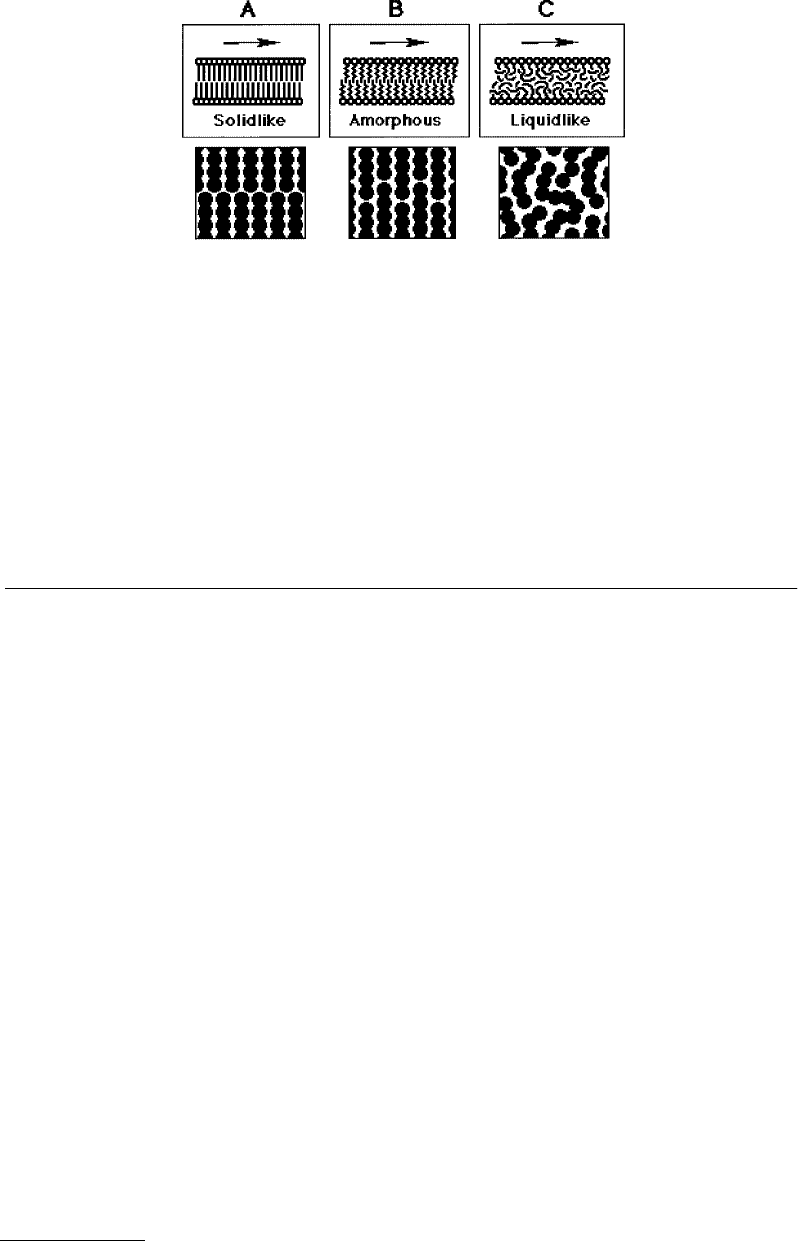

FIGURE 9.38 Different dynamic-phase states of boundary monolayers during adhesive contact and/or frictional

sliding. Low adhesion hysteresis and friction is exhibited by solidlike and liquidlike layers (A and C). High adhesion

hysteresis and friction is exhibited by amorphous layers (B). Increasing the temperature generally shifts a system

from the left to the right. Changing the load, sliding velocity and other experimental conditions can also change the

dynamic-phase state of surface layers as shown in Figure 9.37.

Berman, A., Drummond, C., and Israelachvili, J. (1998a), “Amontons’ Law at the Molecular Level,” Tribol.

Lett., 4, 95–101.

Berman, A., Steinberg, S., Campbell, S., Ulman, A., and Israelachvili, J. (1998b), “Controlled Microtri-

bology of a Metal Oxide Surface,” Tribol. Lett., 4, 43–48.

Bowden, F. P. and Tabor, D. (1967), Friction and Lubrication, 2nd ed., Methuen, London.

Briscoe, B. J. and Evans, D. C. (1982), “The Shear Properties of Langmuir Blodgett Layers,” Proc. R. Soc.

London, A380, 389–407.

Briscoe, B. J., Evans, D. C., and Tabor, D. (1977), “The Inﬂuence of Contact Pressure and Saponiﬁcation

on the Sliding Behavior of Steric Acid Monolayers,” J. Colloid Interface Sci., 61, 9–13.

Campbell, S. E., Luengo, G., Srdanov, V. I., Wudl, F., and Israelachvili, J. N. (1996), “Very Low Viscosity

at the Solid-Liquid Interface Induced by Adsorbed C

Monolayers,” Nature 382, 520–522.

Carlson, J. M. and Batista, A. A. (1996), “A Constituative Relation for the Friction between Lubricated

Surfaces,” Phys. Rev. E, 53, 4153–4165.

Carlson, J. M. and Langer, J. S. (1989), “Mechanical Model of an Earthquake Fault,” Phys. Rev. A, 40,

6470–6484.

Chan, D. Y. C. and Horn, R. G. (1985), “The Drainage of Thin Liquid Films between Solid Surfaces,”

J. Chem. Phys., 83, 5311–5324.

Chaudhury, M. K. and Whitesides, G. M. (1991), “Direct Measurement of Interfacial Interactions between

Semispherical Lenses and Flat Sheets of Poly(Dimethylsiloxane) and Their Chemical Derivatives,”

Langmuir, 7, 1013–1025.

Chen, Y. L., Gee, M. L., Helm, C. A., Israelachvili, J. N., and McGuiggan, P. M. (1989), “Effects of Humidity

on the Structure and Adhesion of Amphiphilic Monolayers on Mica,” J. Phys. Chem., 93, 7057–7059.

Chen, Y. L., Helm, C., and Israelachvili, J. N. (1991), “Molecular Mechanisms Associated with Adhesion

and Contact Angle Hysteresis of Monolayer Surfaces,” J. Phys. Chem., 95, 10736–10747.

Chen, Y. L., Kuhl, T., and Israelachvili, J. N. (1992), “Mechanism of Cavitation Damage in Thin Liquid

Films: Collapse Damage vs. Inception Damage,” Wear, 153, 31–51.

Christenson, H. K. (1985), “Forces between Solid Surfaces in a Binary Mixture of Non-Polar Liquids,”

Chem. Phys. Lett., 118, 455–458.

Christenson, H. K. (1988a), “Non-DLVO forces between surfaces — solvation, hydration and capillary

effects,” J. Disp. Sci. Technol., 9, 171–206.

Christenson, H. K. (1988b), “Adhesion between Surfaces in Unsaturated Vapors — A Reexamination of

the Inﬂuence of Meniscus Curvature and Surface Forces,” J. Colloid Interface Sci., 121, 170–178.

Christenson, H. K. and Horn, R. G. (1985), “Solvation Forces Measured in Non-Aqueous Liquids,” Chem.

Scr., 25, 37–41.

Christenson, H. K., Gruen, D. W. R., Horn, R. G., and Israelachvili, J. N. (1987), “Structuring in Liquid

Alkanes Between Solid Surfaces: Force Measurements and Mean-Field Theory,” J. Phys. Chem. 87,

1834–1841.

Christenson, H. K., Claesson, P. M., Berg, J., and Herder, P. C. (1989), “Forces between Fluorocarbon

Surfactant Monolayers: Salt Effects on the Hydrophobic Interaction,” J. Phys. Chem. 93, 1472–1478.

Christenson, H. K., Fang, J., Ninham, B. W., and Parker, J. L. (1990), “Effect of Divalent Electrolyte on

the Hydrophobic Attraction,” J. Phys Chem. 94, 8004–8006.

Christou, N. I., Whitehouse, J. S., Nicholson, D., and Parsonage, N. G. (1981), “A Monte Carlo Study of

Fluid Water in Contact with Structureless Walls,” Symp. Faraday Soc. 16, 139–149.

Claesson, P. M. and Christenson, H. K. (1988), “Very Long-Range Attractive Forces between Uncharged

Hydrocarbon and Fluorocarbon Surfaces in Water,” J. Phys. Chem. 92, 1650–1655.

Claesson, P. M., Blom, C. E., Herder, P. C., and Ninham, B. W. (1986), “Interactions between Water-

Stable Hydrophobic Langmuir-Blodgett Monolayers on Mica,” J. Colloid Interf. Sci. 114, 234–242.

Coakley, C. J. and Tabor, D. (1978), “Direct Measurement of van der Waals Forces between Solids in Air,”

J. Phys. D 11, L77–L82.

Del Pennino, U., Mezzega, E., Valeri, S., Alietti, A., Brigatti, M. F., and Poppi, L. (1981), “Interlayer Water

and Swelling Properties of Monoionic Montmorillonites,” J. Colloid Interf. Sci. 84, 301–309.

Derjaguin, B. V. (1966), Research in Surface Forces, Vol. 2, p. 312, Consultants Bureau, New York.

Derjaguin, B. V. (1988), “Mechanical Properties of the Boundary Lubrication Layer,” Wear 128, 19–27.

Dieterich, J. H. (1978), “Time-Dependent Friction and the Mechanics of Stick-Slip,” Pure Appl. Geophys.

116, 790–806.

Dieterich, J. H. (1979), “Modeling of Rock Friction 1. Experimental Results and Constitutive Equations,”

J. Geophys. Res. 84, 2162–2168.

Dowson, D. (1979), History of Tribology, Longman, London.

Drake, B., Prater, C. B., Weisenhorn, A. L., Gould, S. A. C., Albrecht, T. R., Quate, C. F., Cannell, D. S.,

Hansma, H. G., and Hansma, P. K. (1989), “Imaging Crystals, Polymers, and Processes in Water

with the Atomic Force Microscope,” Science 243, 1586–1589.

Ducker, W. A., Senden, T. J., and Pashley, R. M. (1991), “Direct Measurement of Colloidal Forces Using

an Atomic Force Microscope,” Nature 353, 239–241.

Elimelech, M. (1990), “Indirect Evidence for Hydration Forces in the Deposition of Polystyrene Latex

Colloids on Glass Surfaces,” J. Chem. Soc. Faraday Trans. 86, 1623–1624.

Ellul, M. D. and Gent, A. N. (1984), “The Role of Molecular Diffusion in the Adhesion of Elastomers,”

J. Polym. Sci. Polym. Phys. 22, 1953–1968: (1985), “The Role of Molecular Diffusion in the Adhesion

of EPDM and EPR Elastomers,” J. Polym. Sci. Polym. Phys. 23, 1823–1850.

Evans, R. and Parry, A. O. (1990), “Liquids at Interfaces: What can a Theorist Contribute?” J. Phys.

(Condens. Matter) 2, SA15–SA32.

Ferry, J. D. (1980), Viscoelastic Properties of Polymers, 3rd ed., John Wiley, New York.

Fisher, L. R. and Israelachvili, J. N. (1981), “Direct Measurements of the Effect of Meniscus Forces on

Adhesion: A Study of the Applicability of Macroscopic Thermodynamics to Microscopic Liquid

Interfaces,” Colloids Surf. 3, 303–319.

Gee, M. L. and Israelachvili, J. N. (1990), “Interactions of Surfactant Monolayers across Hydrocarbon

Liquids,” J. Chem. Soc. Faraday Trans. 86, 4049–4058.

Gee, M., McGuiggan, P., Israelachvili, J., and Homola, A. (1990), “Liquid to Solid-Like Transitions of

Molecularly Thin Films under Shear,” J. Phys. Chem. 93, 1895–1906.

Granfeldt, M. K. and Miklavic, S. J. (1991), “A Simulation Study of Flexible Zwitterionic Monolayers.

Interlayer Interaction and Headgroup Conformation,” J. Phys. Chem. 95, 6351–6360.

Granick, S. (1991), “Motions and Relaxations of Conﬁned Liquids,” Science 253, 1374–1379.

Green, N. M. (1975), “Avidin,” Adv. Protein Chem. 29, 85–133.

Greenwood, J. A. and Johnson, K. L. (1981), “The Mechanics of Adhesion of Viscoelastic Solids,” Philos.

Mag. A 43, 697–711.

Gruen, D. W. R. and Marcelja, S. (1983), “Spatially Varying Polarization in Water: A Model for the Electric

Double Layer and the Hydration Force,” J. Chem. Soc. Faraday Trans II 79, 225–242.

Gyalog, T. and Thomas, H. (1997), “Friction between Atomically Flat Surfaces,” Europhys. Lett. 37,

195–200.

Han, K. K., Cushman, J. H., and Diestler, D. J. (1993), “Grand Canonical Monte Carlo Simulations of a

Stockmayer Fluid in a Slit Micropore,” Mol. Phys. 79, 537–545.

Helm, C. A., Israelachvili, J. N., and McGuiggan, P. M. (1989), “Molecular Mechanisms and Forces

Involved in the Adhesion and Fusion of Amphiphilic Bilayers,” Science 246, 919–922.

Helm, C., Knoll, W., and Israelachvili, J. N. (1991), “Measurement of Ligand-Receptor Interactions,” Proc.

Natl. Acad. Sci. U.S.A. 88, 8169–8173.

Henderson, D. and Lozada-Cassou, M. J. (1986), “A Simple Theory for the Force between Spheres

Immersed in a Fluid,” J. Colloid Interf. Sci. 114, 180–183.

Heslot, F., Baumberger, T., Perrin, B., Caroli, B., and Caroli, C. (1994), “Creep, Stick-Slip, and Dry-

Friction Dynamics — Experiments and a Heuristic Model,” Phys. Rev. E 49, 4973–4988.

Heymann, F., Rabinowicz, E., and Rightmire, B. (1954), “Friction Apparatus for Very Low-Speed Sliding

Studies,” Rev. Sci. Instrum. 26, 56–58.

Hirz, S. J., Homola, A. M., Hadziioannou, G., and Frank, C. W. (1992), “Effect of Substrate on Shearing

Properties of Ultrathin Polymer Films,” Langmuir 8, 328–333.

Holly, F. J. and Refojo, M. J. (1975), “Wettability of Hydrogels. I. Poly (2-Hydroxyethyl Methylcrylate),”

J. Biomed. Mater. Res. 9, 315–326.

Homola, A. M., Israelachvili, J. N., Gee, M. L., and McGuiggan, P. M. (1989), “Measurements of and

Relation between the Adhesion and Friction of Two Surfaces Separated by Thin Liquid and Polymer

Films,” J. Tribol. 111, 675–682.

Homola, A. M., Israelachvili, J. N., McGuiggan, P. M., and Gee, M. L. (1990), “Fundamental Experimental

Studies in Tribology: The Transition from ‘Interfacial’ Friction of Undamaged Molecularly Smooth

Surfaces to ‘Normal’ Friction with Wear,” Wear 136, 65–83.

Homola, A. M., Nguyen, H. V., and Hadziioannou, G. (1993), J. Phys. Chem. 94, 2346.

Horn, R. G. (1990), “Surface Forces and Their Action in Ceramic Materials,” Am. Ceram. Soc. 73,

1117–1135.

Horn, R. G. and Israelachvili, J. N. (1981), “Direct Measurement of Structural Forces between Two

Surfaces in a Nonpolar Liquid,” J. Phys. Chem. 75, 1400–1411.

Horn, R. G. and Israelachvili, J. N. (1988), “Molecular Organization and Viscosity of a Thin Film of

Molten Polymer between Two Surfaces as Probed by Force Measurements,” Macromolecules 21,

2836–2841.

Horn, R. G., Clarke, D. R., and Clarkson, M. T. (1988), “Direct Measurements of Surface Force between

Sapphire Crystals in Aqueous Solutions,” J. Mater. Res. 3, 413–416.

Horn, R. G., Hirz, S. J., Hadziioannou, G. H., Frank, C. W., and Catala, J. M. (1989a), “A Reevaluation

of Forces Measured across Thin Polymer Films: Nonequilibrium and Pinning Effects,” J. Phys.

Chem. 90, 6767–6774.

Horn, R. G., Smith, D. T., and Haller, W. (1989b), “Surface Forces and Viscosity of Water Measured

between Silica Sheets,” Chem. Phys. Lett. 162, 404–408.

Hu, H.-W. and Granick, S. (1992), “Viscoelastic Dynamics of Conﬁned Polymer Melts,” Science 258,

1339–1342.

Hu, H. W., Carson, G., and Granick, S. (1991), “Relaxation Time of Conﬁned Liquids under Shear,” Phys.

Rev. Lett. 66, 2758–2761.

Hunter, R. J. (1987), Foundations of Colloid Science, Vol. I, Ch. 7, Clarendon Press, Oxford, U.K.

Israelachvili, J. N. (1986a), “Measurement of the Viscosity of Liquids in Very Thin Films,” J. Colloid Interf.

Sci. 110, 263–271.

Israelachvili, J. N. (1986b), “Measurements of the Viscosity of Thin Films between Two Surfaces with

and without Absorbed Polymers,” Colloid Polym. Sci. 264, 1060–1065.

Israelachvili, J. N. (1987), “Solvation Forces and Liquid Structure — As Probed by Direct Force Measure-

ments,” Acc. Chem. Res. 20, 415–421.

Israelachvili, J. N. (1988), “Measurements and Relation between the Dynamic and Static Interactions

between Surfaces Separated by Thin Liquid and Polymer Films,” Pure Appl. Chem. 60, 1473–1478.

Israelachvili, J. N. (1989), “Techniques for Direct Measurements of Forces between Surfaces in Liquids

at the Atomic Scale,” Chemtracts Anal. Phys. Chem. 1, 1–12.

Israelachvili, J. N. (1991), Intermolecular and Surface Forces, 2nd ed., Academic Press, London.

Israelachvili, J. N. and Adams, G. E. (1978), “Measurement of Forces between Two Mica Surfaces in

Electrolyte Solutions in the Range 0–100 nm,” J. Chem. Soc. Faraday Trans. I 74, 975–1001.

Israelachvili, J. and Berman, A. (1995), “Irreversibility, Energy Dissipation, and Time Effects in Intermo-

lecular and Surface Interactions,” Isr. J. Chem. 35, 85–91.

Israelachvili, J. N. and Kott, S. J. (1988), “Liquid Structuring at Solid Interfaces as Probed by Direct Force

Measurements: The Transition from Simple to Complex Liquids and Polymer Fluids,” J. Phys.

Chem. 88, 7162–7166.

Israelachvili, J. N. and Kott, S. (1989), “Shear Properties and Structure of Simple Liquids in Molecularly

Thin Films: The Transition from Bulk (Continuum) to Molecular Behavior with Decreasing Film

Thickness,” J. Colloid Interf. Sci. 129, 461–467.

Israelachvili, J. N. and McGuiggan, P. M. (1988), “Forces between Surfaces in Liquids,” Science 241,

795–800.

Israelachvili, J. N. and McGuiggan, P. M. (1990), “Adhesion and Short-Range Forces between Surfaces.

I — New Apparatus for Surface Force Measurements,” J. Mater. Res. 5, 2223–2231.

Israelachvili, J. N. and Pashley, R. M. (1982), “The Hydrophobic Interaction Is Long Range, Decaying,

Exponentially with Distance,” Nature 300, 341–342.

Israelachvili, J. N. and Wennerström, H. K. (1990), “Hydration or Steric Forces between Amphiphilic

Surfaces?” Langmuir 6, 873–876.

Israelachvili, J. N. and Wennerström, H. K. (1992), “Entropic Forces between Amphiphilic Surfaces in

Liquids,” J. Phys. Chem. 96, 520–531.

Israelachvili, J. and Wennerström, H. (1996), “Role of Hydration and Water Structure in Biological and

Colloidal Interactions,” Nature 379, 219–225.

Israelachvili, J. N., Homola, A. M., and McGuiggan, P. M. (1988), “Dynamic Properties of Molecularly

Thin Liquid Films,” Science 240, 189–191.

Israelachvili, J. N., Gee, M. L., McGuiggan, P., Thompson, P., and Robbins, M. (1990a), “Melting-Freezing

Transitions in Molecularly Thin Liquid Films during Shear,” in Dynamics in Small Conﬁning

Systems, Proc. 1990 Fall Meeting of the Materials Research Society (J. M. Drake, J. Klafter, and R.

Kopelman, eds.), pp 3–6, MRS Publications, Pittsburgh, PA.

Israelachvili, J. N., McGuiggan, P., Gee, M., Homola, A., Robbins, M., and Thompson, P. (1990b), “Liquid

Dynamics in Molecularly Thin Films,” J. Phys. Condens. Matter 2, SA89–SA98.

Israelachvili, J., Chen, Y.-L., and Yoshizawa, H. (1994), “Relationship between Adhesion and Friction

Forces,” J. Adhesion Sci. Technol. 8, 1–18.

Israelachvili, J., Chen, Y.-L., and Yoshizawa, H. (1995), “Relationship between Adhesion and Friction

Forces,” in Fundamentals of Adhesion and Interfaces (D. S. Rimai, L. P. DeMejo, and K. L. Mittal,

eds.), 261–279, VSP, Utrecht, The Netherlands.

Johnson, K. L., Kendall, K., and Roberts, A. D. (1971), “Surface Energy and the Contact of Elastic Solids,”

Proc. R. Soc. London A 324, 301–313.

Jönsson, B. (1981), “Monte Carlo Simulations of Liquid Water between Two Rigid Walls,” Chem. Phys.

Lett. 82, 520–525.

Jönsson, B. and Wennerström, H. (1983), “Image-Charge Forces in Phospholipid Bilayer Systems,”

J. Chem. Soc. Faraday Trans II 79, 19–35.

Kjellander, R. and Marcelja, S. (1985a), “Perturbation of Hydrogen Bonding in Water Near Polar Surfaces,”

Chem. Phys. Lett. 120, 393–396.

Kjellander, R. and Marcelja, S. (1985b), “Polarization of Water between Molecular Surfaces: A Molecular

Dynamics Study,” Chem. Scr. 25, 73–80.

Klein, J. (1983), “Forces between Mica Surfaces Bearing Adsorbed Macromolecules in Liquid Media,”

J. Chem. Soc. Faraday Trans. I 79, 99–118.

Klein, J. (1986), “Surface Forces with Adsorbed Polymers: Direct Measurements and Model Calculations,”

Macromol. Chem. Macromol. Symp. 1, 125–137.

Klein, J. and Kumacheva, E. (1995), “Conﬁnement-Induced Phase Transitions in Simple Liquids,” Science

269, 816–819.

Klein, J., Kamiyama, Y., Yoshizawa, H., Israelachvili, J. N., Fredrickson, G. H., Pincus, P., and Fetters, L. J.

(1993), “Lubrication Forces between Surfaces Bearing Polymer Brushes,” Macromolecules (in press).

Klein, J., Kumacheva, E., Mahalu, D., Perahia, D., and Fetters, L. J. (1994), “Reduction of Frictional Forces

between Solid Surfaces Bearing Polymer Brushes,” Nature 370, 634–636.

Kuhl, T. L., Berman, A. D., Israelachvili, J. N., and Hui, S. W. (1998), “Part I: Direct Measurement of

Depletion Attraction and Thin Film Viscosity between Lipid Bilayers in Aqueous Polyethylene

Oxide Solutions,” Macromolecules, (in press).

Kurihara, K., Kato, S., and Kunitake, T. (1990), “Very Strong Long Range Attractive Forces between Stable

Hydrophobic Monolayers of a Polymerized Ammonium Surfactant,” Chem. Lett. (Chem. Soc. Jpn.)

1990, 1555–1558.

Landman, U., Luedtke, W. D., Burnham, N. A., and Colton, R. J. (1990), “Atomistic Mechanisms and

Dynamics of Adhesion, Nanoindentation, and Fracture,” Science 248, 454–461.

Lawn, B. R. and Wilshaw, T. R. (1975), Fracture of Brittle Solids, Cambridge University Press, London.

Leckband, D. E., Schmitt, F.-J., Knoll, W., and Israelachvili, J. N. (1992), “Long-Range Attraction and

Molecular Rearrangements in Receptor-Ligand Interactions,” Science 255, 1419–1421.

Lessard, R. R. and Zieminski, S. A. (1971), “Bubble Coalescence and Gas Transfer in Aqueous Electrolytic

Solutions,” Ind. Eng. Chem. Fundam. 10, 260–269.

Luengo, G., Israelachvili, J., and Granick, S. (1996), “Generalized effects in conﬁned ﬂuids: new friction

map for boundary lubrication,” Wear 200, 328–335.

Luengo, G., Schmitt, F.-J., Hill, R., and Israelachvili, J. (1997), “Thin Film Rheology and Tribology of

Conﬁned Polymer Melts: Contrasts with Bulk Properties,” Macromolecules 30, 2482–2494.

Luzar, A., Bratko, D., and Blum, L. J. (1987), “Monte Carlo Simulation of Hydrophobic Interaction,”

J. Phys. Chem. 86, 2955–2959.

Marcelja, S. (1997), “Hydration in Electrical Double Layers,” Nature 385, 688–690.

Marcelja, S. and Radic, N. (1976), “Repulsion of Interfaces Due to Boundary Water,” Chem. Phys. Lett.

42, 129–130.

Marcelja, S., Mitchell, D. J., Ninham B. W., and Sculley, M. J. (1977), “Role of Solvent Structure in Solution

Theory,” J. Chem. Soc. Faraday Trans. II 73, 630–648.

Maugis, D. (1985), “Subcritical Crack Growth, Surface Energy, Fracture Toughness, Stick-Slip, and

Embrittlement,” J. Materials Sci. 20, 3041–3073.

McClelland, G. M. (1989), in Adhesion and Friction. Springer Series in Surface Sciences (M. Grunze and

H. J. Kreuzer, eds.), Vol. 17, 1–16, Springer, Berlin.

McClelland, G. M. and Cohen, S. R. (1990), Chemistry and Physics of Solid Surfaces VIII, pp. 419–445,

Springer, Berlin.

McGuiggan, P. and Israelachvili, J. N. (1990), “Adhesion and Short-Range Forces between Surfaces. Part II:

Effects of Surface Lattice Mismatch,” J. Mater. Res. 5, 2232–2243.

Michel, F. and Shanahan, M. E. R. (1990), “Kinetics of the JKR Experiment,” C. R. Acad. Sci. Paris 310II, 17–20.

Miller, C. A. and Neogi, P. (1985), Interfacial Phenomena: Equilibrium and Dynamic Effects, Marcel

Dekker, New York.

Nasuno, S., Kudrolli, A., and Gollub, J. (1997), “Friction in Granular Layers: Hysteresis and Precursors,”

Phys. Rev. Lett. 79, 949–952.

Parker, J. L. and Christenson, H. K. (1988), “Measurements of the Forces between a Metal Surface and

Mica across Liquids,” J. Chem Phys. 88, 8013–8014.

Parker, J. L., Cho, D. L., and Claesson, P. M. (1989), “Plasma Modiﬁcation of Mica: Forces between

Fluorocarbon Surfaces in Water and a Nonpolar Liquid,” J. Phys. Chem. 93, 6121–6125.

Pashley, R. M. (1981), “DLVO and Hydration Forces between Mica Surfaces in Li

, Na

, K

, and Cs

Electrolyte Solutions: A Correlation of Double-Layer and Hydration Forces with Surface Cation

Exchange Properties,” J. Colloid Interf. Sci. 83, 531–546. Also “Hydration Forces between Solid

Surfaces in Aqueous Electrolyte Solutions,” J. Colloid Interf. Sci. 80, 153–162.

Pashley, R. M. (1982), “Hydration Forces between Mica Surfaces in Electrolyte Solutions,” Adv. Colloid

Interf. Sci. 16, 57–62.

Pashley, R. M. (1985), “The Effects of Hydrated Cation Adsorption on Surface Forces between Mica

Crystals and Its Relevance to Colloidal Systems,” Chem. Scr. 25, 22–27.

Pashley, R. M., McGuiggan, P. M., Ninham, B. W., and Evans, D. F. (1985), “Attractive Forces between

Uncharged Hydrophobic Surfaces: Direct Measurements in Aqueous Solutions,” Science 229,

1088–1089.

Patel, S. S. and Tirrell, M. (1989), “Measurement of Forces between Surfaces in Polymer Fluids,” Annu.

Rev. Phys. Chem. 40, 597–635.

Persson, B. N. J. (1994), “Theory of Friction — The Role of Elasticity in Boundary Lubrication,” Phys.

Rev. B 50, 4771–4786.

Ploehn, H. J. and Russel, W. B. (1990), “Interactions between Colloidal Particles and Soluble Polymers,”

Adv. Chem. Eng. 15, 137–227.

Pollock, H. M., Barquins, M., and Maugis, D. (1978), “The Force of Adhesion between Solid Surfaces in

Contact,” Appl. Phys. Lett. 33, 798–799.

Quirk, J. P. (1968), “Particle Interaction and Soil Swelling,” Isr. J. Chem. 6, 213–234.

Rabin, Y. and Hersht, I. (1993), “Thin Liquid Layers in Shear — Non-Newtonian Effects,” Physica A 200,

708–712.

Rabinovich, Ya. I. and Derjaguin, B. V. (1988), “Interaction of Hydrophobized Filaments in Aqueous

Electrolyte Solutions,” Colloids Surf. 30, 243–251.

Rabinowicz, E. (1958), “The Intrinsic Variables Affecting the Stick-Slip Process,” Proc. Phys. Soc. 71,

668–675.

Rabinowicz, E. (1965), Friction and Wear of Materials, John Wiley, New York, chap. 4.

Rhykerd, C., Schoen, M., Diestler, D., and Cushman, J. (1987), “Epitaxy in Simple Classical Fluids in

Micropores and Near-Solid Surfaces,” Nature 330, 461–463.

Robbins, M. O. and Thompson, P. A. (1991), “Critical Velocity of Stick-Slip Motion,” Science 253, 916.

Rozman, M. G., Urbakh, M., Klafter, J. (1996), “Origin of Stick-Slip Motion in a Driven Two-Wave

Potential,” Phys. Rev. E 54, 6485–6494.

Rozman, M. G., Urbakh, M., and Klafter, J. (1997), “Stick-Slip Dynamics as a Probe of Frictional Forces,”

Europhys. Lett. 39, 183–188.

Sampson, J., Morgan, F., Reed, D., and Muskat, M. (1943), “Friction Behavior during the Slip Portion

of the Stick-Slip Process,” J. Appl. Phys. 14, 689–700.

Schiby, D. and Ruckenstein, E. (1983), “The Role of the Polarization Layers in Hydration Forces,” Chem.

Phys. Lett. 95, 435–438.

Schoen, M., Dietsler, D. J., and Cushman, J. H. (1987), “Fluids in Micropores. I. Structure of a Simple

Classical Fluid in a Slit-Pore,” J. Phys. Chem. 87, 5464–5476.

Schoen, M., Rhykerd, C., Diestler, D., and Cushman, J. (1989), “Shear Forces in Molecularly Thin Films,”

Science 245, 1223–1225.

Shanahan, M. E. R., Schreck, P., and Schultz, J. (1988), “Effets de la Réticulation Sur L’Adhésion d’un

Élastomére,” C.R. Acad. Sci. Paris 306II, 1325–1330.

Smith, C. P., Maeda, M., Atanasoska, L., White, H. S., and McClure, D. J. (1988), “Ultrathin Platinum

Films on Mica and the Measurement of Forces at the Platinum/Water Interface,” J. Phys. Chem.

92, 199–205.

Snook, I. K. and van Megen, W. (1979), “Structure of Dense Liquids at Solid Interfaces,” J. Phys. Chem.

70, 3099–3105.

Snook, I. K. and van Megen, W. (1980), “Solvation Forces in Simple Dense Fluids. I,” J. Phys. Chem. 72,

2907–2913.

Snook, I. K. and van Megen, W. (1981), “Calculation of Solvation Forces between Solid Particles Immersed

in Simple Liquid,” J. Chem. Soc. Faraday Trans. II 77, 181–190.

Stanley, H. E. and Teixeira, J. (1980), “Interpretation of the Unusual Behavior of H

O and D

O at Low

Temperatures: Tests of a Perculation Model,” J. Phys. Chem. 73, 3404–3422.

Steinberg, S., Ducker, W., Vigil, G., Hyukjin, C., Frank, C., Tseng, W., Clarke, D. R., and Israelachvili,

J. N. (1993), “Van der Waals Epitaxial Growth of α — Alumina Nanocrystals on Mica,” Science

260, 656–659.

Sutcliffe, M. J., Taylor, S. R., and Cameron, A. (1978), “Molecular Asperity Theory of Boundary Friction,”

Wear 51, 181–192.

Tabor, D. (1982), “The Role of Surface and Intermolecular Forces in Thin Film Lubrication,” in Microscopic

Aspects of Adhesion and Lubrication, pp. 651–679, Societe de Chimie Physique, Paris.

Tarazona, P. and Vicente, L. (1985), “A Model for the Density Oscillations in Liquids between Solid Walls,”

Mol. Phys. 56 557–572.

Thompson, P. and Robbins, M. (1990), “Origin of Stick-Slip Motion in Boundary Lubrication,” Science

250, 792–794.

Thompson, P. A., Grest, G. S., and Robbins, M. O. (1992), “Phase Transitions and Universal Dynamics

in Conﬁned Films,” Phys. Rev. Lett. 68, 3448–3451. Also (1993), in Thin Films in Tribology, Pro-

ceedings of the 19th Leeds-Lyon Symposium on Tribology (D. Dawson, C. M. Taylor, and M. Godet,

eds.), pp. 1–14, Elsevier, Amsterdam.

Thompson, P. A., Robbins, M. O., and Grest, G. S. (1995), “Structure and Shear Response in Nanometer-

Thick Films,” Isr. J. Chem. 35, 93–106.

Tomlinson, G. A. (1929), “A Molecular Theory of Friction,” Philos. Mag. 7, 905–939.

Urbakh, M., Daikhin, L., and Klafter, J. (1995), “Dynamics of Conﬁned Liquids under Shear,” Phys. Rev.

E 51, 2137–2141.

Van Alsten, J. and Granick, S. (1988), “Molecular Tribometry of Ultrathin Liquid Films,” Phys. Rev. Lett.

61, 2570–2573.

Van Alsten, J. and Granick, S. (1990a), “The Origin of Static Friction in Ultrathin Liquid Films,” Langmuir

6, 876–880.

Van Alsten, J. and Granick, S. (1990b), “Shear Rheology in a Conﬁned Geometry — Polysiloxane Melts,”

Macromolecules 23, 4856–4862.

van Megen, W. and Snook, I. K. (1979), “Calculation of Solvation Forces between Solid Particles Immersed

in a Simple Liquid,” J. Chem. Soc. Faraday Trans. II 75, 1095–1102.

van Megen, W. and Snook, I. K. (1981), “Solvation Forces in Simple Dense Fluids. II. Effect of Chemical

Potential,” J. Phys. Chem. 74, 1409–1411.

van Olphen, H. (1977), An Introduction to Clay Colloid Chemistry, 2nd ed., Wiley, New York, chap. 10.

Velamakanni, B. V., Chang, J. C., Lange, F. F., and Pearson, D. S. (1990), “New Method for Efﬁcient

Colloidal Particle Packing via Modulation of Repulsive Lubricationg Hydration Forces,” Langmuir

6, 1323–1325.

Viani, B. E., Low, P. F., and Roth, C. B. (1983), “Direct Measurement of the Relation between Interlayer

Force and Interlayer Distance in the Swelling of Montmorillonites,” J. Colloid Interf. Sci. 96,

229–244.

Vigil, G., Xu, Z., Steinberg, S., and Israelachvili, J. (1994), “Interactions of Silica Surfaces,” J. Colloid Interf.

Sci. 165, 367–385.

Warnock, J., Awschalom, D. D., and Shafer, M. W. (1986), “Orientational Behavior of Molecular Liquids

in Restricted Geometries,” Phys. Rev. B 34, 475–478.

Weisenhorn, A. L., Hansma, P. K., Albrecht, T. R., and Quate, C. F. (1989), “Forces in Atomic Force

Microscopy in Air and Water,” Appl. Phys. Lett. 54, 2651–2653.

Wilchek, M. and Bayer, E. B. (1990), Methods in Enzymology Vol. 184: Avidin-Biotin Technology, Academic

Press, San Diego, 5–45.

Yoshizawa, H. and Israelachvili, J. N. (1993), “Fundamental Mechanisms of Interfacial Friction II: Stick-

Slip Friction of Spherical and Chain Molecules,” J. Phys. Chem. 97, 11300–11313.

Yoshizawa, H., Chen, Y. L., and Israelachvili, J. (1993), “Fundamental Mechanisms of Interfacial Friction I:

Relation between Adhesion and Friction,” J. Phys. Chem. 97, 4128–4140.

Zisman, W. A. (1963), “Inﬂuence of Constitution on Adhesion,” Ind. Eng. Chem. 55(10), 19–38.

Zisman, W. A. and Fox, J. (1952), “The Spreading of Liquids on Low-Energy Surfaces. III. Hydrocarbon

Surfaces,” J. Colloid Sci. 7, 428–442.

Bhushan, B. “Nanomechanical Properties of Solid Surfaces and Thin Films”

Handbook of Micro/Nanotribology.

Ed. Bharat Bhushan

Boca Raton: CRC Press LLC, 1999
