Matrices and Tensors 691
(A)[(B) + (C)] = (A)(B) + (A)(C) (E.13)
|(A)(B)| = |A||B| (E.14)
|α(A)| = α
n
|A| (E.15)
(A) + (0) = (A) (E.16)
(0)(A) = (A)(0) = (0) (E.17)
(I)(A) = (A)(I) = (A) (E.18)
E.3 Matrix Functions
1. The negative of a matrix (A) is the matrix obtained by taking the negative
value of all elements of (A), and is denoted by −(A),
−(A) = (−a
ij
)
mn
, and (A)+(−(A)) = 0, −(−(A)) = (A) (E.19)
2. The conjugate of a matrix (A) is the matrix obtained by taking the con-
jugate of all elements of (A), and is denoted by (A)
∗
,
(A)
∗
= (a
∗
ij
)
mn
(E.20)
((A)
∗
)
∗
= (A) (E.21)
((A)(B))
∗
= (A)
∗
(B)
∗
(E.22)
3. The transpose of a matrix (A) is the matrix obtained by interchanging
the rows of (A) and the columns of (A) and vice versa, and is denoted
by (A)
T
,
(A)
T
= (a
ji
)
nm
(E.23)
((A)
T
)
T
= (A) (E.24)
((A)(B))
T
= (B)
T
(A)
T
(E.25)
(A)
∗T
= (A)
T∗
(E.26)
4. The conjugate transpose of a matrix (A) is the matrix obtained by apply-
ing the conjugate and transpose operations on (A) simultaneously, and
is denoted by (A)
†
,
(A)
†
= (A)
∗T
(E.27)
((A)(B))
†
= (B)
†
(A)
†
(E.28)
5. The adjoint of a square matrix (A) is a square matrix whose elements is
equal to the elements of the algebraic complement A
ij
in the matrix
(A), and is denoted by (A)
a
,
(A)
a
= (A
ij
)
nn
(E.29)
(A)(A)
a
= |A|(I) (E.30)
692 Appendix E
6. The inverse of a matrix (A) is the matrix that the product of (A) and its
inverse matrix is a unit matrix. The matrix (A) has a unique inverse
only if it is square and nonsingular, and is denoted by (A)
−1
,
(A)(A)
−1
= (A)
−1
(A) = (I) (E.31)
(A)
−1
=
1
|A|
(A)
a
=
1
|A|
(A
ij
)
nn
(E.32)
((A)
−1
)
−1
= (A) (E.33)
(α(A))
−1
=
1
α
(A)
−1
(E.34)
((A)(B))
−1
= (B)
−1
(A)
−1
(E.35)
((A)
∗
)
−1
= ((A)
−1
)
∗
, ((A)
T
)
−1
= ((A)
−1
)
T
, ((A)
†
)
−1
= ((A)
−1
)
†
(E.36)
E.4 Special Matrices
1. Real matrix,
(A)
∗
= (A), all a
ij
are real
2. Symmetric matrix,
(A)
T
= (A), a
ij
= a
ji
3. Skew-symmetric matrix,
(A)
T
= −(A), a
ij
= 0, for i = j, a
ij
= −a
ji
, for i 6= j
4. Hermitian matrix,
(A)
†
= (A), (A)
T
= (A)
∗
5. Skew-Hermitian matrix,
(A)
†
= −(A), (A)
T
= −(A)
∗
6. Unitary matrix or U matrix,
(A)
†
(A) = (I), (A)
†
= (A)
−1
, (A) = ((A)
†
)
−1
7. Orthogonal matrix is a real unitary matrix,
(A)
T
(A) = (I), (A)
T
= (A)
−1
, (A) = ((A)
T
)
−1
Matrices and Tensors 693
E.5 Tensors and vectors
1. A vector can be expressed by a row matrix or column matrix with three
elements, and is denoted by a italic bold-face letter A,
A = [A
x
A
y
A
z
] =
A
x
A
y
A
z
(E.37)
2. A tensor of rank 2 can be expressed by a 3 × 3 square matrix and is
denoted by a bold face letter a,
a =
a
xx
a
xy
a
xz
a
yx
a
yy
a
yz
a
zx
a
zy
a
zz
(E.38)
3. Vector and tensor operations
a · A =
a
xx
a
xy
a
xz
a
yx
a
yy
a
yz
a
zx
a
zy
a
zz
A
x
A
y
A
z
(E.39)
A · a = [A
x
A
y
A
z
]
a
xx
a
xy
a
xz
a
yx
a
yy
a
yz
a
zx
a
zy
a
zz
(E.40)
a · b =
a
xx
a
xy
a
xz
a
yx
a
yy
a
yz
a
zx
a
zy
a
zz
b
xx
b
xy
b
xz
b
yx
b
yy
b
yz
b
zx
b
zy
b
zz
(E.41)
A · a · A
∗
= A
∗
· a
T
· A (E.42)
A · a
∗
· A
∗
= A
∗
· a
†
· A (E.43)
A · a · B = B · a
T
· A (E.44)
A · a
∗
· B = B · a
†
· A (E.45)
Physical Constants
Physical constant Symbol
Speed of light in vacuum c 299792458 m/s
≈ 3 × 10
8
m/s
Vacuum permittivity ²
0
1
4πc
2
× 10
7
F/m
≈ 8.85418782 × 10
−12
F/m
Vacuum permeability µ
0
4π × 10
−7
H/m
≈ 12.5663706 × 10
−7
H/m
Vacuum wave imp edance η
0
4πc × 10
−7
Ω
≈ 120π Ω
Electron charge magnitude e 1.6021892 × 10
−19
C
Electron rest mass m 9.109534 × 10
−31
kg
Electron charge to mass ratio e/m 1.75883 × 10
11
C/kg
Proton rest mass m 1.6726485 × 10
−27
kg
Gyromagnetic ratio γ 1.75883 × 10
11
rad/(s·T)

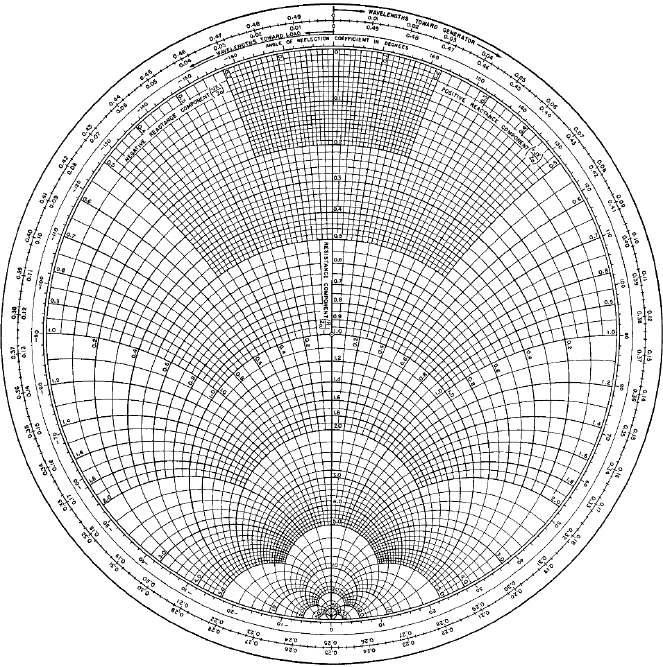

Smith Chart
Bibliography
