638 SOLAR INSOLATION TABLES BY CITY

San Juan, PR Latitude 18.43

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 4.5 5.1 5.8 6.1 5.7 6.0 6.0 6.0 5.6 5.0 4.5 4.1 5.4

Lat 5.1 5.6 6.1 6.1 5.4 5.5 5.6 5.8 5.7 5.4 5.1 4.8 5.5

Lat + 15 5.5 5.8 6.0 5.7 4.9 4.8 5.0 5.3 5.5 5.5 5.4 5.2 5.4

90 4.2 3.9 3.1 2.0 1.5 1.5 1.5 1.7 2.5 3.3 3.9 4.1 2.8

1-Axis (Lat) 6.3 6.9 7.7 7.8 6.9 7.2 7.3 7.4 7.1 6.7 6.1 5.7 6.9

Temp. (

◦

C) 28.4 28.7 29.1 29.9 30.7 31.4 31.4 31.5 31.6 31.3 29.9 28.8 30.2

Charleston, SC Latitude 32.90

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 3.5 4.3 5.3 6.2 6.2 6.1 6.0 5.6 5.1 4.8 3.9 3.4 5.0

Lat 4.0 4.7 5.5 6.1 5.8 5.6 5.6 5.4 5.2 5.2 4.5 3.9 5.1

Lat + 15 4.3 4.9 5.4 5.7 5.2 4.9 4.9 4.9 5.0 5.2 4.7 4.2 4.9

90 3.7 3.9 3.6 3.1 2.4 2.1 2.2 2.5 3.1 3.9 4.0 3.8 3.2

1-Axis (Lat) 4.8 5.8 6.9 8.0 7.7 7.3 7.2 6.8 6.4 6.3 5.3 4.6 6.4

Temp. (

◦

C) 14.3 16.1 20.3 24.3 28.2 30.9 32.3 31.7 29.4 25.1 20.8 16.4 24.2

Nashville, TN Latitude 36.12

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 3.1 3.9 4.7 5.7 6.0 6.4 6.2 5.9 5.2 4.6 3.3 2.8 4.8

Lat 3.5 4.2 4.8 5.6 5.7 5.9 5.8 5.7 5.3 4.9 3.6 3.1 4.9

Lat + 15 3.7 4.3 4.7 5.2 5.0 5.1 5.1 5.2 5.0 5.0 3.8 3.4 4.6

90 3.3 3.5 3.3 3.1 2.5 2.3 2.4 2.9 3.3 3.9 3.3 3.0 3.1

1-Axis (Lat) 4.1 5.0 6.0 7.2 7.5 7.8 7.5 7.3 6.5 6.0 4.2 3.6 6.1

Temp. (

◦

C) 7.7 10.4 16.2 21.6 26.0 30.3 31.9 31.3 28.1 22.5 15.8 10.1 21.0

Brownsville, TX Latitude 25.90

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 3.2 4.0 4.8 5.4 5.7 6.2 6.4 6.0 5.4 4.9 3.9 3.1 4.9

Lat 3.6 4.3 5.0 5.3 5.4 5.7 5.9 5.8 5.5 5.3 4.4 3.6 5.0

Lat + 15 3.8 4.4 4.9 5.0 4.8 5.0 5.2 5.3 5.3 5.4 4.6 3.8 4.8

90 3.0 3.2 3.0 2.3 1.8 1.6 1.7 2.1 2.9 3.7 3.6 3.1 2.7

1-Axis (Lat) 4.2 5.2 6.1 6.6 6.8 7.6 7.9 7.7 7.0 6.6 5.3 4.1 6.3

Temp. (

◦

C) 20.5 22.3 25.8 28.9 31.0 32.8 34.1 34.2 32.4 29.6 25.7 22.1 28.3

El Paso, TX Latitude 31.80

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 4.6 5.6 6.6 7.4 7.8 7.7 7.2 6.9 6.4 5.9 4.9 4.4 6.3

Lat 5.3 6.2 7.0 7.3 7.3 7.1 6.7 6.7 6.6 6.4 5.7 5.1 6.5

Lat + 15 5.8 6.5 6.9 6.8 6.4 6.0 5.8 6.1 6.3 6.6 6.1 5.6 6.2

90 5.1 5.2 4.6 3.5 2.5 2.1 2.2 2.8 3.8 4.9 5.2 5.1 3.9

1-Axis (Lat) 6.5 7.9 9.2 10.1 10.4 10.2 9.2 9.0 8.7 8.2 7.0 6.3 8.6

Temp. (

◦

C) 13.4 16.8 21.1 25.9 30.6 35.8 35.6 34.2 30.6 25.8 19.1 14.2 25.3

Radiation data measured in kWh/m

-day, average daily maximum temperature (

◦

C).

SOLAR INSOLATION TABLES BY CITY 639

Fort Worth, TX Latitude 32.83

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 3.8 4.5 5.3 5.9 6.2 6.7 6.9 6.5 5.7 5.0 4.0 3.5 5.3

Lat 4.3 4.9 5.5 5.7 5.8 6.2 6.4 6.3 5.8 5.4 4.5 4.1 5.4

Lat + 15 4.6 5.1 5.4 5.3 5.2 5.3 5.7 5.6 5.7 5.5 4.8 4.4 5.2

90 4.0 4.0 3.6 2.9 2.3 2.1 2.3 2.8 3.4 4.1 4.1 4.0 3.3

1-Axis (Lat) 5.1 6.0 6.9 7.4 7.7 8.4 8.8 8.5 7.4 6.7 5.5 4.9 6.9

Temp. (

◦

C) 12.3 14.9 19.9 24.6 28.3 33.3 35.8 35.7 31.0 25.8 19.3 14.2 24.6

Midland, TX Latitude 31.93

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 4.3 5.1 6.2 6.8 7.0 7.1 6.9 6.6 5.9 5.5 4.6 4.1 5.8

Lat 5.0 5.7 6.5 6.7 6.5 6.5 6.4 6.4 6.0 6.0 5.3 4.8 6.0

Lat + 15 5.4 5.9 6.4 6.2 5.8 5.6 5.5 5.8 5.8 6.1 5.6 5.2 5.8

90 4.7 4.7 4.2 3.2 2.4 2.0 2.2 2.7 3.5 4.5 4.8 4.7 3.6

1-Axis (Lat) 6.1 7.1 8.4 9.0 9.0 9.1 9.0 8.7 7.8 7.6 6.5 5.8 7.9

Temp. (

◦

C) 13.6 16.4 21.8 26.6 30.8 34.1 35.2 34.5 29.7 25.2 19.0 14.7 25.1

San Antonio, TX Latitude 29.53

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 3.7 4.5 5.2 5.7 5.9 6.5 6.7 6.6 5.8 5.1 4.1 3.5 5.3

Lat 4.3 4.9 5.4 5.6 5.6 6.0 6.3 6.3 5.9 5.5 4.6 4.1 5.4

Lat + 15 4.5 5.0 5.3 5.2 5.0 5.2 5.5 5.8 5.7 5.6 4.9 4.4 5.2

90 3.8 3.8 3.4 2.7 2.1 1.9 2.0 2.6 3.3 4.0 4.0 3.8 3.1

1-Axis (Lat) 5.1 6.0 6.8 7.0 7.1 7.9 8.4 8.3 7.5 6.9 5.6 4.8 6.8

Temp. (

◦

C) 16.0 18.7 23.1 26.8 29.6 33.2 35.0 35.2 31.8 27.6 22.2 17.5 26.4

Salt Lake City, UT Latitude 40.77

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 2.9 4.0 5.0 5.9 6.6 7.2 7.3 7.0 6.3 5.0 3.3 2.5 5.2

Lat 3.2 4.3 5.2 5.8 6.2 6.6 6.7 6.7 6.4 5.4 3.7 2.9 5.3

Lat + 15 3.4 4.4 5.1 5.4 5.5 5.6 5.8 6.1 6.1 5.5 3.9 3.1 5.0

90 3.2 3.9 3.9 3.5 3.0 2.8 2.9 3.6 4.3 4.5 3.5 2.9 3.5

1-Axis (Lat) 3.7 5.1 6.5 7.7 8.7 9.6 9.8 9.4 8.6 6.8 4.3 3.3 7.0

Temp. (

◦

C) 2.4 6.4 11.2 16.3 22.2 28.2 33.4 31.9 26.2 18.9 10.4 3.2 17.6

Sterling, VA Latitude 38.95

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 3.1 3.9 4.7 5.4 5.8 6.1 6.0 5.7 5.0 4.3 3.2 2.7 4.7

Lat 3.5 4.2 4.8 5.3 5.5 5.7 5.6 5.5 5.1 4.6 3.6 3.1 4.7

Lat + 15 3.7 4.3 4.7 4.9 4.8 4.9 4.9 5.0 4.9 4.6 3.7 3.3 4.5

90 3.4 3.7 3.5 3.1 2.6 2.5 2.6 2.9 3.3 3.7 3.3 3.0 3.1

1-Axis (Lat) 4.0 5.0 6.0 6.8 7.1 7.4 7.2 6.9 6.3 5.6 4.2 3.5 5.8

Temp. (

◦

C) 4.5 6.6 12.6 18.4 23.5 28.2 30.6 29.7 26.1 19.8 13.7 7.2 18.4

Radiation data measured in kWh/m

-day, average daily maximum temperature (

◦

C).

640 SOLAR INSOLATION TABLES BY CITY

Burlington, VT Latitude 44.47

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 2.6 3.6 4.5 5.0 5.6 5.9 6.1 5.6 4.7 3.5 2.2 1.9 4.3

Lat 2.9 3.9 4.7 4.9 5.3 5.4 5.6 5.3 4.8 3.7 2.4 2.1 4.3

Lat + 15 3.1 4.1 4.6 4.5 4.6 4.7 4.9 4.8 4.5 3.7 2.4 2.2 4.0

90 3.0 3.8 3.9 3.2 2.9 2.7 2.9 3.2 3.4 3.1 2.2 2.2 3.0

1-Axis (Lat) 3.3 4.6 5.8 6.3 7.0 7.4 7.7 7.1 6.0 4.4 2.6 2.4 5.4

Temp. (

◦

C) −3.8 −2.5 4.1 12.0 19.6 24.3 27.3 25.5 20.6 13.9 6.7 −0.9 12.2

Seattle, WA Latitude 47.45

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 1.5 2.3 3.5 4.6 5.4 5.7 6.1 5.6 4.7 3.0 1.7 1.3 3.8

Lat 1.6 2.5 3.6 4.4 5.1 5.2 5.7 5.4 4.7 3.2 1.8 1.4 3.7

Lat + 15 1.7 2.5 3.5 4.1 4.5 4.5 4.9 4.9 4.5 3.2 1.8 1.4 3.5

90 1.5 2.2 2.8 3.0 3.0 2.8 3.1 3.4 3.4 2.7 1.7 1.3 2.6

1-Axis (Lat) 1.8 2.8 4.3 5.5 6.7 7.0 7.9 7.2 5.9 3.7 2.0 1.5 4.7

Temp. (

◦

C) 7.2 9.7 11.5 14.0 17.7 21.1 24.0 24.0 20.7 15.4 10.3 7.3 15.2

Madison, WI Latitude 43.13

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 3.0 3.9 4.5 5.1 5.8 6.2 6.2 5.7 4.8 3.8 2.5 2.3 4.5

Lat 3.4 4.3 4.7 5.0 5.5 5.7 5.8 5.5 4.8 4.0 2.8 2.6 4.5

Lat + 15 3.6 4.4 4.6 4.6 4.8 4.9 5.0 5.0 4.6 4.0 2.9 2.8 4.3

90 3.5 4.0 3.7 3.2 2.9 2.8 2.9 3.2 3.4 3.3 2.6 2.7 3.2

1-Axis (Lat) 3.9 5.0 5.8 6.4 7.3 7.8 7.7 7.1 6.0 4.8 3.2 3.0 5.7

Temp. (

◦

C) −4.0 −1.1 5.3 13.7 20.5 25.7 28.0 26.4 21.9 15.5 6.7 −1.2 13.1

Lander, WY Latitude 42.82

◦

Tilt Jan Feb Mar Apr May Jun July Aug Sept Oct Nov Dec Year

Lat − 15 3.7 4.8 5.7 6.2 6.5 7.0 7.0 6.8 6.1 5.1 3.8 3.4 5.5

Lat 4.3 5.3 6.0 6.1 6.1 6.4 6.5 6.5 6.2 5.5 4.3 4.0 5.6

Lat + 15 4.6 5.6 5.9 5.7 5.4 5.5 5.6 5.9 6.0 5.6 4.6 4.3 5.4

90 4.5 5.1 4.8 4.0 3.2 2.9 3.1 3.6 4.3 4.7 4.3 4.3 4.1

1-Axis (Lat)

5.0 6.5 7.6 8.3 8.5 9.4 9.5 9.3 8.3 6.9 5.2 4.6 7.4

Temp. (

◦

C) −0.4 2.8 7.6 13.2 18.9 25.2 30.1 28.8 22.4 15.4 5.8 0.1 14.2

The 1-axis tracker is south-facing at a tilt angle equal to its latitude.

Source: NREL (1994). Solar Radiation Data Manual for Flat-Plate and Concentrating Collectors.

APPENDIX F

MAPS OF SOLAR INSOLATION

Renewable and Efﬁcient Electric Power Systems. By Gilbert M. Masters

ISBN 0-471-28060-7

 2004 John W iley & Sons, Inc.

641

20 0 20 40 60 80 100 120 140 160 180 160 140 120 100 80 40 2060

AUTUMN - Tilt angle equals the latitude angle

Daily total solar radiation incident on a tilted surface in kWH/m

/day

1.0

2.0

2.5

3.5

3.0

4.0

5.0

6.0

5.0

6.0

7.0

6.5

5.5

6.5

5.5

4.5

3.5

2.5

4.5

6.0

5.0

4.0 3.0

3.0

4.0

5.0

6.0

7.0

8.0

7.5

6.5

5.5

6.0

5.0

4.5

5.0

6.0

5.0

3.0

2.0

4.0

5.5

4.5

3.5

2.5

1.5

6.5

5.5

6.5

3.5

4.5

5.5

5.0

6.0

7.0

7.5

6.0

7.0

7.5

6.5

4.5

6.5

4.5

5.5

4.5

5.5

5.0

7.0

2.0

1.0

1.5

Figure Source: Thomas, 1987

642

20 0 20 40 60 80 100 120 140 160 180 160 140 120 100 80 40 2060

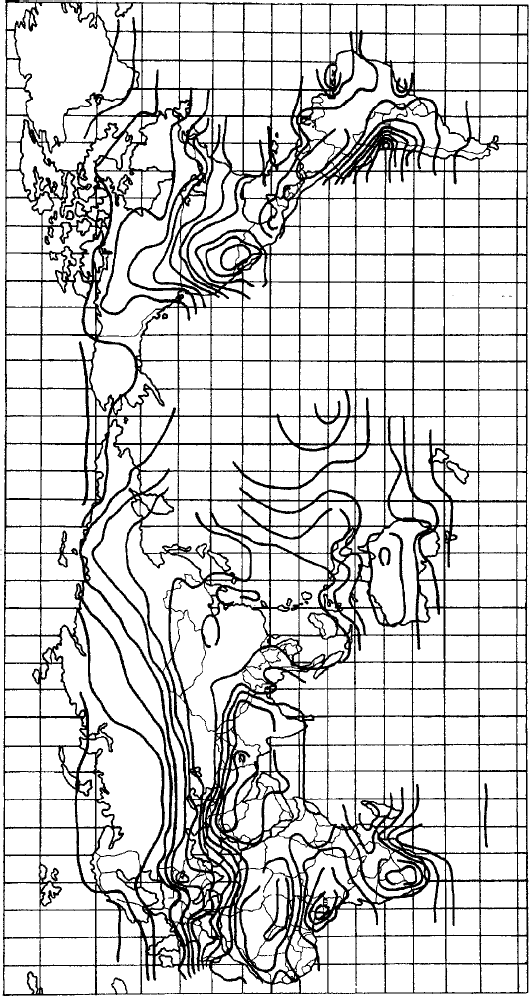

WINTER - Tilt angle equals the latitude angle

Daily total solar radiation incident on a tilted surface in kWH/m

/day

1.5

2.0

3.0

4.0

5.0

2.5

3.5

2.5

4.5

2.0

3.0

4.0

5.0

6.0

7.0

6.0

4.0

4.5

6.0

5.0

6.0

7.0

6.0

7.5

6.5

5.5

4.5

3.5

5.0

4.0

3.0

2.0

2.5

2.0

5.5

4.5

3.5

2.5

3.0

2.0

6.5

6.0

5.0

4.0

5.0

5.5

4.5

5.5

6.5

5.5

4.5

5.0

6.5

5.5

4.5

5.5

6.5

2.5

3.5

4.5

5.5

643

20 0 20 40 60 80 100 120 140 160 180 160 140 120 100 80 40 2060

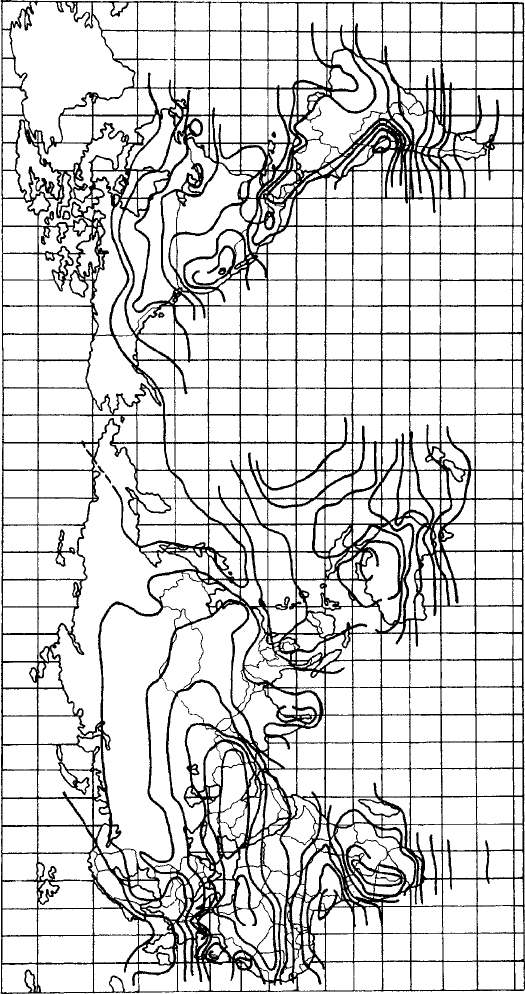

SPRING - Tilt angle equals the latitude angle

Daily total solar radiation incident on a tilted surface in kWH/m

/day

3.5

4.5

4.0

4.5

5.0

7.0

6.0

5.0

4.0

5.0

6.0

5.0

6.0

7.0

8.0

6.0

5.0

4.0

5.0

6.0

7.0

5.0

4.0

6.5

5.5

4.5

5.5

3.5

2.5

4.05.0

6.0

7.0

4.0

3.0

6.5

4.5

7.0

7.5

5.5

6.5

6.0

7.0

7.5 7.5

6.5

4.5

6.5

5.5

4.5

4.0

5.0

6.0

5.0

6.5

5.5

4.5

5.5

3.5

6.5

5.5

644

20 0 20 40 60 80 100 120 140 160 180 160 140 120 100 80 40 2060

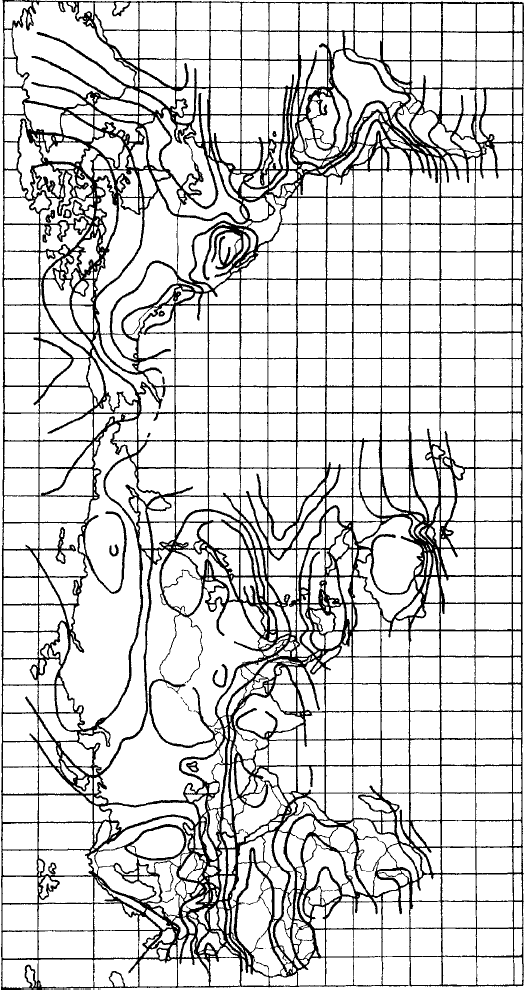

SUMMER - Tilt angle equals the latitude angle
